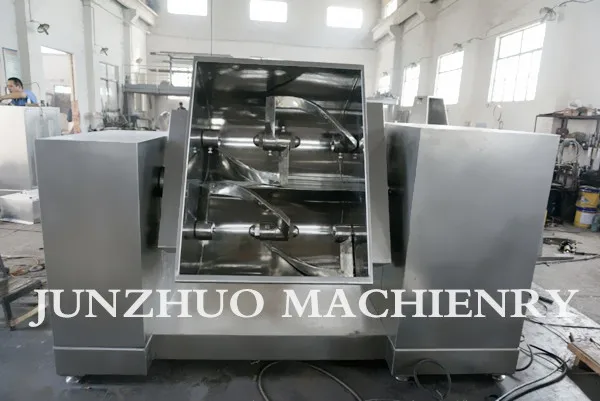

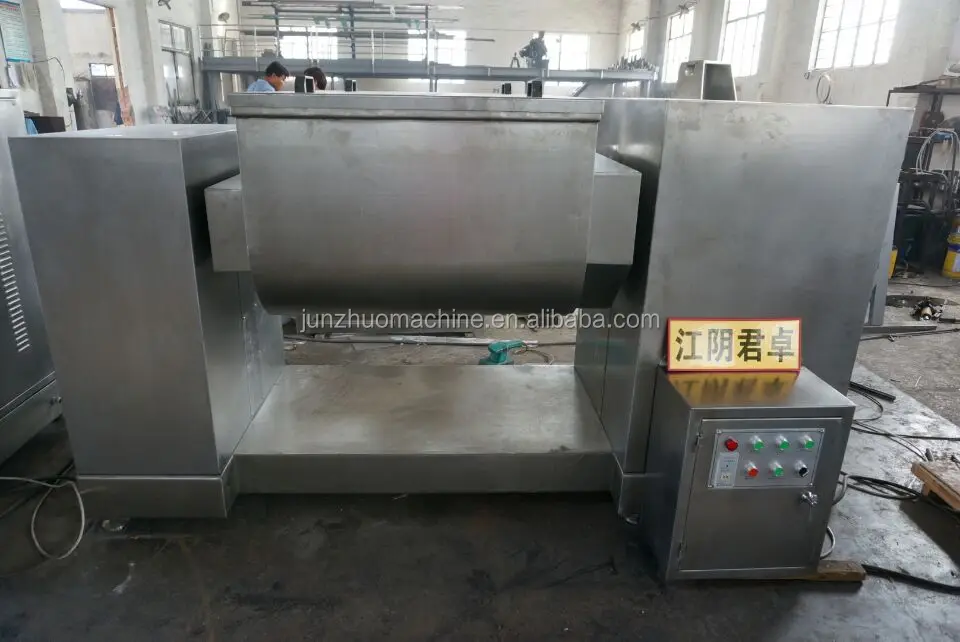

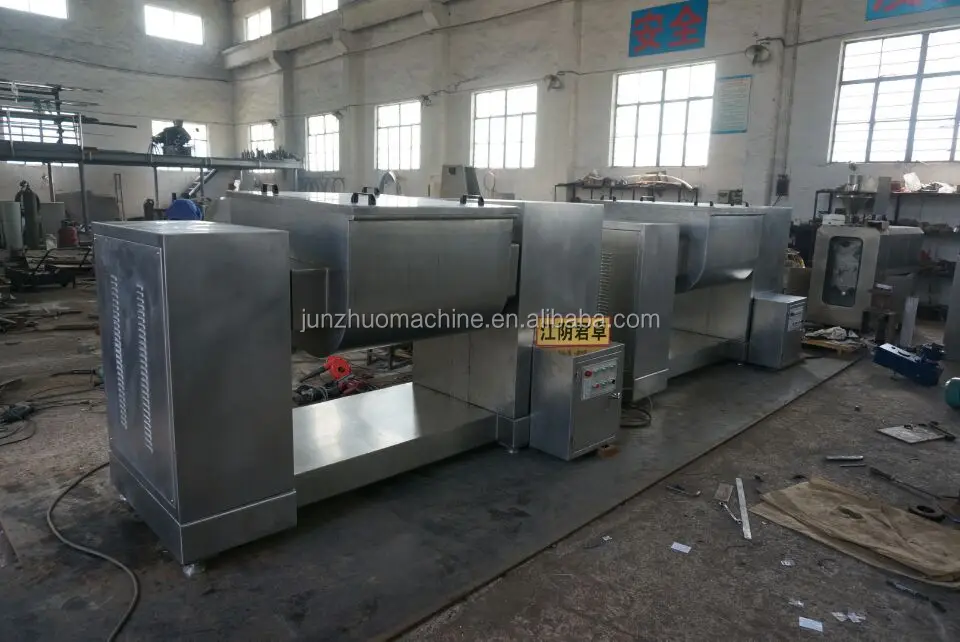

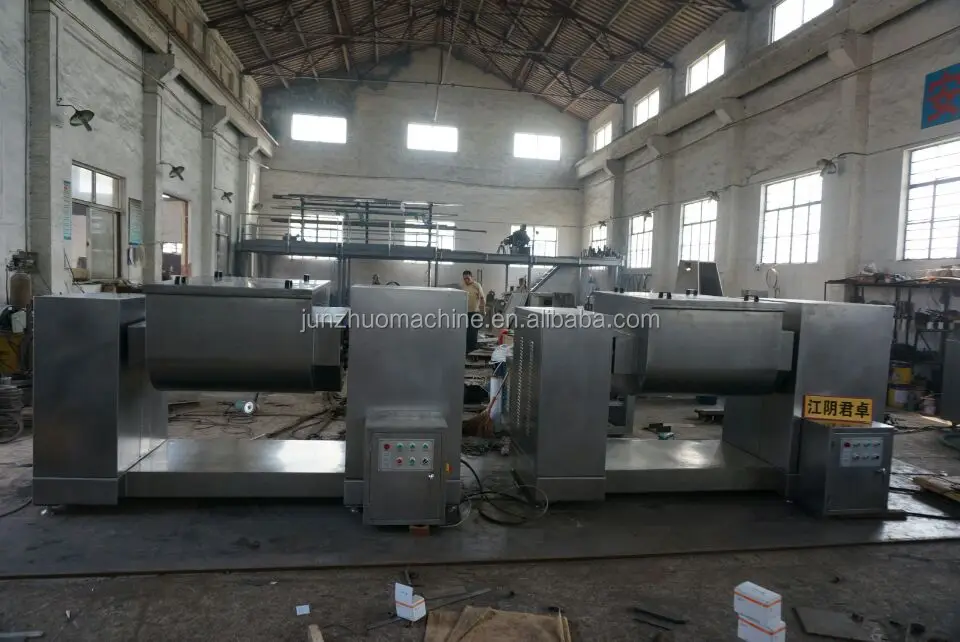

Main Application: CH-S series double arm mixer is a new equipment improved on the basis of CH series single arm mixer.This type of mixers are generally used for dry powders, wet materials and viscous pastes. The mixing shaft is provided with a sealing device at both ends to prevent the material from leaking.This high performance equipment is constructed with qualified stainless steel, widely used in pharmaceutical, chemical, food and other industries.

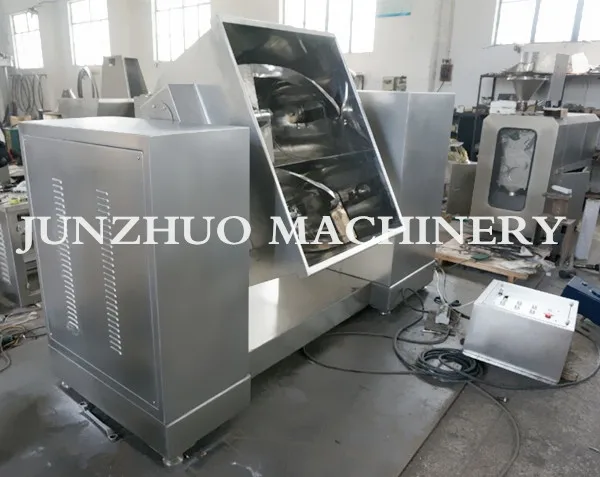

Working Principle: The two intermeshing S-shaped arms of the trough mixer mixing bowl make it perfect for intensive mixing of different proportions materials.The two arms have different rotation speed so that the materials are mixed more uniform. By electrical control, it can be automatically stopped when the setting time is reached. The automatic discharging system makes it easy operation and clean-up.
Technical Parameter
Model
Max Loading Volume
Operation Volume
Rotatio Speed
Motor Power
Discharge Motor Power
Discharge Angle
Overall Dimension
Approx Weight
SCH-200
230L
200L
24rpm
5.5kw
1.1kw
360
1660*750*950mm
1000kg
SCH-400
440L
400L
18,22rpm
different shaft speed
11kw
1.5kw
360
2400*880*1450mm
1500kg
SCH-600
650L
600L
15kw
2.2kw
360
2700*950*1600mm
2000kg
Working Principle
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
