Big capacity automatic industrial caramel flavored gas / electric popcorn machine commercial popcorn making machine
- Category: Popcorn machine >>>
- Supplier: Shandong Longze Machinery Co. Ltd
Share on (60717775604):
Product Overview
Description
Big capacity automatic industrial caramel flavored gas electric popcorn machine commercial popcorn making machine
TO PROTECT OUR PATENTS, MORE DETAILED INFO. WILL BE PROVIDED AFTER CONTACTING OUR STAFF.
Longze designed and manufactured popcorn machines with gas heating and electromagnetic induction heating separately aim to meet customers' demand for big capacity in an economical way. It can be combined with our production line to reach even bigger capacity upto 6 tons per day. If less productivity is required, it can also work along with a short production line with min. length 7 meters.

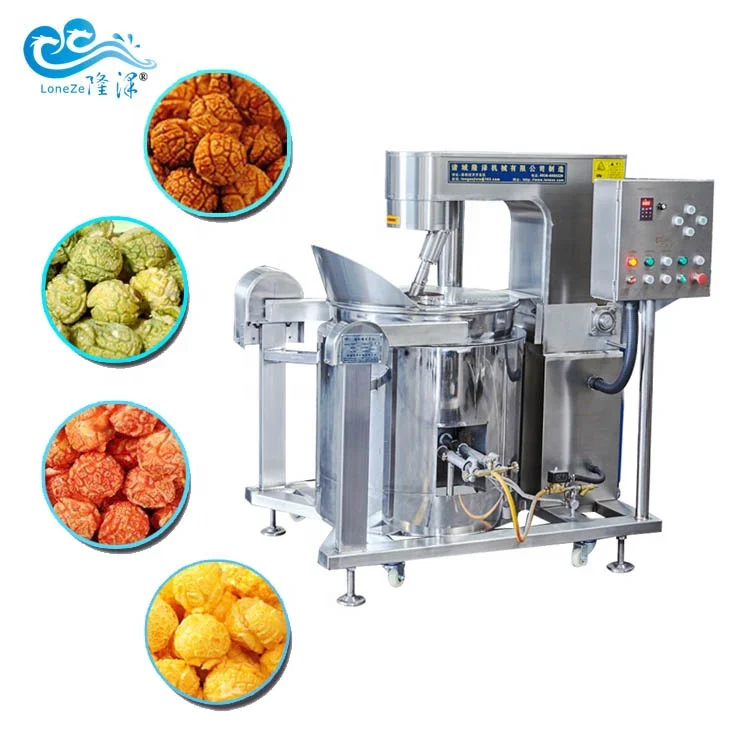

Main features of gas popcorn machine:
-220V/380V/50Hz or as customized
-Power 3Kw
-Pot size 100L, φ700mm, 4mm thickness, hemisphere shape; SUS304
-Approx. 55kg/h capacity
-All stainless SUS304, including bolts and base plates
-LPG gas heating
-Automatic operation with control panel
-Planetary mixing to avoid burnt or sticky together
-Famous brand gear motor reducer, silent mode and no need maintenance
-Directly produce flavored/seasoning/savory popcorns, no need other coating machine
-Durable quality to enable continuous operation 24/7.
-220V/380V/50Hz or as customized
-Power 3Kw
-Pot size 100L, φ700mm, 4mm thickness, hemisphere shape; SUS304
-Approx. 55kg/h capacity
-All stainless SUS304, including bolts and base plates
-LPG gas heating
-Automatic operation with control panel
-Planetary mixing to avoid burnt or sticky together
-Famous brand gear motor reducer, silent mode and no need maintenance
-Directly produce flavored/seasoning/savory popcorns, no need other coating machine
-Durable quality to enable continuous operation 24/7.

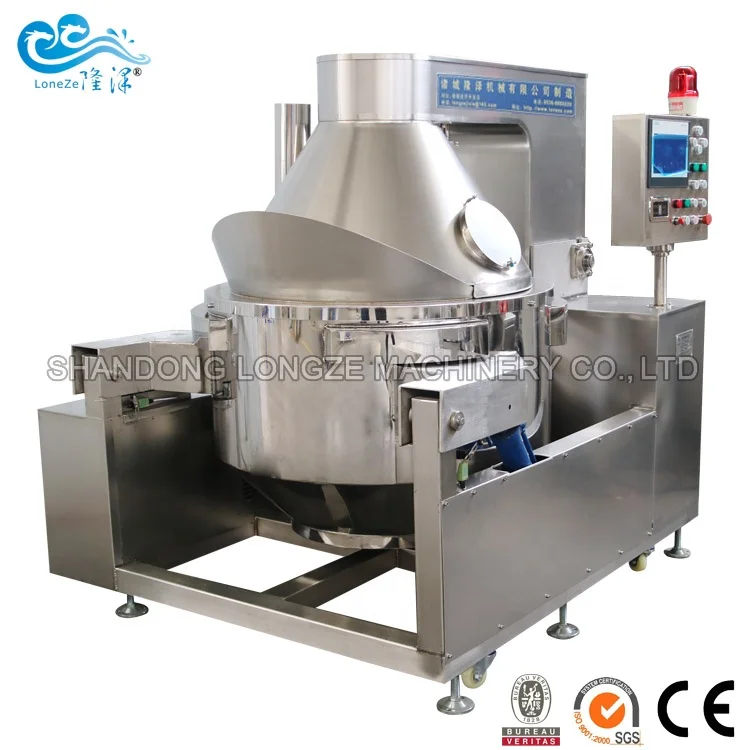

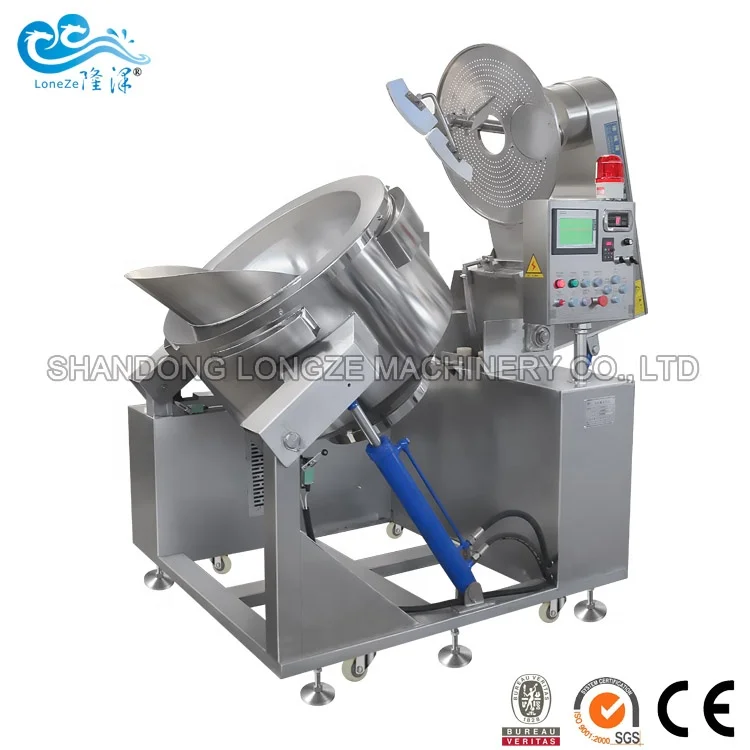

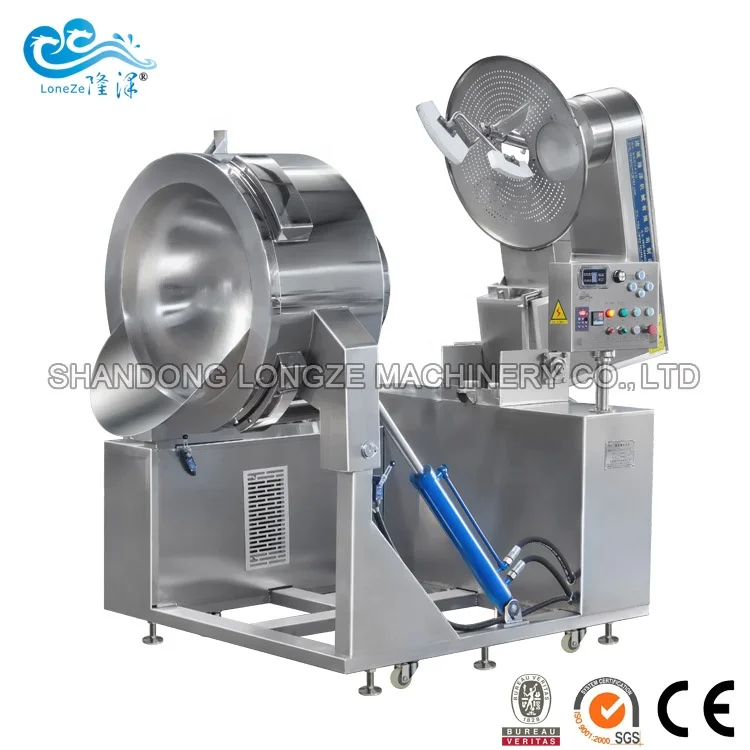

Main features of electric popcorn machine:
-380V/3 phase/50Hz or as customized
-Power 23Kw/43Kw
-Pot size 100L/200L, φ700mm/900mm, 4mm/5mm thickness, hemisphere shape; pure stainless 304 instead of composite of carbon steel and stainless steel.
-Capacity 75Kg~130Kg/h
-All stainless SUS304, including bolts and base plates
-Electromagnetic induction rapid heating, with 8 heating levels, temperature control
-Fully automatic with German Siemens PLC system or control panel
-Planetary mixing to avoid burnt or sticky together
-Famous brand gear motor reducer, silent mode and no need maintenance
-Directly produce flavored/seasoning/savory popcorns, no need other coating machine
-Durable quality to enable continuous operation 24/7.
-380V/3 phase/50Hz or as customized
-Power 23Kw/43Kw
-Pot size 100L/200L, φ700mm/900mm, 4mm/5mm thickness, hemisphere shape; pure stainless 304 instead of composite of carbon steel and stainless steel.
-Capacity 75Kg~130Kg/h
-All stainless SUS304, including bolts and base plates
-Electromagnetic induction rapid heating, with 8 heating levels, temperature control
-Fully automatic with German Siemens PLC system or control panel
-Planetary mixing to avoid burnt or sticky together
-Famous brand gear motor reducer, silent mode and no need maintenance
-Directly produce flavored/seasoning/savory popcorns, no need other coating machine
-Durable quality to enable continuous operation 24/7.
Only by adding flavor materials in the pot, will any flavored popcorns be ready in 10 seconds, without requiring any coating equipment.
Main features of popcorn production line:
-The whole system runs automatically after turning on power.
-Functions of popcorn production line mainly include: conveying, detaching, cooling and sifting.
-Making popcorns cool enough and be ready for packaging.
-Powerful fans and side fans are equipped wherever required to make sure better cooling effect.
-All parts are made of stainless steel SUS304 (even for base plates and bolts), world-known suitable steel for food materials, durable and easy to clean .
-Heavy-duty casters are installed for easy transfer and movement.
-Durable motors can work constantly 24/7.
-Variable conveying speed and sifting speed, adjustable via control panel.
-The whole system runs automatically after turning on power.
-Functions of popcorn production line mainly include: conveying, detaching, cooling and sifting.
-Making popcorns cool enough and be ready for packaging.
-Powerful fans and side fans are equipped wherever required to make sure better cooling effect.
-All parts are made of stainless steel SUS304 (even for base plates and bolts), world-known suitable steel for food materials, durable and easy to clean .
-Heavy-duty casters are installed for easy transfer and movement.
-Durable motors can work constantly 24/7.
-Variable conveying speed and sifting speed, adjustable via control panel.
Detailed Images
Big capacity automatic industrial caramel flavored gas electric popcorn machine commercial popcorn making machine
User-friendly Control Panel
German Siemens PLC system can automatically control heating power, heating time, agitation speed, mixing arm lifting, popcorn discharging, etc. Control buttons with waterproof press buttons.
Unique Mixing
German high technology is introduced for electric induction heating system, highly increasing heating efficiency and therefore shortening the popping process.
Automatic Ignition
Source fire is ignited automatically with press button, and gas is also released automatically with electromagnetic valve to control precisely the required heating for popping.
Full Combustion
Pressure burner can provide strong flames with less gas consumption. Full combustion shows blue color flames. Thick fireproofing material provides good insulation of heating and prevent loss of heating energy.
German High-tech
German high technology is introduced for electric induction heating system, highly increasing heating efficiency and therefore shortening the popping process.
Manual Coiling
Pure copper induction wires for all electromagnetic machines are coiled manually by our technicians, which is very rare in manufacturing factories, ensuring fully compatible for popping corns.
Easy Maintenance
Easily maintained by connecting greasing gun to the grease nozzle and push. Only several minutes will be used fo maintenance of the whole machine.
Movable & Stable
Heavy duty casters can help to transfer the machine freely and easily. Stainless 304 base plates without rusting can provide stability for max. mixing speed.
Special Gear Motor
Gear motor reducer is from professional manufacturer, noise free, sealed type and without needing filling lubrication periodically, durable quality for continuous work 24/7.
Laser Manufacturing
All mechanical components are fabricated by ourselves with laser equipments to ensure their precision and compatibility with each other, thus reducing occurrence of malfunction.
Outstanding Handcraft
All skillful workers are employed by passing strict exams to ensure first-class quality of all our products, which has gained for us many regular customers. See manual welding as shown above.
Quality Checklisted
Each and every procedure is strictly inspected to ensure quality. All staff involved in manufacturing will sign on the checklist for tracking the responsible person if any quality problem.
Our Services
Pre-Sales Services
◆To elaborate functions and features of inquired machines.
◆To help customers study and understand market situation.
◆To provide economical and practical cooking solutions.
◆To design and tailor as per customers' requirements.
◆To provide transportation and accommodations for customers' visit.
◆To supply raw materials free of charge for witness testing.
◆To help customers study and understand market situation.
◆To provide economical and practical cooking solutions.
◆To design and tailor as per customers' requirements.
◆To provide transportation and accommodations for customers' visit.
◆To supply raw materials free of charge for witness testing.
After-Sales Services
◆To test repeatedly before packing and shipping to ensure its functional operation.
◆To ship and deliver as agreed and scheduled.
◆To assign experienced technicians for machine installation on-site if required so.
◆To provide promptly trouble-shooting solutions by telephone or email if any questions.
◆To provide 1 year warranty and lifetime maintenance for all products.
◆To ship and deliver as agreed and scheduled.
◆To assign experienced technicians for machine installation on-site if required so.
◆To provide promptly trouble-shooting solutions by telephone or email if any questions.
◆To provide 1 year warranty and lifetime maintenance for all products.
Foreign Customers' Visiting
All our customers are welcome to witness testing of popcorn machine and production line in our factory. They can see the whole processing in reality and trial operation by themselves. Different recipe can be tested repeatedly to their satisfaction.
