Product Overview

Description


Product Description

Title goes here.

The Drilling Machine Z5035 is equipped with: auto spindle power down feeder,cooling system,working light,big viceworktable,2 step motor with 12 steps speed which can improve the machining accuracy and producing efficiency.

1. Drilling, tapping, boring, reaming.

2. Strong column,vice table,gear drive, lower noise.

3. Heavy-duty tapered roller bearing spindle,positive spindle lock.

Parameters
\t
Model
\t
Z5035A
\t
Max. drilling dia.
\t
35mm
\t
Max. tapping dia
\t
M22mm
\t
Distance spindle axis to column surface
\t
590mm
\t
Max. distance spindle nose to base
\t
1150mm
\t
Max. spindle travel
\t
155mm
\t
Spindle table
\t
MT4
\t
Number of speed step of the spindle
\t
12
\t
Spindle speed range
\t
125-3030 rpm
\t
Feed steps of the spindle
\t
3
\t
Feed range of the spindle
\t
0.1,0.2,0.3r/mm
\t
Max. stroke of the worktable and its bracket
\t
530mm
\t
Rotation degree of worktable and its bracket in cross direction
\t
±45°
\t
Working area of the worktable
\t
500*420mm
\t
Dia. of colun
\t
120mm
\t
Main motor power
\t
1.0/1.2kw
\t
Max. external dimension
\t
875*510*2140mm
\t
N.W
\t
430kg

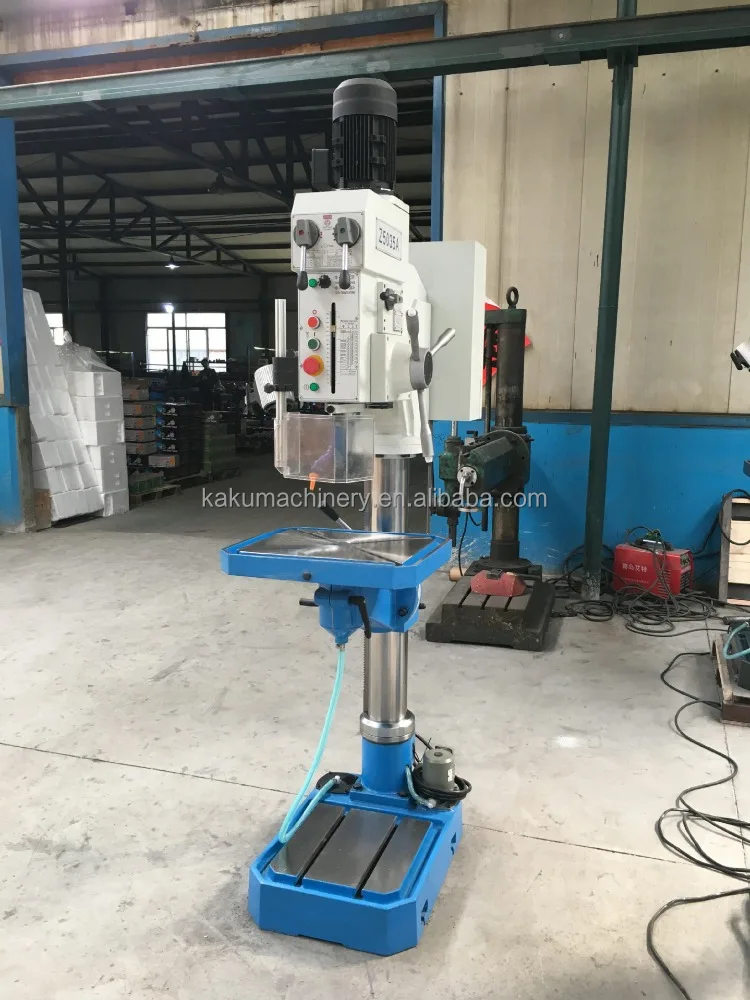

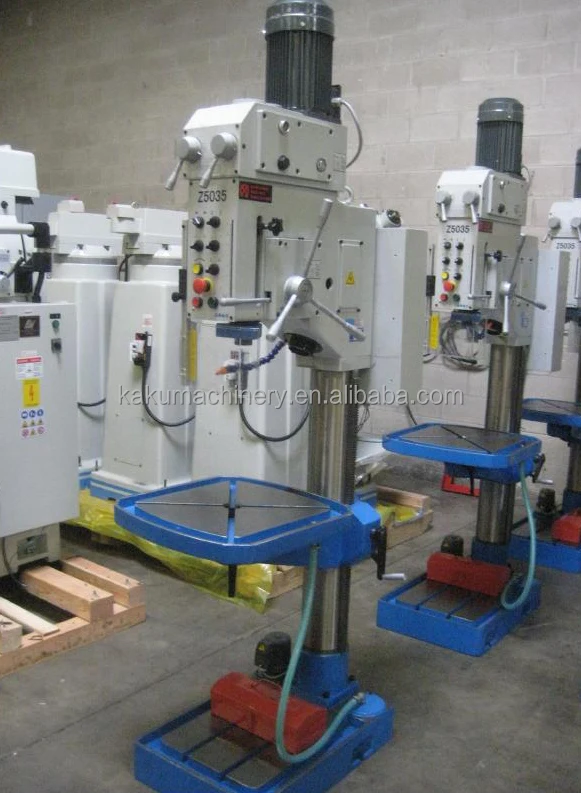

Detailed Images
Packing & Delivery

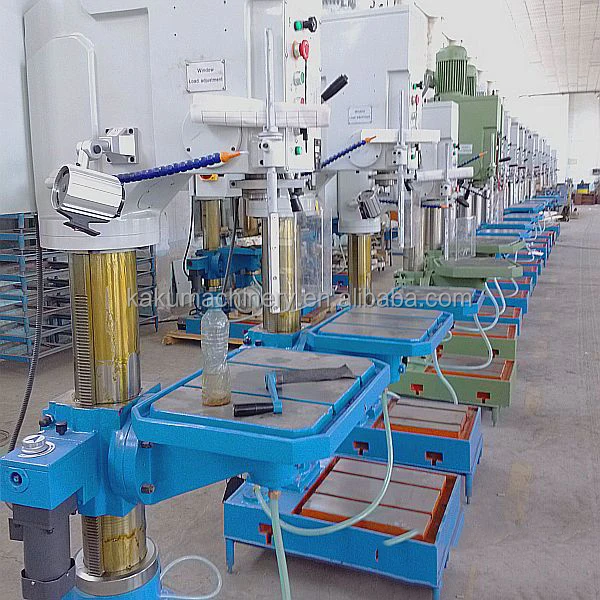

Our Company
Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product testing process..

Our Service

1. We will add all item picture in the PI for avoiding any mistake of your order.


2. We will update every step for you once we start your order,

3. We will booking the vessel for you when it is going to be finished.

4. We will inform you that detail ship date once we get the information.

5. We will update the vessel information(ETA&ETD) for you.

If you are interested in our company's product, welcome to contact us and place an order. Thank you!
