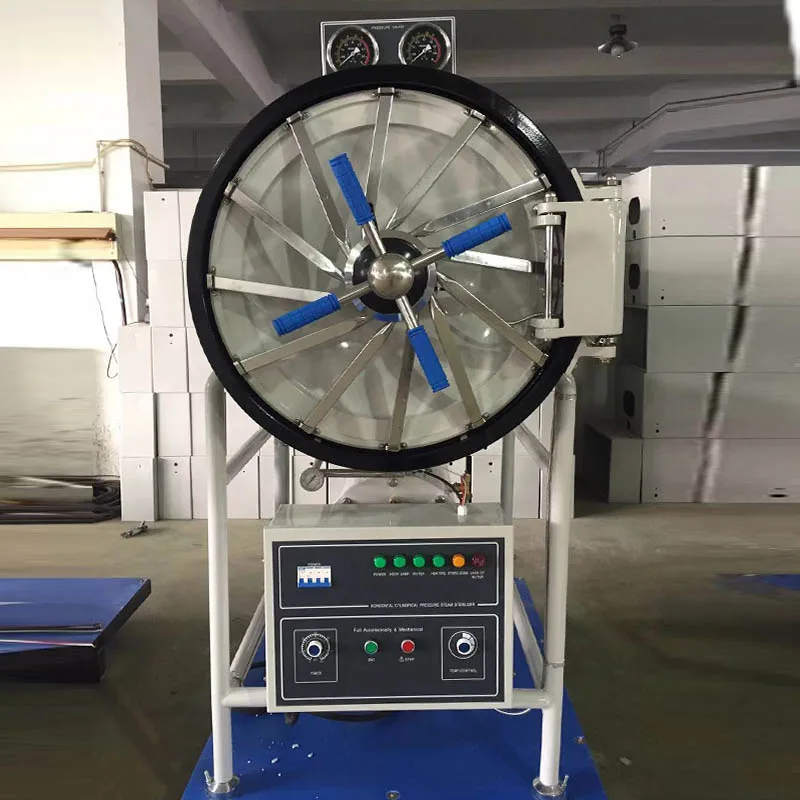

BIOBASE Factory Direct Supply 500L Cylindrical Horizontal Pressure Autoclave Sterilization

Product Overview

Description

BIOBASE Factory Direct Supply 500L Horizontal Cylindrical Pressure Autoclave Pri with Cheap Pri

Autoclave Sterilizer Application



 It is applicable for the sterilization of unpacked solid instrument in department of stomatology, ophthalmology, operation room and CSSD.



Autoclave Sterilizer Technical Feature



1. Drying function

2. Interlock function.

3. Automatic sterilization pro ss

4. 304 stainless steel material chamber.

5. Safety valve for over pressure protection.

6. Over-temperature, over-pressure protection devi .

7. Water level sensor. The power will be cut-off automatically in case of low water level.

Autoclave Sterilizer Technical Parameter



Model	BKQ-H150	BKQ-H200	BKQ-H300	BKQ-H400	BKQ-H500
Capacity	150L	200L	280L	400L	500L
Chamber size	φ440×1000mm	φ515×1000mm	φ600×1000mm	φ700×1100mm	φ700×1300mm
Working pressure	0.22MPa
Working temp.	134℃
Temperature range	40~134℃
Sterilization time	0~60 min
Drying time	0~60 min
Temp. accuracy	≤±2℃
Power consumption	9KW		12KW	18KW
Power supply	220V/380V, 50/60HZ		380V 50Hz
External size(mm)	1400*600*1300	1400*670*1650	1400*770*1780	1430*880*1830	1800*900*1820
Packing size(mm)	1550*750*1850	1560*820*1850	1680*920*2100	1600*1050*2100	1850*1050*2100
Gross weight(kg)	320	350	465	530	580
