Marine Gas Lift Rail Type Pilot Chair

 Product Function
1. Adjustable seat and back
2. Adjustable arm rests which hold up
3. Seat moves forward and back
4. 360 swivel
5. Foot rest folds up
6. Vertically adjustable column
7. Shock-absorbing design
8. Recommended power supply 12V/24V,20 amps to be separate and insulated from sensitive equipment.

Material :

1.Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic
made of stainless steel;

2.Lifting column with aluminum alloy,steel,stainless steel synthesis;

3.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;

4.The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis,
outsourcing leather or cloth;

5.Pedal steel plate inner core and environmentally friendly rubber synthetic;

6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;

Function data:

1.Upper part of the seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination
angle range of ±12°;

2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;

3. The seat of pneumatic lifting regulating range 0-150mm;

4.The seat can rotate 360°and locked ,4-point positioning control;

5.Seat rail slide in 0-6000mm mobile,500mm rail width and depth 28mm

6. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;

7.Seat can bear more than 150FT.LB torsion, reached AD grade standard;

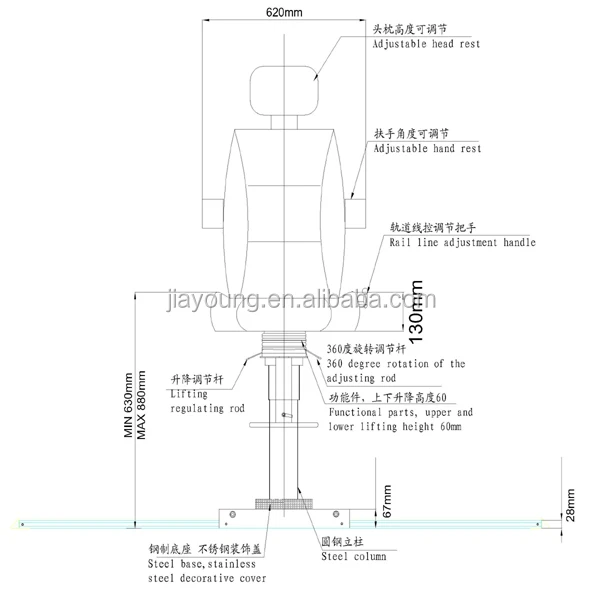

Product Drawing

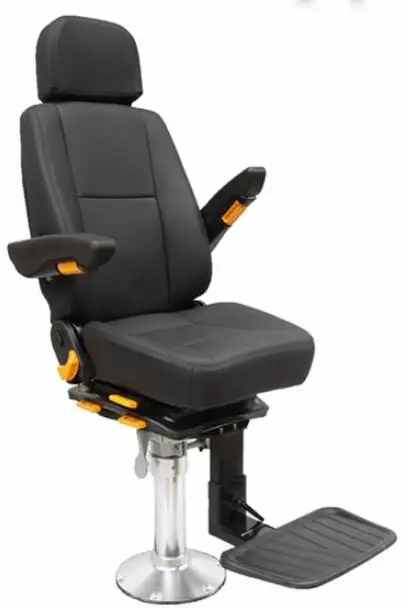

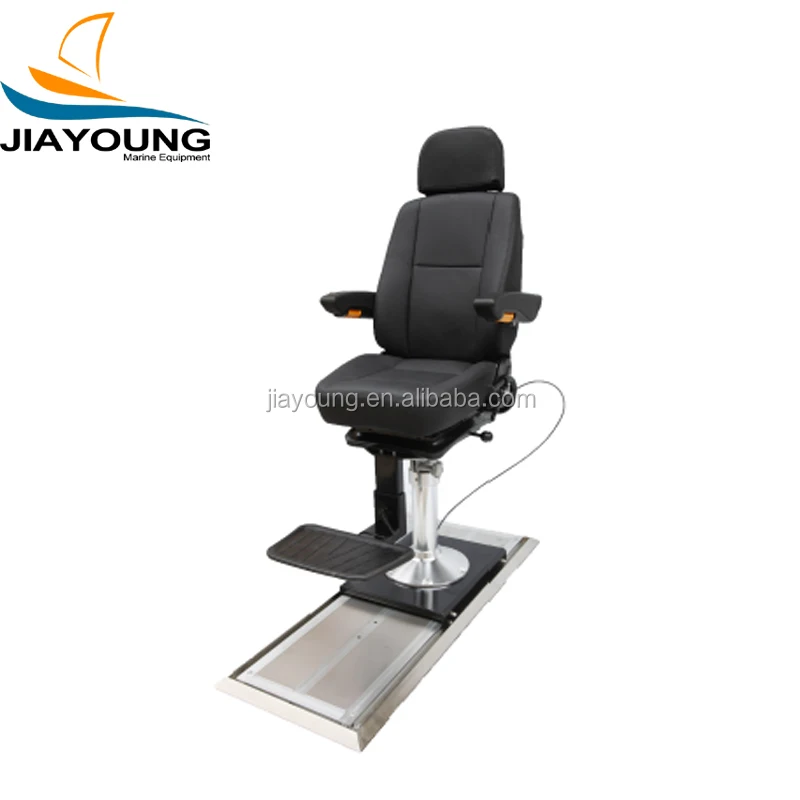

 Product Picture

 About the color of marine pliot chair,pls kindly find the following color card,

you may check which is suitable for you.

For Marine Pilot Chair.  We can supply TR-001, TR-002, TR-003, TR-004, TR-005.

And we also provide passenger seats.

                 TR-001                                        TR-002                                                TR-003

                TR-004                                                 TR-005                                                   Passager seat

Chongqing Jiayoung Marine Co., Ltd can supply ABS, BV, CCS, DNV, GL, KR, LR, NK, RINA, RMRS certificate.
