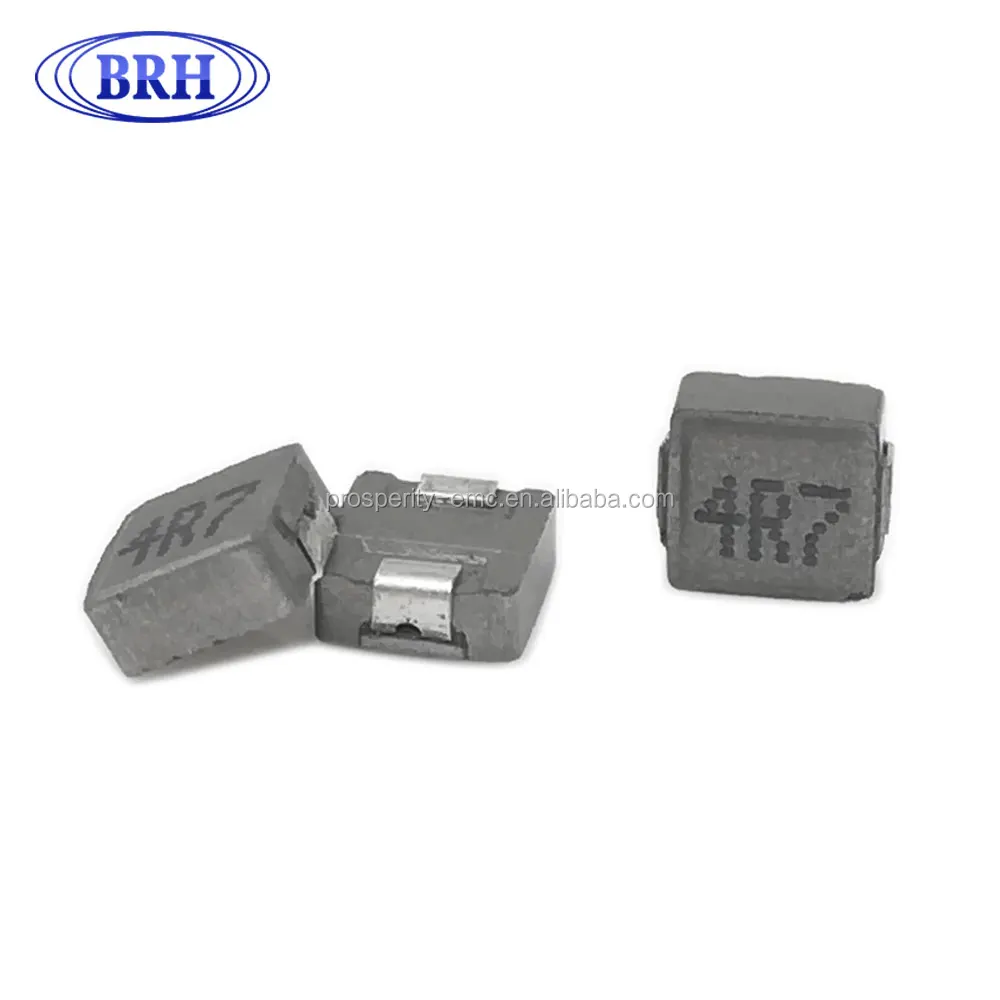

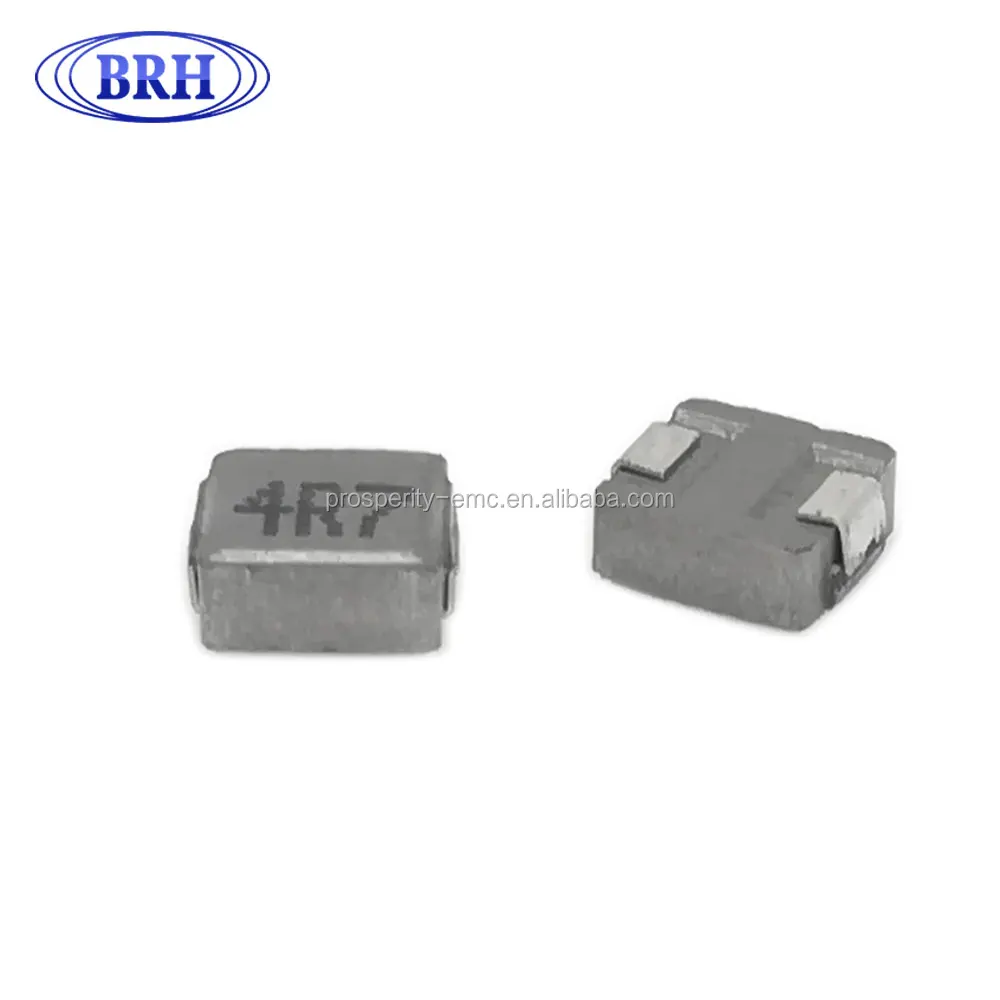

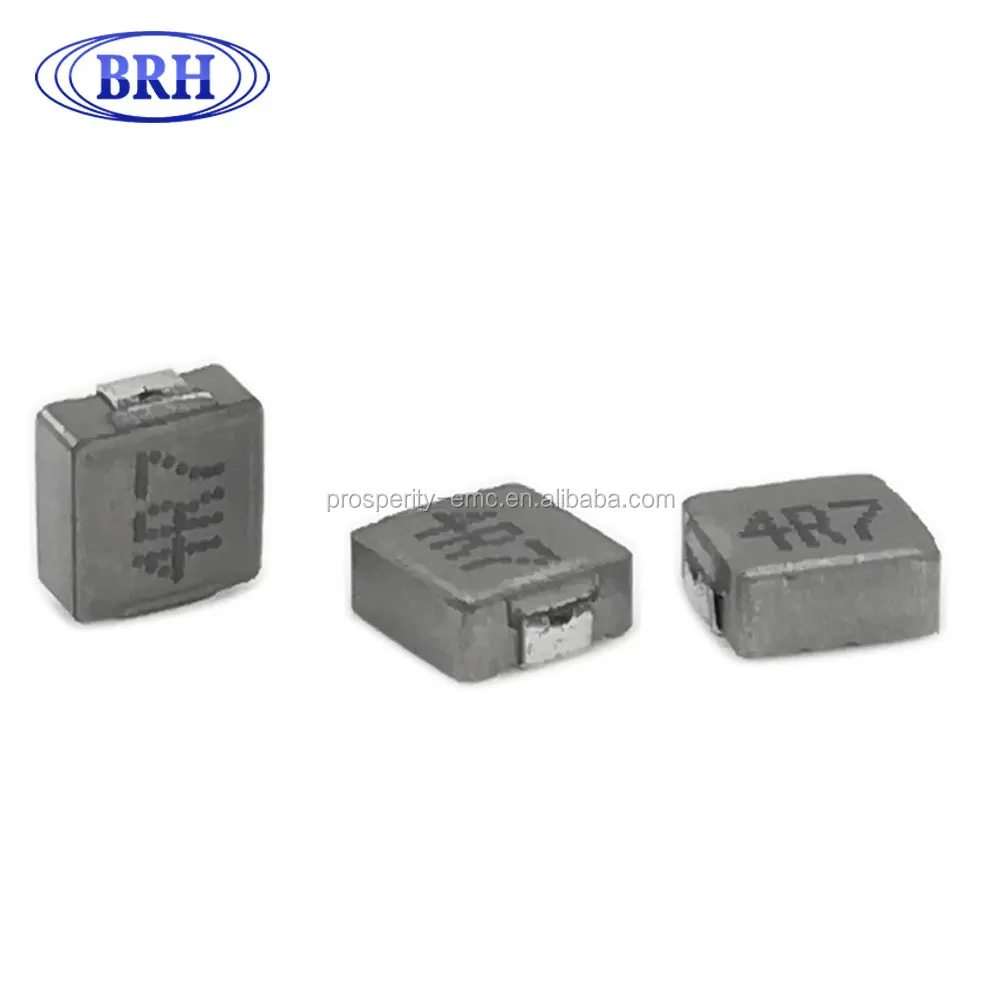

  • 04020 size 4A high current flat power smd inductor coil 4r7
04020 size 4A high current flat power smd inductor coil 4r7
04020 size 4A high current flat power smd inductor coil 4r7
04020 size 4A high current flat power smd inductor coil 4r7
04020 size 4A high current flat power smd inductor coil 4r7
04020 size 4A high current flat power smd inductor coil 4r7

04020 size 4A high current flat power smd inductor coil 4r7

Share on (60717932474):


Price:

Quantity:


Product Overview

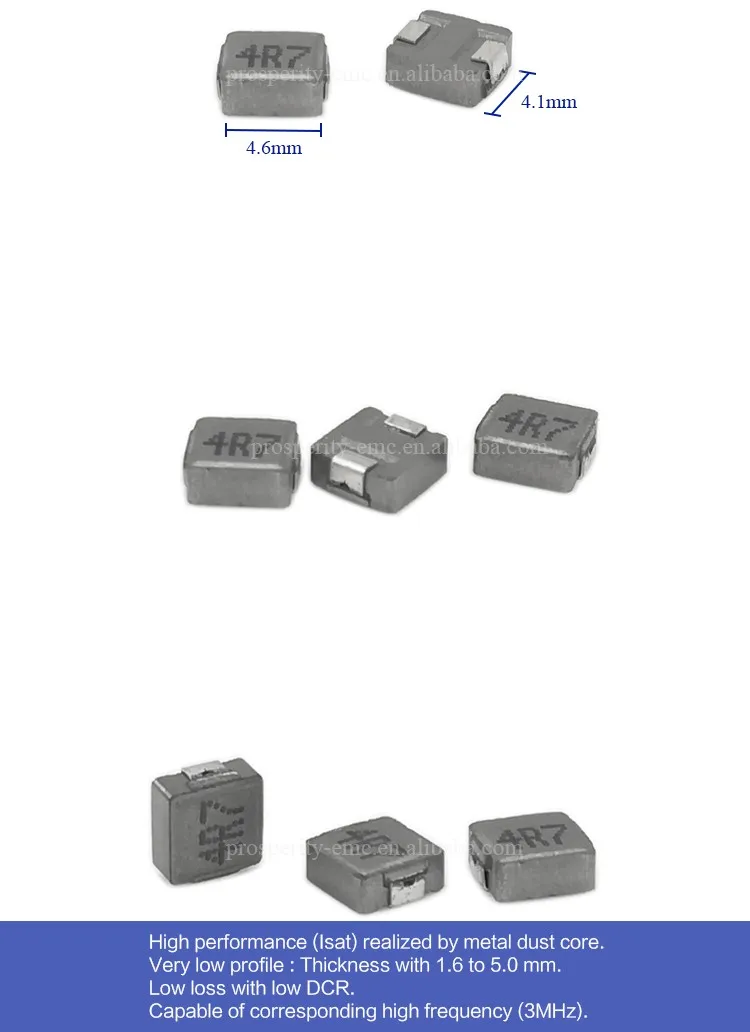

Description


Description
\t

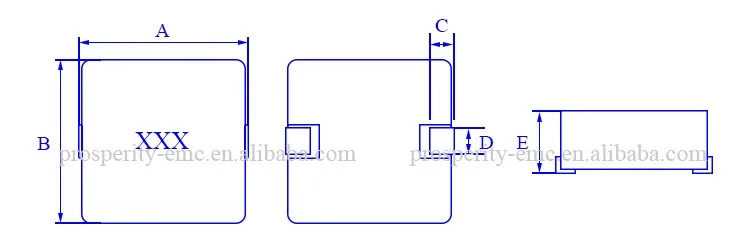

SIZE CODE
\t
A
\t
B
\t
C
\t
D
\t
E
\t
04020
\t
4.6±0.2
\t
4.1±0.2
\t
1.0±0.5
\t
1.5±0.3
\t
2.0 MAX
\t
06030
\t
7.5 MAX
\t
6.6±0.2
\t
1.6±0.5
\t
3.0 Typ.
\t
3.0 MAX
\t
06050
\t
7.5 MAX
\t
6.6±0.2
\t
1.6±0.5
\t
3.0 Typ.
\t
5.0 MAX
\t
10040
\t
11.6 MAX
\t
10.1±0.32
\t
2.5±0.5
\t
3.0 Typ.
\t
4.0 MAX
\t
12060
\t
13.8 MAX
\t
12.6±0.2
\t
2.7±0.7
\t
3.7 Typ.
\t
6.0 MAX
\t
1265
\t
13.2±1.0
\t
12.8±0.5
\t
2.7±0.7
\t
3.7 Typ.
\t
6.5 MAX
\t

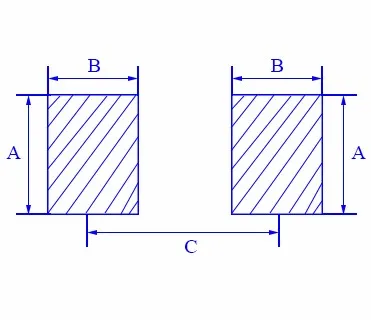

SIZE CODE (mm)
\t
A
Typ
\t
B
Typ
\t
C
Typ
\t
04020
\t
2.5
\t
1.5
\t
3.7
\t
06030
\t
3.5
\t
2.4
\t
6.1
\t
06050
\t
3.5
\t
2.4
\t
6.1
\t
10040
\t
4
\t
3.5
\t
9.5
\t
12060
\t
5
\t
4
\t
10.1
\t
1265
\t
5
\t
4
\t
10.1

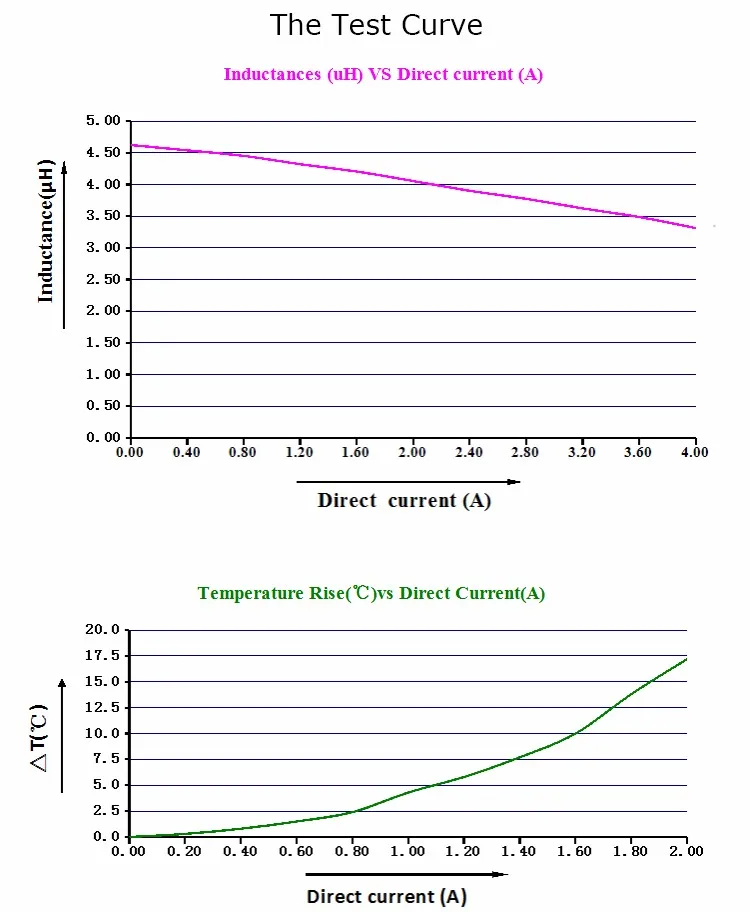

Parameter
\t
Test Data For Pre Production Samples
\t
MEAS. Item
\t
L(µH) Isat=0A
\t
L(µH) Isat=4A
\t
RDC
 (Ω)
\t
A
 m/m
\t
B
 m/m
\t
E
 m/m
\t
L(µH) Irms=2A
\t
Suggest
\t
4.7±20%
\t
L*0.7
\t
0.13+0
\t
4.6±0.30
\t
4.1±0.30
\t
2.0 MAX
\t
∆T=40℃
\t
1
\t
4.559
\t
3.521
\t
0.10890
\t
4.55
\t
4.11
\t
1.95
\t
18.20
\t
2
\t
4.757
\t
3.410
\t
0.10970
\t
4.62
\t
4.09
\t
1.92
\t
19.40
\t
3
\t
4.516
\t
3.369
\t
0.11050
\t
4.66
\t
4.10
\t
1.87
\t
16.20
\t
4
\t
4.559
\t
3.525
\t
0.11090
\t
4.53
\t
4.10
\t
1.89
\t
17.20
\t
5
\t
4.773
\t
3.555
\t
0.11230
\t
4.62
\t
4.11
\t
1.86
\t
18.25
\t

\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
4.633
\t
3.476
\t
0.110
\t
4.596
\t
4.102
\t
1.898
\t
17.850
\t
R
\t
0.257
\t
0.186
\t
0.00340
\t
0.13
\t
0.02
\t
0.09
\t
3.20
\t
The above test data for reference,Actual results may differ due to different production batches
