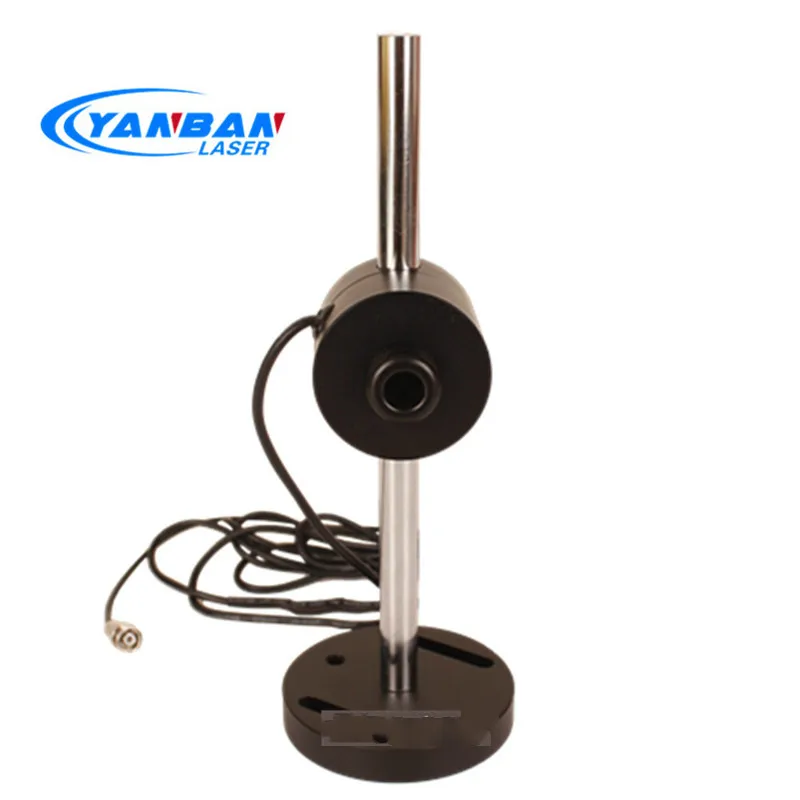

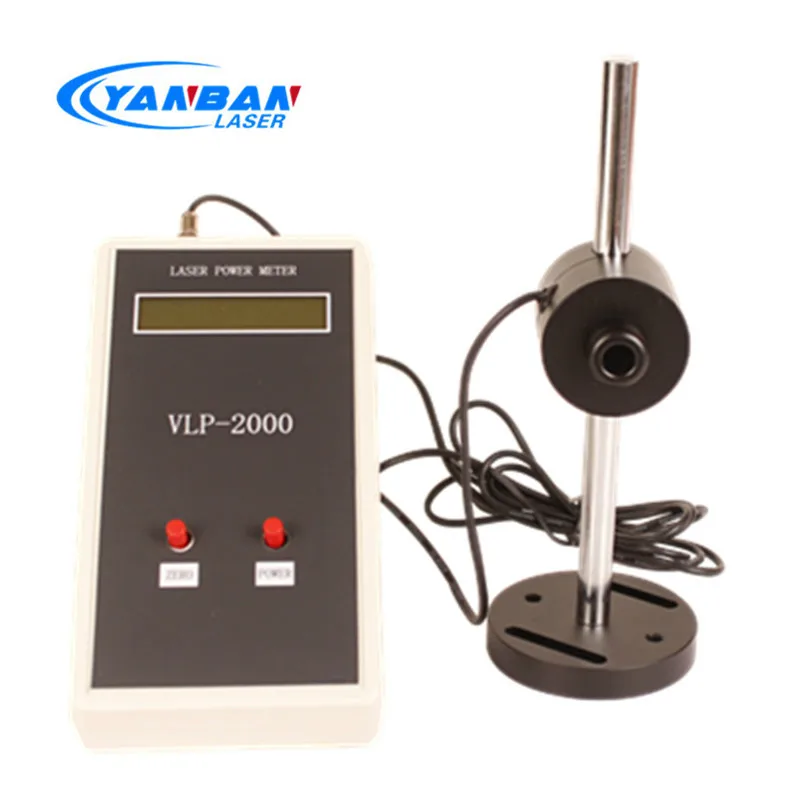

VLP-2000 is a high-precision laser power meter manufactured by Beijing Ranbond Technology Co.,Ltd., which can be equipped with sensors of different specifications for measuring laser sources of different wavelengths and different power levels. The laser power meter is used for measuring the power of the CW/pulsed laser etc. The spectrum response range 11nm~19μm. It is widely used in the research, teaching, medical, science, industry and other fields. It can be used continuously for a long time without repeated calibration. Because of the characteristics of laser beam output, the core of laser power measurement lies in the design of laser detector. The detector of the power meter is equipped with a self-developed thermopile sensor, which adopts thin film thermopile technology and anti-damage coating anufacturing technology, and has excellent performance, including anti-damage, linearity and uniformity. The calibration of the power meter has an important influence on the accuracy of measurement.When the power meter leaves the factory, the quantity value can be directly traced to the standard device of National Bureau of Measurement, which reduces the intermediate link of quantity value transmission and has high precision of factory calibration.
Specification
Model
VLP-2000
Power Range
500μW-2W
input aperture size
10mm
Applicability
CW/pulsed laser
Measurement Uncertainty
5%
power dissipation
<10w
Probe Material
Thermopile
Wavelength range
11nm-19μm
Instrument Power
100-240 VAC, 50/60 Hz
Temperature (Operating)
5°C - 45°C (41°F - 113°F)
Temperature (Storage)
-20°C - 70°C (-4°F - 158°F)
Resolution
0.001mW-0.1mW
the warranty time
One year
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
