Special shape Wafer/Chocolate Biscuit Production Line/Wafer Ball machinery
- Category: >>>
- Supplier: Zhaoqing City Wanshunda Foodstuff Machinery Manufacture Co. Ltd.
Share on (60718022574):
Product Overview
Description

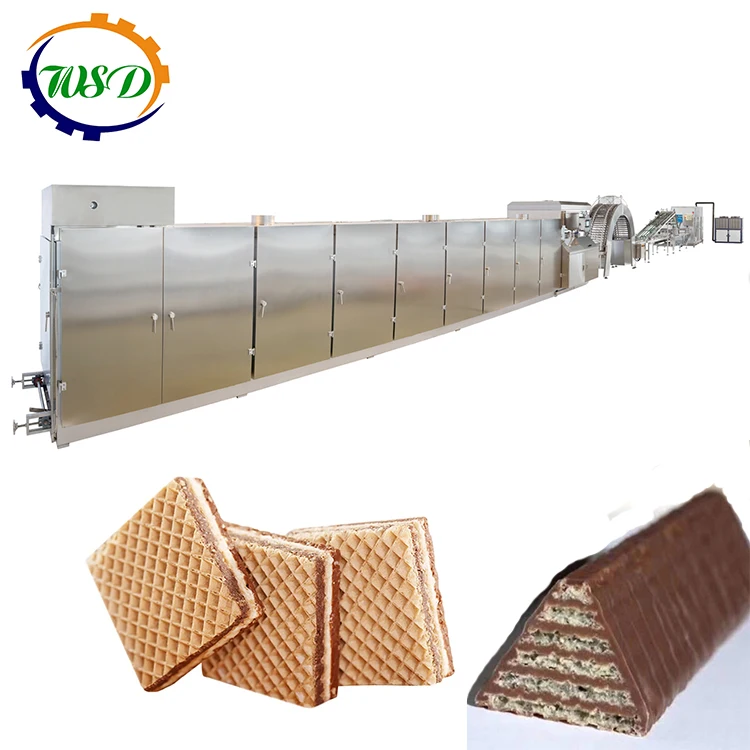

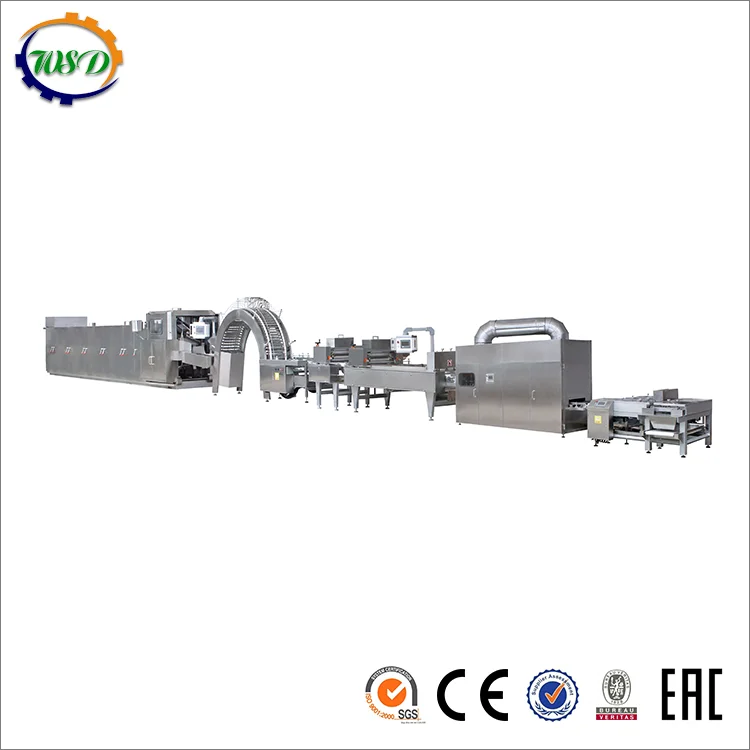

Wafer/Chocolate Biscuit Ball Production Line

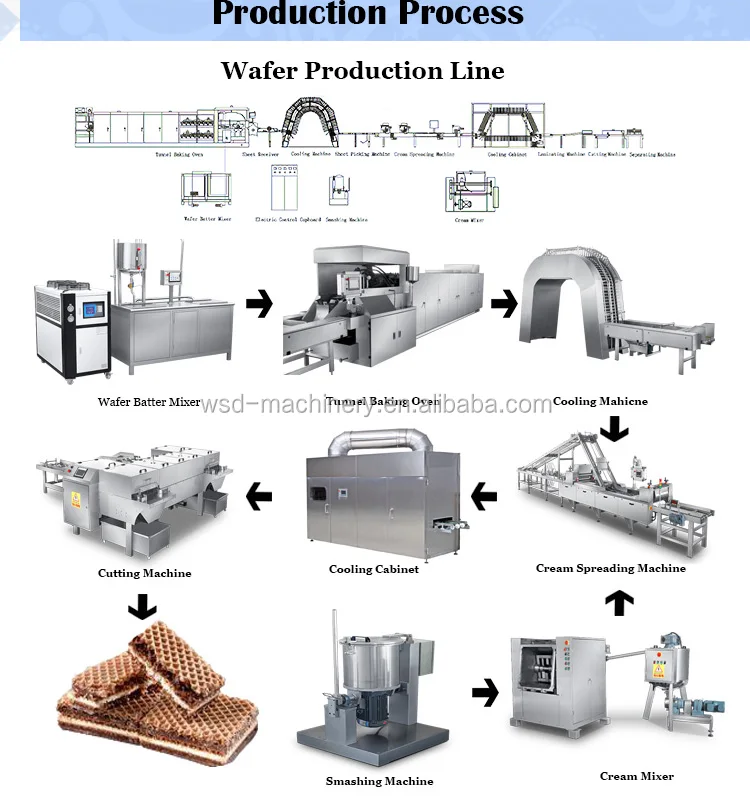

The whole line consists of:
NO. | Machine Name | Quantity ( set) |
1 | Automatic Tunnel Baking Oven | 1 |
2 | Sheet Receiver | 1 |

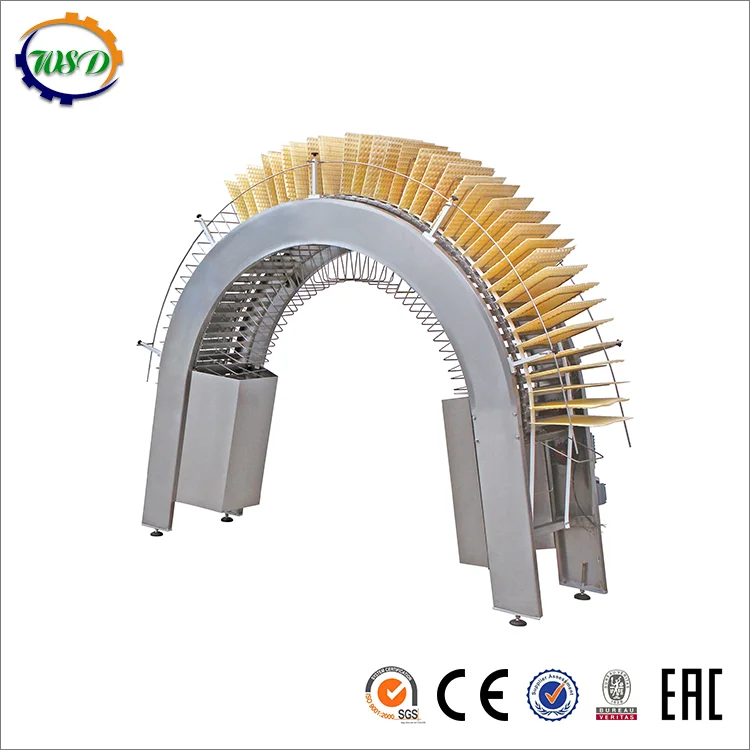

3 | Cooling Machine | 1 |
4 | Sheet Picking machine | 1 |

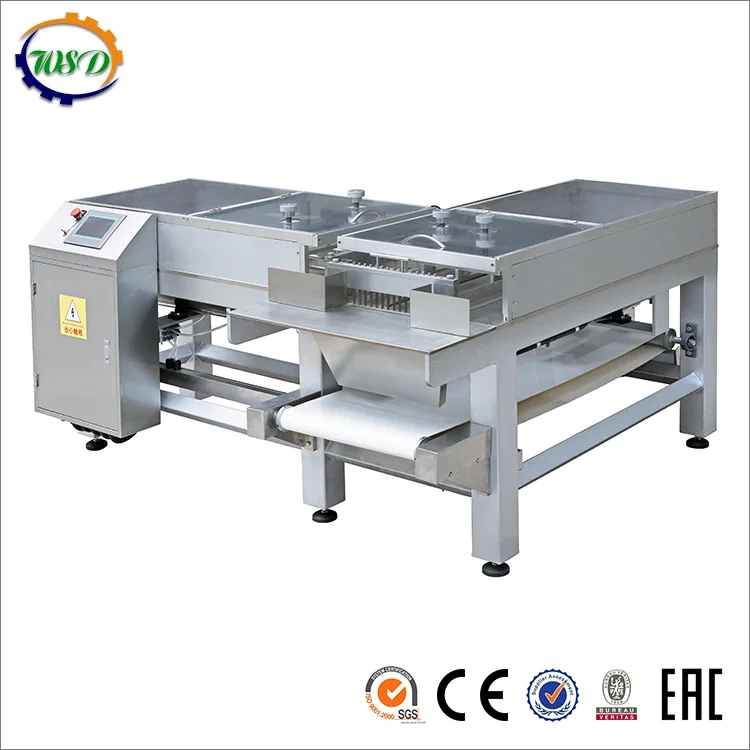

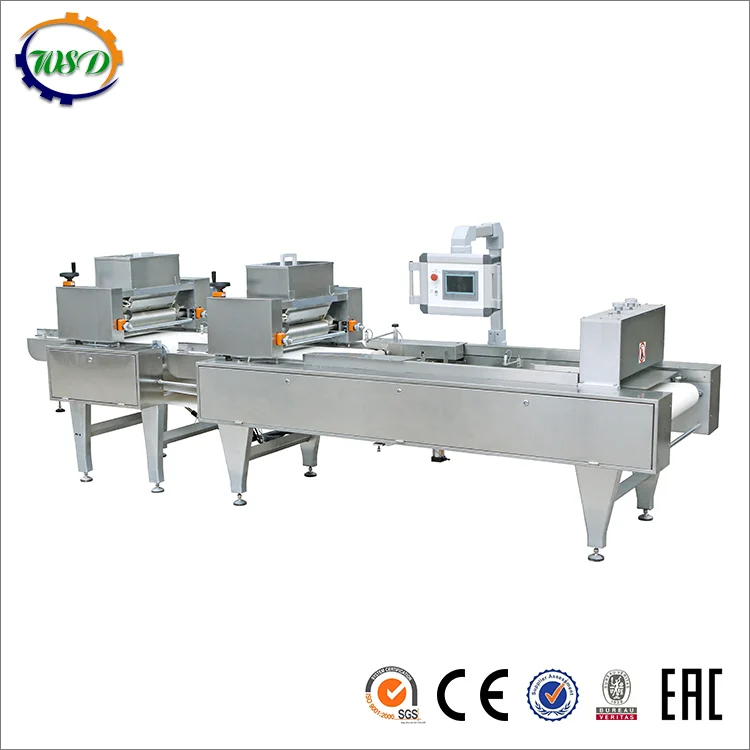

5 | Cream Spreading machine | 1 |

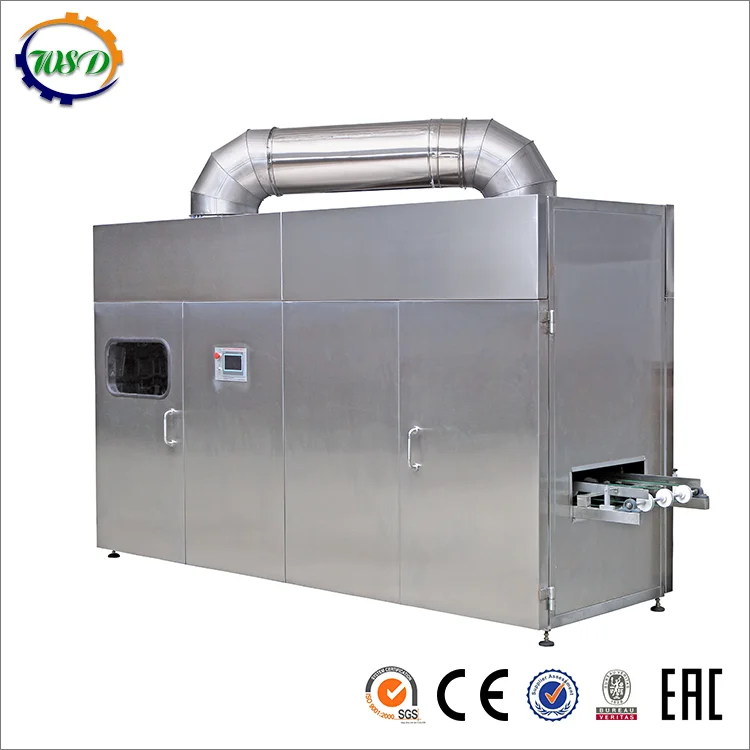

6 | Cooling Cabinet | 1 |
7 | Laminating Machine | 1 |

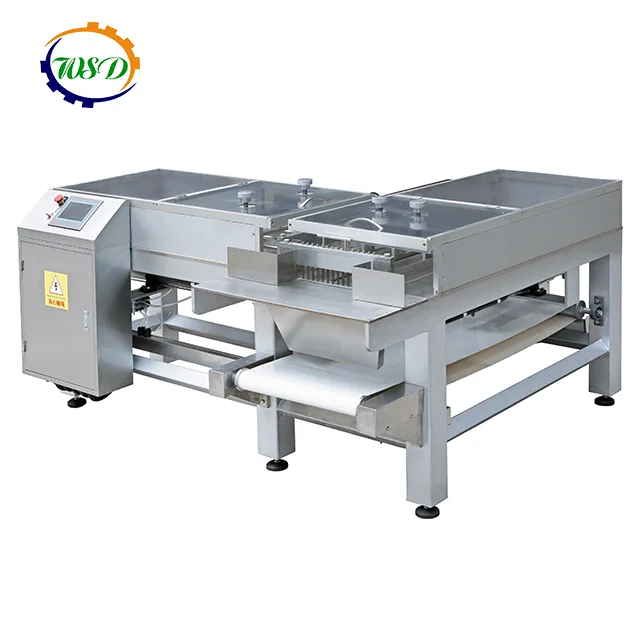

8 | Cutting Machine | 1 |

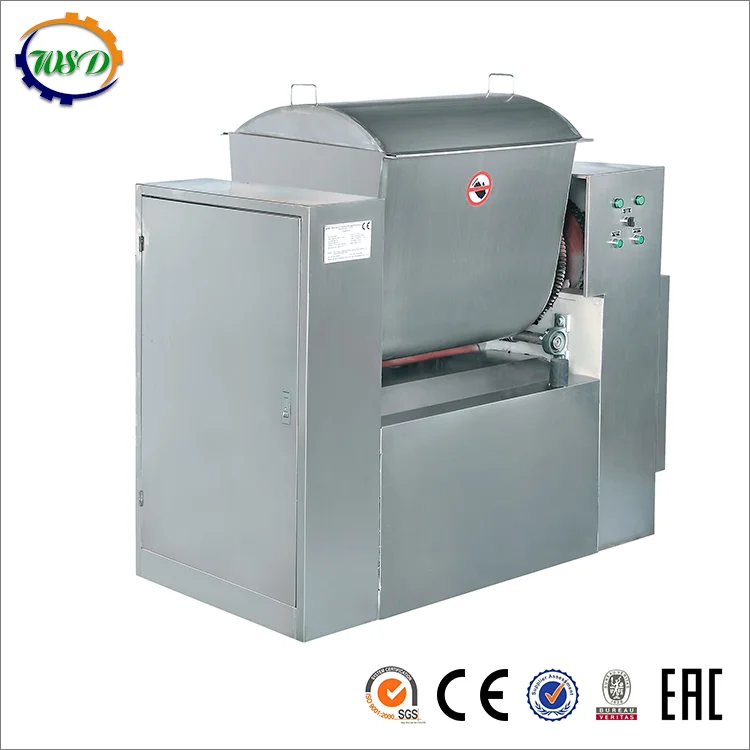

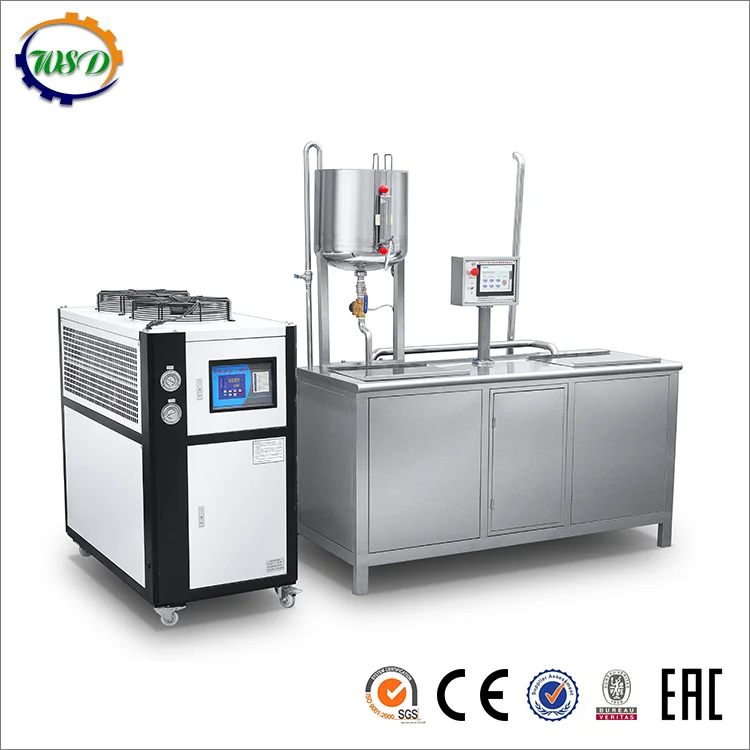

9 | Wafer Batter Mixer | 1 |
10 | Cream mixer | 1 |
11 | Smashing machine | 1 |

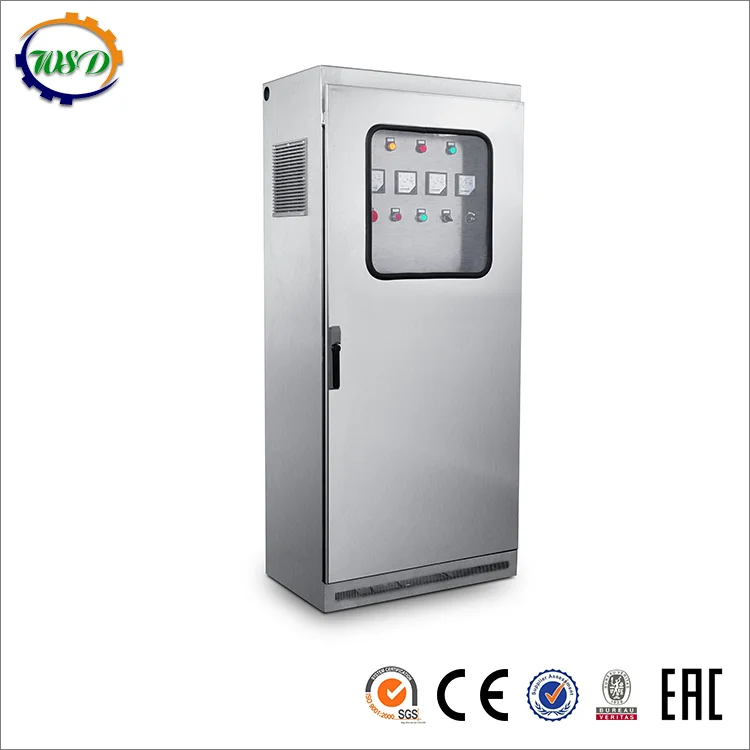

12 | Electric Control Cupboard | 1 |
Descriptions :

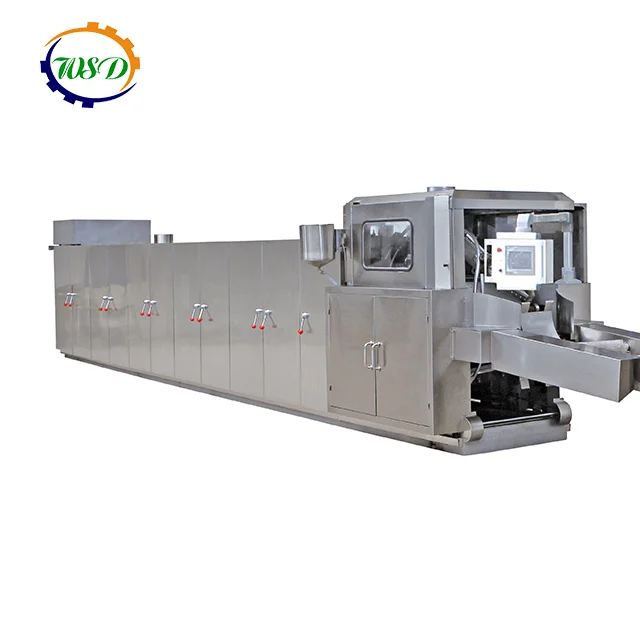

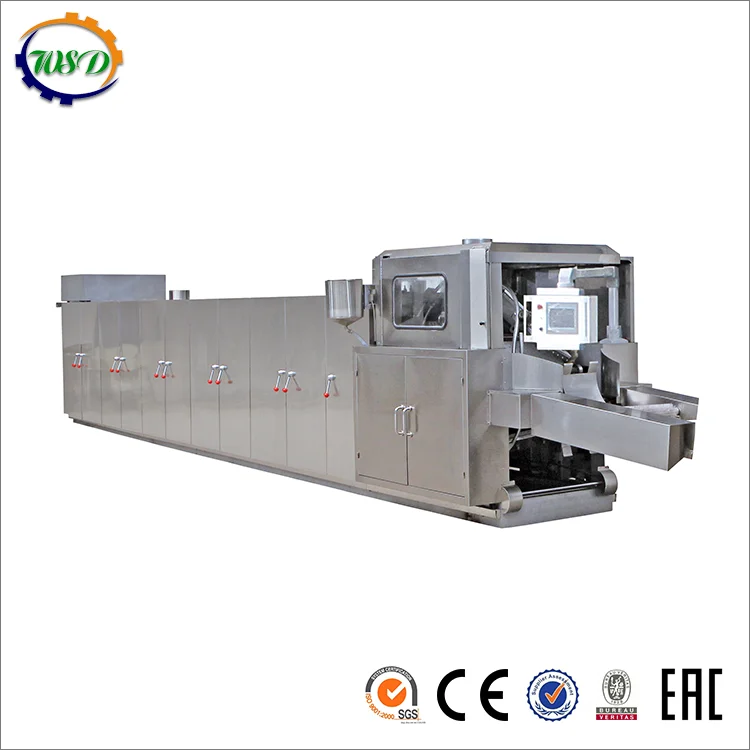

1. Automatic wafer baking oven:Equiped with Touch-screen and programmed by Siemens . PLC Software ,this unit is of electruc power or LPG,LNG to generate the heat energy to make wafer the wafer biscuit.
2. The equipment is easy to operate which with automatic temperature control ,lighting ,making mixer ,blowing ,sheet splicing to finish the baking process
Main Technical Parameter:
| No. of Heating Plates | 27, 31, 33, 39, 45, 51, 65, 69, 75 and so on |
| Baking Plates Size | 470x325mm |
| Patterns of plates | 2.5x2.5x0.5mm or 3.0x3.0x0.5mm |
| Output | up to 6~40 sheets/min |
| Thick of the biscuit | 2.0mm~5.0mm |
| Inside Baking | Cleaning device |
| Dimension | 6000x1620x2200mm |
1. Material :Shell adopts 304 Stainless Steel ,Siemens of Mitsubishi to control ,SKF high temperature bearing , SEW Motor ,Italy Buring Systerms.
2. Material of Baking Plates:Gray Cast Iron ,Special Steel ,Copper .
3. Baking Plates temperature adjustable :Normal temperature to 200 °C
4. Inside Baking Cleaning device
Prefect After-sales
1. one year guarantee

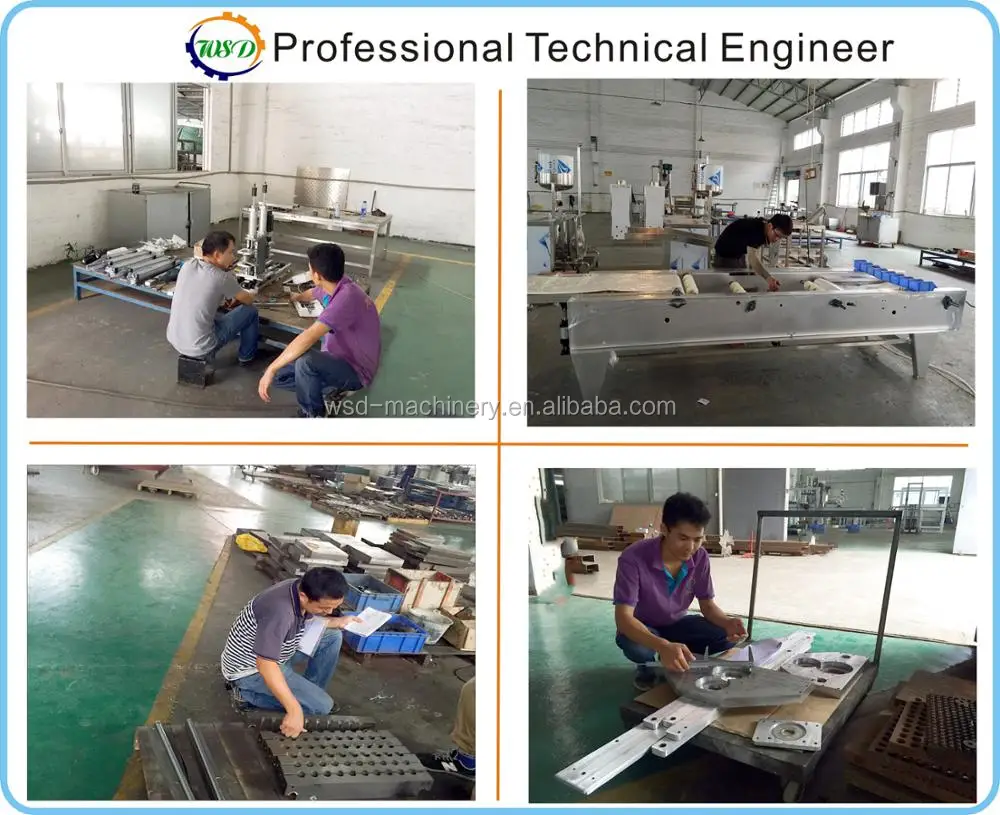

2. our technical staff will install the machine fo the client when the machine arrive the clients' place
3. we will help the client solve the machine problem in the future time
Thank you for your visiting,
hope to establish good relationship with you!

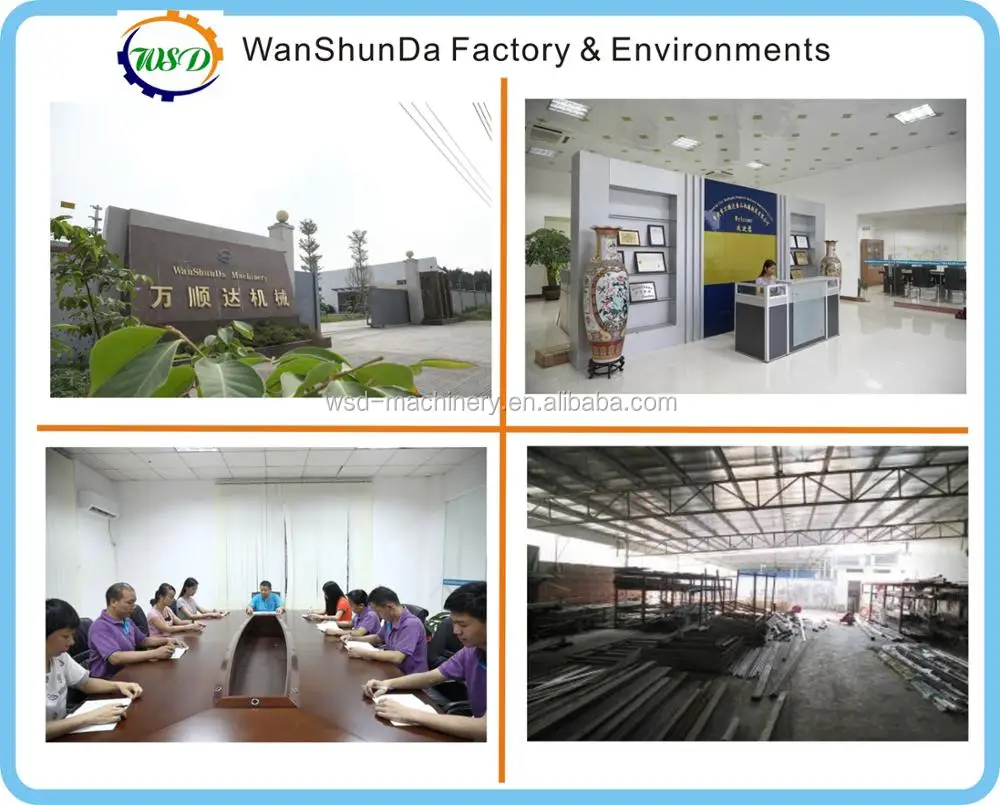

Zhaoqing City WanShunDa Foodstuff Machinery Manufacture Co., Ltd
Add: No,23 Dongsheng Road, District, Jindu Industrial Park, Gaoyao, Zhaoqing City, Guangdong, China
Tel./Fax.: +86-758 8513618
Madalina :+86-13450157436
