Product Overview
Description
Products Description

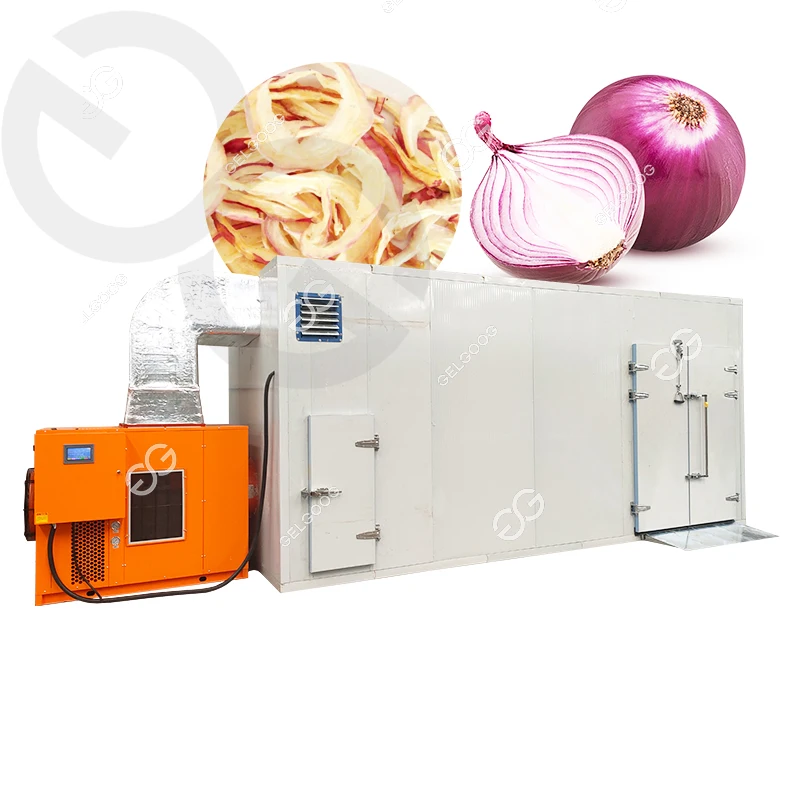

Introduction Of the Equipment For Dry Fruits Manufacturer
1. The energy saving heat pump dryer machine is using inverse cano principle, absorbing heat air and transferring them to the drying chamber to increase the temperature in the dryer.
2. Heat pump dryer is composed of compressor, heat exchanger, flow controller and heat absorber, and these devices form a cycling system (main drying device and drying chamber).
2. Heat pump dryer is composed of compressor, heat exchanger, flow controller and heat absorber, and these devices form a cycling system (main drying device and drying chamber).

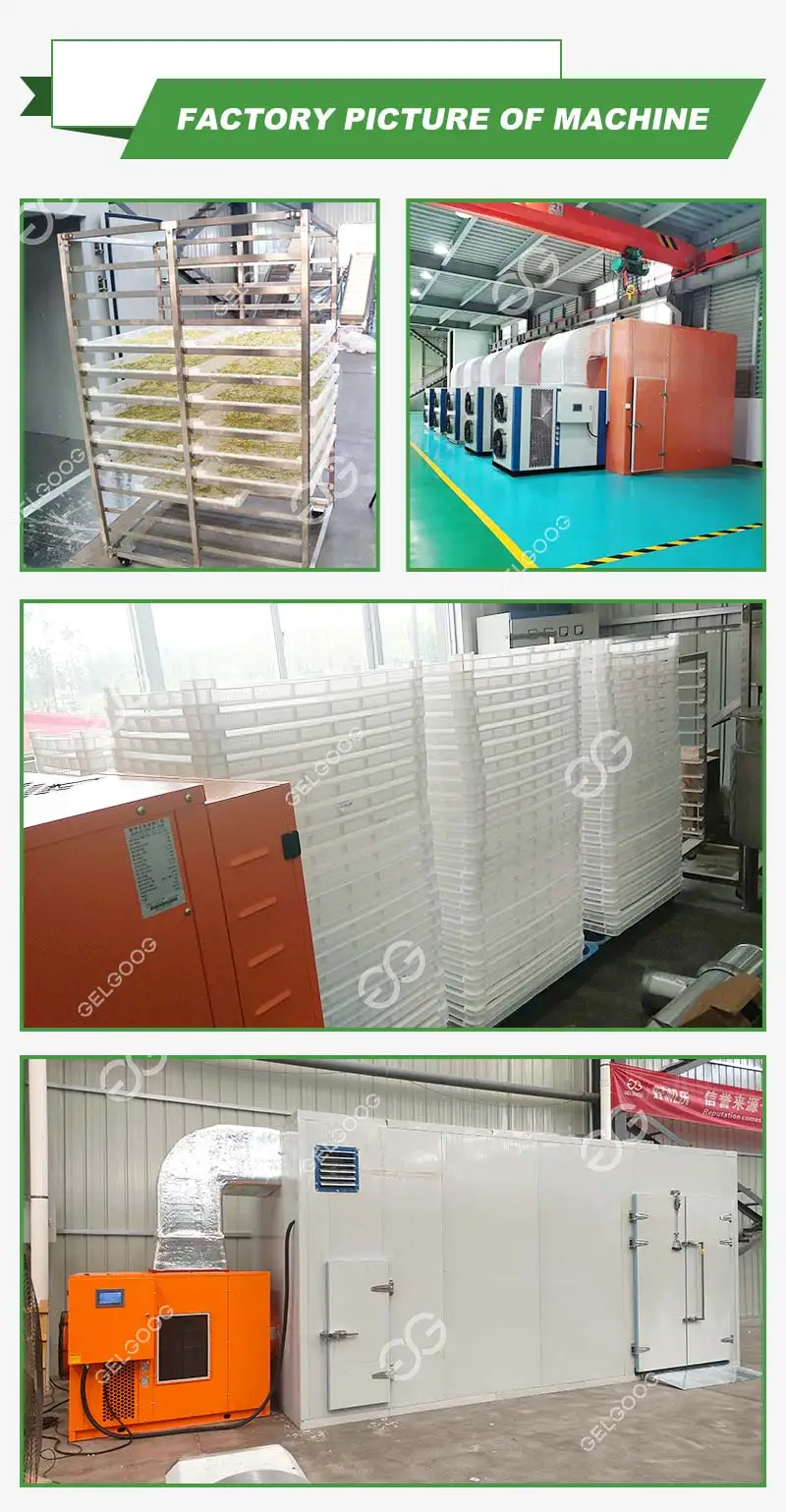

Details Images
Working Principle of Equipment For Dry Fruits Manufacturer
Under the action of compressor, the refrigerant will be flowing circulating in this system. It will finish the process of increasing pressure and temperature in the compressor (temperature can be up to 115℃), then release high temperature source to heat the air in the chamber, and at the same time, cool the moisture in the exhaust gas to a liquid water to be discharged. When it runs out the machine, the liquid will aborb hot air quickly and be tanslated to gas again.
At the same time, the temperature will be dropped to 20-30℃, and the heat absorber will transfer the heat source to refrigerant. And the refrigerant tranports the heating source from the air to drying chamber constantly and circularly to heat the air temperature in the chamber.
At the same time, the temperature will be dropped to 20-30℃, and the heat absorber will transfer the heat source to refrigerant. And the refrigerant tranports the heating source from the air to drying chamber constantly and circularly to heat the air temperature in the chamber.
Product Paramenters
Model | 3P heat pump drying machine parameters | 7P heat pump drying machine parameters | 15P heat pump drying machine parameters |
Item | Parameter | Parameter | Parameter |
Environment temperature | 10-43℃ | 15-43℃ | 15-43℃ |
Drying temperature range | 30-75℃ | 30-75℃ | 30-75℃ |
Rated power | 4Kw | 12KW | 21KW |
Maximum power | 10Kw | 18KW | 33KW |
Power supply form | 380/3/50V/Ph/Hz | 380/3/50V/Ph/Hz | 380/3/50V/Ph/Hz |
Temperature control accuracy | ±1℃ | ±1℃ | ±1℃ |
Electric heating power | 6Kw | 6KW | 12Kw |
Controller | Single chip microcomputer/PLC+color screen control | Single chip microcomputer/PLC+color screen control | Single chip microcomputer/PLC+color screen control |
Noise level | ≤75dB（A） | ≤75dB（A） | ≤75dB（A） |
Capacity | 100-200Kg | 300-700Kg | 800-1500Kg |
Dehydration Capacity | 9Kg/h（=50℃, 80%） | 21Kg/h（=50℃, 80%） | 43Kg/h（=50℃, 80%) |
Recommend Products
Customer Photos

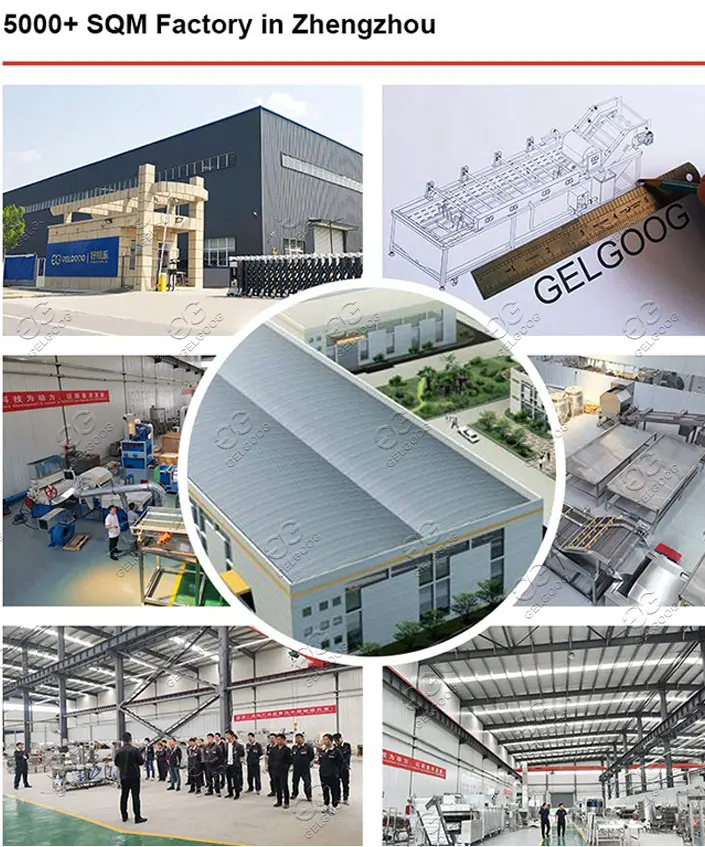

Company Profile
Tina Name Card
welcome contact us: 008618539906538 for more machine details
