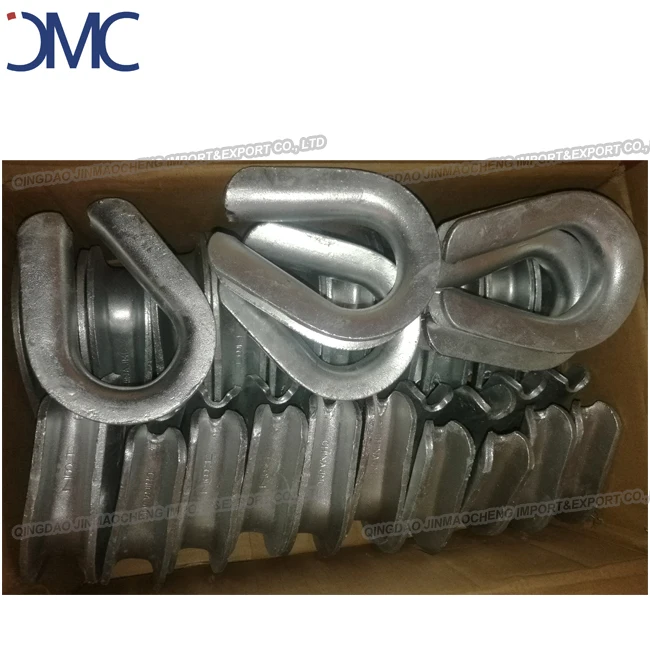

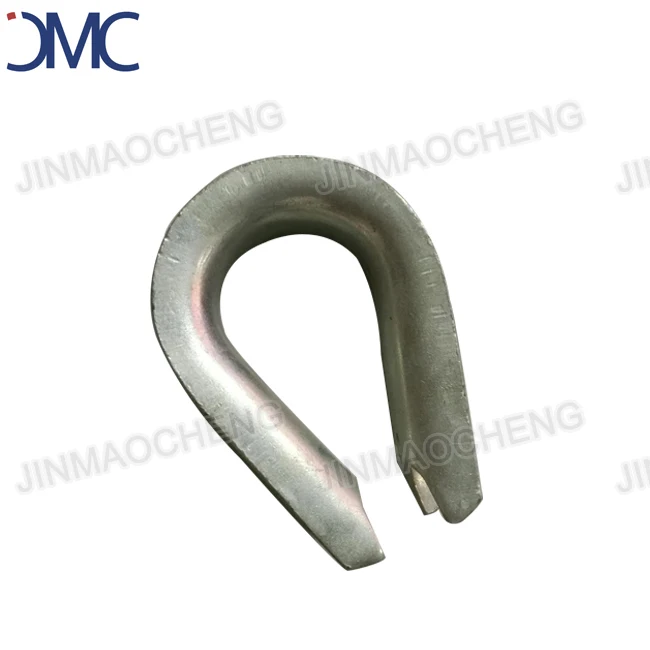

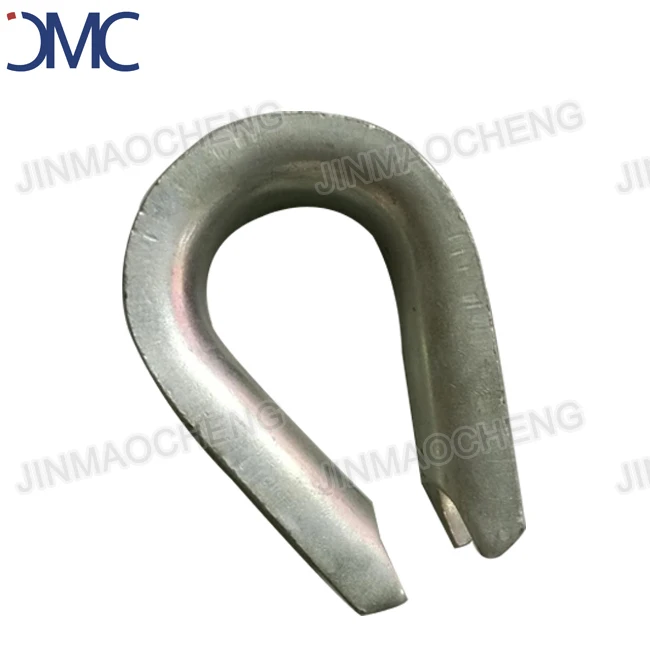

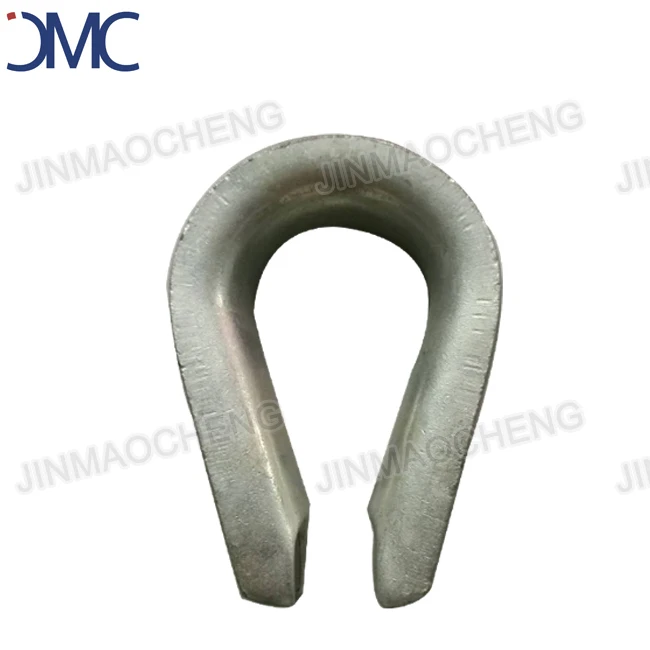

High Quality U.S. Type Heavy Duty Wire Rope Thimble G414
| Product Name | High Quality U.S. Type Heavy Duty Wire Rope Thimble G414 |
| Size | 1/4"-2.1/4" |
| Material | Carbon steel, Alloy steel, Stainless steel 304/316 |
| Finish | Electro Galvanized, Hot dip Galvanized |
| Technology | Punching |
| Marking | Size, or according to customers requirements |
| Sample | Samples are free, but you have to pay the freight |
| Packing | Put in gunny bags or cartons and then put on the pallets or as the requirements of the customers |
| Payment | 30% in advance, 70% before the shipment |
| Delivery | Within 40-60days after receipt of your order and deposit |

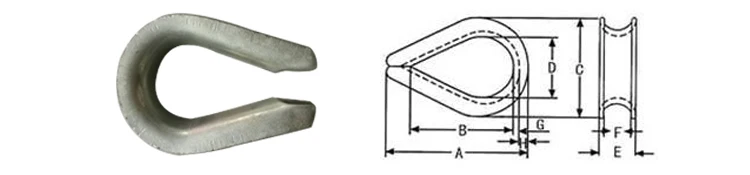

Drawing of the US type heavy duty thimble
| Rope Dia. (in) | A | B | C | D | E | F | G | H | Weight Each (KG/PC) |
| 1/4 | 2.19 | 1.63 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.23 | 0.03 |
| 5/16 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.28 | 0.054 |
| 3/8 | 2.88 | 2.13 | 2.13 | 1.13 | 0.63 | 0.41 | 0.11 | 0.34 | 0.098 |
| 7/16 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.13 | 0.38 | 0.158 |
| 1/2 | 3.63 | 2.75 | 2.75 | 1.5 | 0.81 | 0.53 | 0.14 | 0.41 | 0.232 |
| 9/16 | 3.63 | 2.75 | 2.69 | 1.5 | 0.88 | 0.59 | 0.14 | 0.41 | 0.232 |
| 5/8 | 4.25 | 3.25 | 3.13 | 1.75 | 0.97 | 0.66 | 0.16 | 0.5 | 0.344 |
| 3/4 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.66 | 0.719 |
| 7/8 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.75 | 0.808 |
| 1 | 6.13 | 1.5 | 4.94 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 | 1.427 |
Our Services
1. Reply your inquiry or questions within 24 working hours.
2. Customized design is available
3. provide counter samples within one week according to your samples, drawing and design
4. Sample are free of charge
5. During the using our products, our customers service staff can answer any question about the quality and technology.
Company Information

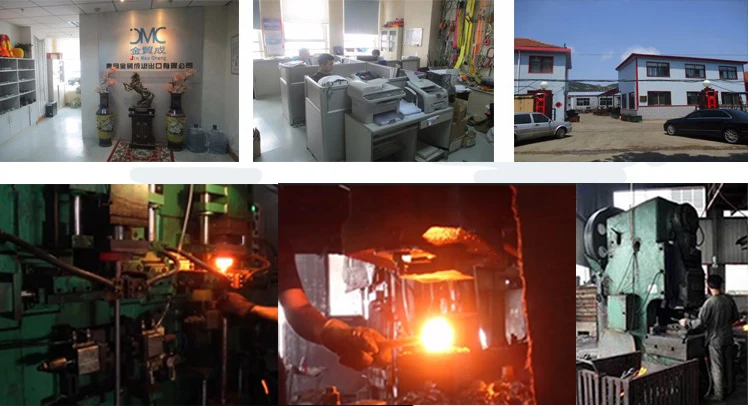

Qingdao Jinmaocheng Imp&Exp Co.,Ltd is located in Qingdao City, founded in 2004. Near sea port, speedway and only need 30minuts from Liuting international airport. We have our own factory with 50-60 workers and annual sale volume is around US$ 8 million.
We are leading supplier in Qingdao and specialize in rigging hardware export. Our main product is shackle, turnbuckle, thimble, clip, hook, chain, wire rope, and other cargo control and marine product. Every year we export 8 million US dollars rigging worldwide and in 2011, our sale volume exceed US$10 million.
Adhering to the principle of "The quality is the survival baise of an enterprise", our company enjoys a good reputation due to sound credit standing. We hope to establing long-term business relationships with clients both at home and abroad.
FAQ
1. How do you control your quality?
Produce machine have regular maintenance
From cutting materials to the end produce process, every step must in according with ISO standard
Our worker will check and inspection befor the shipment
2. What's your company mainly exporting market?
We mainly export to America, Canada, South America, European, Asia. Because of good quality and services, we have a good reputation among our clients.
