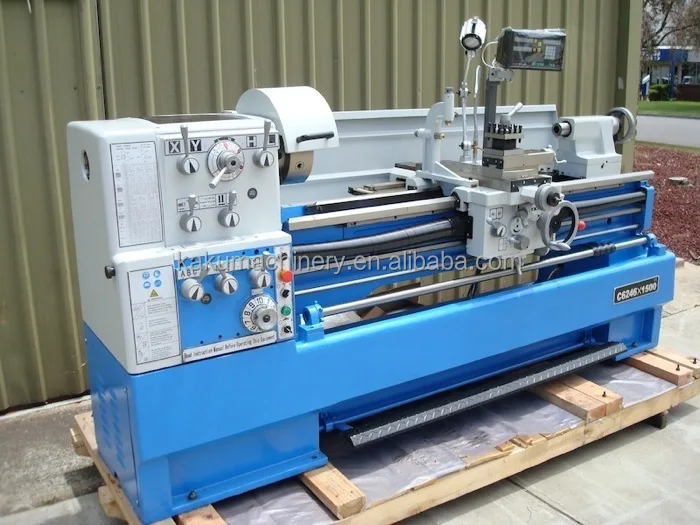

Mechanical Workshop Lathe Tools C6426 Machines Equipment in Gap

Share on (60718069303):


Price:

Quantity:


Product Overview

Description


Product Description

Feature:

1. Surface hardening and precision grinding of the bed guide.
2. The spindle bearing adopts precision tapered roller bearings.
3. The spindle gear adopts high quality steel surface quenching and fine grinding.
4. The unloaded saddle provides a larger rotary diameter.
5. Pedal brake device

Parameters
\t
Specification
\t
C6246
\t
Max. swing over bed
\t
460mm(18)
\t
Max. swing in gap diameter
\t
690mm(27-1/8)
\t
Valid length of gap
\t
165mm(6-1/2)
\t
Spindle nose
\t
D1-6
\t
Spindle bore
\t
58mm(2-1/4)
\t
Cross slide travel
\t
285mm(11-1/4)
\t
Max.section of tool
\t
25*25mm(1*1)
\t
Lead screw thread
\t
6mm or 4T.P.I.
\t
Longitudinal feeds range
\t
42 kinds, 0.031~1.7mm/rev(0.0011~0.0633/rev)
\t
Cross feeds range
\t
42 kinds, 0.014~0.784mm/rev(0.00033~0.01837/rev)
\t
Threads metric pitches
\t
41 kinds, 0.1~14mm
\t
Threads imperial pitches
\t
60 kinds, 2~112T.P.I.
\t
Threads diametral pitches
\t
50 kinds, 4~112DP
\t
Threads module pitches
\t
34 kinds, 0.1~7MP
\t
Quill diameter
\t
60mm(2-5/16)
Quill travel
\t
Quill taper
\t
No.4 Morse
\t
Main motor power
\t
5.5kW(7.5HP) 3PH
\t
Coolant pump power
\t
0.1kW(1/8HP) 3PH
\t
Overall dimension(LXWXH)
\t
2200*1080*1370mm
\t
Net weight
\t
1645kg

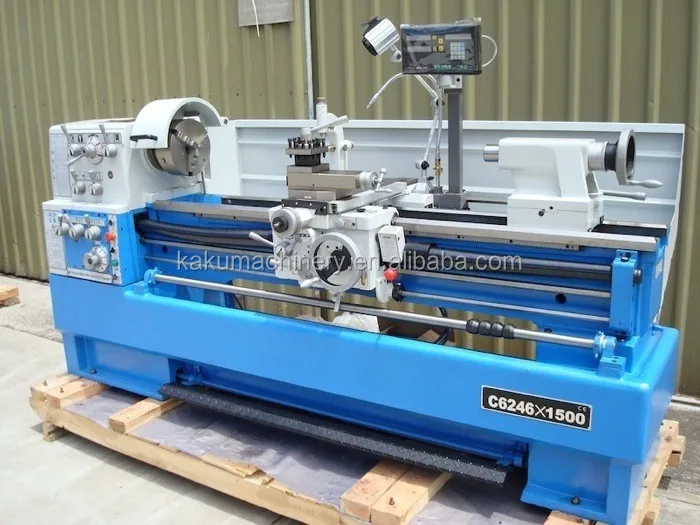

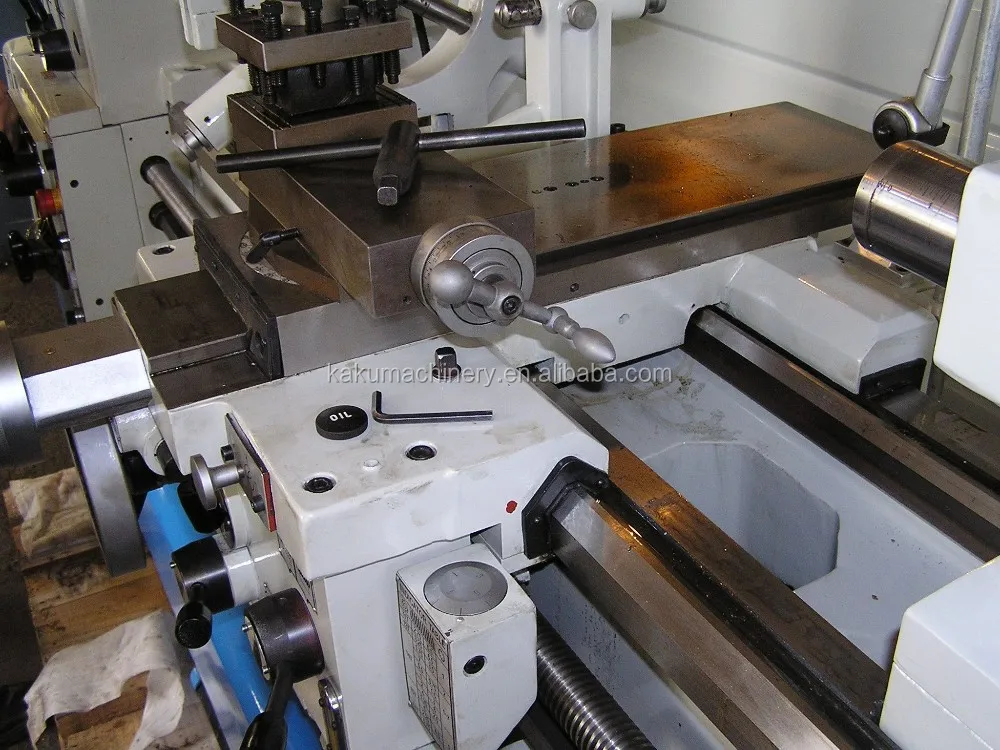

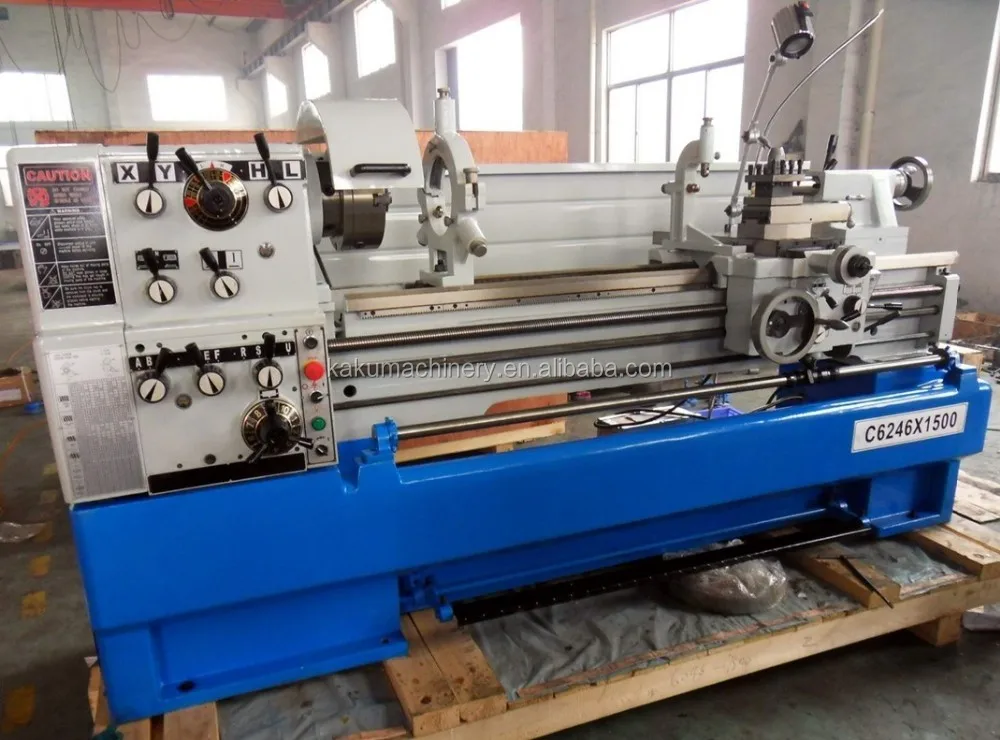

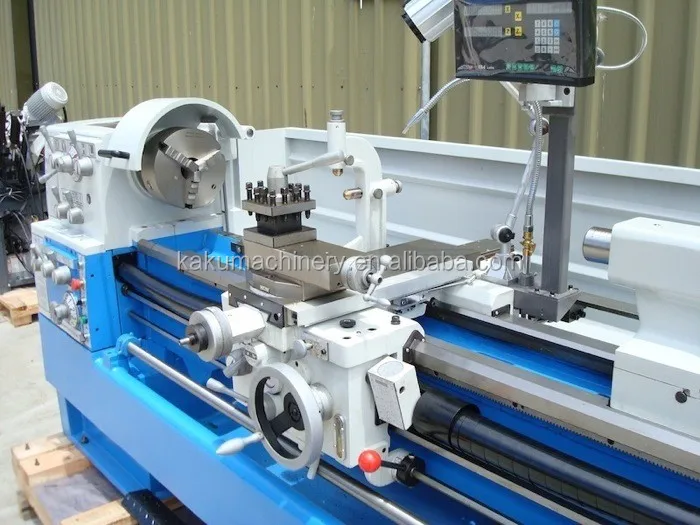

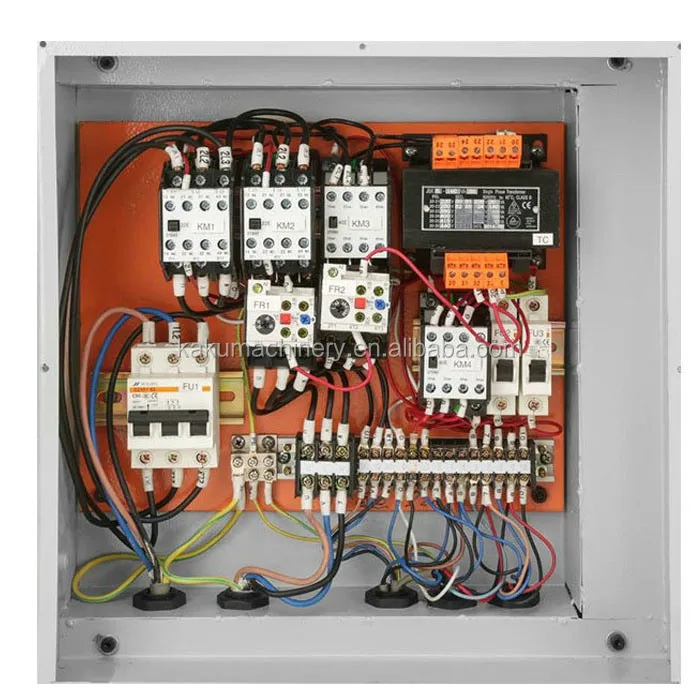

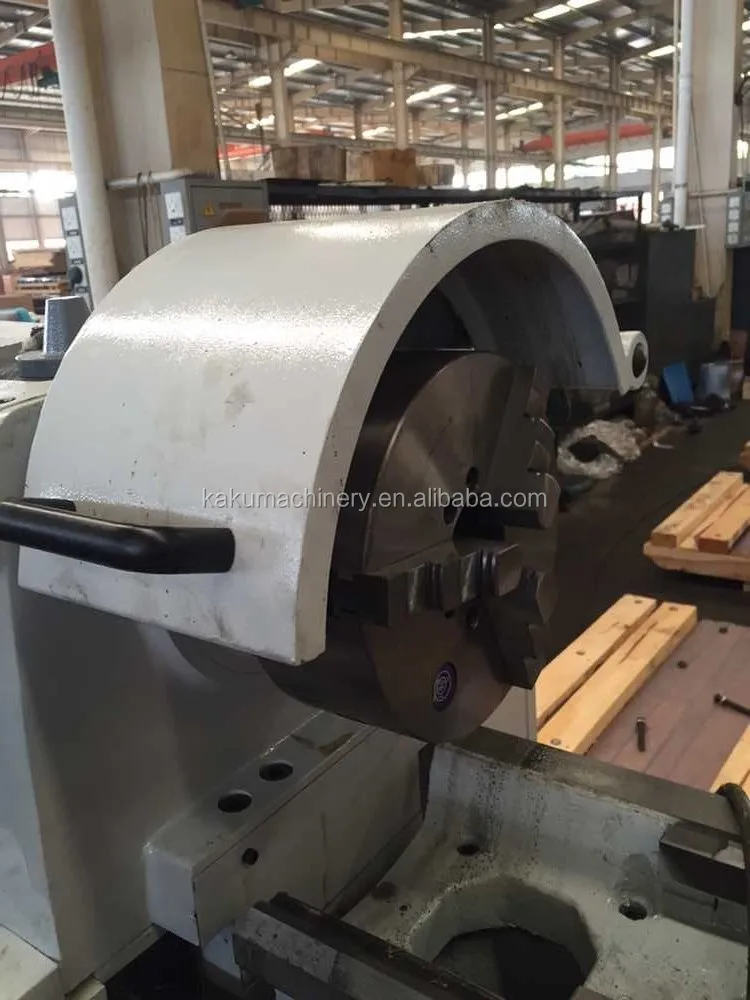

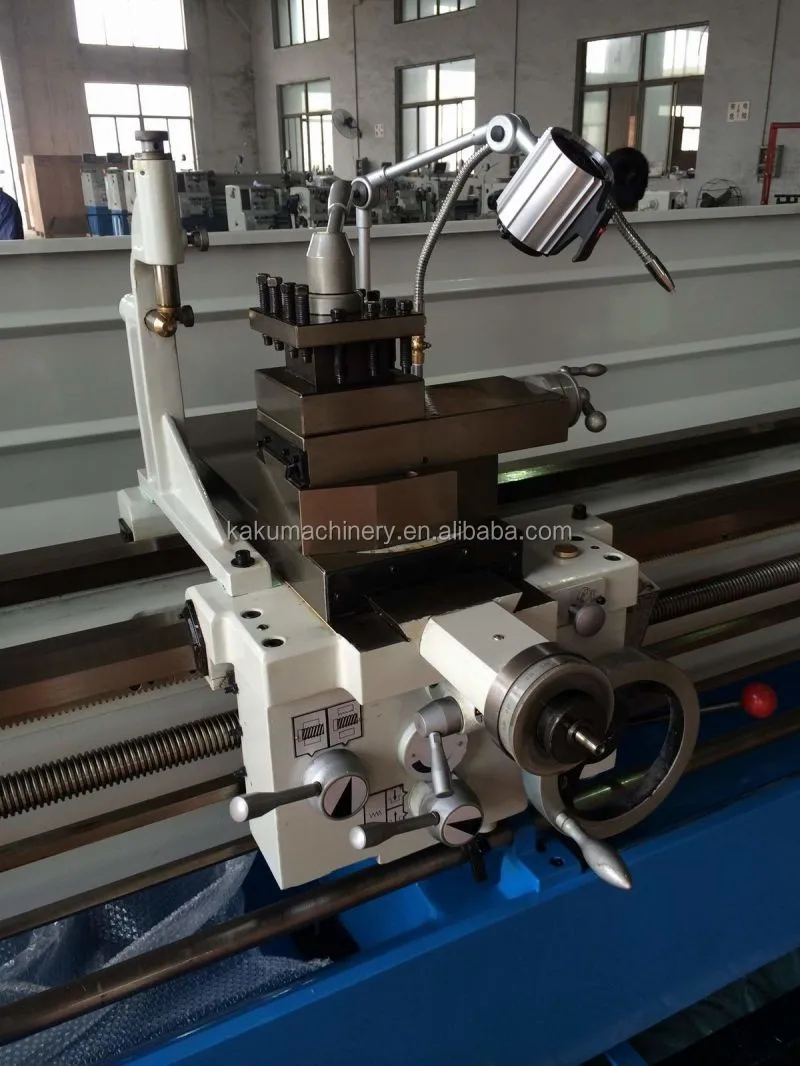

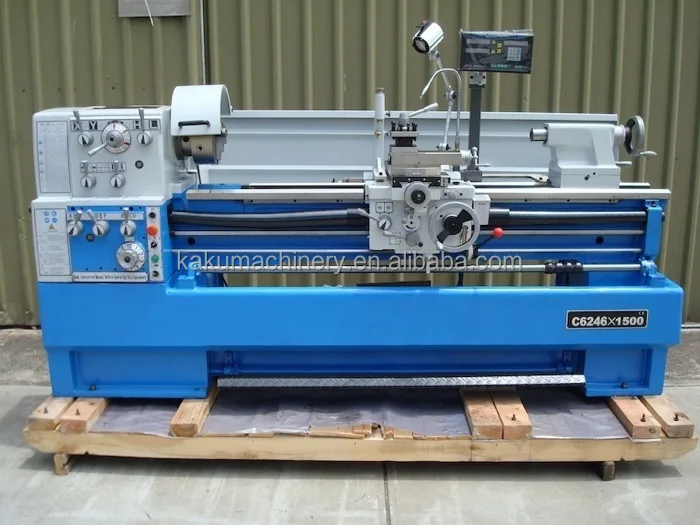

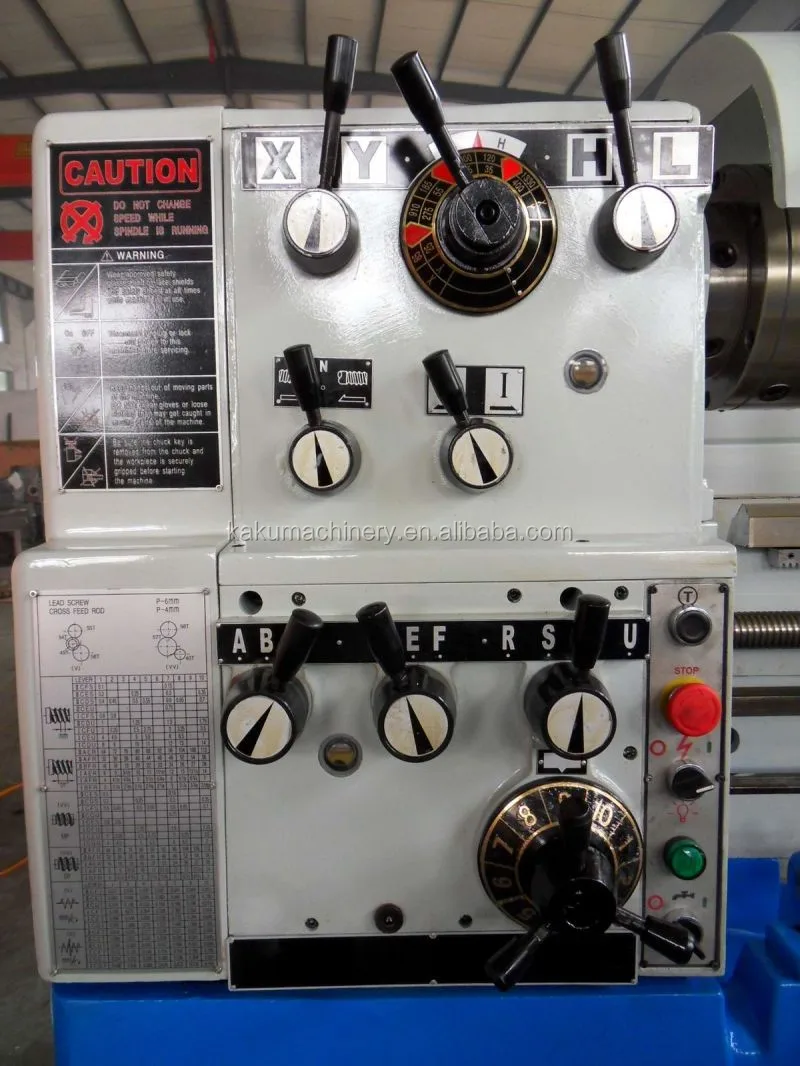

Detailed Images
Packing & Delivery
Our Company

Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product.

Our Service

1. We will add all item picture in the PI for avoiding any mistake of your order.

2. We will update every step for you once we start your order,

3. We will booking the vessel for you when it is going to be finished.

4. We will inform you that detail ship date once we get the information.

5. We will update the vessel information(ETA&ETD) for you.



If you are interested in our company's product, welcome to contact us and place an order. Thank you!
