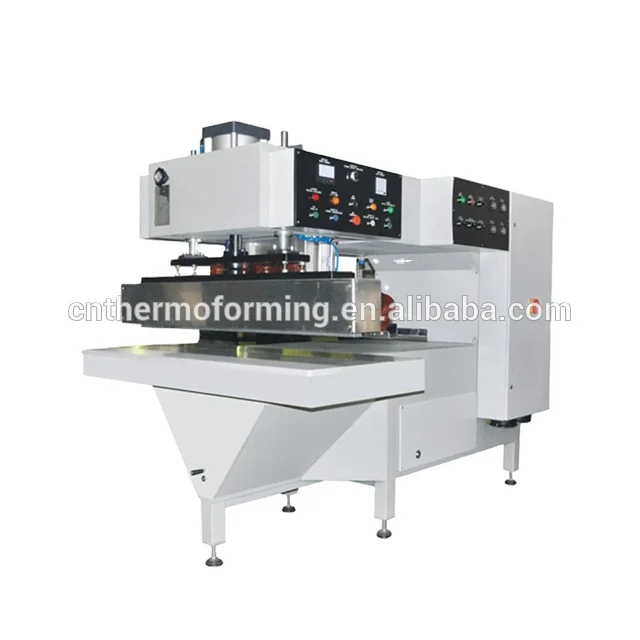

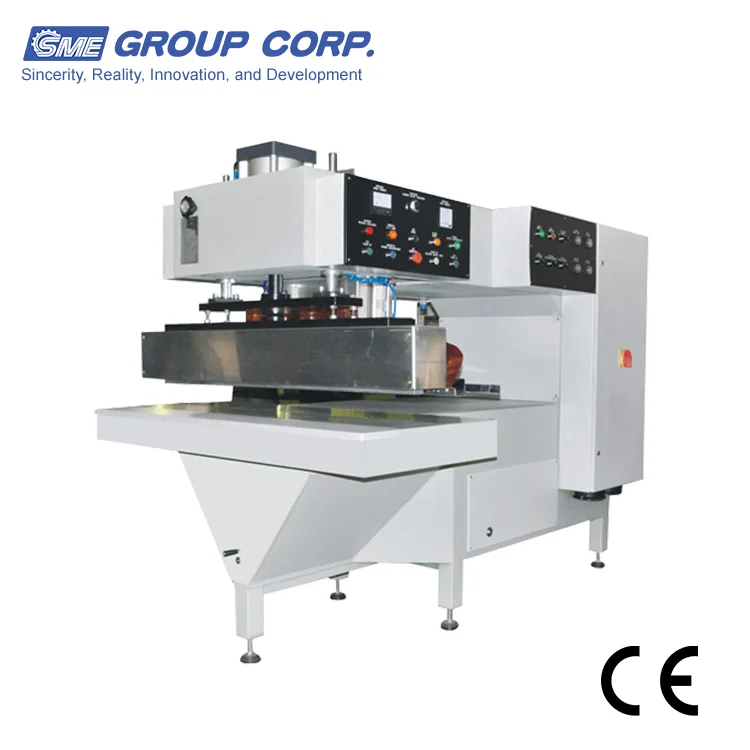

Industrial canvas welding machine of unlimited length and width coverage

Product Overview

Description



FEATURE

The model is equipped with incredible high sensor sparkling protection system to avoid damage of mould and material
H.F transfer distance 1500mm, it is suitable for welding unlimited length material.
It is optional to operate machine at the right or left side and the height of press is adjustable besides it has good operability and security.
The output of high frequency is in compliance with International radiation standard, which avoids any harm to human body.
It is optional to choose right or left welding position and the height of press in adjustable. besides it has good operability and security.
Vacuum device is equipped below operation table for material orientation



Model	HF-15M	Air pressure	0.6Mpa
Electrode size	50*1500mm	Max welding pressure	2T
Max gap between working plant and electrode	120mm	H.F transfer distance	1500mm
Max travel of the electrodes-holder plane	120mm	Operation mode	pneumatic
H.F output	15KW	Power supply	380V/50HZ/3phase
Oscillation frequency	27.12MHZ	Approximate net weight	2700KG
Power input	32KVA	Overall dimensions	2400*1070*2228mm



The product sample:

Remarks: The price is non-including the mold cost.

Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine.

Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 50USD/day for training cost.

Delivery Time: It will take within 45-55 days to ship out customer’s goods after get customer’s advance payment.
