Product Overview

Description

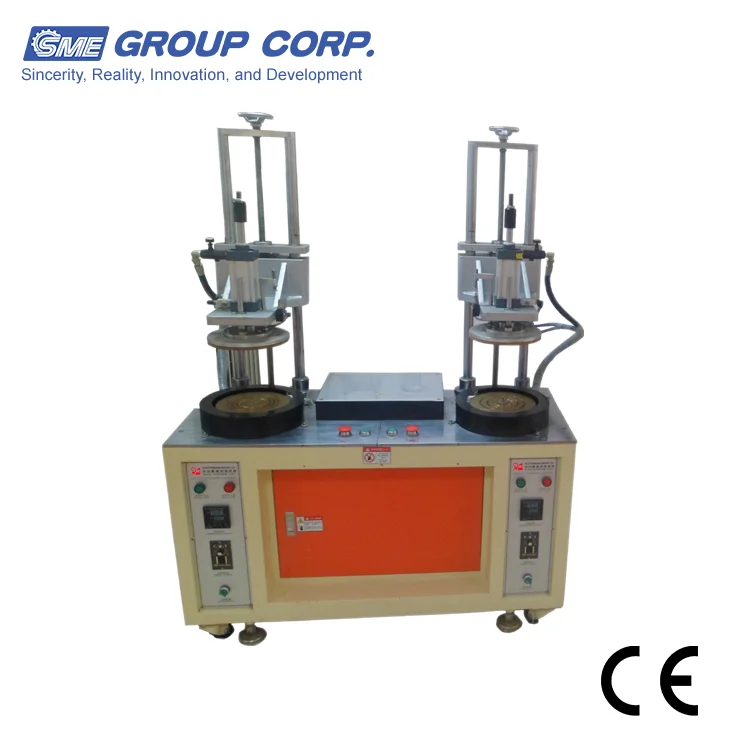

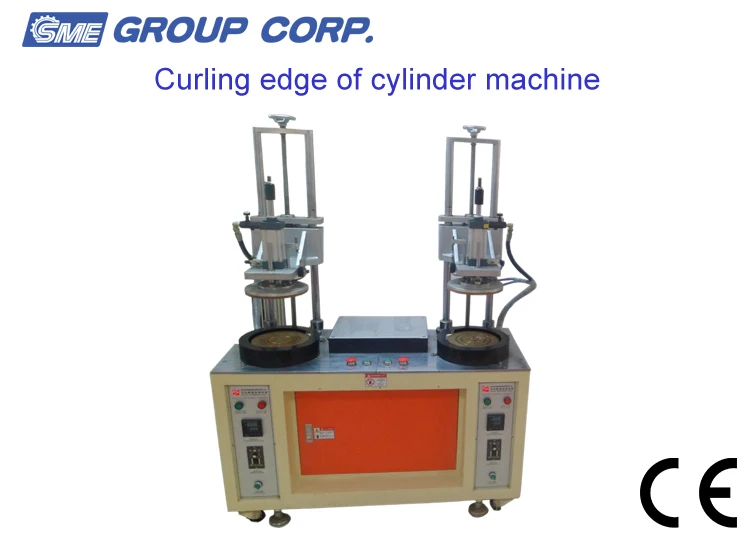

Two heads PVC, PET tube ends curling machine

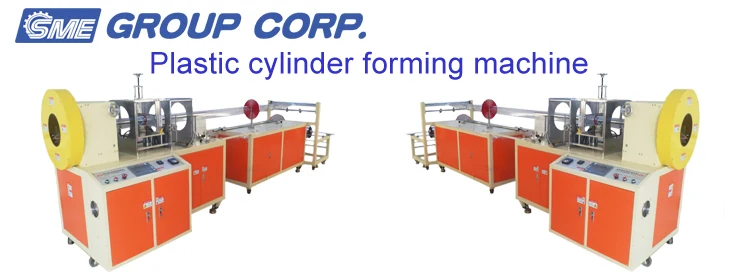

Plastic forms a production line for making plastic cylinders with our fully automatic flattening and slicing machine and microcomputer gluing machine, both semi-automatic and sull-automatic machines are available in our factory.

Characteristics:

1. Adopt automatic thermostatic device and digital temperature control system for preheating.

2. Production speed can be adjusted according to the needs and easy to operate.

3. Suitable for cylinder sheet curling with standard 360 degree curling

4. High throughput and delicate shape.

5. Using high quality copper molds with clear trace and consistent size.

6. We are able to make molds according to the customers requirements.

The machine data:

Model	CR-2
Forming Size	φ40~200mm
Forming Height	25~400mm
Temperature Control	Heating plate
Power Consumption	3KW
Power supply	380VAC/3phase/50Hz;220VAC/3phase/60Hz
Production efficiency	300-500units/hour
Material thickness	0.12-0.6mm
Machine size(L×W×H)	1100X500X1460mm
Net weight	250Kg





































Features of the machine

It mainly used for columnar firm PVC PET curling side.

1.Vacuum oil pressure convert operation.

2.One machine can do two specifications of cylinder curling side at het same time.

3.Motor speed adjustable by your required, shorted your work time.

4.Electric heat automatic control to suit the thickness of the PVCPET sheet high speed of curling the side of the products with high efficiency.



Usage:

It is used for PVC, PET , plastic cylinder curling in various industries such as food, medical, tea, toys, gifts, electronics and hard wares, est.



Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine.



Electric Components

No	Name	Place and brand
1	Relay	"OMRON" Japan
5	Electric connecter	"TAIAN" Taiwan
6	Temperature controller	Adopt ANV Taiwan
7	Power Switch	MEAN WELL(Taiwan)
8	Cylinder	"SMC" Japan or "JYC" Taiwan
10	Speed controller	" DONGWEITING" Taiwan
11	AC motor	" DONGWEITING" Taiwan
12	Electromagnetic Valve	"SMC" Japan or "JYC" Taiwan



Samples pictures:

Payment Terms: T/T 40% deposit before production, 60% balance before delivery date;

Delivery time: 15-20 business days after deposit;

Validity: 30 days after quotation.

Departure Port: Guangzhou Huangpu port                Packaging: wooden case

Warranty: We guarantee these machines for one year. And we supply some spare parts with the machine.

Service: We will send engineer who install and train in your company for approximately 7 to 10 days, after machine is arrived your place. And the flight tickets, visa and accommodation of engineer will be arranged by buyer, also the buyer need pay 50USD/day for training cost.

Remarks: The price is non-including the mold cost.
