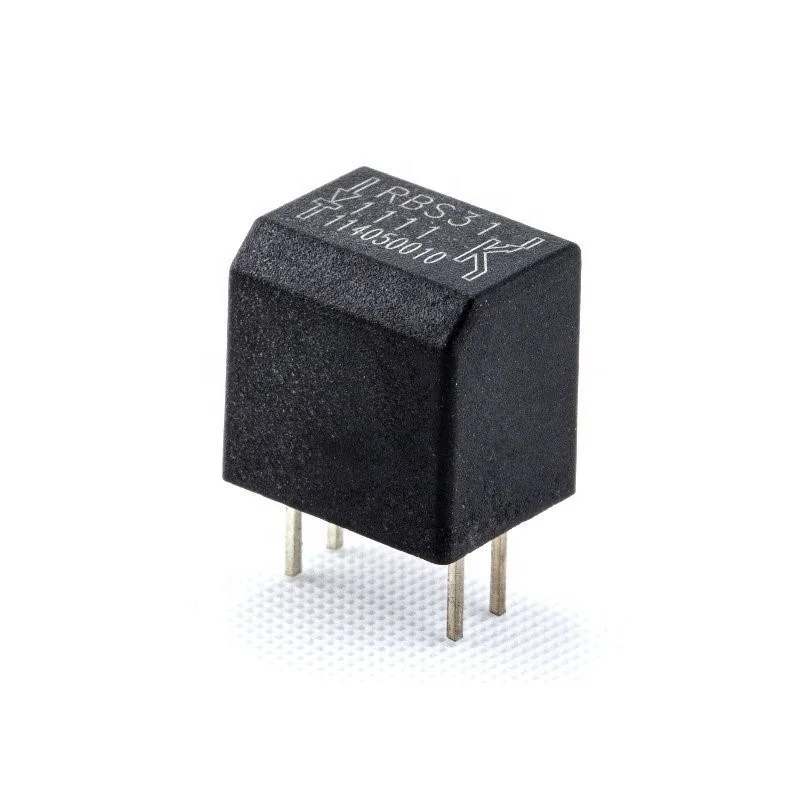

RBS311111 переключатель датчика безопасности для slectric нагревателя

Feature
1. Housing made of high insulation plastic material, free from electric conduction and rust problem.
2. Detecting with photo transistors, generating highly reliable and stable signals.
3. All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
4. Simple ON and OFF signals, easy for design.
5. RoHS compliance, an ideal substitute for mercury switch.
6. A more economical tilt and vibration detection option than IC design solution.

Current / Voltage Suggested

Mechanical Characteristics

Notes

For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

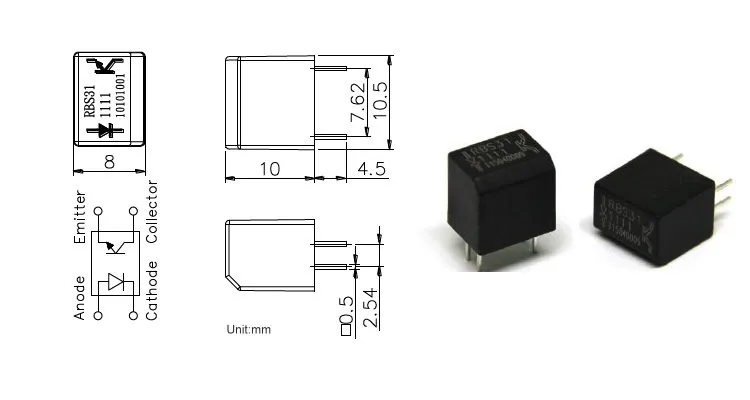

Dimension of RBS311111

All made in TAIWAN and EXAMINED before shipment

Packing of RBS311111
All made in TAIWAN and EXAMINED before shipment

Taiwan
- Taiwan Patent No. I 310952
- Taiwan Patent No. M 450817

U.S.A
- U.S.A Patent No. US 6,800,841 B1
- U.S.A Patent No. US 7,402,791 B2

China
-China Patent No. ZL 200610083013.5
-China Patent No. ZL 200820126206.9
-China Patent No. ZL 201220539712.7
Japan
- Japan Patent No. 4384217
- Japan Patent No. 3148127

Application of RBS311111
1. Rotation detection for LCD monitor
2. Automatically shut off for home appliances
3. Automatically shut off for Sporting equipment
4. Automatically shut off for motorbike
5. Alarm system
6. Anti-theft / Anti-tamper devices
7. Being motion detection (personal locator)
8. Wake up systems for power saving, such like remote controllers
9. Earthquake Detecting

What is Roll Ball Sensor Switch?
Roll Ball Sensor Switch operates using the same theory as any other mechanical switches: the turning on and off action is activated whenever the metal part of a switch is touched. As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals or an alteration of a light path. This will generate the conductive or non-conductive status.
A number of different kinds of Roll Ball Sensor Switches are available for various applications, including the Tilt Sensor Switch, Vibration Sensor Switch, Centrifugal Force Sensor Switch and Optical Roll Ball Switch.
The traditional way to detect the tilt and vibration is using mercury switches. As mercury switch is banned by more and more governments, the use of tiny balls to trigger mechanical touch actions becomes more widespread.
