Our Advantage

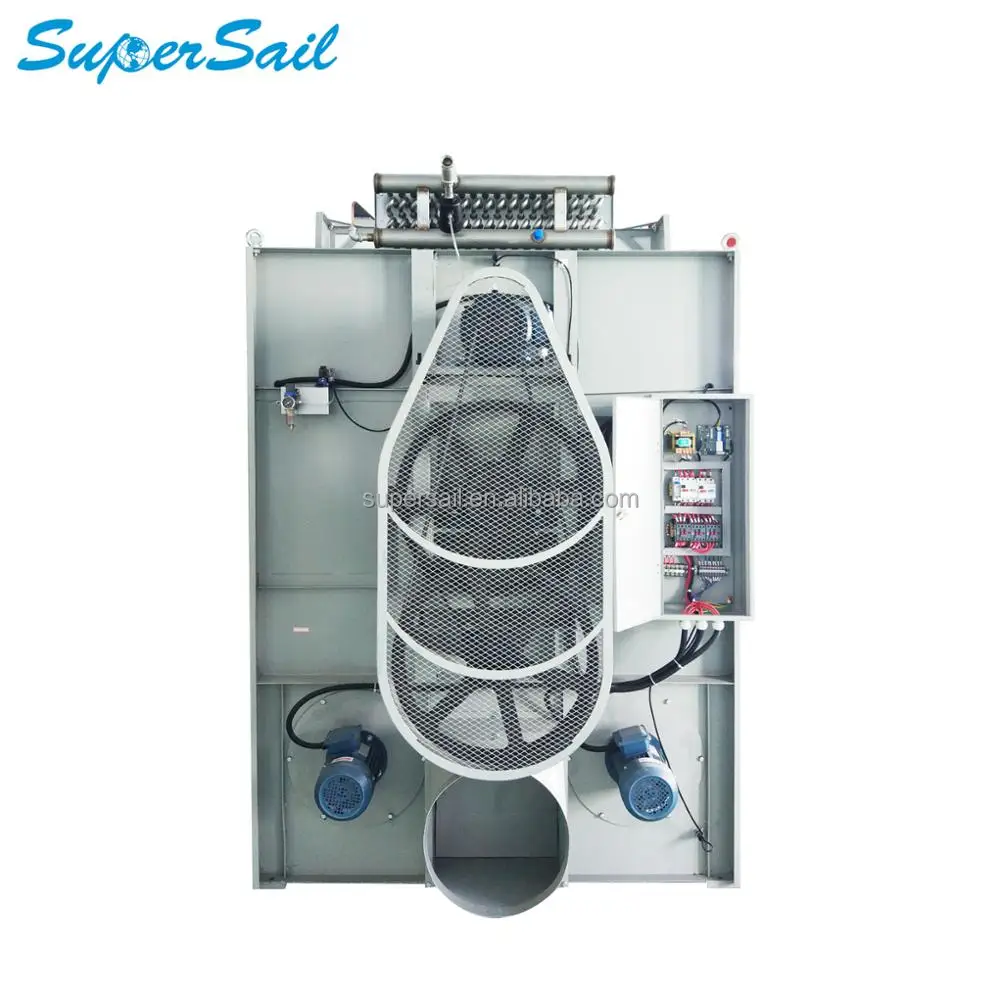

1.Heat recycling and reusing system reduces the time needed in drying, which improves the
working efficiency and decreased power consumption thus saving the cost.
2.The scattered heat can be collected to reduce the energy consumption, discharge volume,
steam energy consumption and alongside cut the costs.
3.This design effectively saved the floor areas of the workshop.
4.Effectively reduced the temperature in the workshop and the working environment of the
workers gets improved.
5.For this disadvantage, we Gamesail pioneers with their years’ efforts have achieved
breakthrough. The heat collection and recycling system with its unique designs effectively
reuses the scattered steam to improve the traditional design, which greatly increased the
energy consumption coefficient.

Techinal Parameter

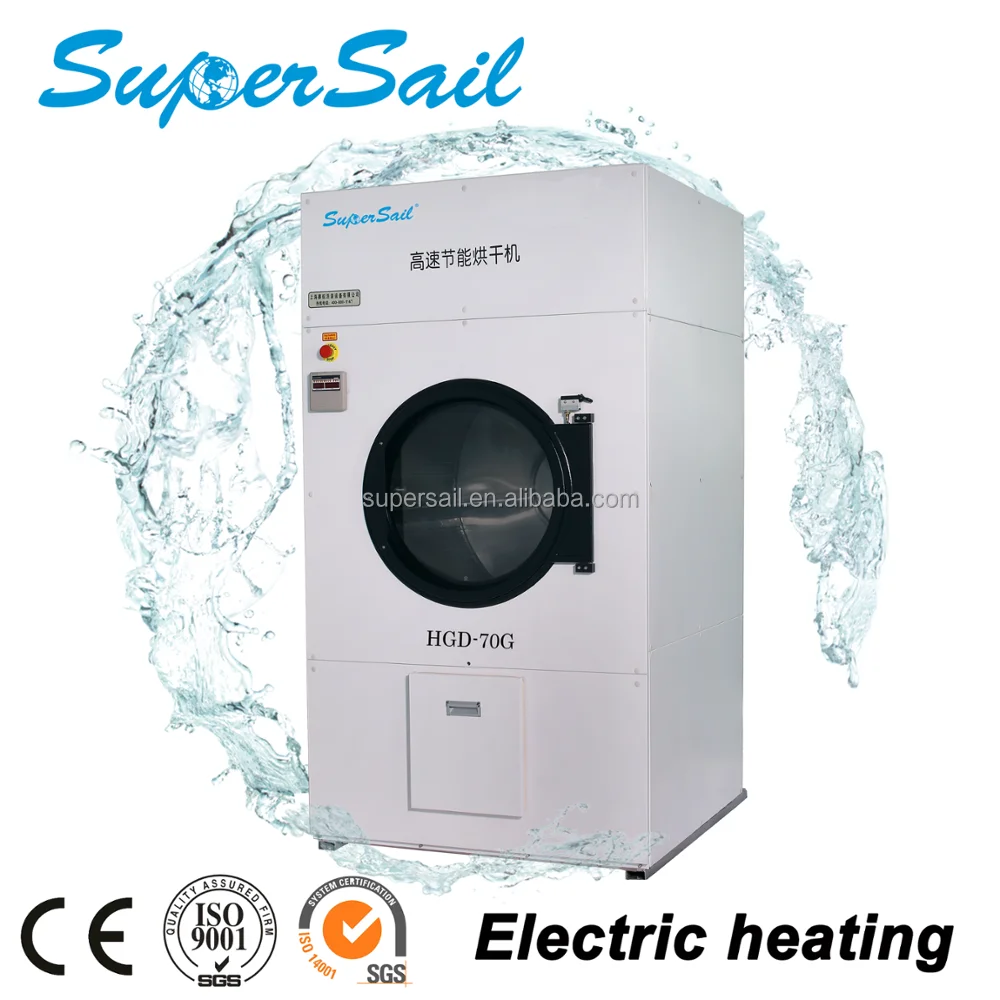

| Type/Parameter | Unit | HGZ-15G/ HGD-15G | HGZ-30G/ HGD-30G | HGZ-50G/ HGD-30G | HGZ-70G/ HGD-70G | HGZ-100G/ HGD-100G |
| Capacity | kg | 15 | 30 | 50 | 70 | 100 |
| Size of Rolling Cylinder | mm | Φ800X600 | Φ940X870 | Φ1150X970 | Φ1270X1100 | Φ1450X1220 |
| Diameter of the Door | mm | Φ590 | Φ590 | Φ790 | Φ790 | Φ990 |
| Power of the Main motor | kW | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 |
| Power of Draught Fan | kW | 1.1/0.75 | 1.5/1.1 | 3.0/1.5 | 4.4/2.20 | 6.0/3.00 |
| Electric Heating Power | kW | 16.1 | 27.3 | 43.2 | 56.7 | 75 |
| Rated Voltage | V | 380 | 380 | 380 | 380 | 380 |
| Steam Pressure | MPa | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 | 0.4~0.6 |
| Steam Consumption | kg | 18 | 35 | 55 | 80 | 95 |
| Air Exhaust Pipe Joint | mm | 230 | 300 | 300 | 300 | 430 |
| Compressed Air Joint | mm | 8 | 8 | 8 | 8 | 8 |

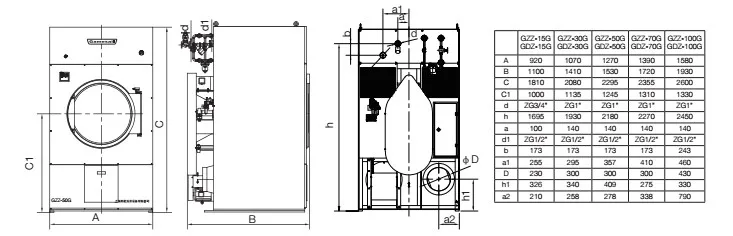

| Boundary Dimension | ||||||
| Width | mm | 920 | 1070 | 1270 | 1390 | 1580 |
| Depth | mm | 1100 | 1410 | 1530 | 1720 | 1930 |
| Height | mm | 1810 | 2070 | 2295 | 2355 | 2600 |


Our Market

Our Team
SuperSail has a researching and developing team with professional technology.We have
technicians of over 20 years professional designing experience andinternationally famous
designing experts.


Certification

Our Service
1.Eighteen month Warranty. Buy with confidence!
2.High energy saving:We have certified energy-saving products and patent.
3. Very competitive price:We purchased much raw material in one time, the material cost is the very
big advantage.
4. Very professional team:Most of our engineers have 15 years experience,And at the same time to solve
the previous program design, installation, commissioning, after-sales service.

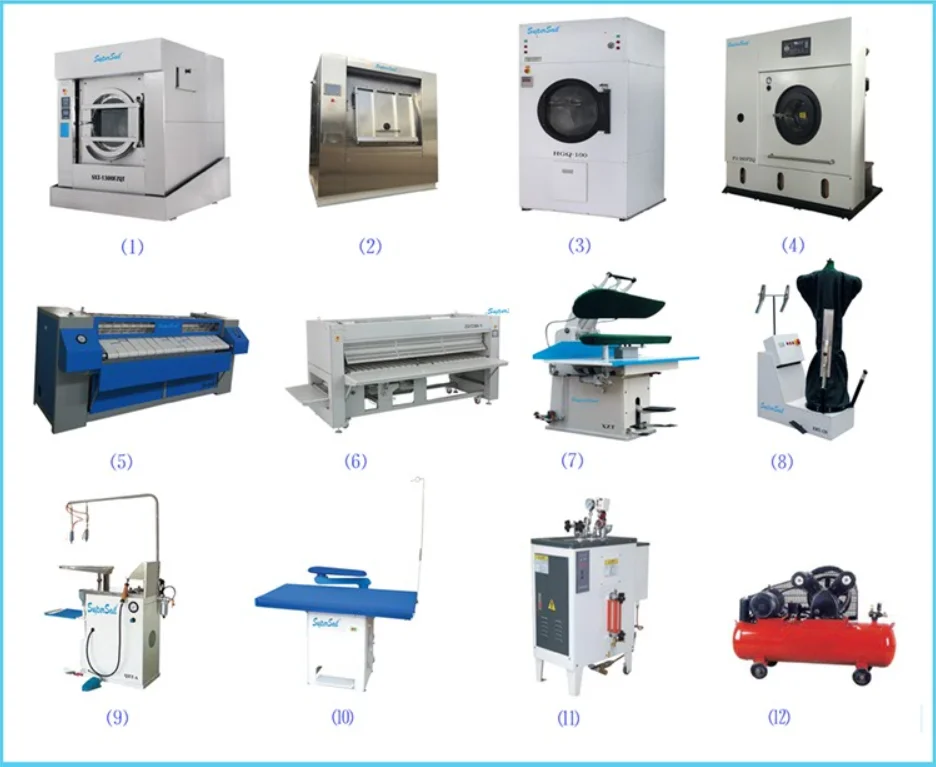

5. One-stop service:We can provide one-stop service from industrial washing machines, dryers, ironing
machines and folding machines.

We are SuperSail,the leading provider of clean health products and solutions. Our company provides
services to customers in dozens of countries. Our greatest advantage comes fromhonest and reliable
traditions, which can be traced back to the 2002.Today, personal loyaltyhas been integratednto the
corporate culture. We are committed to winning your trust and carrying forward this tradition at all times.
Our commitment is to provide you with all the solutions that ensure your facilities are safe, clean and
efficient, not just quality products and services. Because ultimately your trust in us is not determined
bythe products we sell, but by our company itself.
As our company has continued to evolve over the years, the values expressed in this we believe continue
to define our company and how we do business. They serve as a promise to people to whom we are
responsible and whose trust we continually seek to earn.
Any questions, welcome to contact us, we ill be always help you and support you.
