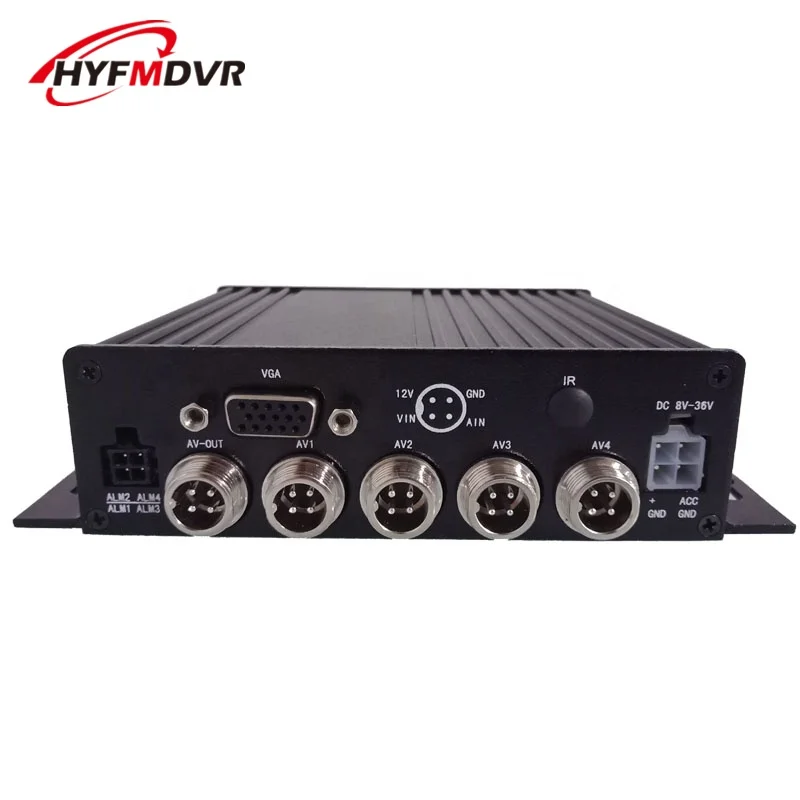

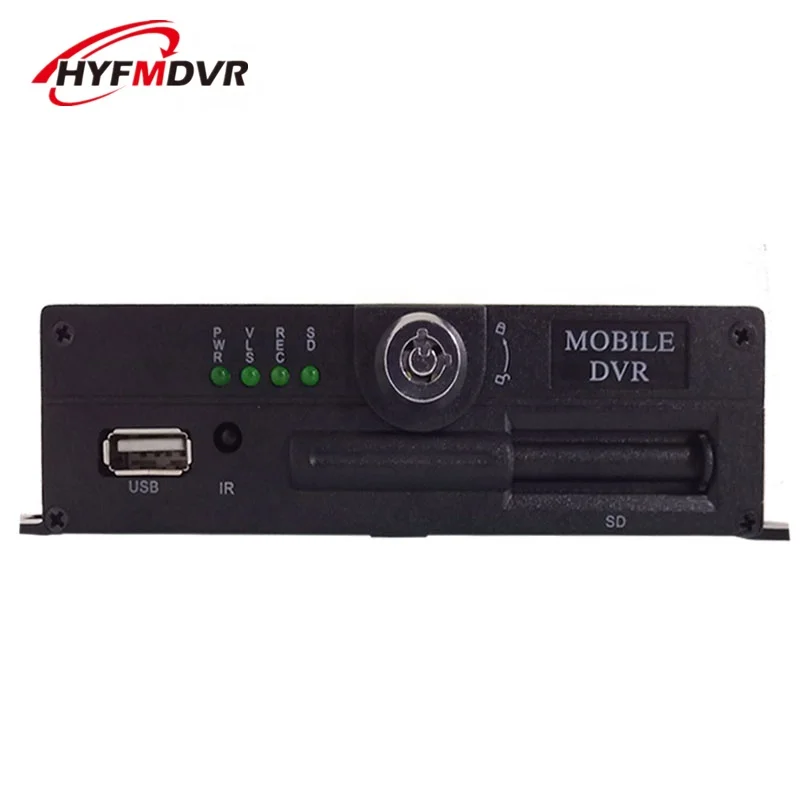

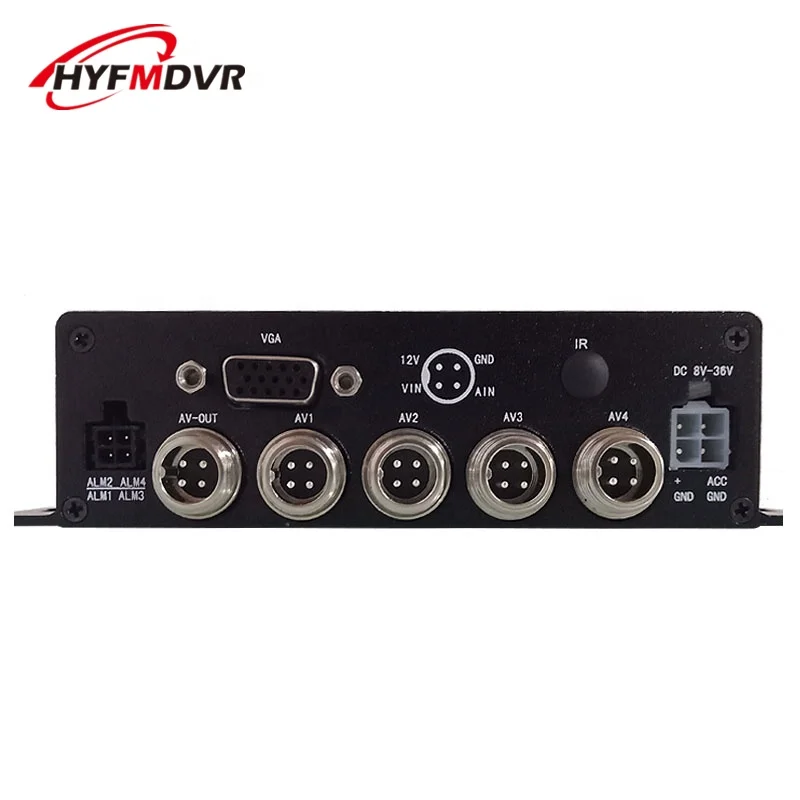

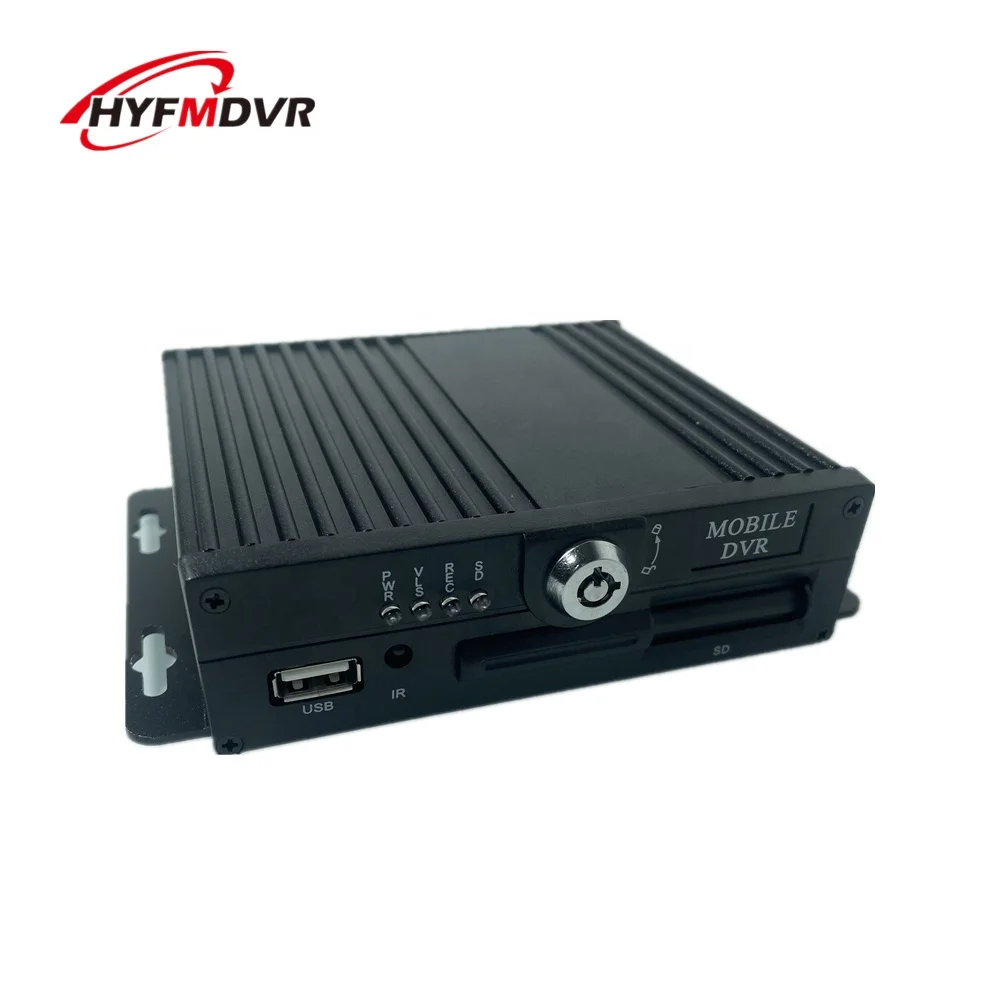

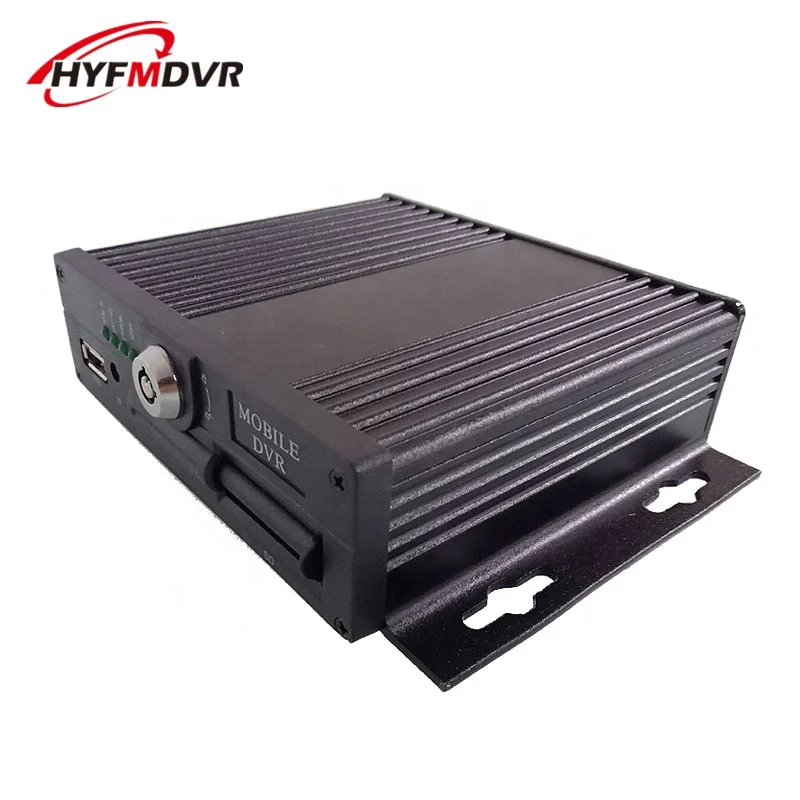

HYFMDVR AHD 4CH MDVR SD Card Car Video School Bus Mobile DVR
- Category: >>>
- Supplier: Shenzhen HYF Industrial Co. Ltd.
Share on (60718182843):
Product Overview
Description
Product Description
Operating System | Linux | ||
Language | English, Chinese or Customized language. | ||
Video Compression | H.264 | ||
OSD | Support for time, date, vehicle ID, image, etc. | ||
Video and Recording | Video Input | 4CH 1080P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω | |
Video Output | 1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. Support 1CH full screen and 4CH division. | ||
Preview | Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing | ||
Recording Resolution | Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 1080P | ||
Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | ||
PAL:100 fps，CCIR625line,50 scenes NTSC:120 fps，CCIR525line,60 scenes CIF:256Kbps - 1.5Mbps，8 grades image quality for optional HD1:600Kbps - 2.5Mbps，8 grades image quality for optional D1:800Kbps - 3Mbps,8 grades image quality for optional 720P：800Kbps - 4Mbps,8 grades image quality for optional 1080P：2Mbps - 6Mbps,8 grades image quality for optional | |||
Recording Mode | Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc | ||
Audio | Audio Input | 4CH Aviation connector inputs | |
Audio Output | 1CH Aviation connector output, | ||
Compression format | G.726, Speed for 8KB/s | ||
Alarm Input | Alarm Input | 4CH level alarm inputs | |
Alarm Output | Alarm Output | - | |
Communication Interface | Communication Interface | - | |
Wireless Transmission | Wireless Transmission | - | |
Location /G-sensor | Location /G-sensor | - | |
Video Storage | Storage | Support at maximum 1*256G high capacity SD card | |
Upgrade Method | Support SD card local upgrade, remote upgrade automatically | ||
File Format | H.264 general video format | ||
File System | FAT32 exclusive file system | ||
Video Playback | Video Search | Search recorded video files by recording time and recording method | |
Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | ||
Support 2/4/8/16 times speed forward or backward | |||
Security Management | User Password or administrator password management, support screen locked | ||
Expansion functions | TTS Voice broadcast | - | |
Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | ||
Power and Consumption | Power Management | Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc | |
Input Voltage | DC:+8V - +36V | ||
Output Voltage | +12V@1.5A，+5V@1.5A | ||
Power-off Protection | - | ||
Consumption | Normal working < 14W, standby < 0.5W | ||
Working environmen | Temperature | -30℃ - +70℃ | |
Humidity | 20% - 80% | ||
Dimension | Dimension | 145*103*35MM | |
Weight | Weight | 2KG | |
Mean feature
H.264 video compression, multi code stream.
Support 4CH 1080P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
Support 4CH 1080P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
Exclusive pre-distributed vehicle-specific file system technology，Solve the problem of document fragmentation caused by repeated erasing，Solve the SD file system crash data loss, can not find the SD card and file garbled phenomenon, to ensure data stability and integrity；

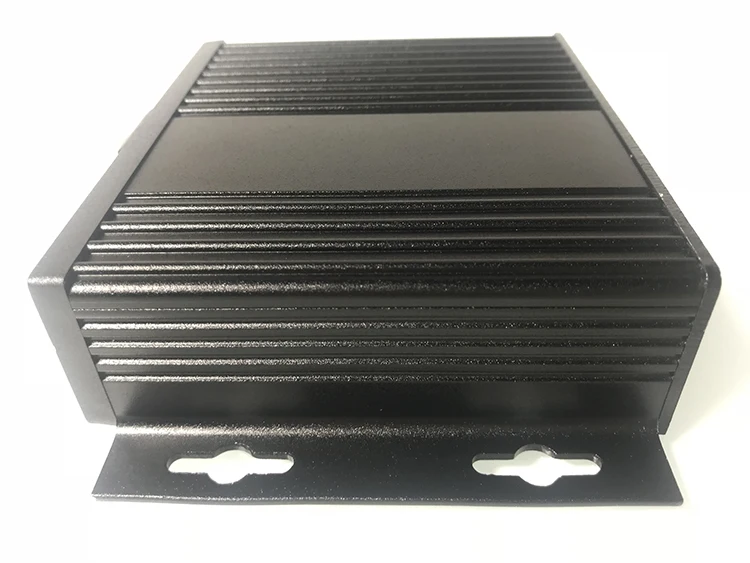

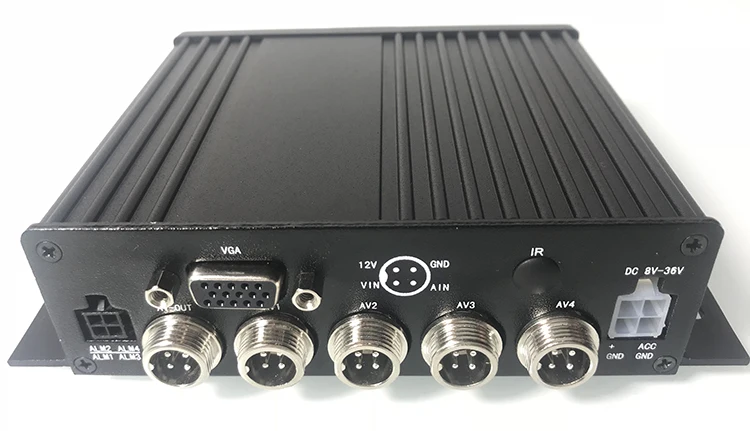

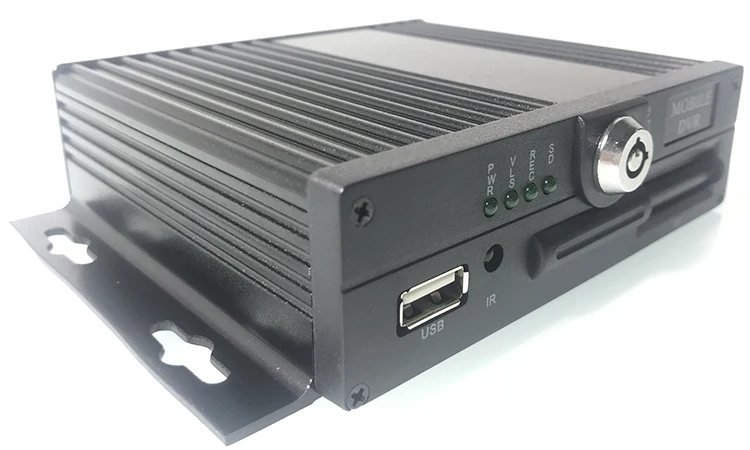

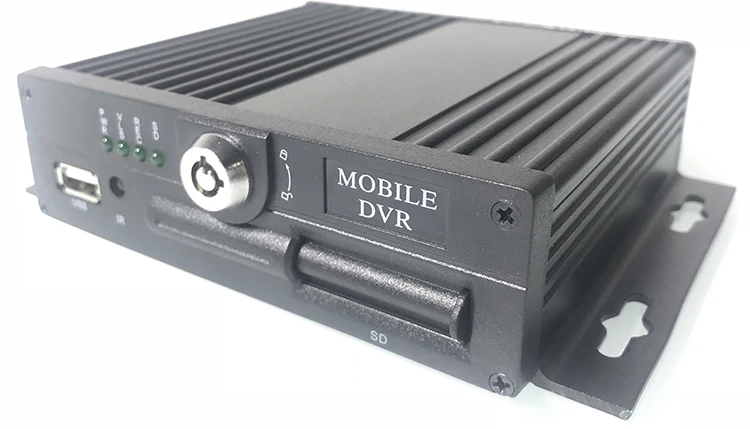

Details Images
HiSilicon video solution, H.264 compression mode, multi-stream recording, providing 1080P million HD video effects. Support 4 channels of real-time 1080P million AHD HD input / 4 channels of analog SD camera input / 2 channels of HD + 2 channel Standard Definition mixed input；
Real-time HD recording, video 1080P/720P/D1/HD1/CIF optional, frame rate quality adjustable；
Professional vehicle power supply design, 8-36V DC wide voltage input; overload / under voltage / short circuit / reverse connection and other protection circuits, suitable for all kinds of vehicles；
Real-time HD recording, video 1080P/720P/D1/HD1/CIF optional, frame rate quality adjustable；
Professional vehicle power supply design, 8-36V DC wide voltage input; overload / under voltage / short circuit / reverse connection and other protection circuits, suitable for all kinds of vehicles；
Provides 12VDC/2A power output for constant voltage supply of multiple interface devices such as cameras and small screens；
SD card records data (up to single card 256G), can completely resist the data damage caused by vibration dust on the car, so that the product can adapt to the bad road conditions that most products can not adapt.；
Watchdog abnormal restart function protection, better protection of machines and video；
Watchdog abnormal restart function protection, better protection of machines and video；
Exclusive pre-distributed vehicle-specific file system technology to solve the problem of data fragmentation caused by repeated erasure and writing to ensure data integrity；
Flameout time recording function (time can be set up to 24 hours)；
Automatic recording, manual recording, alarm recording and other recording methods to meet different needs；
Flameout time recording function (time can be set up to 24 hours)；
Automatic recording, manual recording, alarm recording and other recording methods to meet different needs；
Display vehicle information such as vehicle driving status, license plate, route, etc., convenient for management；
4-way alarm input (switch door, light, steering, brake, reversing, various types of configurable), can be linked to multiple responses；
Highly reliable aerial head video input and output interface, easy to install and remove, and more seismic performance；
System interface operation is smooth, intuitive and perfect；
Software upgrade via SD card or USB flash drive；
Batch function customization according to customer requirements；
Dimension:145mm*90mm*40mm
Weight:0.75KG；
Software upgrade via SD card or USB flash drive；
Batch function customization according to customer requirements；
Dimension:145mm*90mm*40mm
Weight:0.75KG；

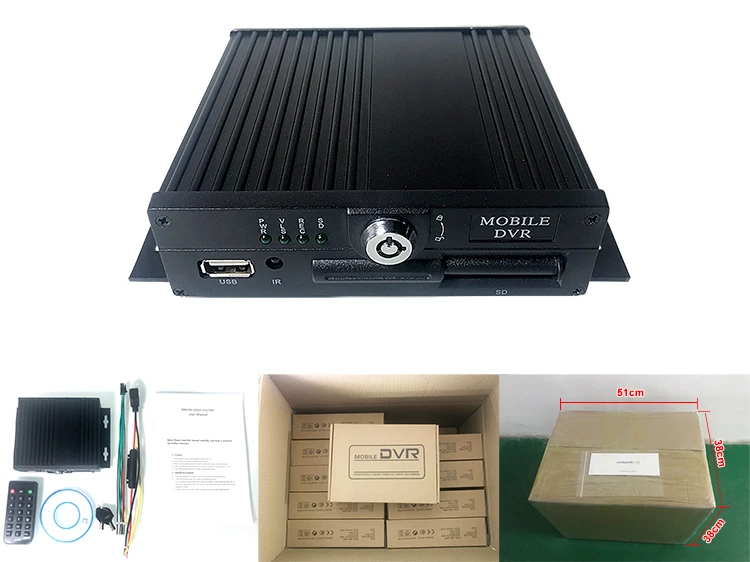

Packing&Shipping
