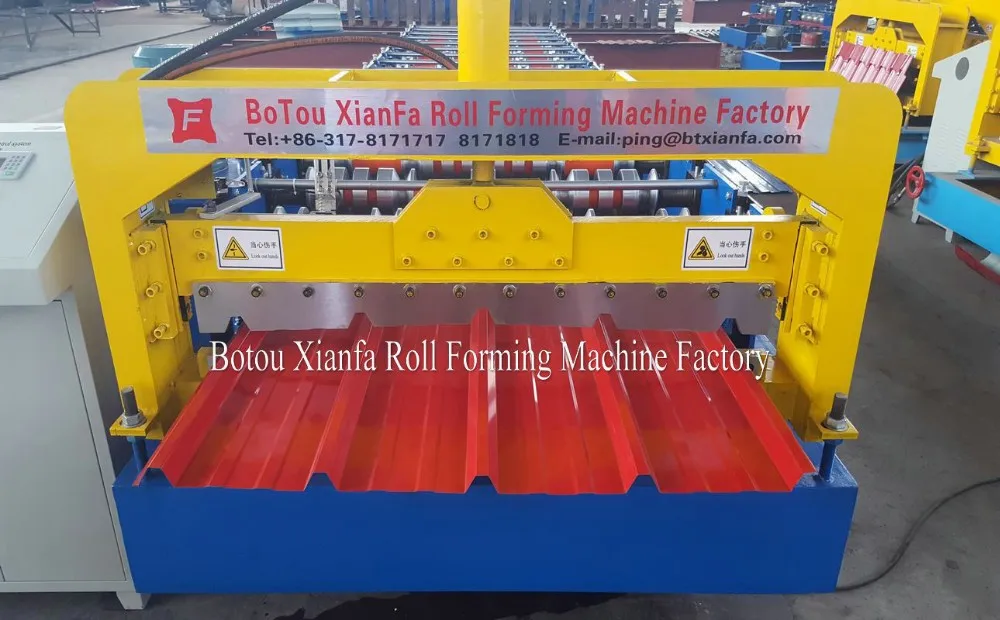

Auto Aluminum Roofing Sheet Iron Sheet Roll Forming Making Machine
- Category: >>>
- Supplier: Botou Xianfa Roll Forming Machine Factory
Share on (60718185997):
Product Overview
Description
Our Company
We are the professional manufactory of roll forming machine. The main products are trapezoidal sheet roll forming machine, corrugated sheet roll forming machine, glazed tile roll forming machine, double layer roll forming machine ......
We have passed ISO9001 quality certification and European CE security certificate.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers.
We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request.We believe that our cooperation will create bright future.
Product Description
No. | Main parameter | ||
1 | Suitable to process | Color steel plate,Galvanized board | |
2 | Width of the plate | 1219mm | |
3 | Thickness of the plate | 0.3-0.6mm | |
4 | Production Capacity | 8-15 m/min | |
5 | Dimensions | 5.3*1.55*1.51m | |
6 | Weight | about 6 T | |
7 | Power | 4+4KW | |
8 | Hydraulic | 40# | |
9 | Diameter of the roller | Φ70mm | |
10 | Voltage | 380V 50Hz 3phases | |
11 | Control system | PLC control | |
12 | Processing precision | Within 1.00mm | |
13 | rollers | 15rows | |
Detailed Images

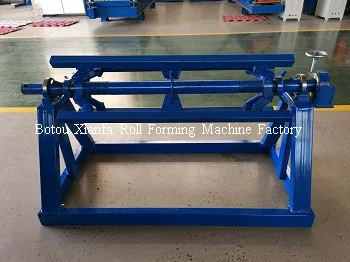

Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity:5000KG.
Inner diameter: 500-508mm

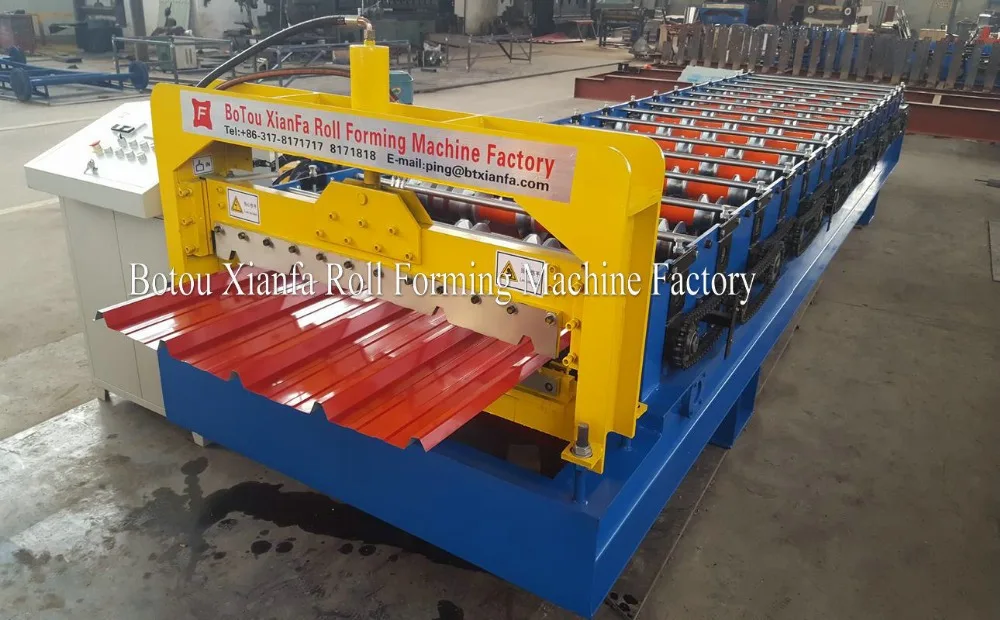

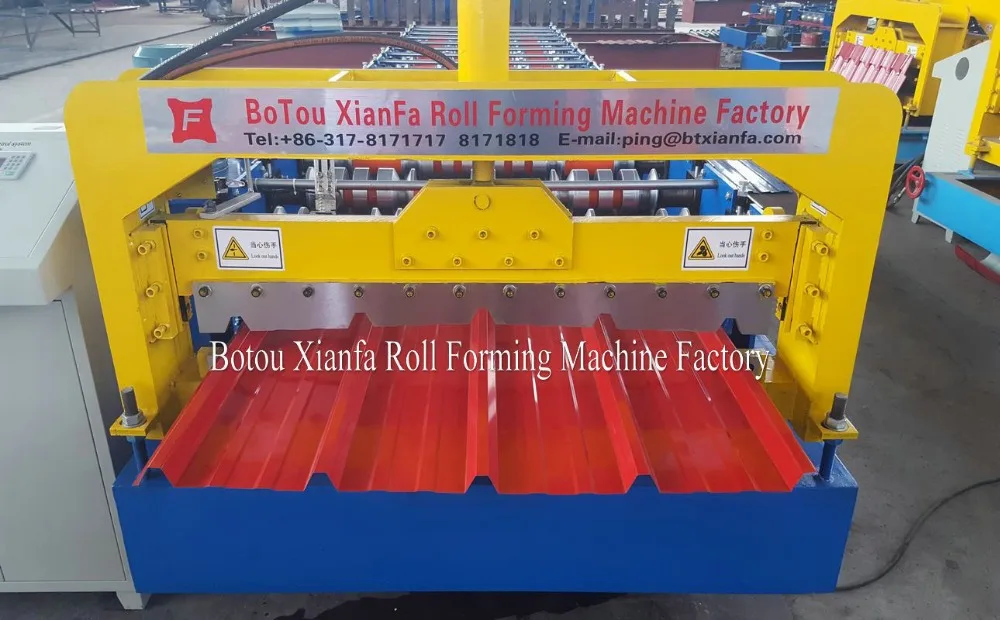

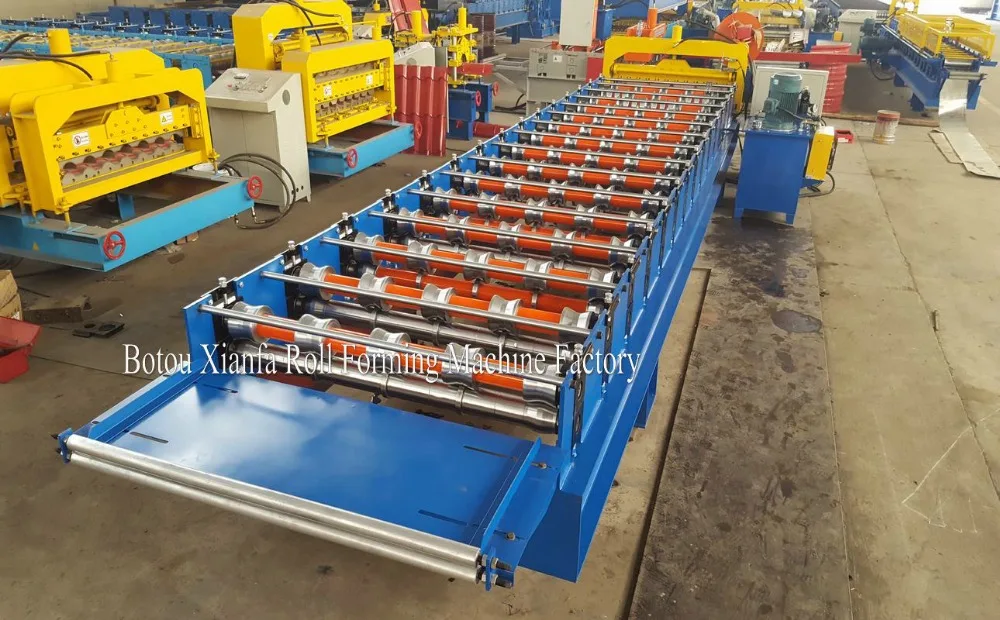

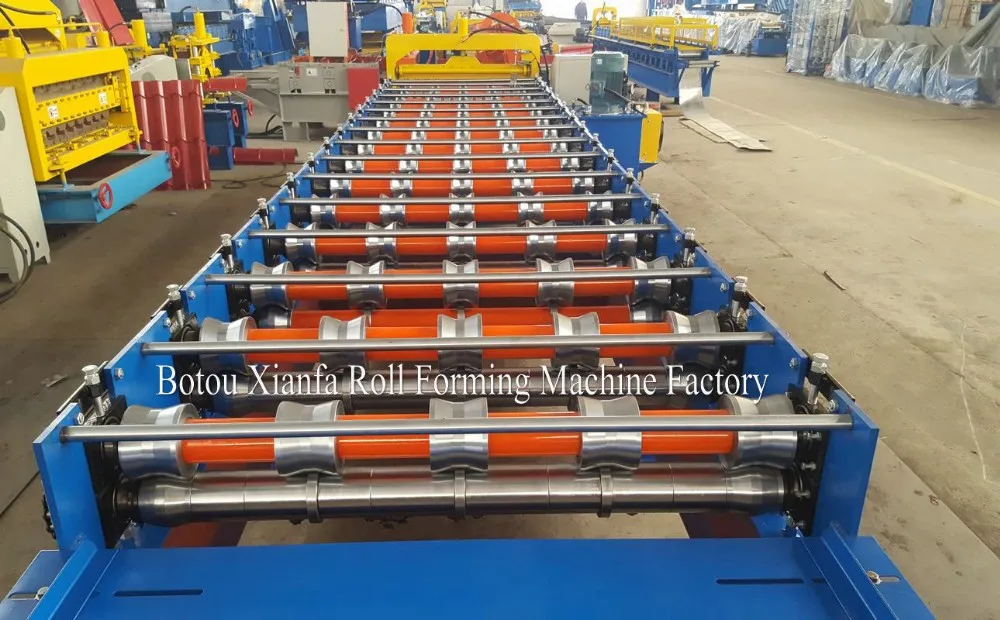

Main Roll Forming Machine

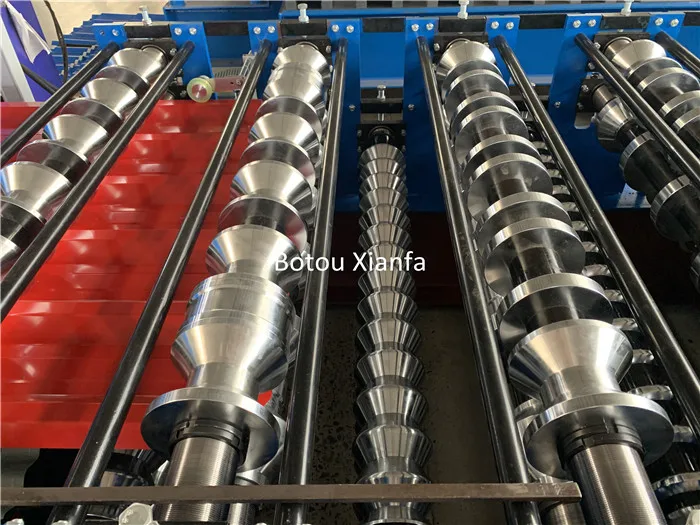

#45 steel, hard chrome.The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

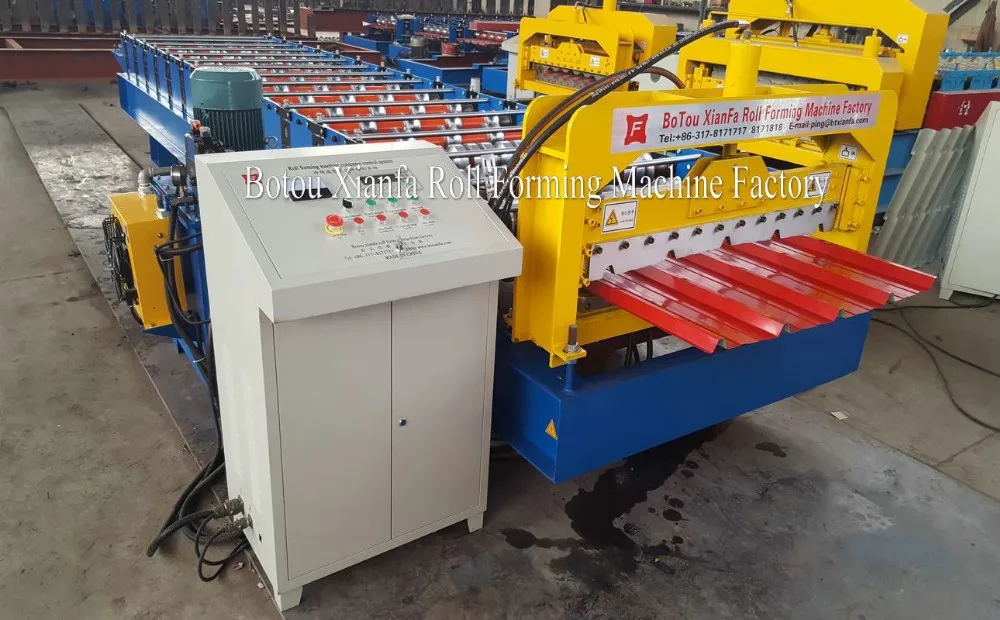

Hydraulic System & Computer Control Cabinet
Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
PLC:Delta Touch Screen
Shearing Mechanism
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
Certifications
Packing & Delivery
Packaging | ||
Size | 5.3*1.55*1.51 | |
Weight | 6T | |
Packaging Details | 1.We have professional technicians for loading.Guaranteed the goods load into container without any damage. 2. Transportation : Machines need one 40 feet container to hold 3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you. | |
