| Plug in drive system, easy connection | |||||

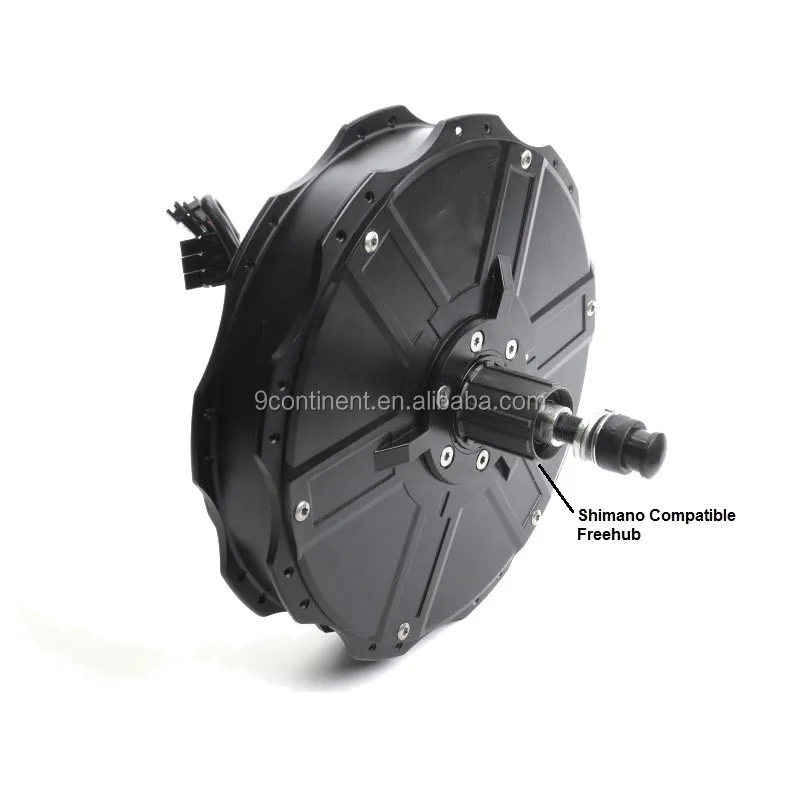

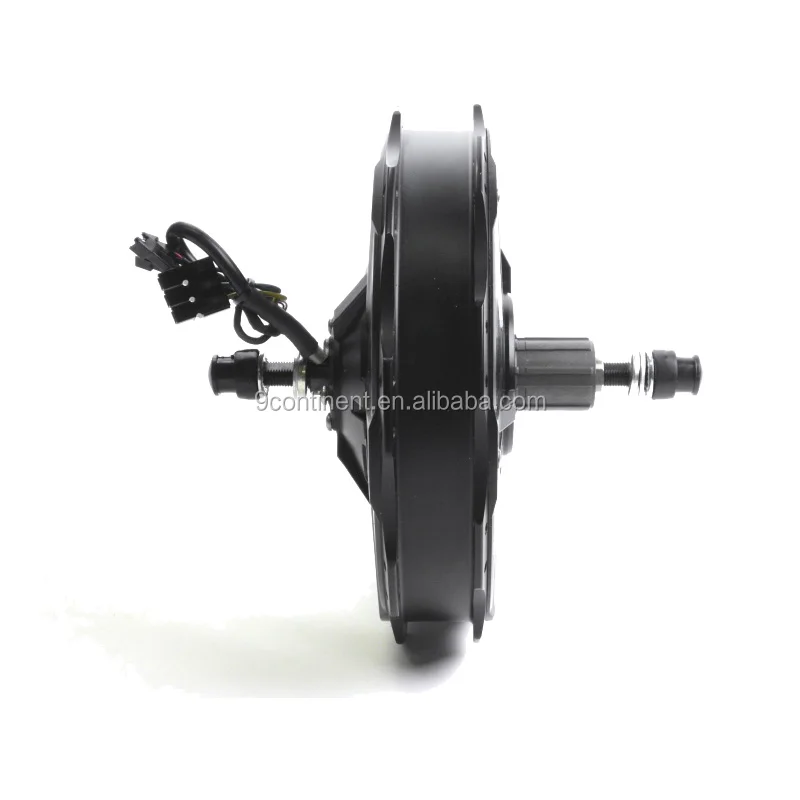

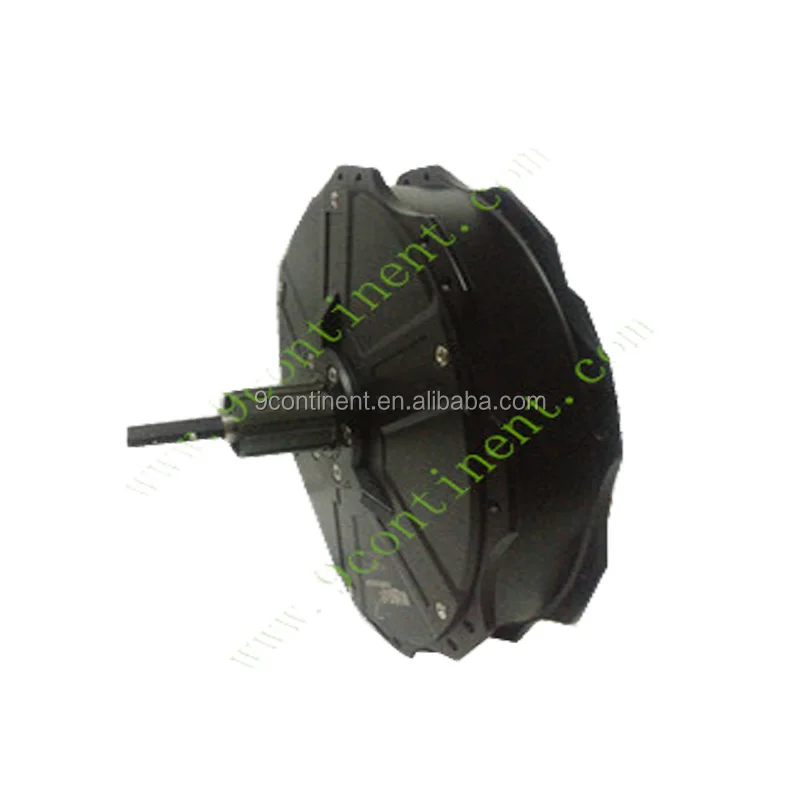

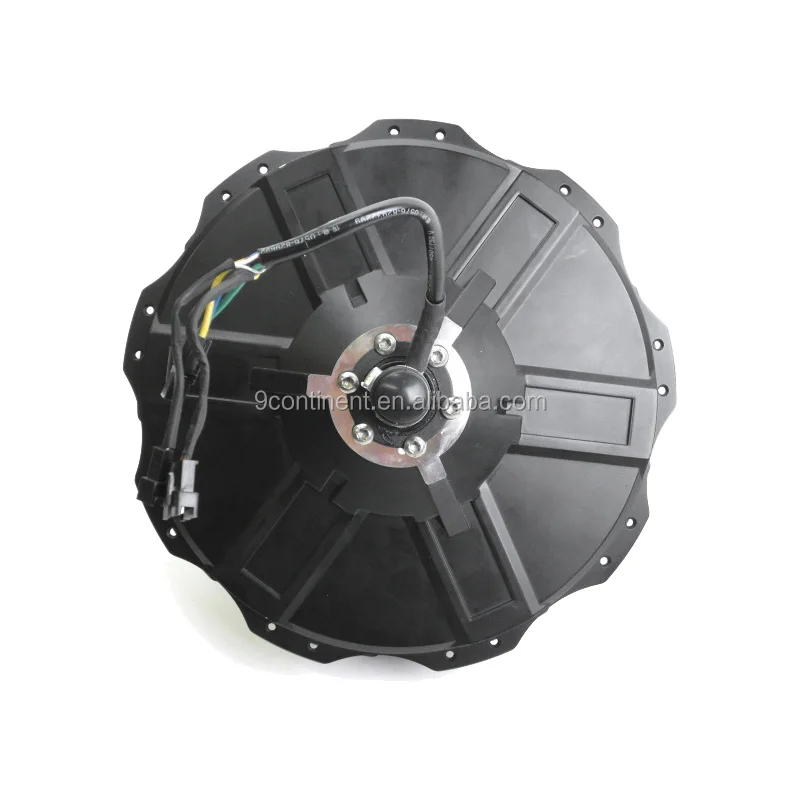

| Model | RH205 electric bicycle motor | Brake type | RH205 | disc brake | |
| Voltage(V) | DC 36 48 64 72 | Free wheel | 1s/5s/7s rotate | ||
| Power(W) | 1000 2000 3000 | cable location | RH205 | Shaft middle | |
| Speed(km/h) | Optional(5*12/7*9/9*7/12*5) | spoke specification | 12G/13G/10G | ||

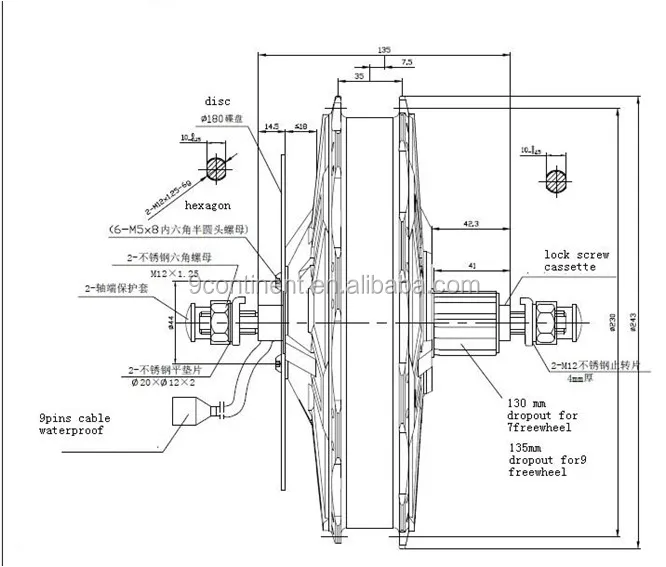

| Fork size/dropout | 135mm | magnet/ stator height(mm) | 30 | ||
| 43 | |||||
| Efficiency(%) | ≥82 | color | sliver, black | ||
| Wheel | 16"-28" | net weight | ≤4.8kg | dia | 205mm |
| Water proof grade | 1P54 | salt fog test(h) | 24/96 | ||
| Noise | ≤58db | hall sensor | optional | ||


![]() | ![]() |
![]() |


Features:
1.light weight: 4.8kg
2.small size:205mm dia
3.no noise
4.5years long working life. no need much maintain
5.waterproof: both side have oil-sealance and others
6.regereration
7.no power temperture limited as gearless

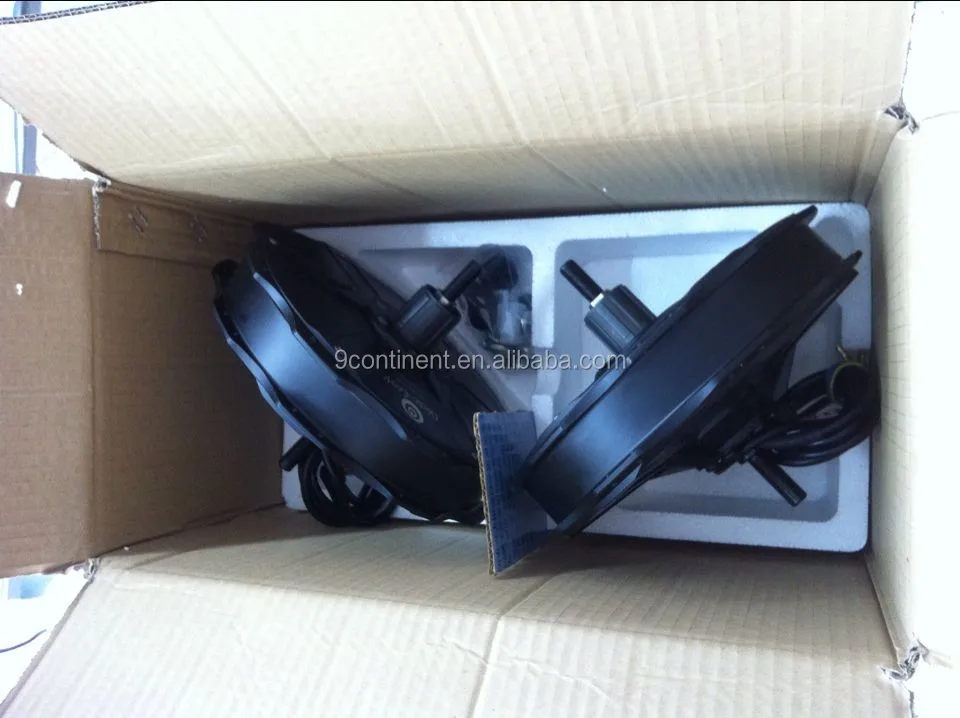

PACKING DEATILES: 205mm dc motor for electric bicycle(2pcs/box)

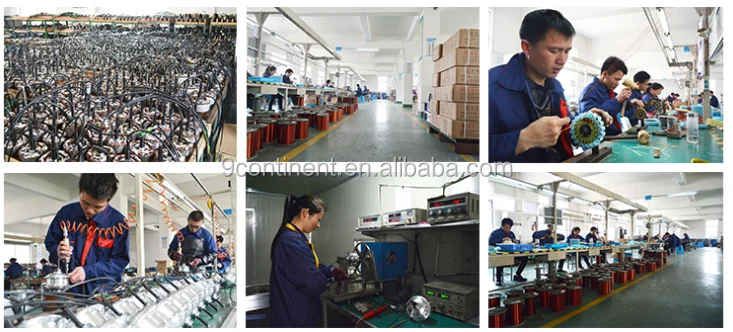

Ninecontinent holding group Co.,Ltd
We are a manufacturer as well as a trading company.We have many agent all over the world such
as in USA, Taiwan, Spain, Thailand, India,Singapore, Korea, etc. Our Main products is Electric Scooter,
Electric bike,City coco,Balance scooter,etc.All our items are with CE certificate passed.
Meanwhile,We aim to be the excellent and always share the mutual benefits with our partners,to provide
the best products & satisfied with services,competitive price and highest technology,to develop the
relationship with our partners in the world.
