WODE 120w Smps 12v 5v Switch Mode Power Supply Dual Output Led Transformer
- Category: >>>
- Supplier: Yueqing Wode Electrical Co. Ltd.
Share on (60718235592):
Product Overview
Description
Product Description
WODE 120w Smps 12v 5v Switch Mode Power Supply Dual Output Led Transformer
♦ Features
1) High Efficiency And Good Price
2) Built-in EMI Filter
3) 100% Full Load Burn-in Test
4) Low Output Ripple And Noise
5) Protection:Over Load / Over Voltage / Short Circuit
6) Most items could provide adjustable +-10% for output voltage
7) Could meet the demand perfectly both for 220V and 110V input voltage
8) Could provide customized power supply for special output / special input / special protection etc.
*** Please note: We maybe modify the products according to different situation without informing.

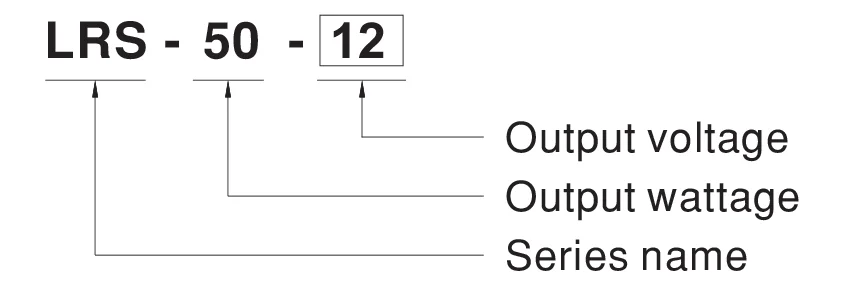

♦ Model Encoding
| LRS Series Switching Power Supply Specifications | ||||||
| MODEL | LRS-150-5 | LRS-150-12 | LRS-150-24 | LRS-150-36 | LRS-150-48 | |
| OUTPUT | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated output current | 30A | 12.5A | 6.25A | 4.2A | 3.2A | |
| Output current range | 0~30A | 0~12.5A | 0~6.25A | 0~4.2A | 0~3.2A | |
| DC power | 150W | 150W | 150W | 150W | 150W | |
| Voltage adj.range | ±10% | ±10% | ±10% | ±10% | ±10% | |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| Ripple and noise | 70mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±0.1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| INPUT | AC voltage range | AC100-240V 47-63Hz:240-370VDC | ||||
| Current | 2.8A/115V 1.6A/230V | |||||
| Efficiency | 80% | 85% | 86% | 86% | 86% | |
| AC Inrush current | Cold-start current 20A/115V 40A/230V | |||||
| Leakage current | <0.5mA/240VAC | |||||
| PROTECTION | Overload | 110 ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| Over-voltage | Protection type : Shut down o/p voltage, re-power on to recover | |||||
| 5.75-6.9V | 13.8-16.2V | 28.8-33.6V | 41.4-48.6V | 55.2-64.8V | ||
| Short Citcuit | Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| SAFYE | Setup rise hold up time | 200ms,100ms,20ms | ||||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | |||||
| Withstand voltage | Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC | |||||
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms | |||||
| ENVIRONMENT | Temperature coefficient | ±0.03%/°C (0~50°C ) | ||||
| Working temperature and humidity | -20~+60°C,20~90%RH | |||||
| Store temperature and humidity | -40°C~+85°C,10~95%RH | |||||

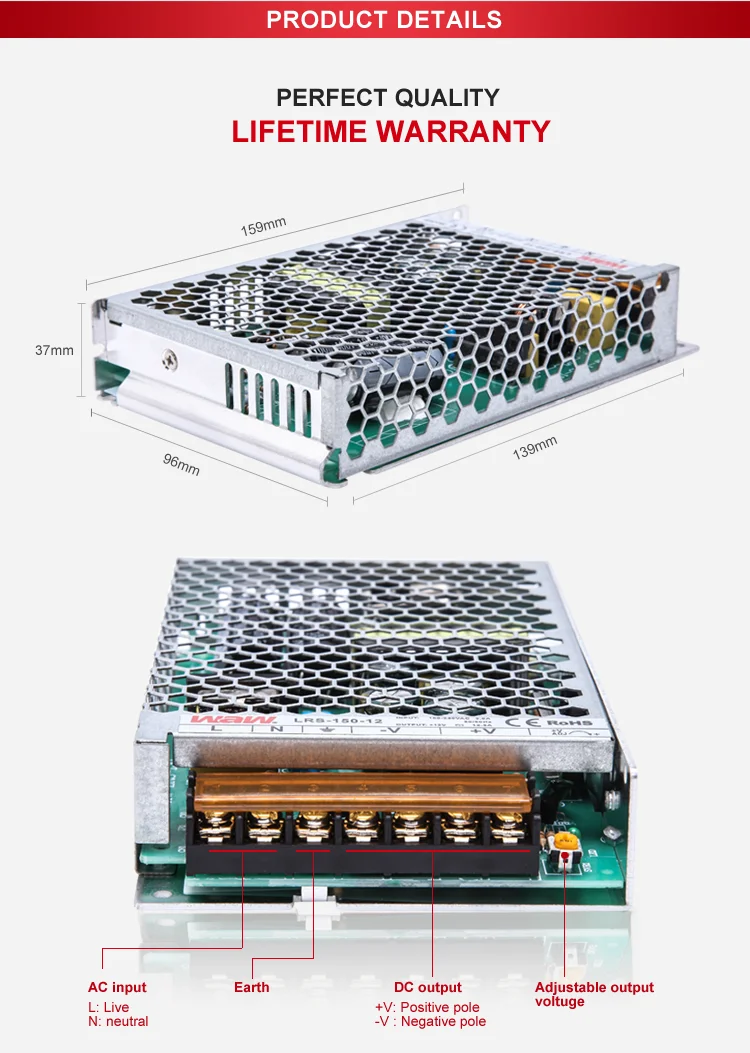

| OTHER | Overall dimension | 159*97*30mm | ||||
| Weight | 0.38Kg | |||||
| CERTIFICATE | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | ||||||
| CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 | |||||
| EN60950-1:2006+A11:2009+A1:2010+A12:2001 | ||||||
| ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 | |||||
| EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:20 | ||||||
Company Information
Wode Electrical Co.,Ltd. was established in 2005 as a professional Power Supply manufacture.Our products cover the following series: Switching Power Supply, water proof IP67 Led driver ,AC/DC converter.These products are widely usde in the fields of LED strip,CCTV system,CNC machine,Outdoors power supply,PLC control system, Interruption accident etc.
Exhibition
Certifications
Packaging & Shipping
Our Services
We are the only supplier in Alibaba can provide LIFETIME WARRANTY power supply,please don't be hesitate to check with our Ali web://wodecn.en.alibaba.com/ and contact us by TradeManager or Skype for more details(our TM ID is wodecn and Skype ID is wode.smps).
