PSB (Poly Spund Bond) media Toray Pleatable HEPA Filter Paper

Share on (60718257870):


Price:RUB 37.91 - RUB 227.46

Quantity:


Product Overview

Description

Product Description

PSB (Poly Spund Bond) media Toray Pleatable HEPA Filter Paper

Description:
The HP Product Family is more versatile than any media in its class. It can fit more applications than any other comparable media. Backed with the finest grades of polyester spunbond and then laminated with a proprietary FlexTex ePTFE membrane, our HP products are not only strong and durable but carry the highest efficiency and lowest pressure drop than any competitor. This translates to longer filter life and quality air. All HP products come with a full line of 3rd party testing data that certifies what is stated in the technical data.

The HP360 is a Full Circle PTFE that fits more applications than any other media of its kind. Backed by a Toray 100% PSB substrate, the HP360 is unsurpassed in consistency and performance. Laminated with IAM’s FlexTex membrane, the “unstressed” fibers will allow the media to stretch and form during the pleating process. Unlike all other ePTFE membranes, the FlexTex will not crack, or break which causes delamination over time. Designed and developed for high volume welding, plasma cuttng, chemical or any application which produces particulate of sub-micron size, the HP360 is the smart choice.

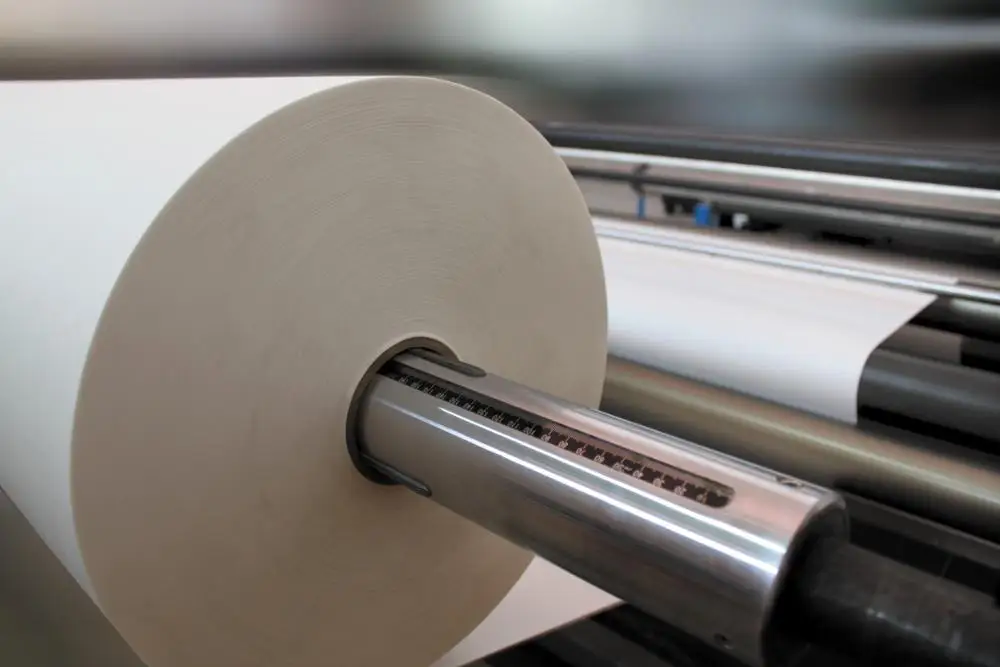

PSB (Poly Spund Bond) media Toray Pleatable HEPA Filter Paper.JPG

Feature

• 2 Weights Available: 130 GSM & 260 GSM
• Chemical Resistant, Anti-Salt membrane
• 100% Hydrophobic
• High Efficiency E11
• Washable
• Low Pressure Drop (up to 40% lower)

Application

• Industrial Air Filtration
• Welding (Laser, Plasma)
• Stainless Steel Welding
• Pharmaceuticals
• Plating
• Food Processing
• Powder Coating
• Cement

SPECIFICATIONS



SPECIFICTION

US

METRIC

MODEL

HP360

HP360

SUBSTRATE

Polyester Spunbond

Polyester Spunbond

EFFICIENCY / MPPS

99.68 %

99.68 %

EFFICIENCY (PER EN-1822)

E11/12

E11/12

BASIS WEIGHT

7.8 oz/yd²

265 gsm

THICKNESS

0.023”

0.58 mm

CONTINUOUS SERVICE TEMP.

275ºF

135ºC

TENSILE STRENGTH IN WARP

220 lb/2”

1000 N/5cm

TENSILE STRENGTH IN WAFT

160 lb/2”

750N/5cm

MINIMUM MULLEN BURST

340 psi

2347 KPa

AIR PERMEABILITY

4-6 cfm/ft²@0.5”wg

20-30 L/dm².min@200Pa

RESISTANCE (32 L/min)

1.00 in wg

250 Pa
