Stainless steel sheet V grooving groover cutter cutting machine

Maanshan city ,Dangtu County,close to Nanjing Airport. Our geographical position is superior and the transportation is very convenient. Our company covers an area of 160 acres with the registered capital of 32,000,000 Yuan. We have more than 320 employees, including all types of engineering and technical personnel, serving the company R&D, production, and customers' service. At the same time, we have our own sales companies in each major and medium city.

Our main products are:CNC Press Brake,Guillotine Shearing Machine,Ironworker,power press ,and rolling machine these sheet metal processing equipmments.we are using advanced technology from German,Japan,and Italy,France and so on.

Products Introduce:

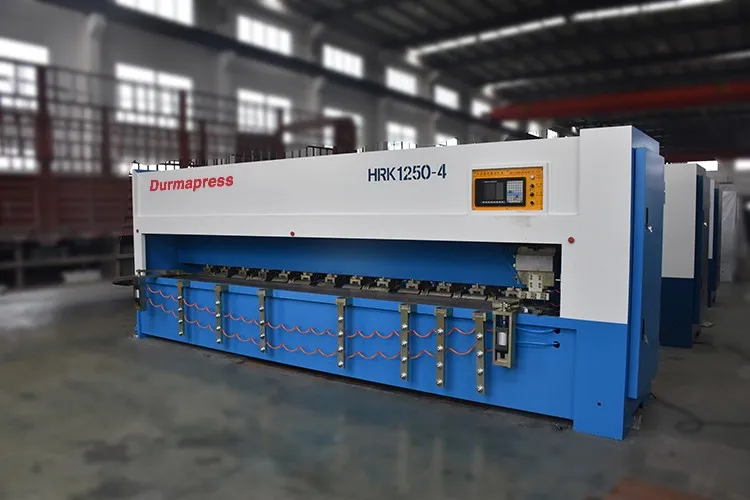

HRK series cutting machine is the upgrade of traditional ones. Adopted frame structure, this series make the overall stress relief tempered, bolts connecting with high strength , and the overall rigidity is good, and will gain less deformation. The beams of this series is solid without moving, the work piece material can be sent by the evacuation mechanism,and as for work tables, they were make of carbon tool steel, hardness of which can be 55-60HRC (ordinary table<30HRC)after high-frequency surface hardening, which makes the work table much harder than the hardness of stainless steel, and completely solve the phenomenon of the work surface grooves appeared due to low hardness of traditional machines, to ensure the work surface flatness ≤ ± 0.03mm, completely solve the reduction of the accuracy of the V-grooves due to deformation of work table surface, prolonged the life of the equipment. Around the work table there are care feeding device to prevent scratches during processing of sheet metal.



Products Application:

Metal sheet grooving machine can V-groove stainless steel sheet, aluminum sheet, composite aluminum sheet, copper sheet and other metal sheets, making the arc radius of the edge of the bent workpiece extremely small, satisfying the needs of hotels, restaurants, restaurants, commercial buildings , Banks, airports and other places in the high-end decorative special needs.

Five System:

(A) Y-axis system
The Y-axis consists of ECMA-F21830 AC servo motor,star reducer, timing belts, synchronous wheel, high-precision gear rack and pinion, linear guide parts.

Its function is that the servo motor drives the blades move straightly on a linear guide through the star reducer together with fine gear, to provide the V groove power.

(B) X-axis systems

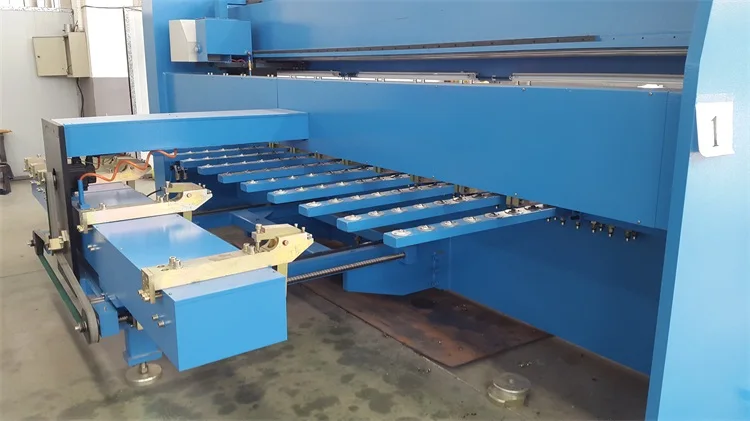

The X-axis consists of E21320 AC servo motor, timing belts, synchronous wheel, ball screw, linear guide,backgauge rack, draggingclamps and other component parts.Its function is that servo motor drives the backgauge rack move straightly on a linear guide through timing belts and synchronous wheel driving ball screw, to provide precise positioning power to the the backgauge dragging clamps.

(C) Z-axis system

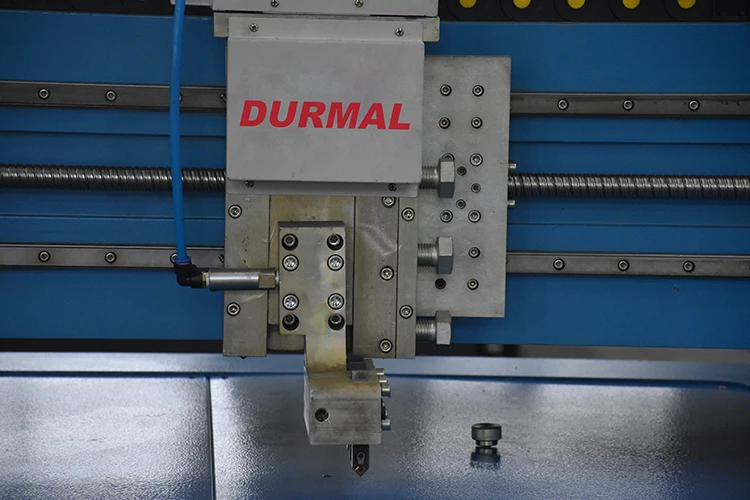

The Z-axis consists of C20604 AC servo motor, timing belts, synchronous wheel,ball screw, blade and other parts. Its function is that the servo motor drives the blade move straightly on a linear guide through timing belts and synchronous wheel driving ball screw ,to provide the blade precise positioning power.

(D) The pneumatic system
The pneumatic system were divided into two groups:the backgauge clamping tool which provides the clamping force to drag and pressing tool pneumatic system which provides the pressing force before V Groove.which provides the clamping force to drag.

(E) Electrical control system
The electrical control system consists of the PLC, driver, touch screen, electronic control components, electrical cabinets and other accessories. The electrical cabinet is installed within wallboard of the machine, easy for maintenance and protection.Through the touch display, you can make full use of the equipment.


Products Feature:

1.The fuselage is welded with pure steel , and internal stress has been weakened after heating process, it has high strength and no deformation on the body of machine.

2. Applying the numerical control systems provided by Taiwan Yitu , so the technology is mature, and the performance of products is more stable and reliable.

3.The electronics are original products provided by the one of the three well-known global manufacturer-- Schneider, which can ensure life and stability of the circuit.

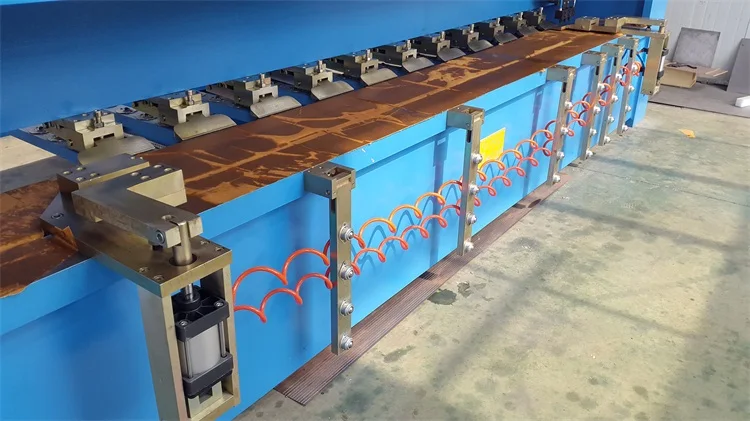

4.Using pneumatic control system of Taiwan Yadeke, clamping and release of the platen and jaws are fully automated, and the board will not get pined, the pressure is stable and reliable during the process.

5.Mitsubishi servo motor cutting feed, with high accuracy and is reliable, and the accuracy even be 0.01mm.

6.Mitsubishi servo motor control turret and feeding device, has accurate chipping and precise positioning.

7.As for Turret, it changed the traditional way to the way of forging nut screw drive steel rack and pinion, work together withprecise planetary gear of Li Ming Taiwan and servo motor power of Mitsubishi, which makes it easier to maintain, lower the failure rate, and makes it return faster, more efficient, and run more smoothly in a muted way.

8.work tables are made of carbon tool steel,the hardness of high-frequency surface can reach 55-60HRC (ordinary table<30HRC) after hardening

9.work table surface is equipped with a mechanical compensation, after long-time use it can adjust error of depth of V groove

10.Allowing using three knives to process "V" groove, thus the cutting amount can be allocated evenly,and the deformation of the workpiece can be reduced.

1 PVC film covered punching and shearing machine 2.Whole machine fixed in the container with steel rope,very safe

3.Wooden case or pallet or iron box

4.If have stock,can provide right now

5.If no stock,small machine delivery time 7-15days.Big machine delivery time 25-40days.

6.Can give destination port best price or cost to the customer factory.

1.All machines have been tested by 48 hours before ship out.

2.All products have 2 year warranty.

3.Supported 24 hours online service. If any problems happen, our team will do our best to solve the problems.

4.If any component is damaged during guarantee time. we can send the component to the customer by DHL freely.

Price : Give me reply, i will give you my favorable price immediately !

Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .

Package : Standard exporting package .

Operation manual and video disc :

When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .

After-sales service :

1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .

2.welcome to our factory to learn how to operate our machine, we will give good training .

3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
