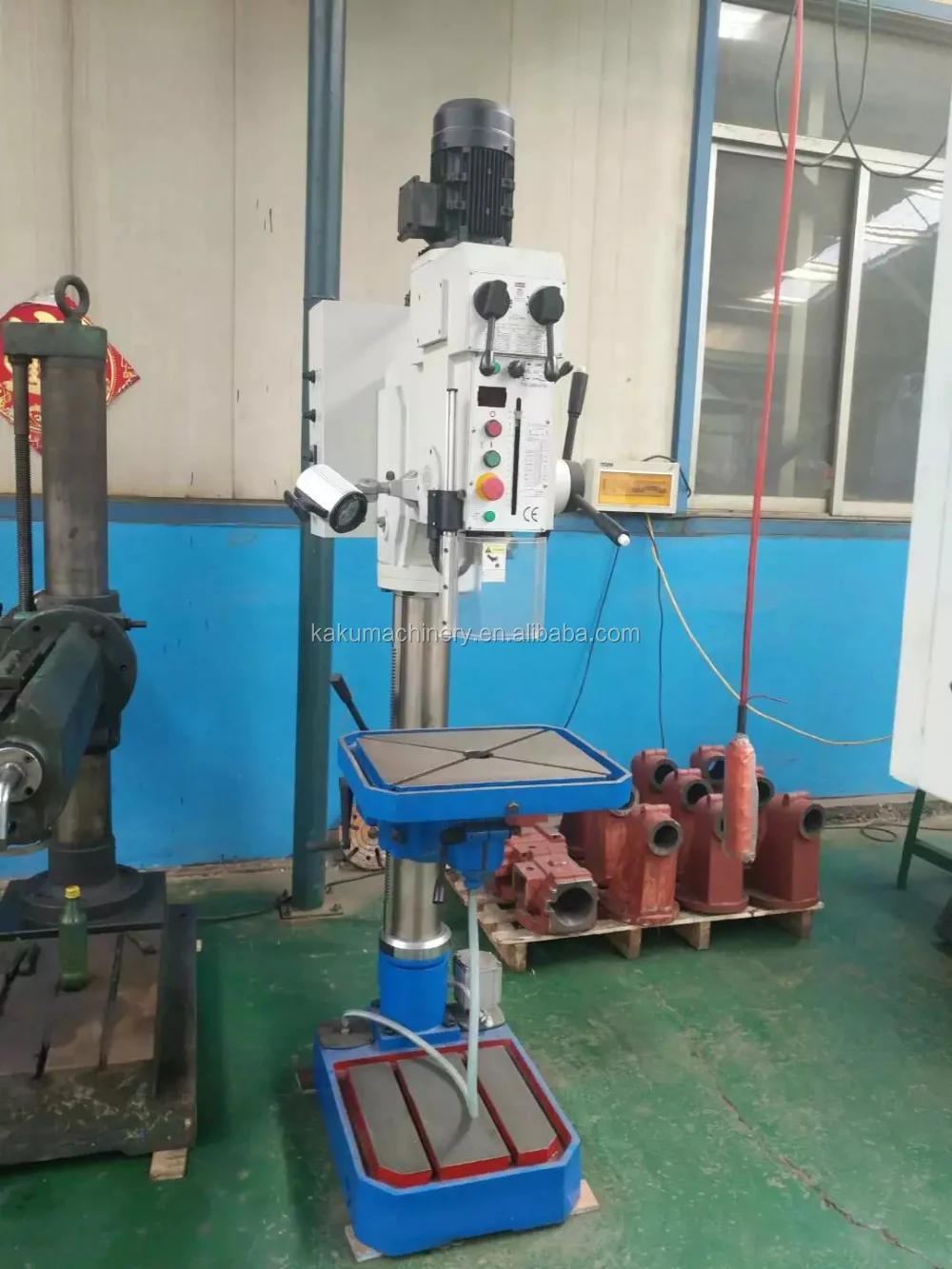

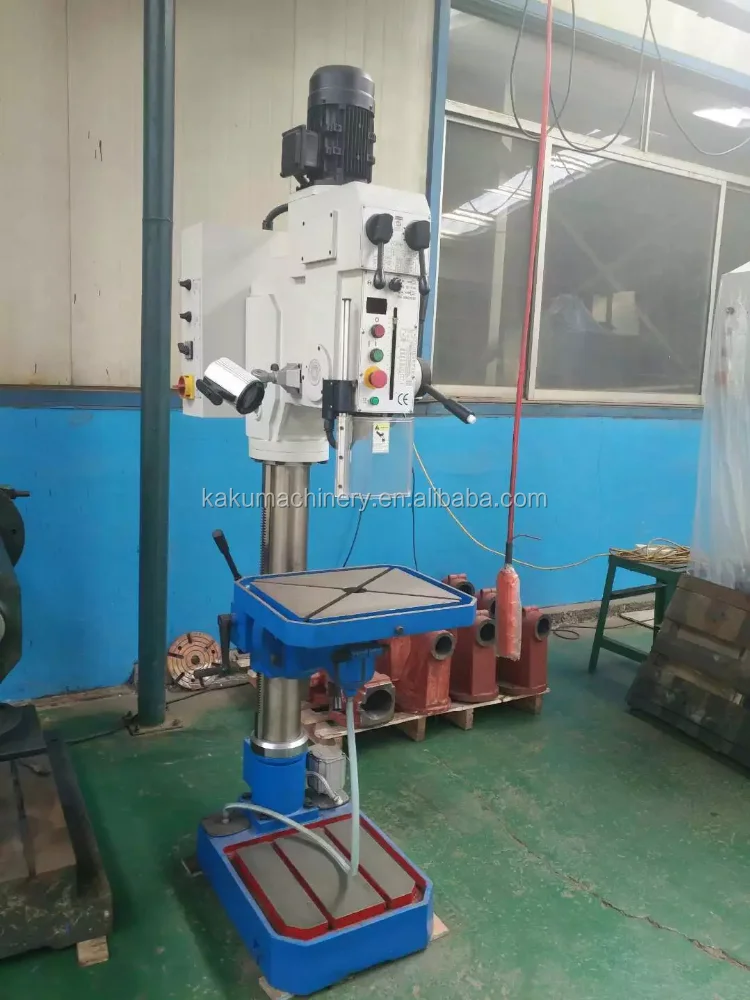

Z5040 Square Pillar Vertical Drilling Machine
Z5040 Square Pillar Vertical Drilling Machine
Z5040 Square Pillar Vertical Drilling Machine
Z5040 Square Pillar Vertical Drilling Machine
Z5040 Square Pillar Vertical Drilling Machine
Z5040 Square Pillar Vertical Drilling Machine
Z5040 Square Pillar Vertical Drilling Machine

Z5040 Square Pillar Vertical Drilling Machine

Share on (60718341332):


Price:

Quantity:


Product Overview

Description


Product Description

Features of Z5030 Z5040 Z5050 Vertical Drilling Machine

● Drilling, milling tapping.

● The headstock can be rotated 360 degrees in the horizontal plane.

● Head, table can be vertical movements.

● Machine column high (raised).

● The machine tool spindle can be locked in any position up and down.

● Machine unique automatic retraction device, retraction easier.

● Head gearbox for gear transmission, low noise.

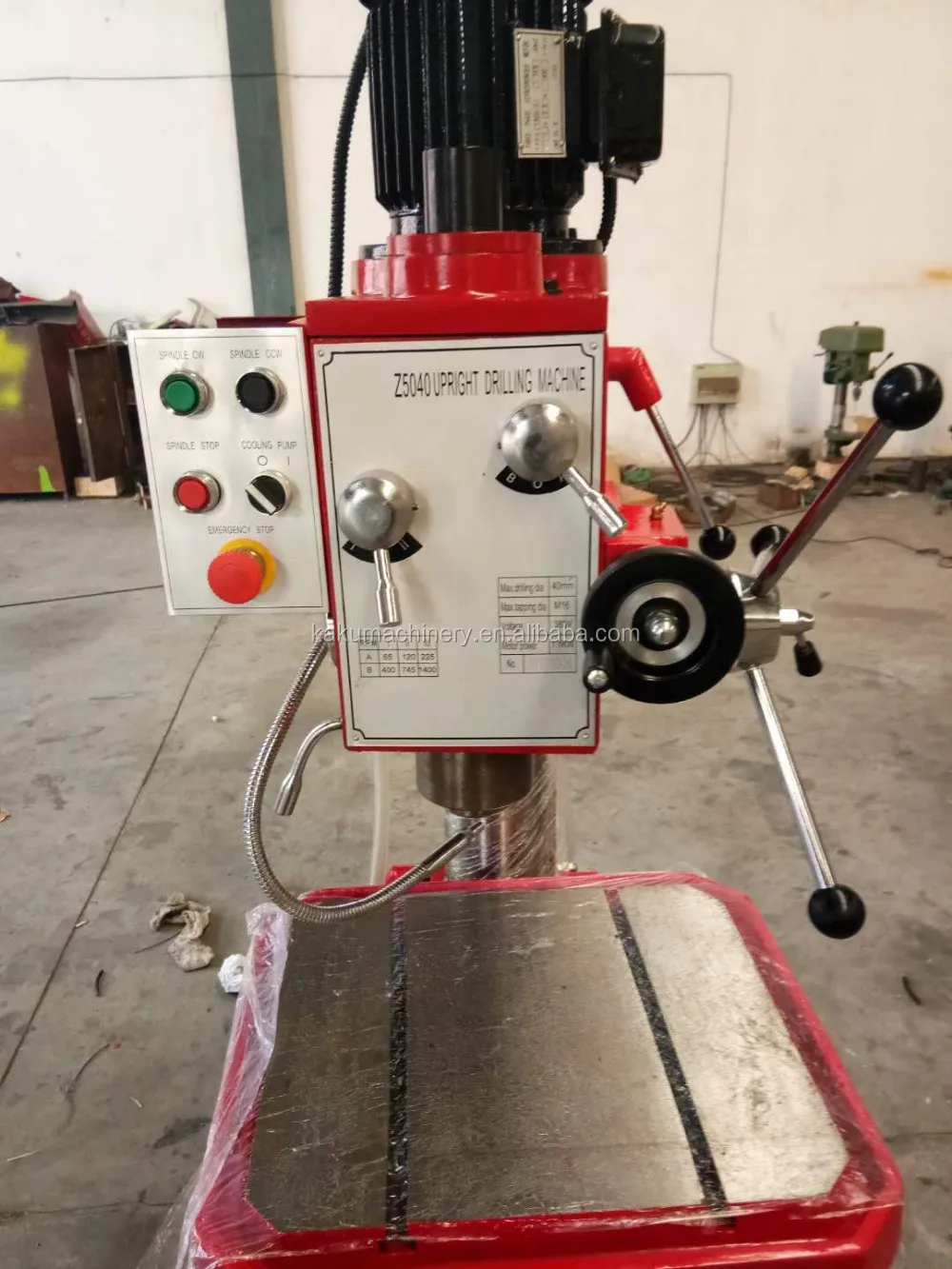

Drilling table



The machine with English type cutting table, convenient for customers to view.

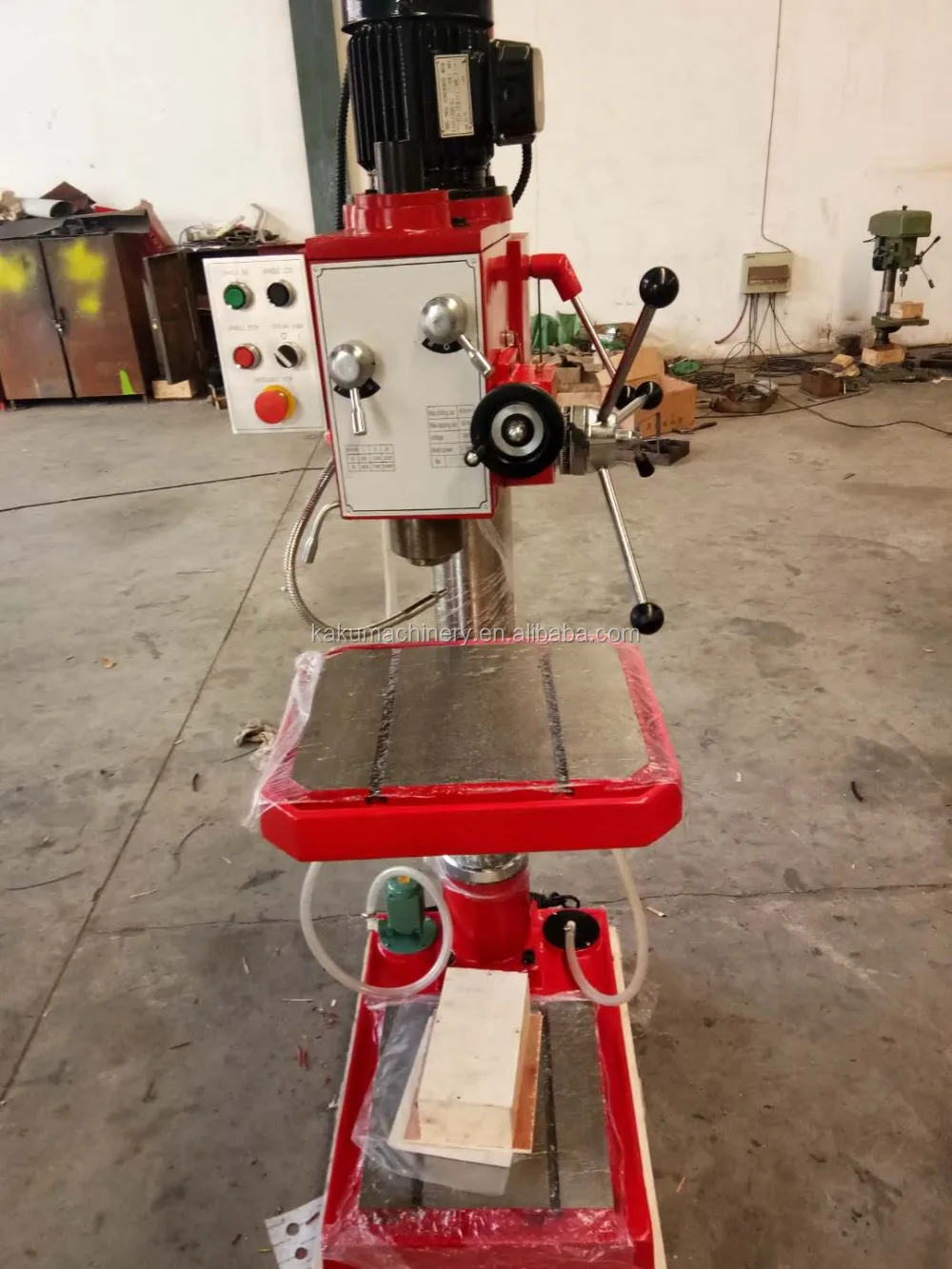

Removable workbench




Workbench is mobile, effectively increasing the workbench area.

Binding sub-reset handle


Easy to understand control, you can adjust the headstock up and down movement.

Can be tapping automatically reverse.


Note: Before starting, please check the handle position is correct.

Motor




1.1KW(1.5HP), 1400 r.p.m

Parameter
\t
Item
\t
Z5032
\t
Z5040
\t
Z5045
\t
Maximum drilling diameter
\t
32mm
\t
40mm
\t
45mm
\t
Spindle taper
\t
M.T.3 or R8
\t
M.T.4
\t
M.T.4
\t
Spindle travel
\t
130mm
\t
130mm
\t
130mm
\t
Spindle speed series
\t
6
\t
6
\t
6
\t
Spindle speed range 50Hz
\t
80-1250 r.p.m
\t
80-1250 r.p.m
\t
80-1250 r.p.m
\t
60Hz
\t
95-1500 r.p.m
\t
95-1500 r.p.m
\t
95-1500 r.p.m
\t
Spindle axis to column surface minimum distance
\t
283mm
\t
283mm
\t
283mm
\t
Spindle end to the table the maximum distance
\t
725mm
\t
725mm
\t
725mm
\t
Spindle end to the base table maximum distance
\t
1125mm
\t
1125mm
\t
1125mm
\t
Headstock maximum stroke
\t
250mm
\t
250mm
\t
250mm
\t
Spindle box rotation angle (horizontal / vertical direction)
\t
360°/±90°
\t
360°/±90°
\t
360°/±90°
\t
Workbench bracket maximum travel
\t
600mm
\t
600mm
\t
600mm
\t
Workbench effective work area
\t
380×300mm
\t
380×300mm
\t
380×300mm
\t
Table horizontal rotation angle
\t
360°
\t
360°
\t
360°
\t
Workbench tilt angle
\t
±45°
\t
±45°
\t
±45°
\t
Base work surface area of effective work area
\t
417×416mm
\t
417×416mm
\t
417×416mm
\t
Motor Power
\t
0.75KW(1HP)
\t
1.1KW(1.5HP)
\t
1.5KW(2HP)
\t
Motor speed
\t
1400 r.p.m
\t
1400 r.p.m
\t
1400 r.p.m
\t
Net weight / gross weight
\t
430kg/480kg
\t
432kg/482kg
\t
435kg/485kg
\t
Package size (L × W × H)
\t
1850×750×1000mm
\t
1850×750×1000mm
\t
1850×750×1000mm
Standard Accessories
\t
No.
\t
Item
\t
Qty
\t
Remark
\t
1
\t
Drilling machine
\t
1
\t

\t
2
\t
Three-jaw drill chuck
\t
1
\t
B16
\t
3
\t
Drill chuck joint-bar
\t
1
\t
MT4-b16
\t
4
\t
MT sleeve
\t
1
\t
4 x 2
\t
5
\t
MT sleeve
\t
1
\t
4 x 3
\t
6
\t
MT sleeve
\t
1
\t
4 x 4
\t
7
\t
Operation manual
\t
1
\t

\t
8
\t
Test list
\t
1
\t

\t
9
\t
Packing list
\t
1
\t

Detailed Images

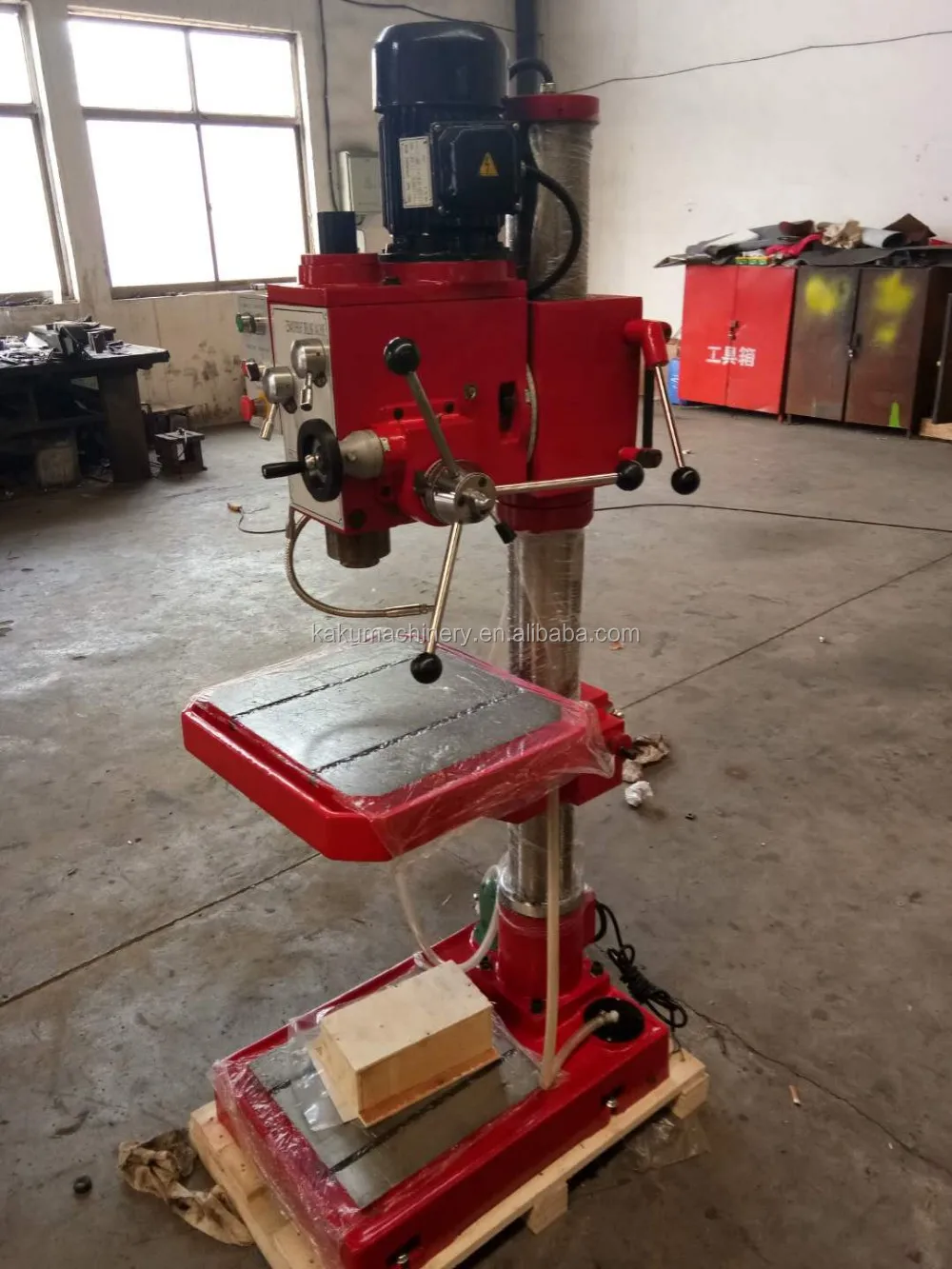

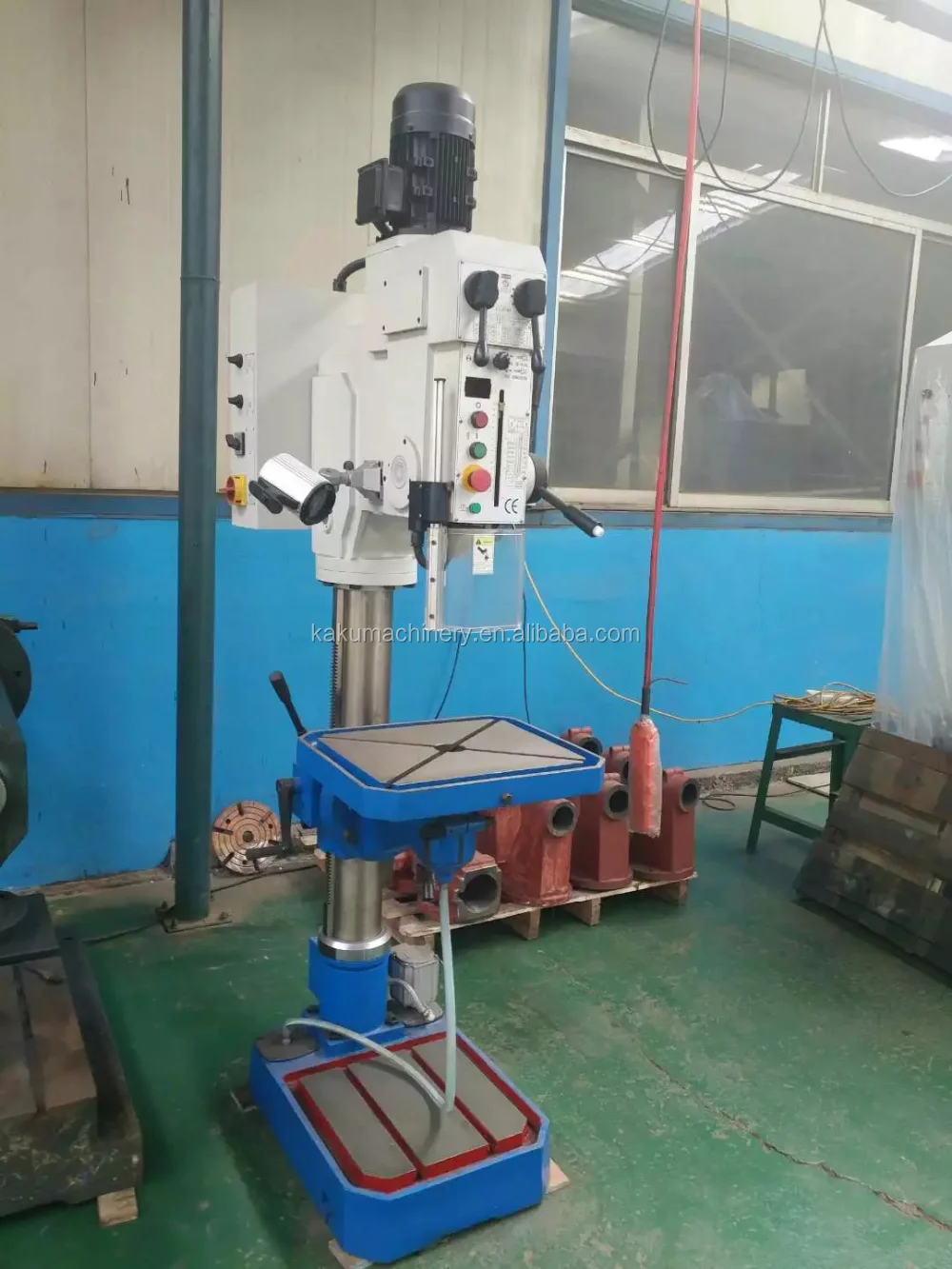

Z5030 Z5040 Z5050 Vertical Drilling Machine Color Can Be Customized!

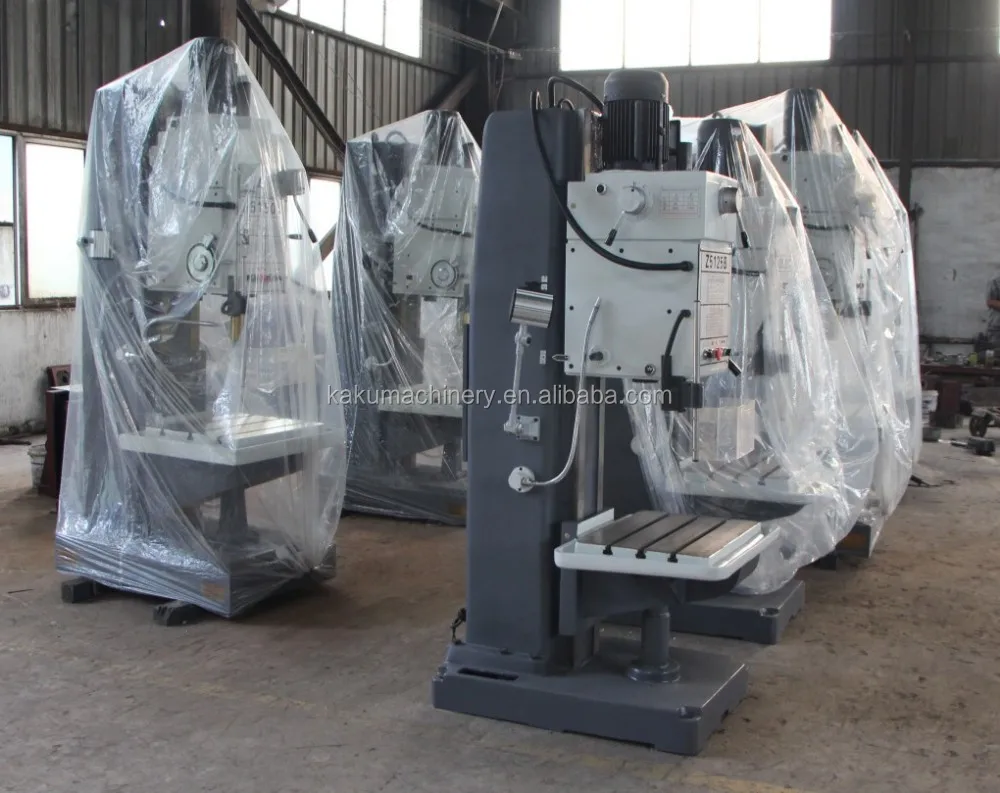

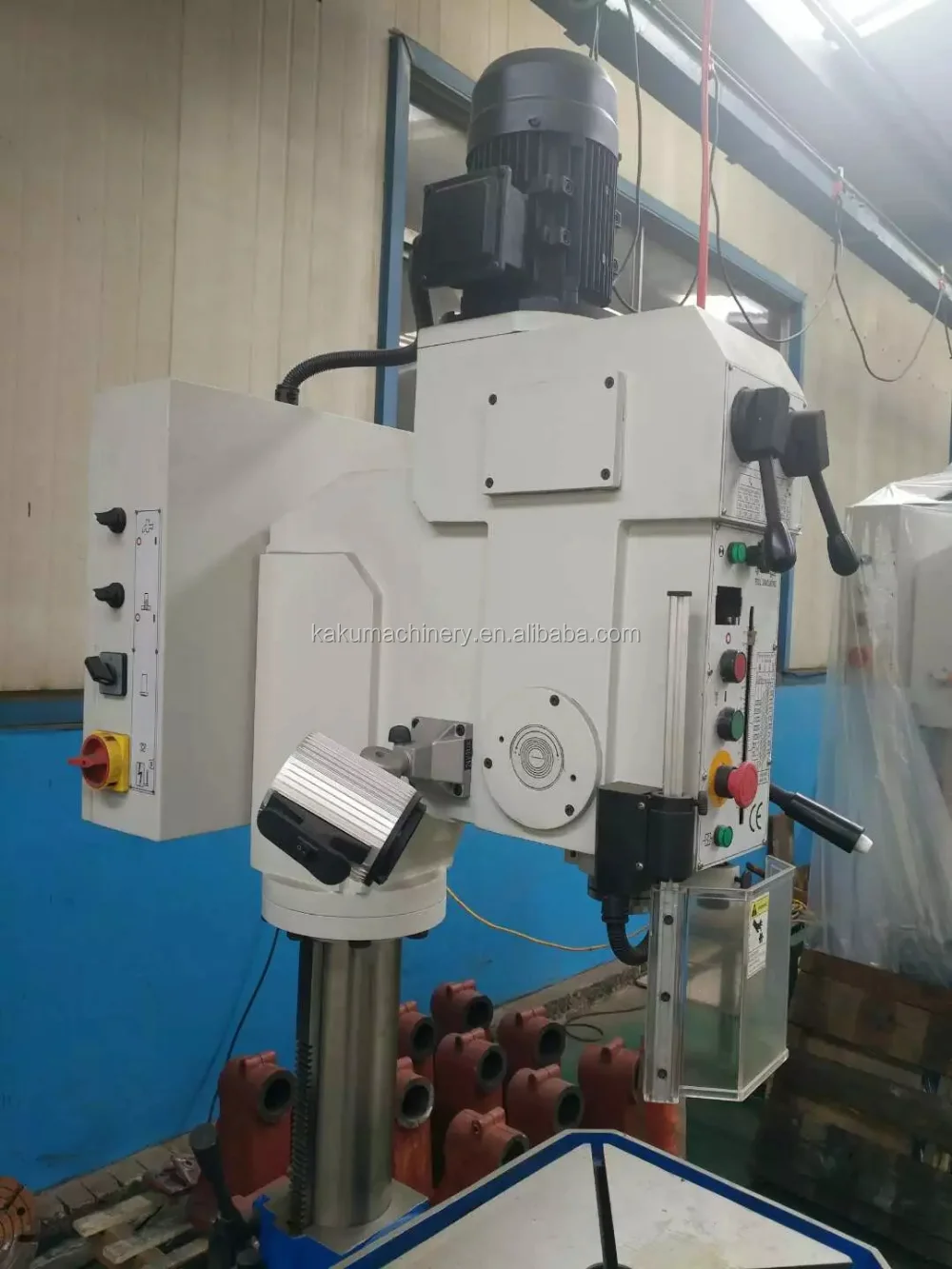

Square column head

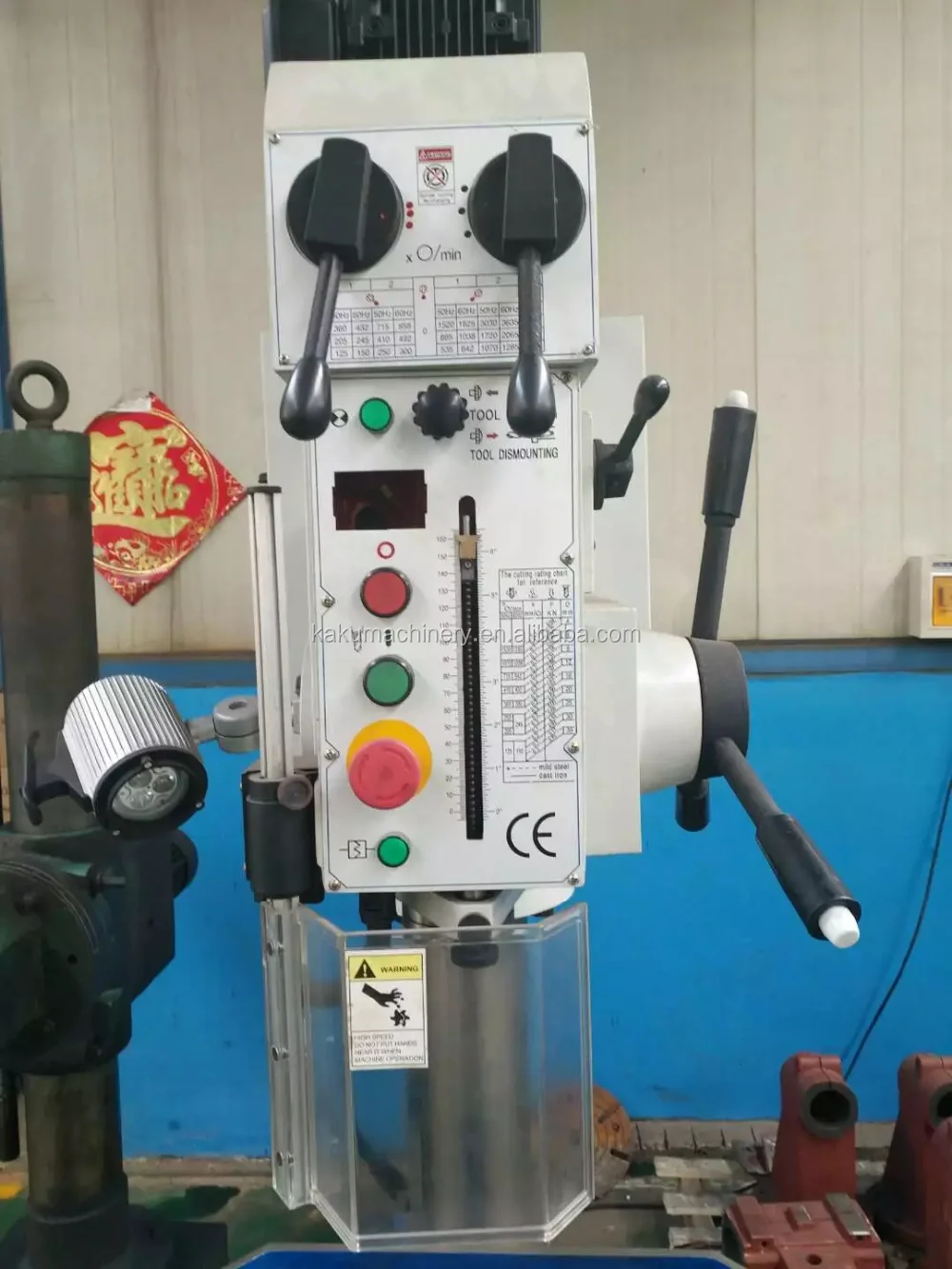

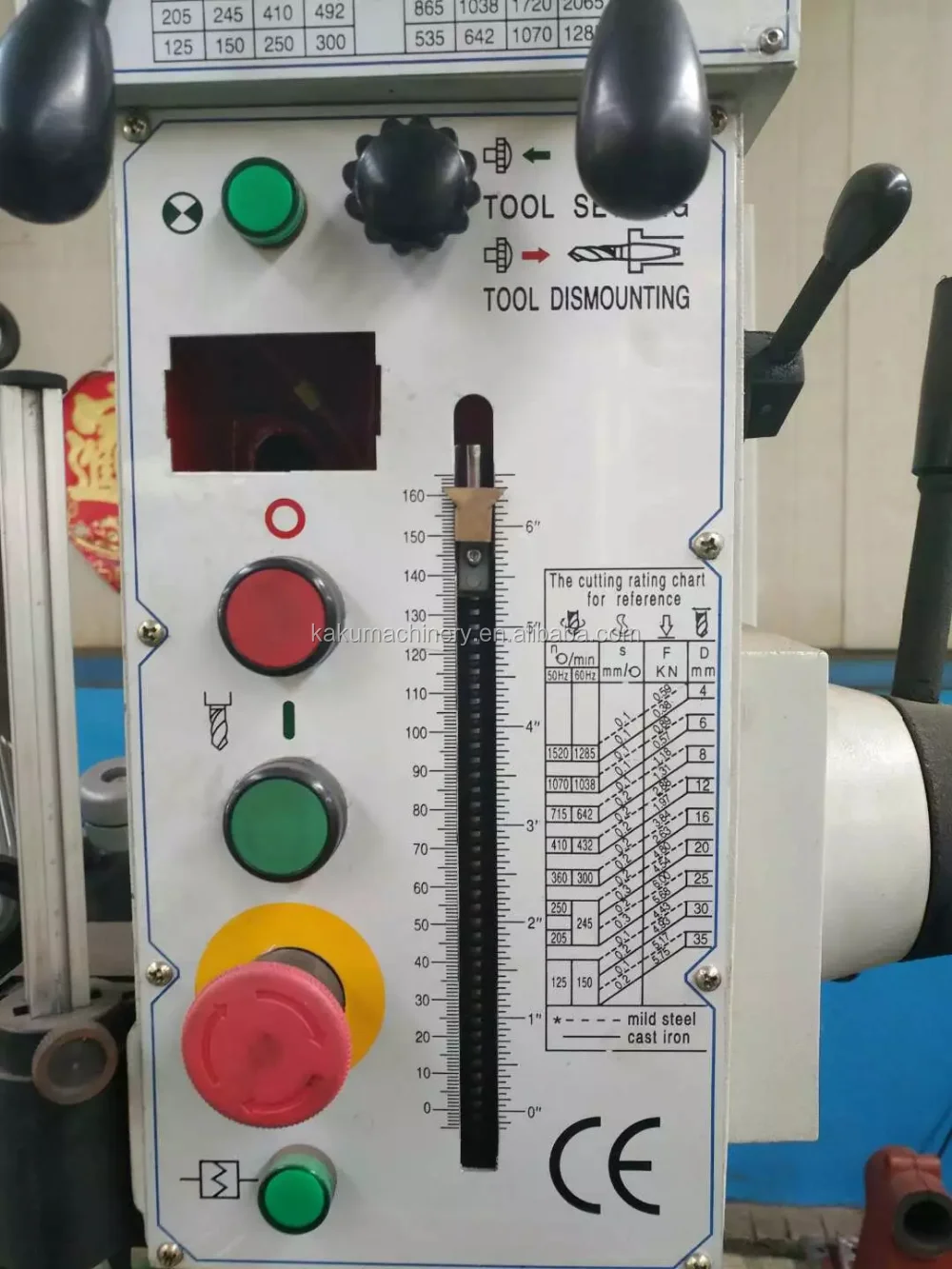

CE Certification and Cutting Table

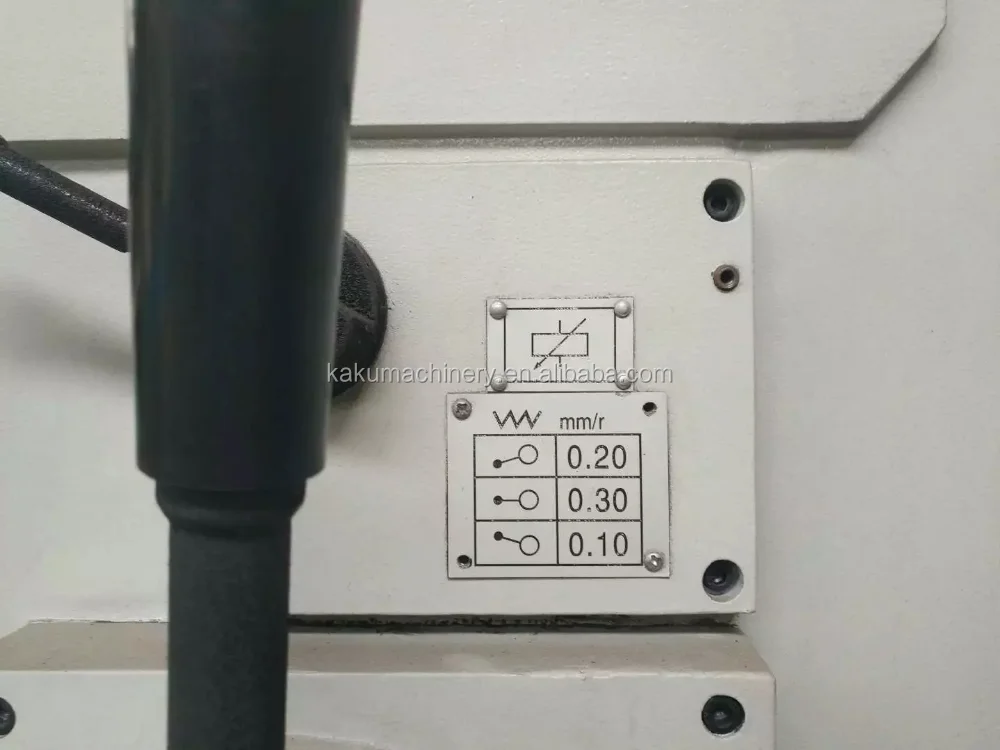

Automatic Feeding

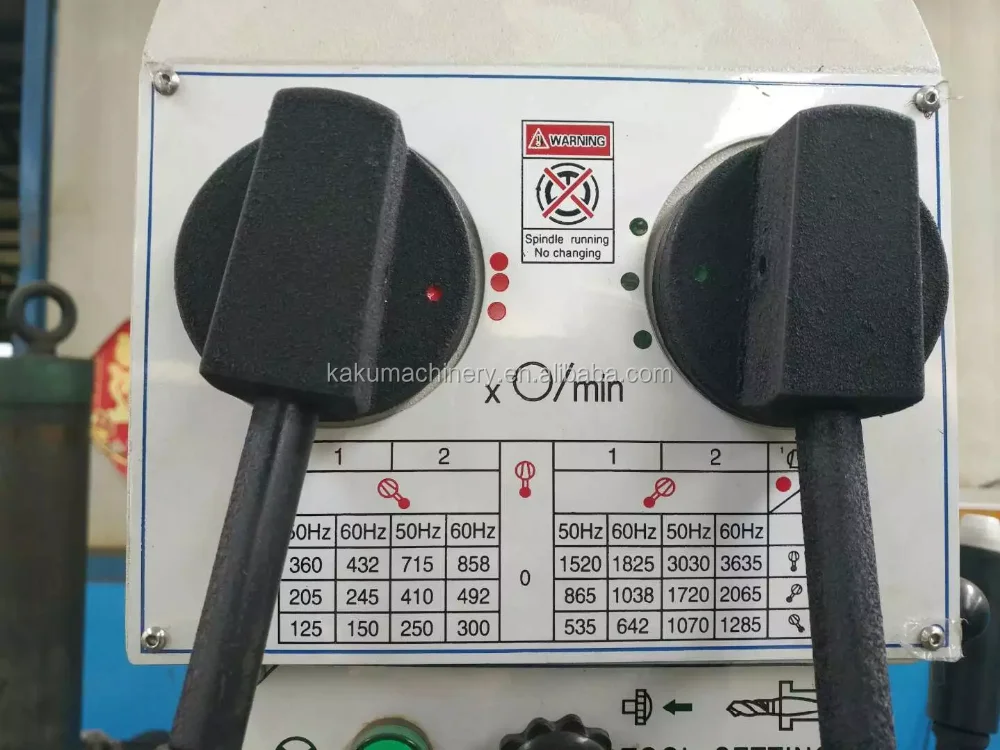

Speed Table

Z5040 Vertical Drilling Machine  exported to Poland

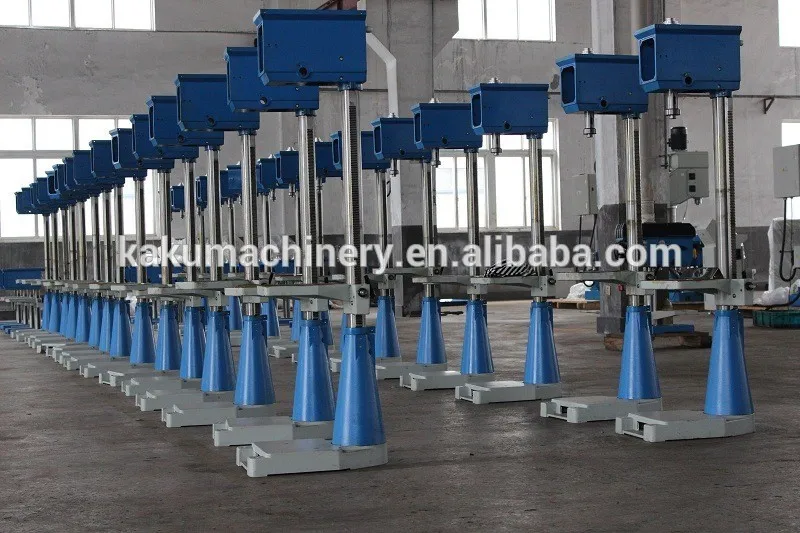

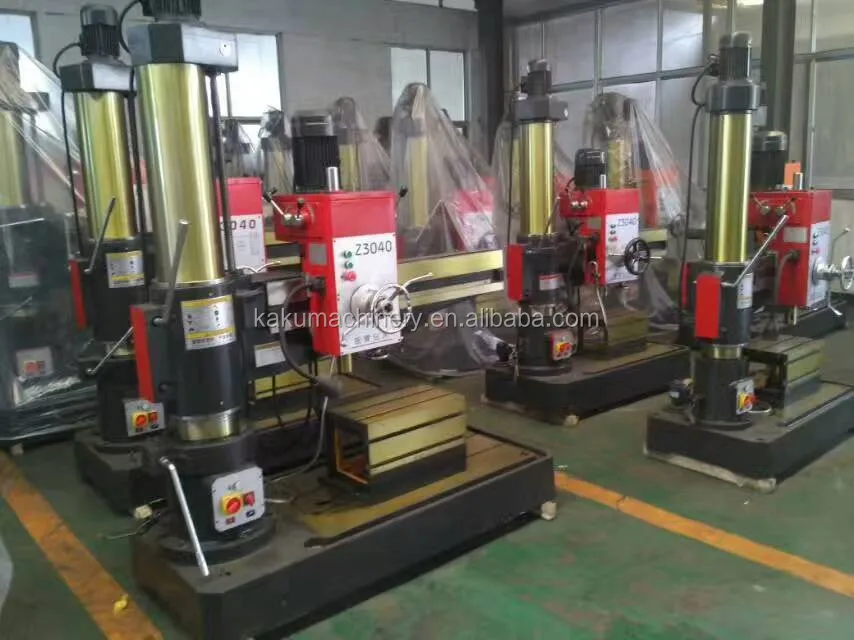

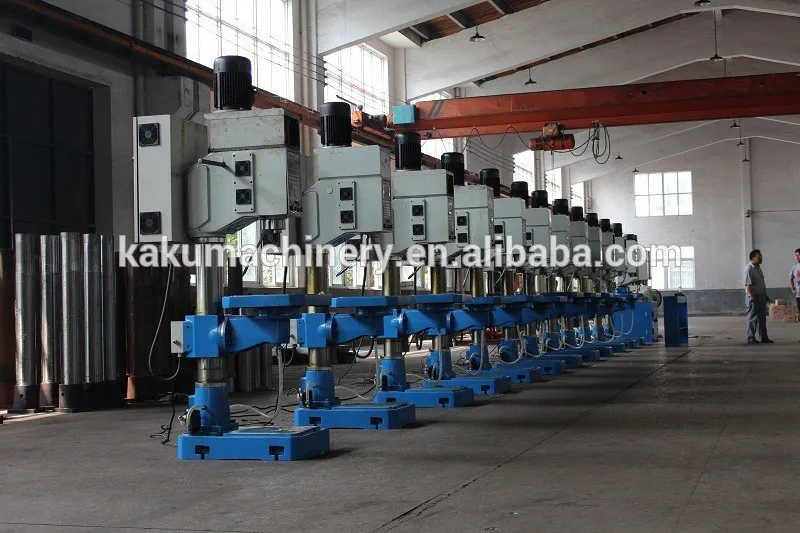

Workshop

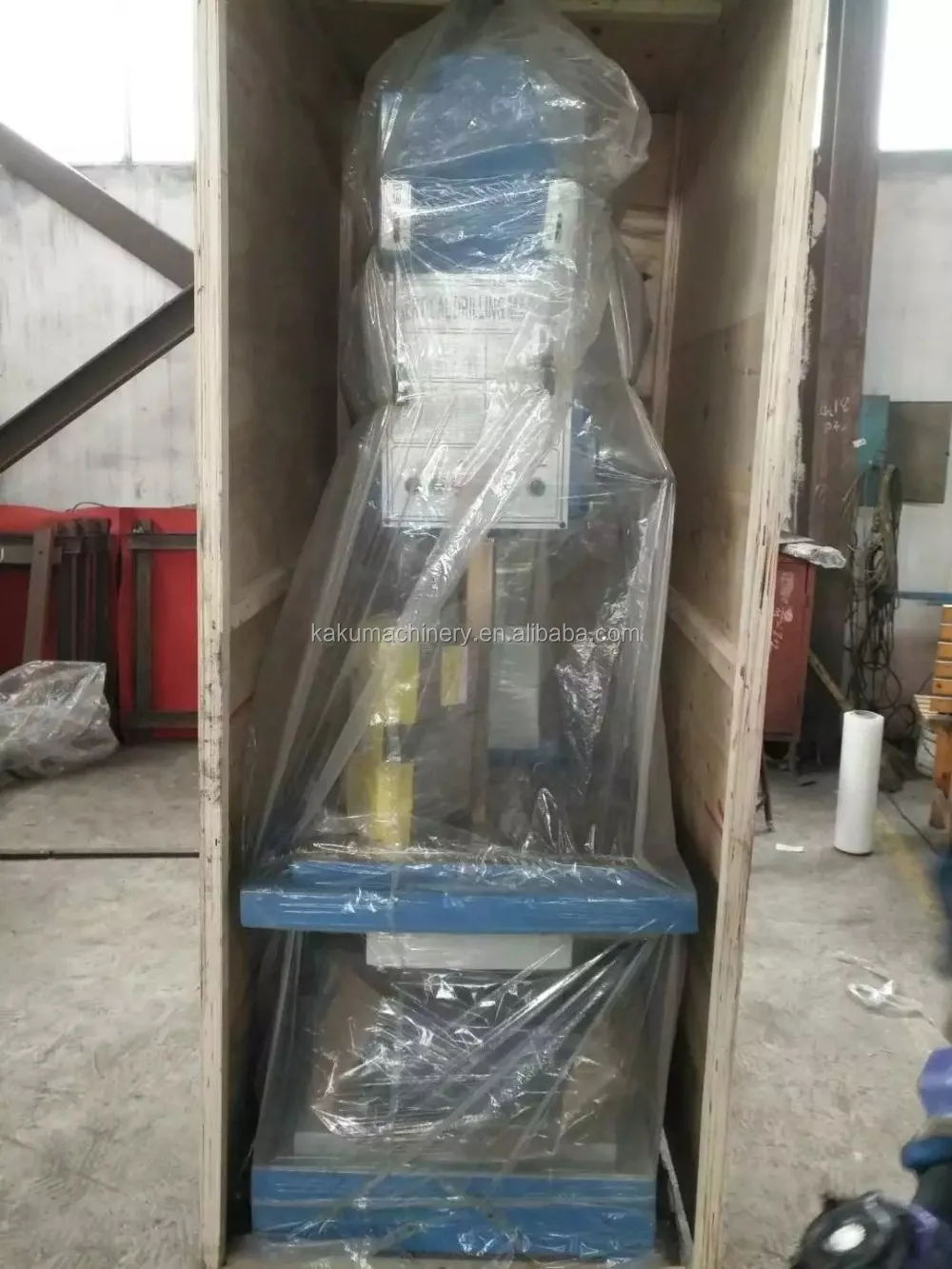

Packing & Delivery
\t
Packaging details
\t
Size
\t
1850×750×1000mm
\t
Weight
\t
482kg
\t
Packing details
\t
The normal package is Fumigation-free plywood, if export to european countries, the machine have CE certificate. If the container is too bigger, we can use PE film for packing or pack it according to customers special request.
\t
Port
\t
Shanghai port (Customized)
