Металлический крюк для лески, болт/гнездовой шасси/шариковый глаз/Якорная Скоба
- Category: >>>
- Supplier: Torch Electrical Group Co. Ltd.
Share on (60718349494):
Product Overview
Description

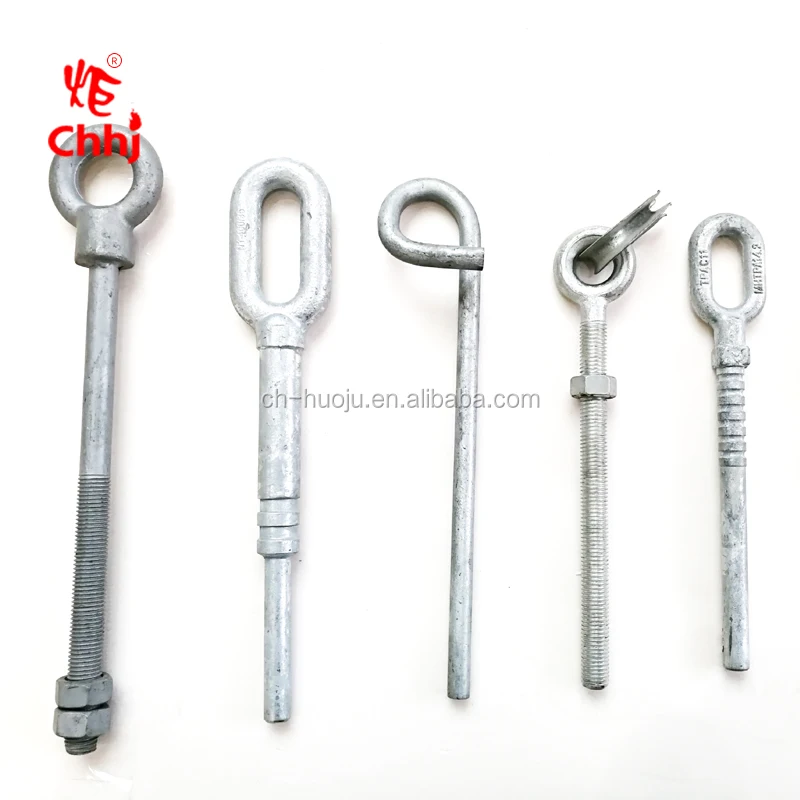

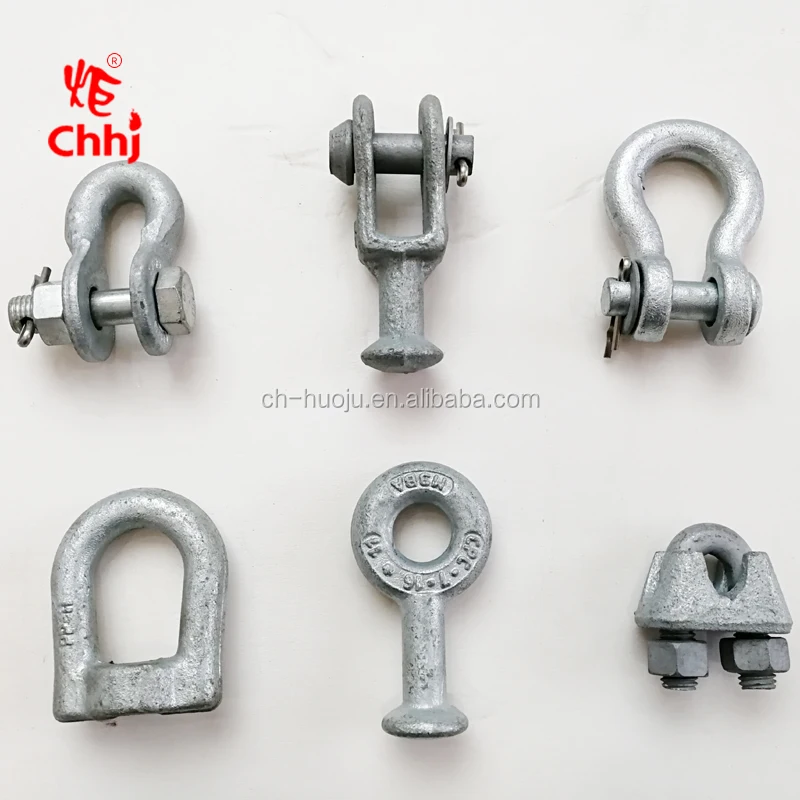

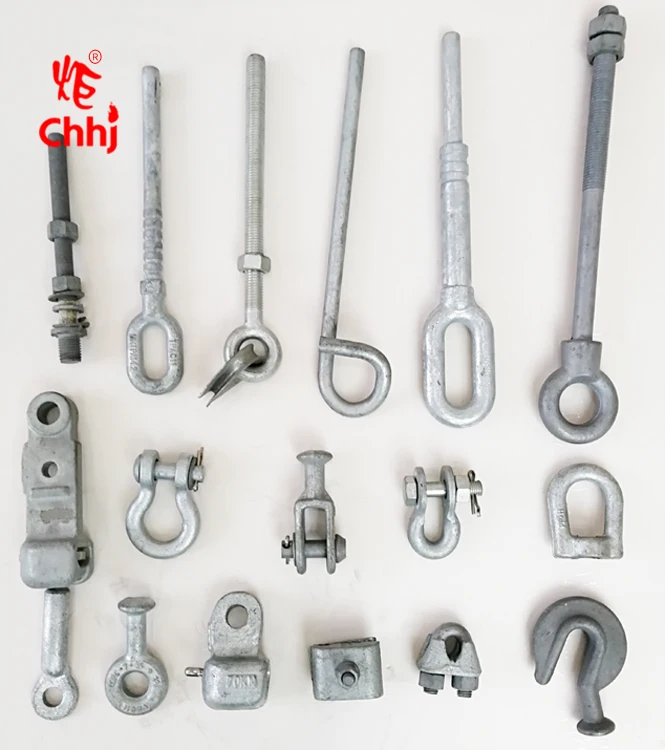

Pole Line Hardware Hook Bolt / Socket Clevis / Ball Eye / Anchor Shackle
Banner
Product Description
| Cat.No. | Dimensions(mm) | Failure Load(kn) | Weight(kg) | ||||
| C | M | d | H | R | |||
| U-7 | 20 | 16 | 16 | 80 | 10 | 70 | 0.44 |
| U-10 | 22 | 18 | 18 | 85 | 11 | 100 | 0.54 |
| U-12 | 24 | 22 | 20 | 90 | 12 | 120 | 0.96 |
| U-16 | 26 | 24 | 22 | 95 | 13 | 160 | 1.47 |
| U-21 | 30 | 27 | 24 | 100 | 15 | 200 | 2.2 |
| U-25 | 34 | 30 | 26 | 110 | 17 | 250 | 2.79 |
| U-30 | 38 | 36 | 30 | 130 | 19 | 300 | 3.75 |
| U-30G.1 | 34 | 30 | 28 | 110 | 17 | 300 | 3 |
| U-40 | 42 | 42 | 36 | 150 | 21 | 400 | 6.99 |
| U-50 | 44 | 42 | 36 | 150 | 22 | 500 | 6.99 |
| U-50G.1 | 40 | 36 | 36 | 170 | 20 | 500 | 6.55 |
| U-60 | 50 | 48 | 185 | 38 | 25 | 600 | 10.75 |
| U-60A | 46 | 42 | 42 | 172 | 23 | 600 | 7.5 |
| U-21G | 24 | 24 | 22 | 100 | 12 | 600 | 1.5 |
| U-32G | 32 | 30 | 28 | 100 | 16 | 320 | 3 |
| U-42G | 36 | 36 | 32 | 110 | 18 | 420 | 4.6 |
| U-50G | 36 | 36 | 34 | 120 | 18 | 500 | 5.3 |
| U-0770 | 19 | 16 | 16 | 70 | 10 | 70 | 0.5 |
Related Products

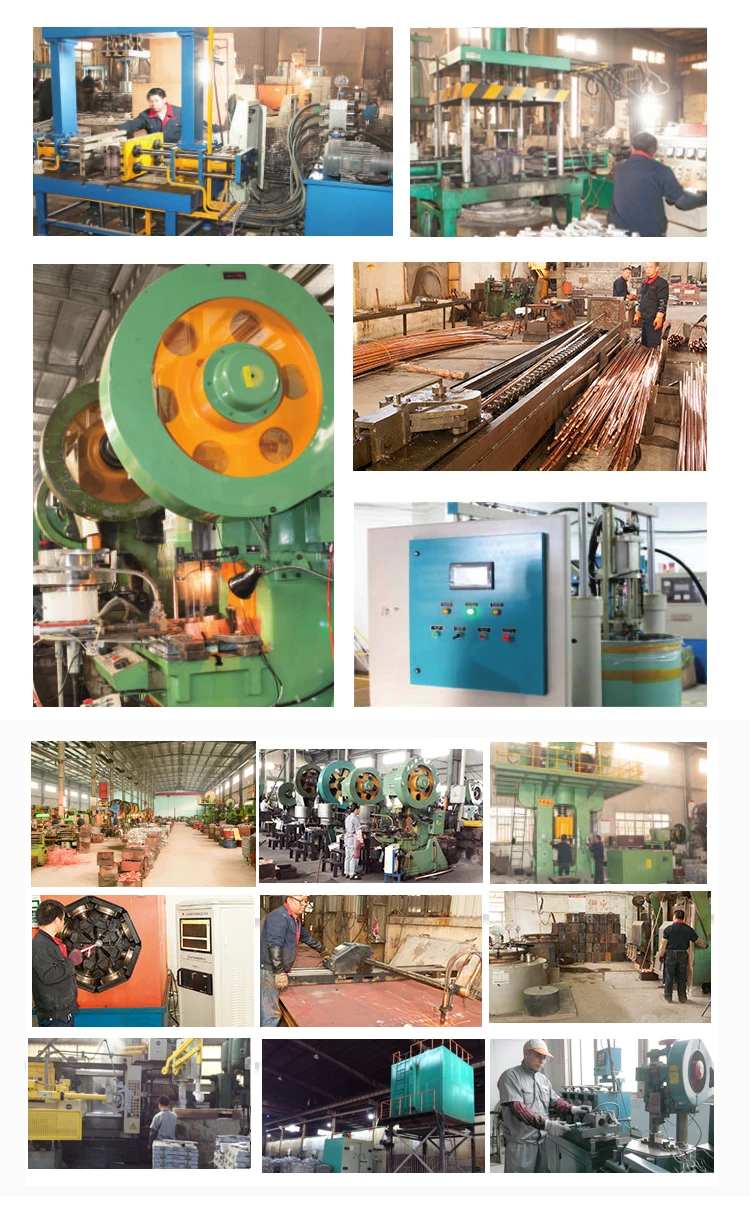

Company Information
