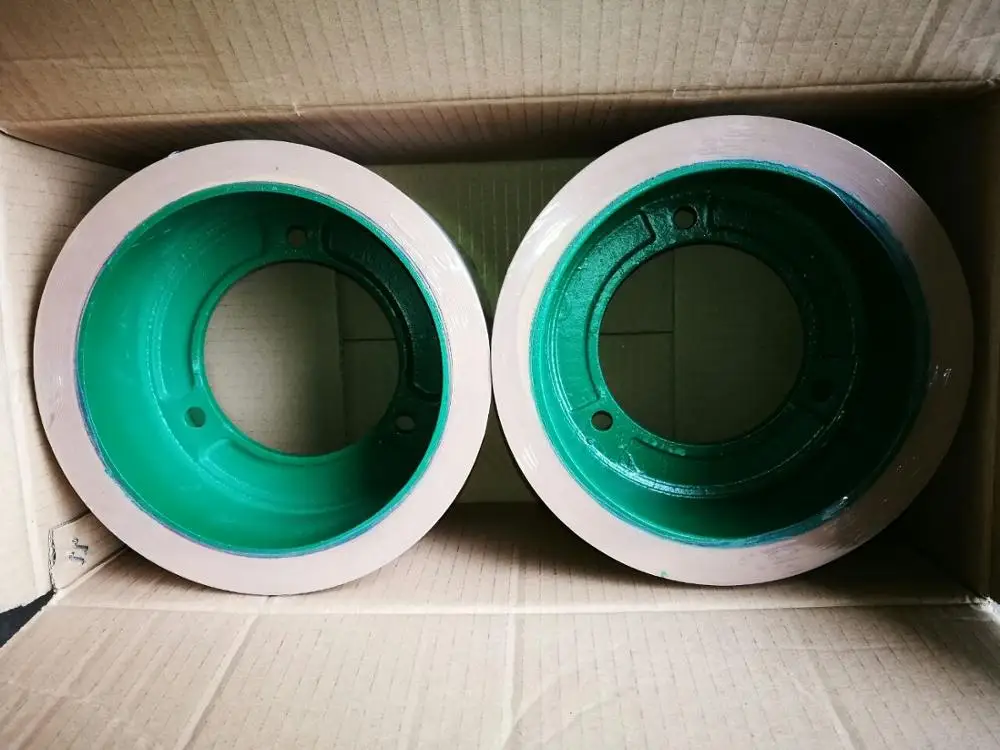

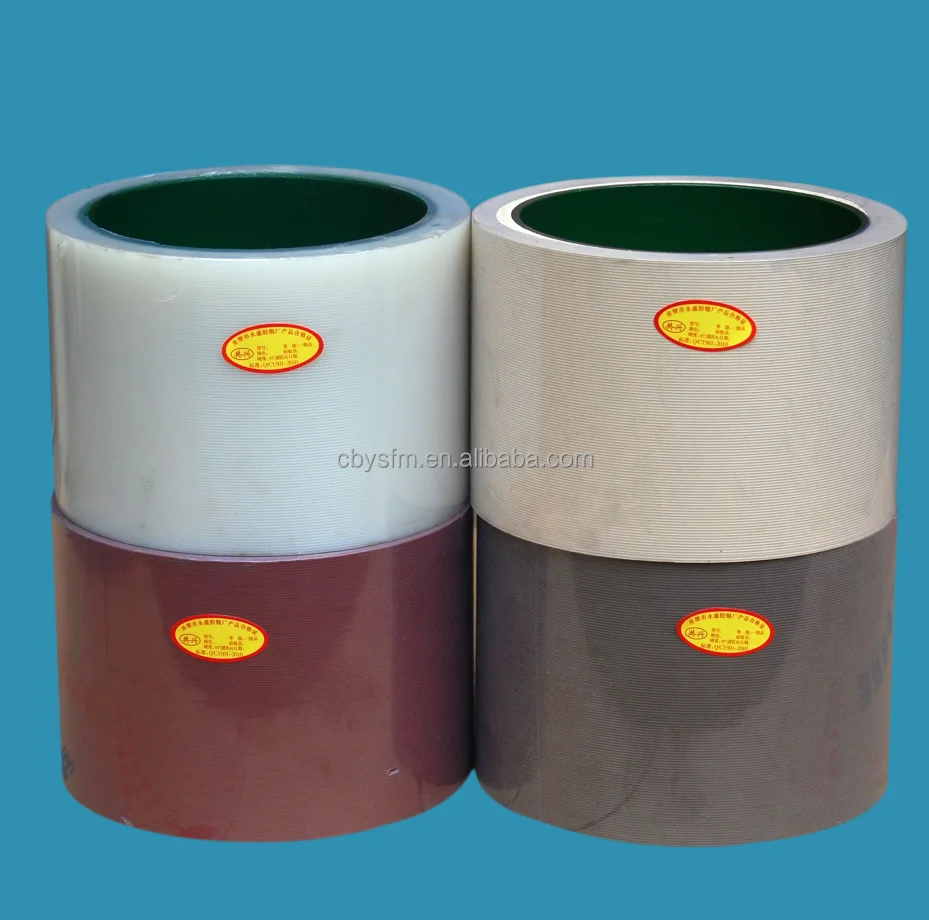

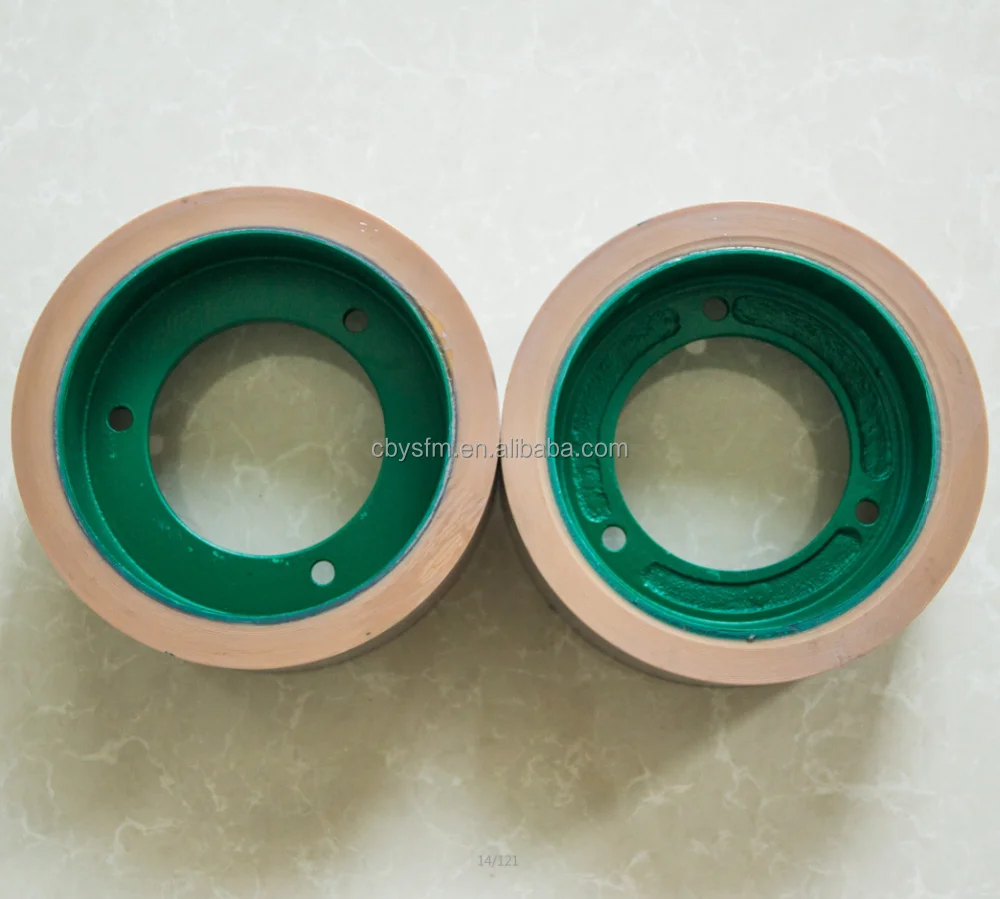

6inch Brown Rice Rubber Roller for Paddy Mill

Product Overview

Description

6inch Brown Rice Rubber Roller for Paddy  Mill

Specification:

Type	Inch	Length(mm)	External Diameter           (mm)	Thickness of Rubber        (mm)±0.5mm
Wheel Type	4	100	222	19.5
	6	152	222	19.5
	7	178	222	19.5
	8(small)	200	225	25
	8(big)	100	254	25
	10	254	254	25
	12	300	270	28
	13.8	350	254	25
Casting Type	14	355	227	29.5
	18	457	232	25.5
	20	508	255	25.5
	25	635	255	25.5
	28	708	255	25.5



Advantages:

1.Hardness is95~96 degrees;

2.Excellent in heat and abrasion resistance;

3.Offering very strong bonding between rubber and drum;

4.High shelling efficiency up to 95%;

5.The SBR and NBR rubber roller can be options.

6.Good wear resistance,Strong temperature,no climate impact,not deformation,soft, anti-tear at high-speed.

7.Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color quality.











 Operating principle:

 Bedcause of speed difference of veer and reversion between rubber rollers,

 paddy are torns up by two rubber rollers, in the end, rice grain comes out.

Application:





Storage:

1.Handle carefully during the transportation.

2.Store in dry place,away from Acid,Alkali,Salt,oil and dirty,forbidden to put under sun for long time.

3.Take sands away from the paddy,keep paddy dry and cleaning when using the rollers.

4.Two rollers should be at the same level,the space must be equal.

5.The paddy inputting should be keep the blance.

6.Keep the rate of the re-hulling under the limited.

7.Don't make the machine work for a long time,in case effecting the hulling capacity.

8.The surrounding temperature is better under the 50°C.

9.Change the fast and slow roller at a certain time.
