Automatic Paper Pulp Egg Tray Production Line / Waste Paper Recycle Used Egg Tray Machine / Small Machine Making Egg Tray
- Category: >>>
- Supplier: Zhengzhou Yuhuo Trading Co. Ltd.
Share on (60718390645):
Product Overview
Description

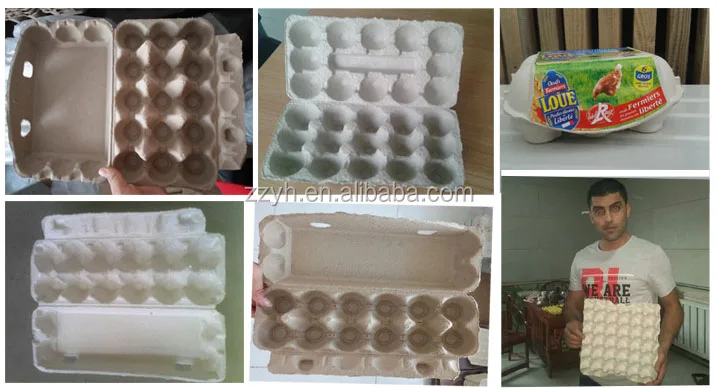

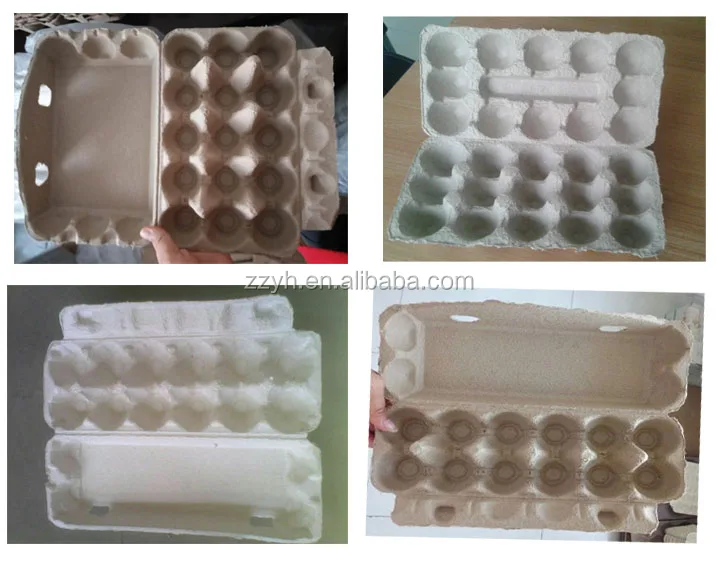

30 eggs egg tray making machine, egg tray machinery
Product Description
Introduction:

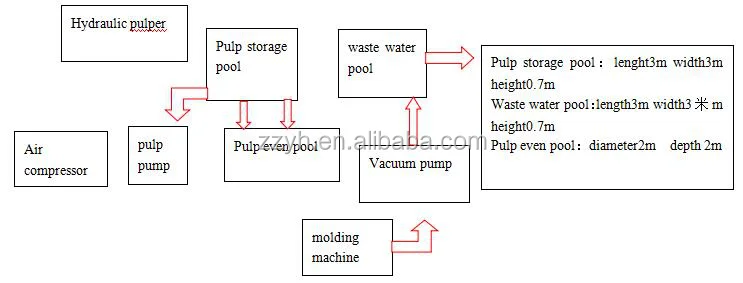

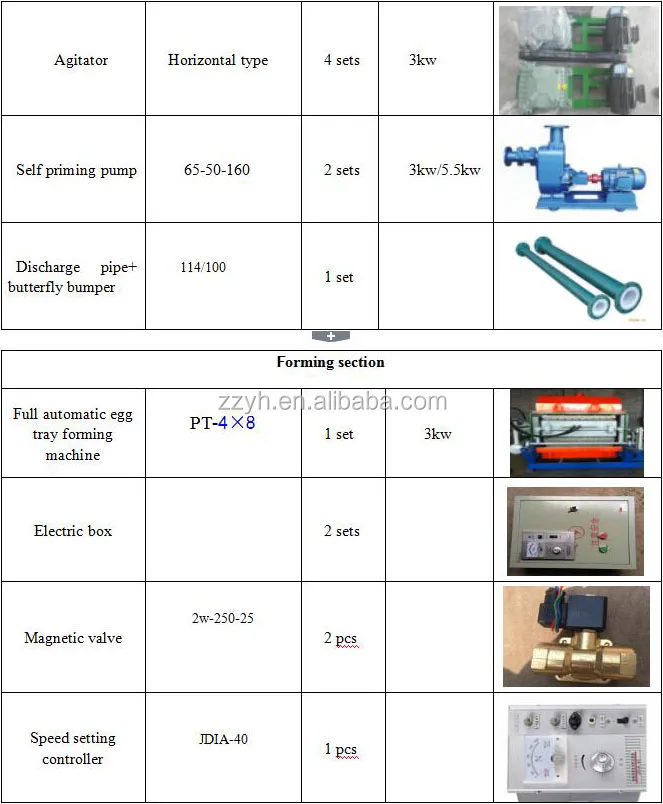

1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system

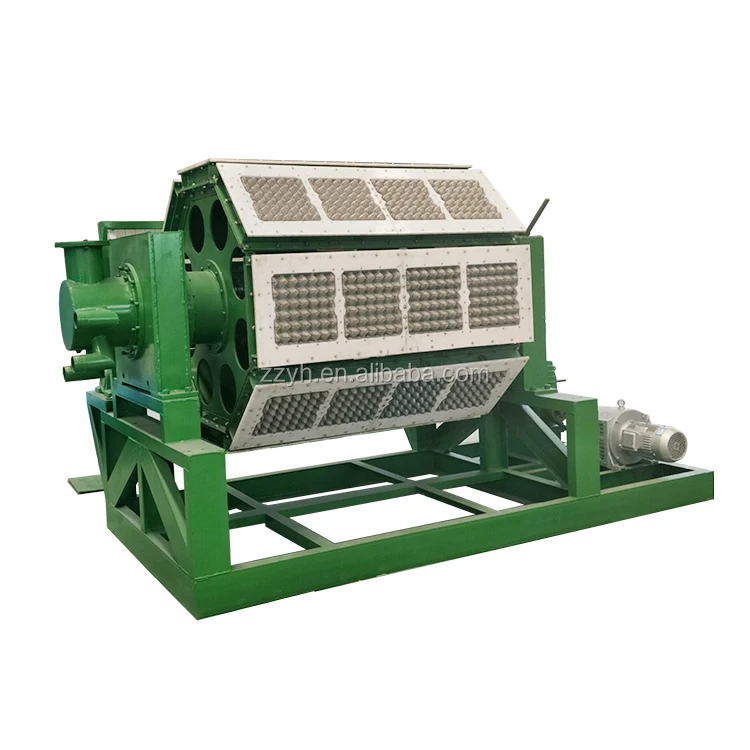

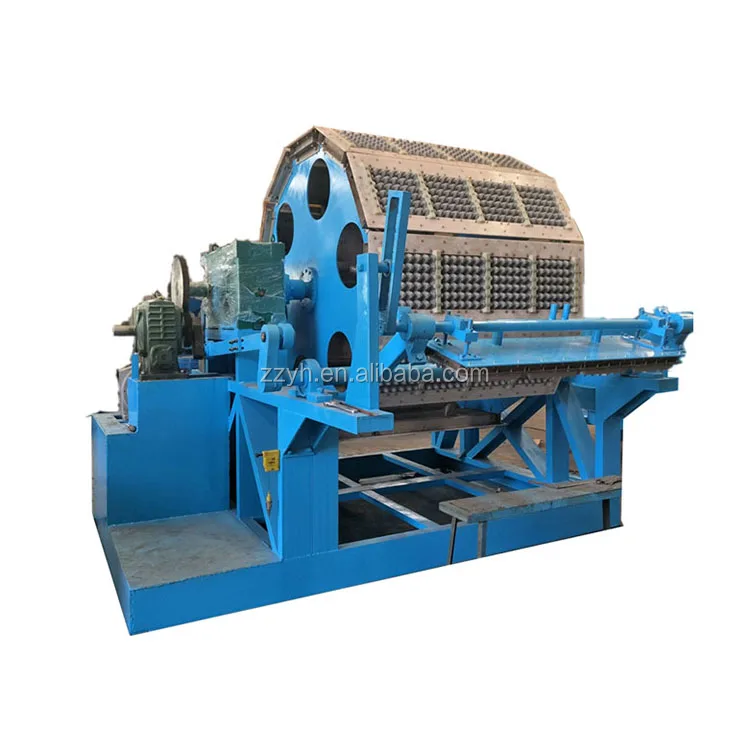

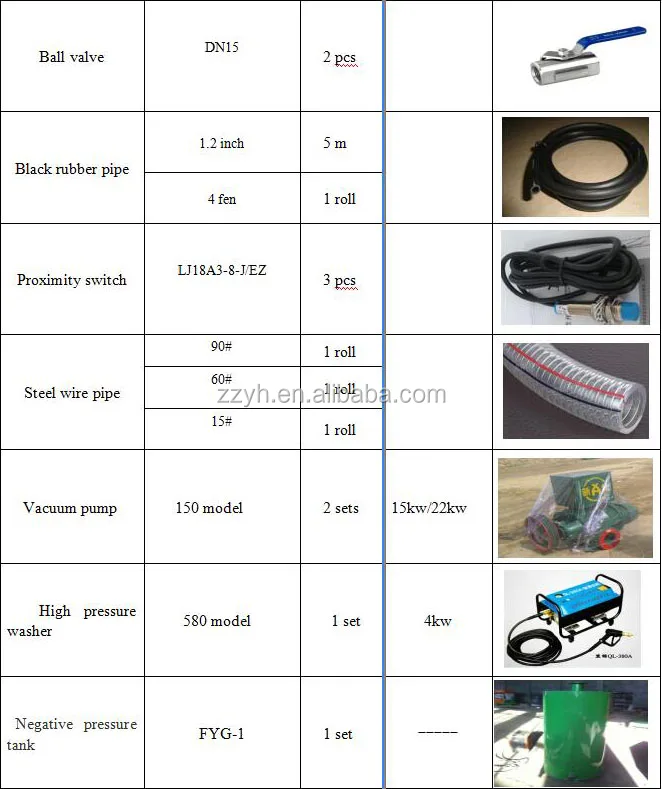

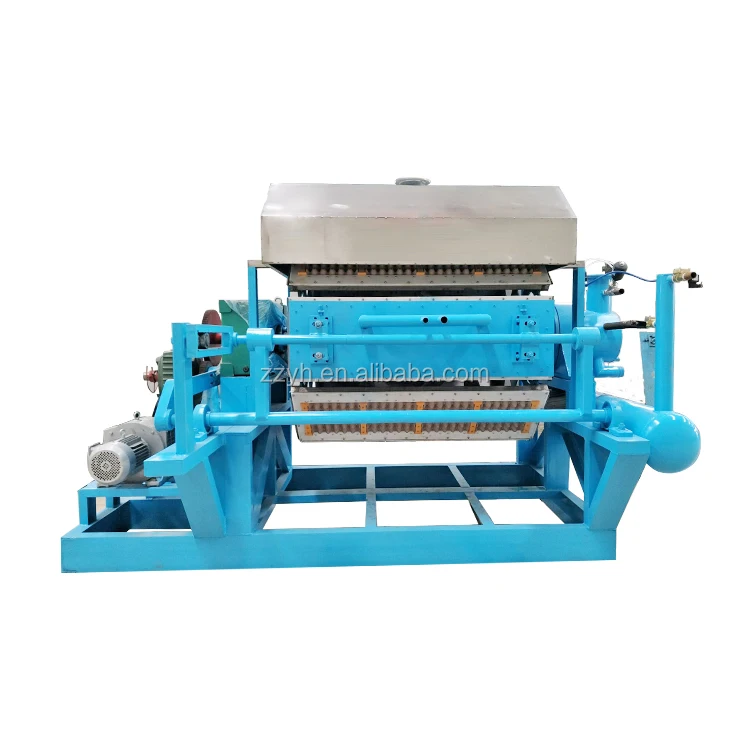

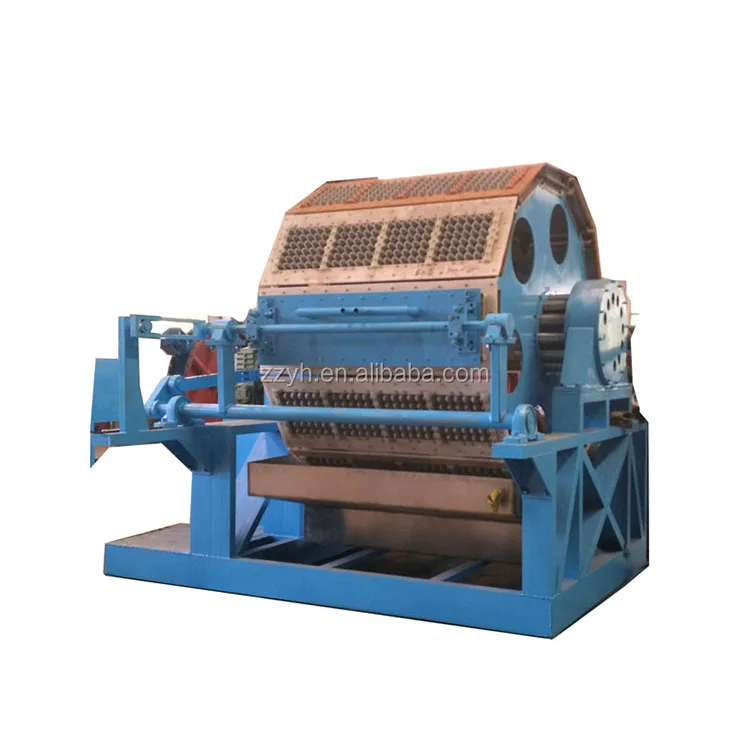

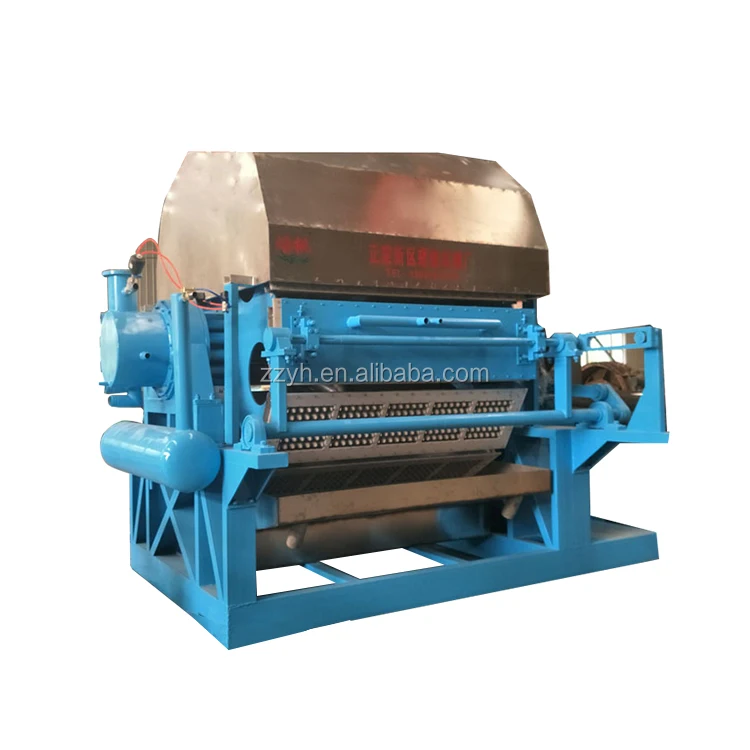

2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system

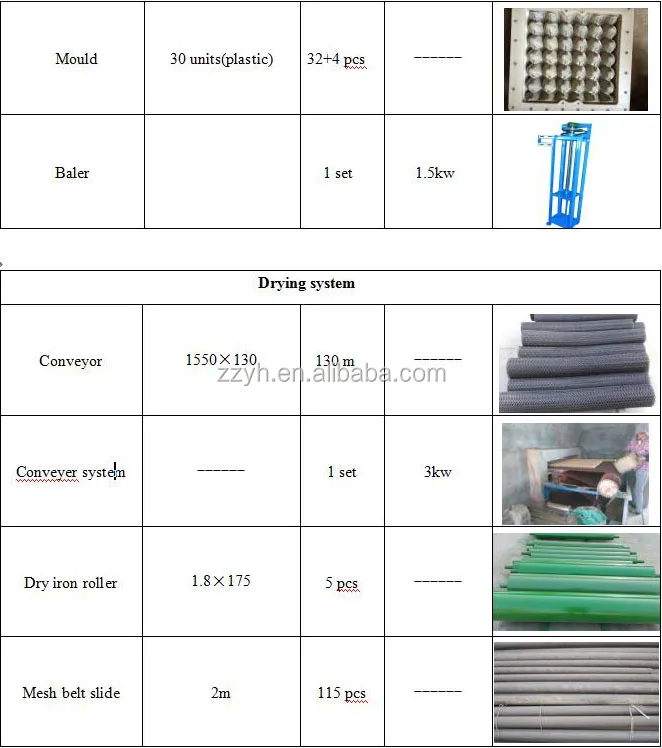

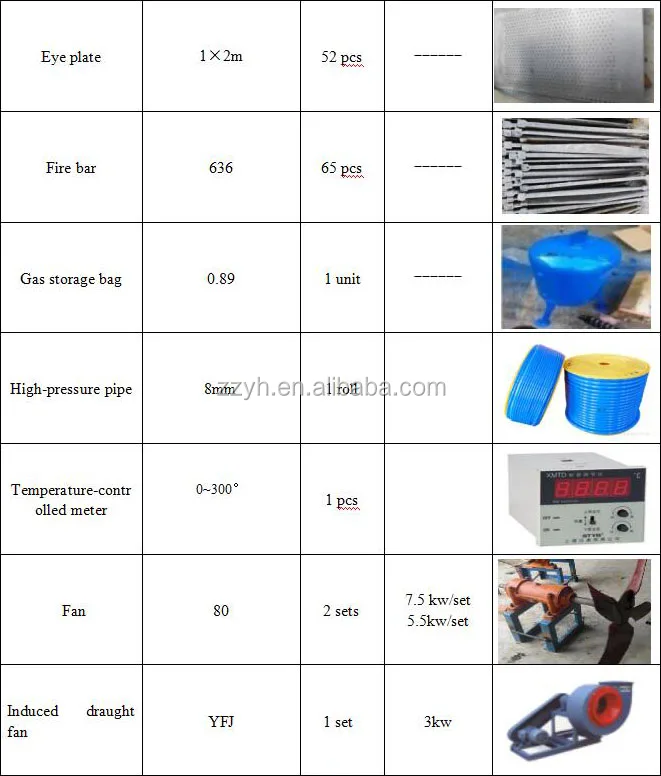

3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. Packing system: Packing
Feature:
Hot sale, Pulp egg tray making machine (support Customize)
1 | High automation, low labor cost |
2 | Low production cost |
3 | Energy saving(by 30%-50% compared with other manufacture) |
4 | Water saving(complete water treatment system equipped) |
5 | Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer) |
6 | Stable final product quality(same weight, same dimention, strong and good look) |
Technical Parameter:
a) Workshop: more than 50m2.(length>=8m,width>=6.2m).
b) Production capacity: 1000pcs/hour.(30-eggs tray, ~65g/pc).
c) Electricity consumption: ~19.6KW. ( 28KW installed ).
d) Water consumption:~250kgs/hour
e) Kind of Raw material: newspaper, carton paper
f) Raw material consumption: ~70kgs/hour
g) Workers:3~4 person
h) Transport: the machine needs 1 of 20' container for loading it.
According to customer request.

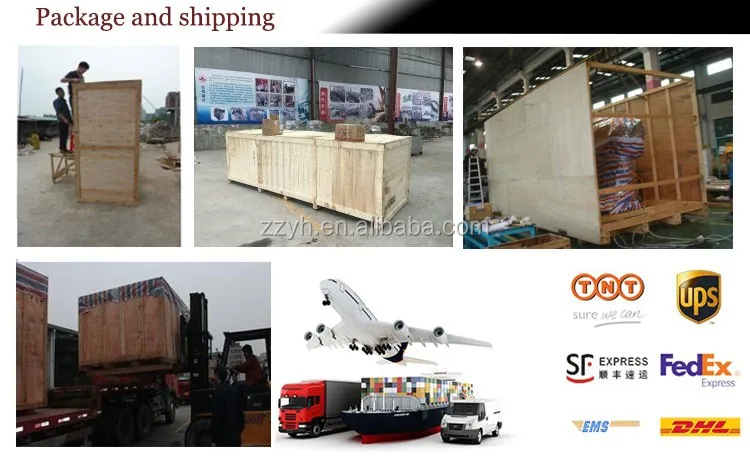

Packaging & Shipping
Packaging Details | Standard export box, container or can be adjusted according to your demands |
Delivery Details | Within 3-5 days after payment received |
Our Services
Our advantage
1.Lower price | We produce and export machine directly |
2.Competitive price | With a cheaper labor force which make our price more competitive |
3.On time shipment | Most developed highway system and logistics deliver company make sure on time shipment |
4.Producing Line | Own advanced manufacturing equipments andcomputer controlled making machine, so our factory implement assembly line entirely. |
5.QC | Strict quality control system to make sure the quality is good and stable. |
6.Sincerity | Once cooperation, the whole life friendship. Not for others just for the quality . |
♥24 hours on-line service for you
♥Professional person reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
Company Information

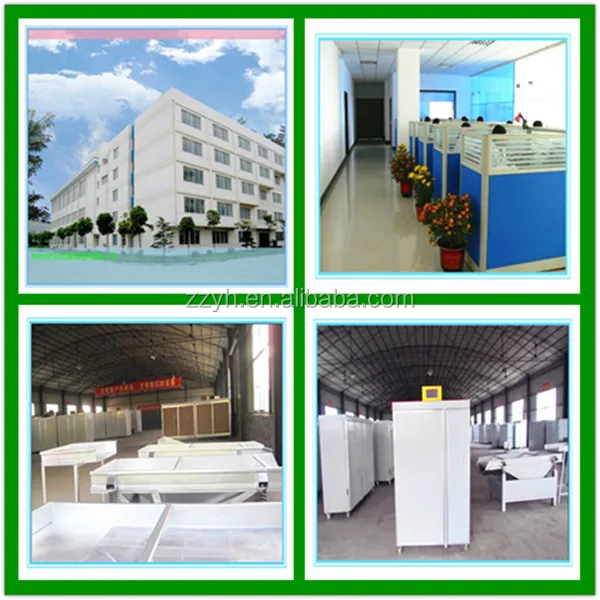

ZHENGZHOU YUHUO MACHINERY & EQUIPMENT CO.,LTD. have been designing, developing, manufacturing and marketing Machinery for more than 10 years.
After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect aftersales service system. So choose us, equaling to choose the competitive price and stable quality both.
FAQ
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample , as long as you afford the express freight.
3) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed
4) Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
5)Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
6)How do you determine the price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
