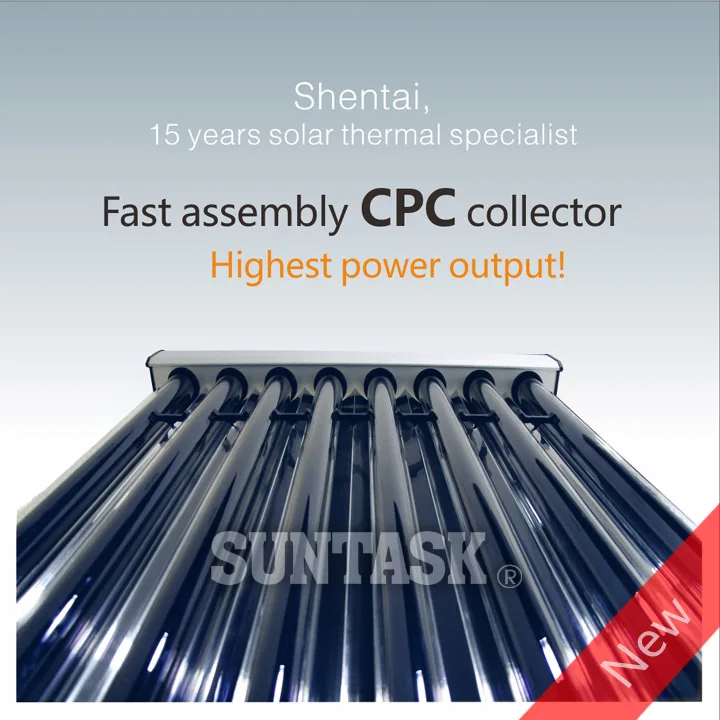

2018 Suntask New Product CPC Heat Pipe Solar Collectors with High Power Output

1. Vacuum tube: SS-CU-AIN/ALN coating, Φ58*1800mm
2. Tube distance: 110mm
3. Heat pipe: TU1 copper

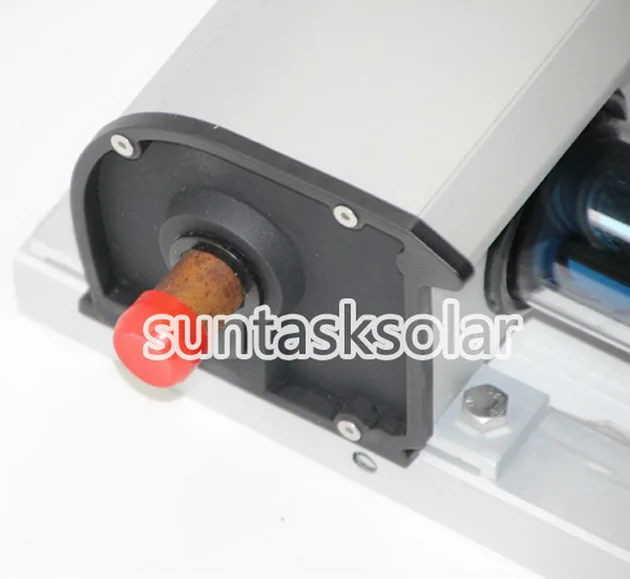

4. Header pipe: Φ35mm /1.0mm thick
5. CPC reflector: polished aluminum sheet
6. Bracket: aluminum alloy, 2.7mm
7. Insulation: glass fabric, 30mm
8. Manifold casing: anodized aluminum alloy
9. Sealing material: silicon seal

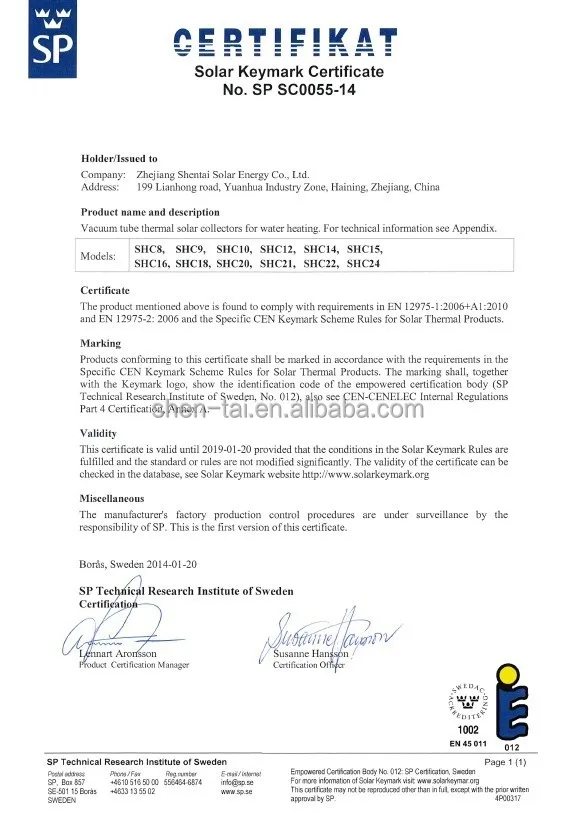

10. Certificate: EN12975-1,2 Solar Keymark

Product Introduction

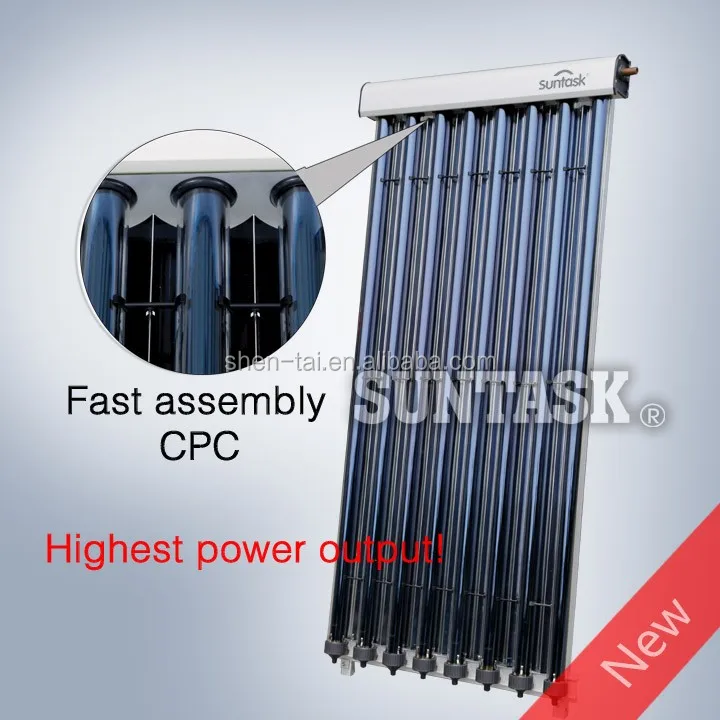

2018 Suntask New Product CPC Heat Pipe Solar Collectors with High Power Output

ADVANTAGE:

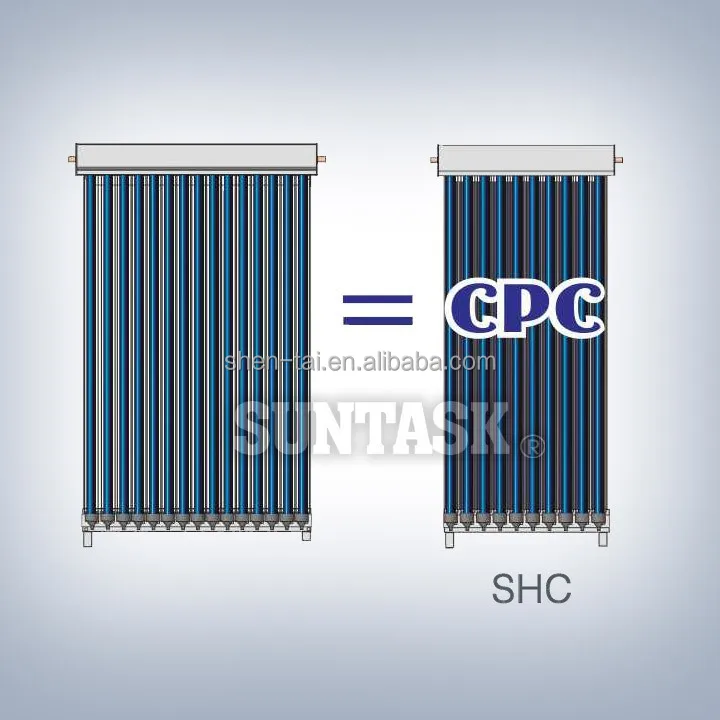

1. Sunlight concentrators make the efficiency doubly increased.
2. Fast assembly CPC concentrators more easy installation and transportation.
3. 360°sunlight absorber, hot water in cloudy days.
4. Overheating protection just disassembly the CPC concentrators in summer.
5. Temperature startup more faster than the normal solar thermal collectors.
6. Applicable for the industry heating.
7. More thermal production based on the same aperture area.
8. EN12975/Solar Keymark.

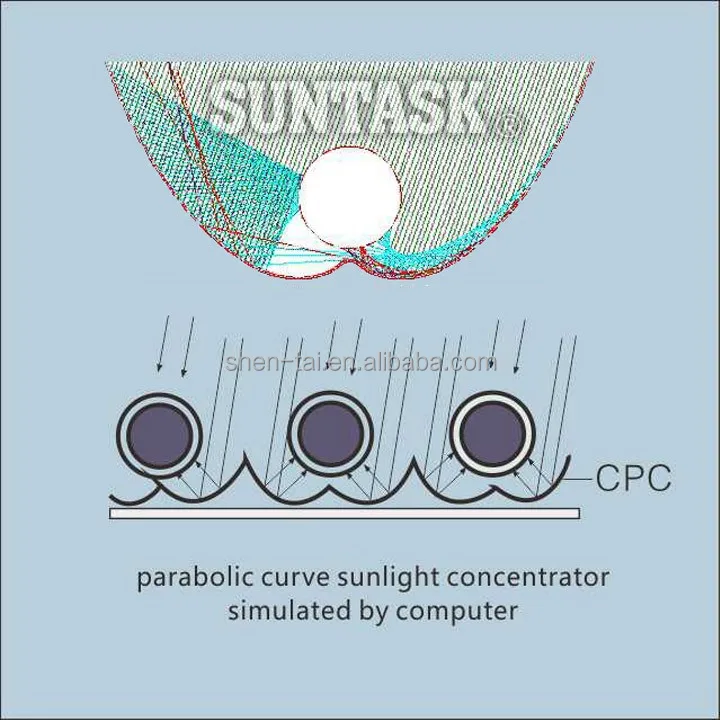

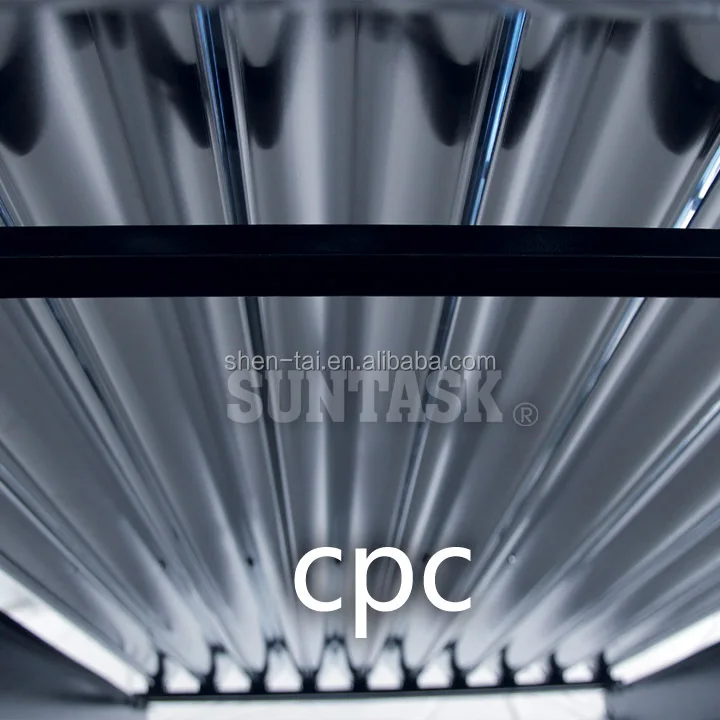

* CPC reflector
Maximum performance at minimum dimensions.Absorber is bigger than gross surface area. Three dimensionally 360° shaped absorbers for the greatest possible energy collecting surface, utilized up to most of the diffuse and direct radiation from morning to evening.

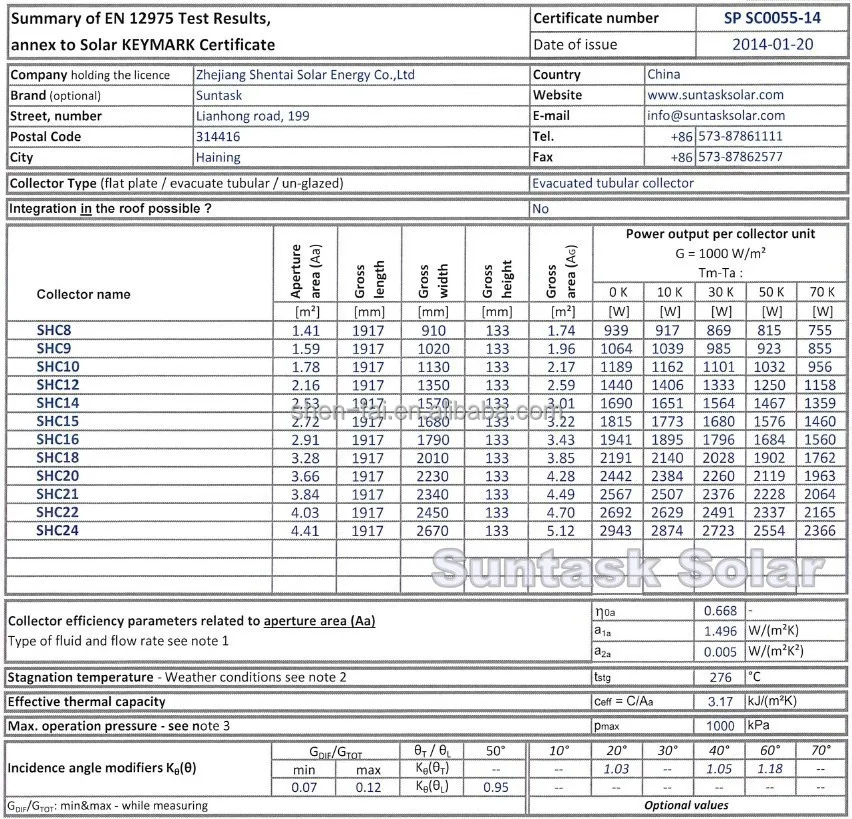

Product Parameters
\t
Models
\t
L*W*H mm
\t
Vacuum tube
\t
Power output
\t
Efficiency
\t
Header mm
\t
Frame
\t
Container loading
20'ft/40'hq
\t
Gross
weight
kg
\t
SHC8
\t
1917*910*133
\t
58*1800*8pcs
\t
939W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
185/445
\t
27
\t
SHC10
\t
1917*1130*133
\t
58*1800*10pcs
\t
1189W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
159/385
\t
33
\t
SHC12
\t
1917*1350*133
\t
58*1800*12pcs
\t
1440W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
149/358
\t
40
\t
SHC15
\t
1917*1680*133
\t
58*1800*15pcs
\t
1815W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
120/290
\t
49
\t
SHC18
\t
1917*2010*133
\t
58*1800*18pcs
\t
2191W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
100/242
\t
59
\t
SHC20
\t
1917*2230*133
\t
58*1800*20pcs
\t
2442W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
87/210
\t
66
\t
SHC22
\t
1917*2450*133
\t
58*1800*22pcs
\t
2692W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
83/202
\t
72
\t
SHC24
\t
1917*2670*133
\t
58*1800*24pcs
\t
2943W
\t
0.668
\t
Φ35/1.0
\t
AL Alloy
\t
77/188
\t
79

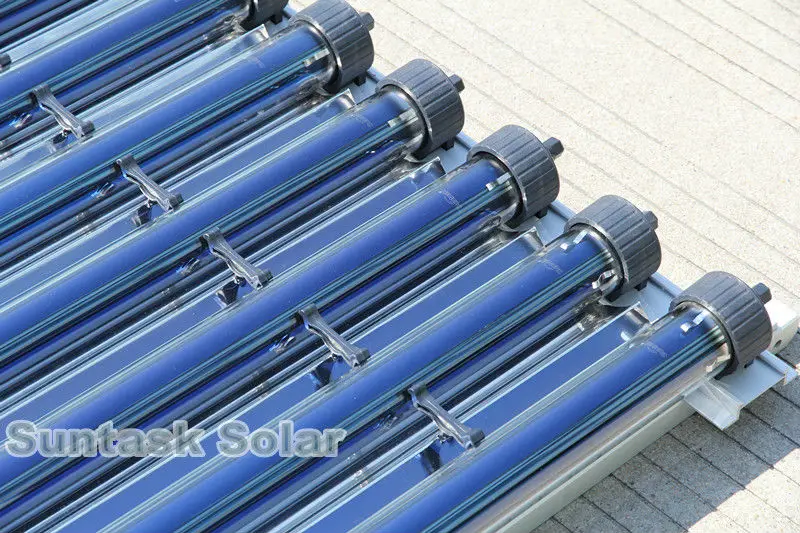

Product Details Show
Why Choose Us

About us

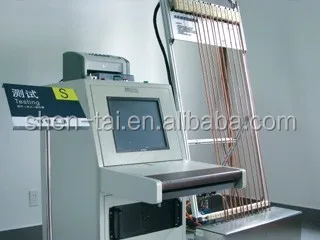

Equipment & technology


Service

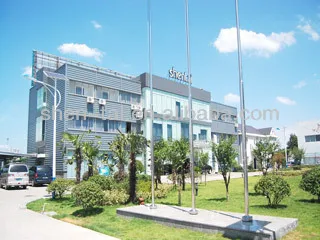

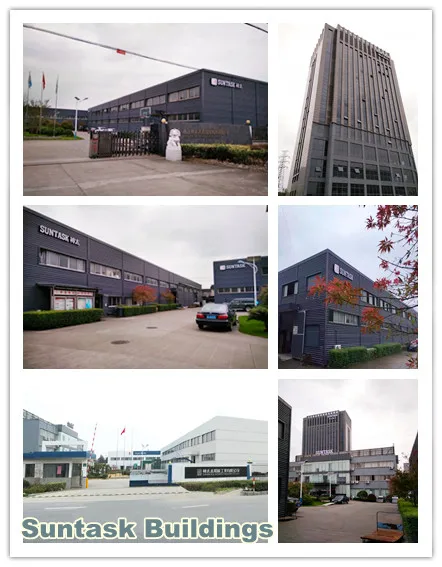

Company Profile:

Zhejiang Shentai Solar Energy Co., Ltd is a professional manufacturer of solar water heater with more than 18 years experience.

Our solar water heater are widely certified with CE, SOLAR KEYMARK, EN12975, SRCC and have been widely exported to more than 80 countries throughout Europe, America, Canada, Latin America, Africa, the Middle East, Southeast Asia and etc.

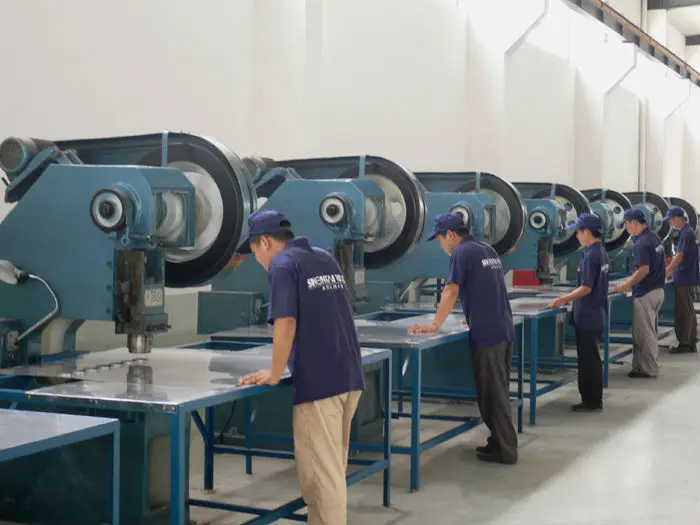

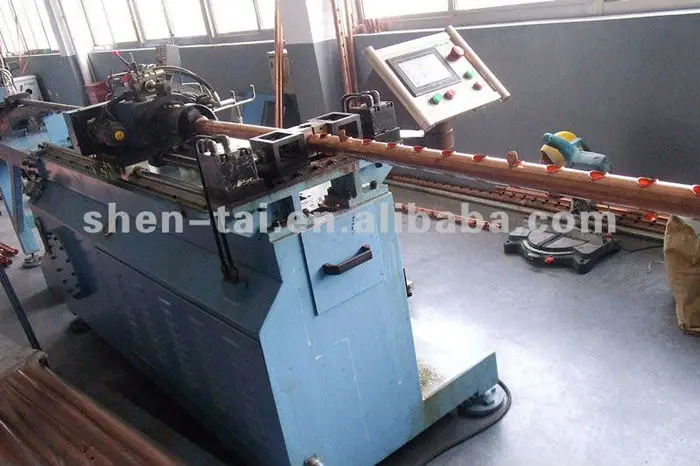

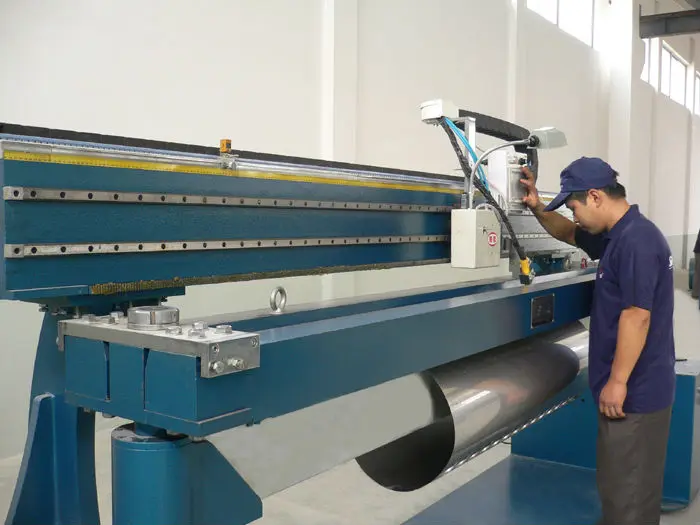

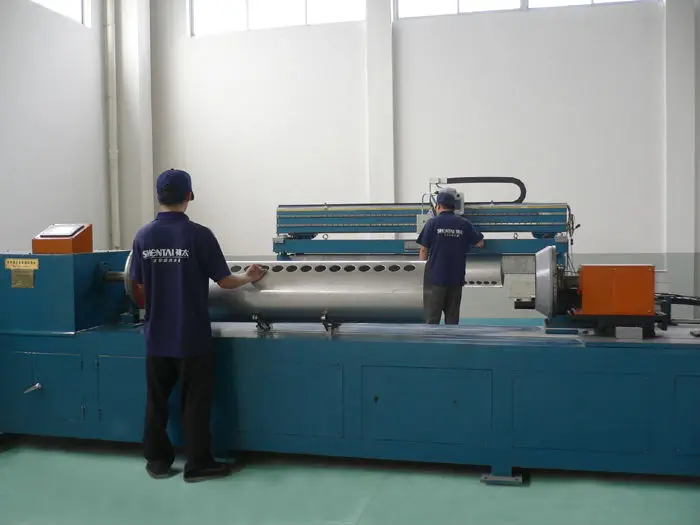

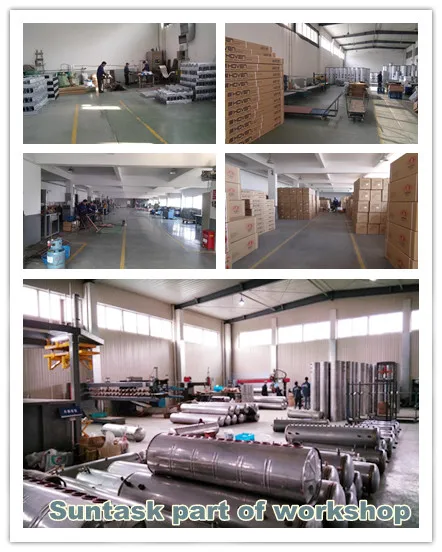

Product Processing



Product Packing
Main Products

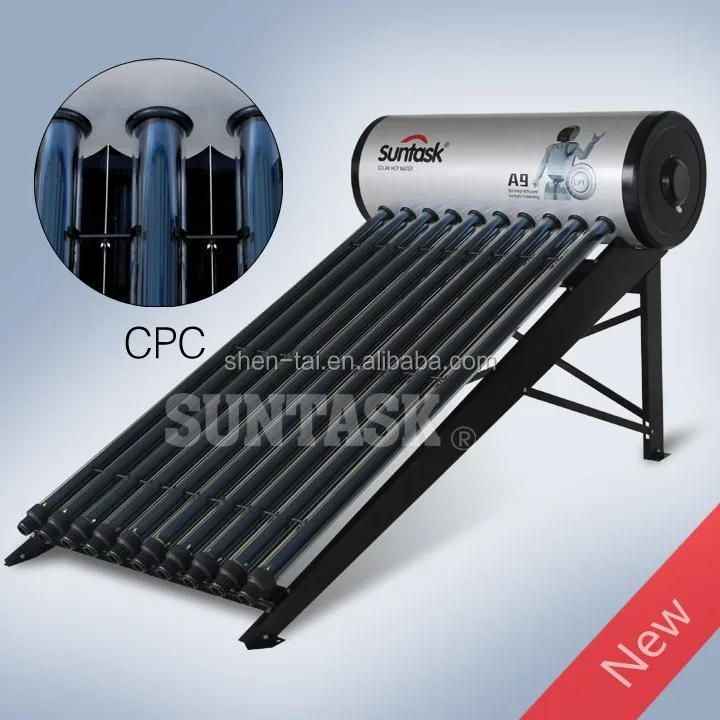

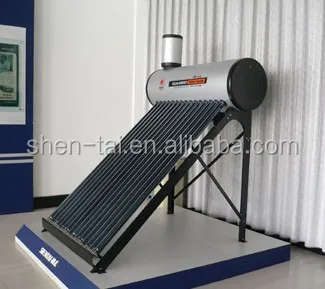

Integrated Pressurized Solar Hot Water System A9H Models

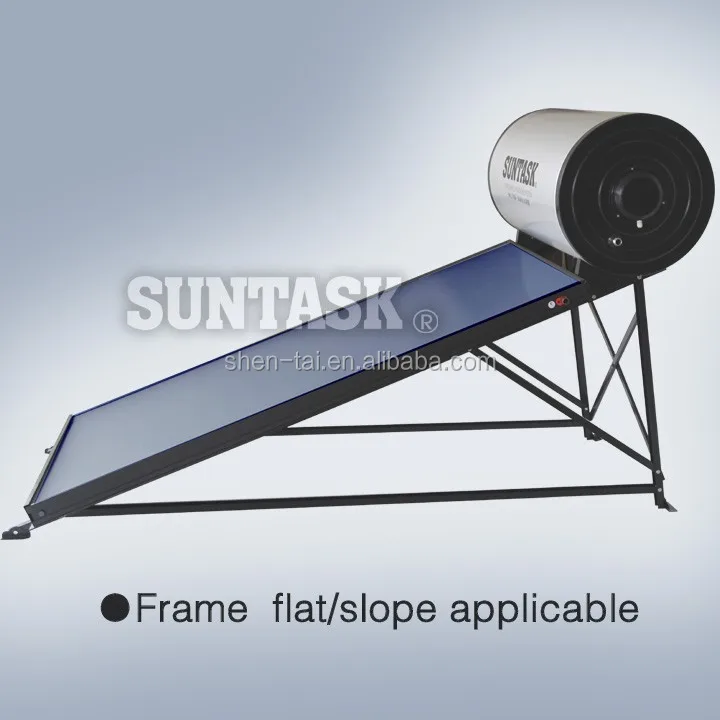

New Design Over Heating Protection Flat Plate Integrated Pressurized Solar Hot Water System SPH Models
