1.Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
2.Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
3.Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
4.Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
5.Sound Alarm: 1-25s alarm time, 255 different sound volume for choose

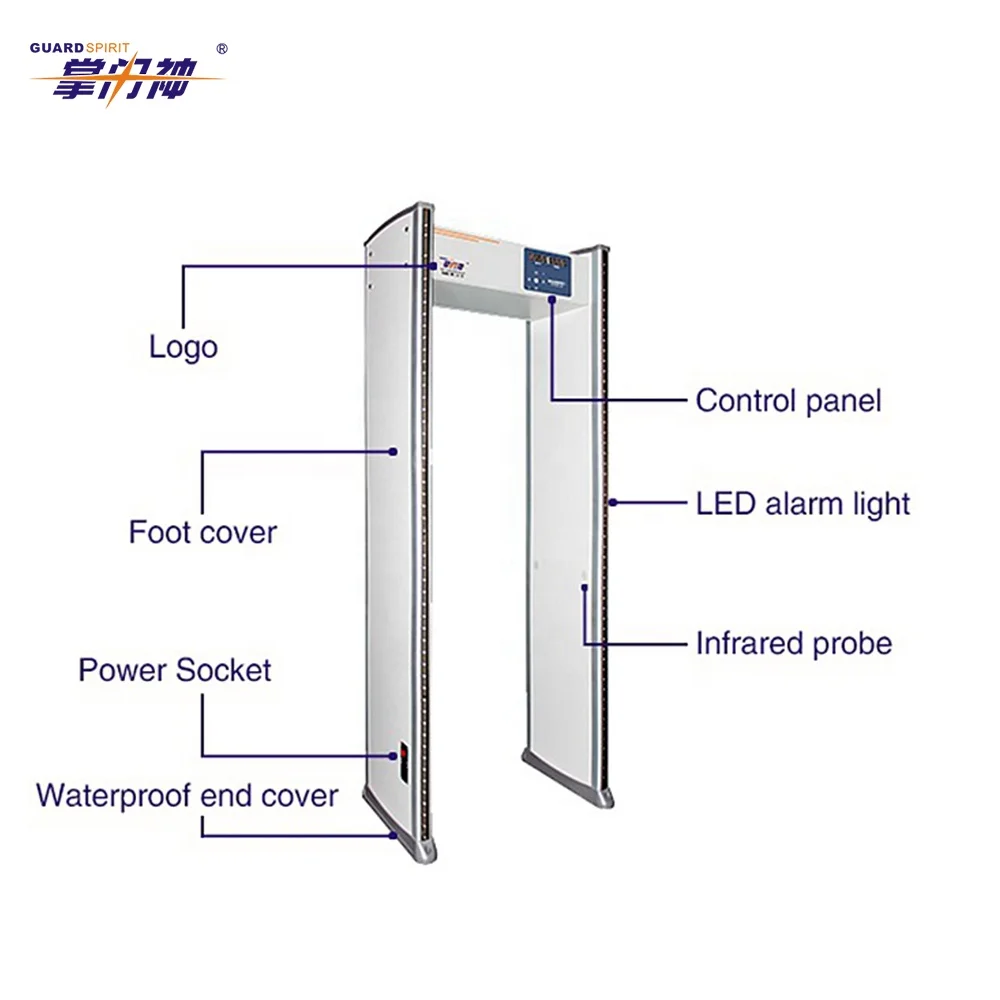

6.LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
7.Automatically count passengers and alarm times
8.Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms
9.Protection with password: can only allow the authorized person for the operations, highly safeAnti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
10.Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Specification
Model Number
XYT2101A5
Door External Size
2210*810*510mm
Door Internal Size
1900*700*500mm
Packing type
Carton box
Net weight
65KG
Gross weight
70KG
Detection zones
12 zones
Working voltage
AC90V~264V 50/60Hz
Power consumption
15 W
Each zone sensitivity
0-255 Level
Security level
0-255 Level
Working frequency range
4 K- 8K
Relative Humidity
0 – 95 %
Working environment temperature
-20ºC~65ºC
Our Services
1. All products purchased in our company are guaranteed to keep in good repair for one year.
2. If quality problems happen in guarantee period, our company will maintain for free.
3. Additionally, our company provides technical support and fittings for life.
4. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
5. If you are caught in some problems when using our products, welcome to come to our company anytime.
Advantages
Brands cooperation,ODM,OEM
Product design, technology development, parts processing and sales integration services
Sales of a complete set of technical solutions
Technical guidance and training
One of the world's top four brands, leading technology, quality first, service first-class
