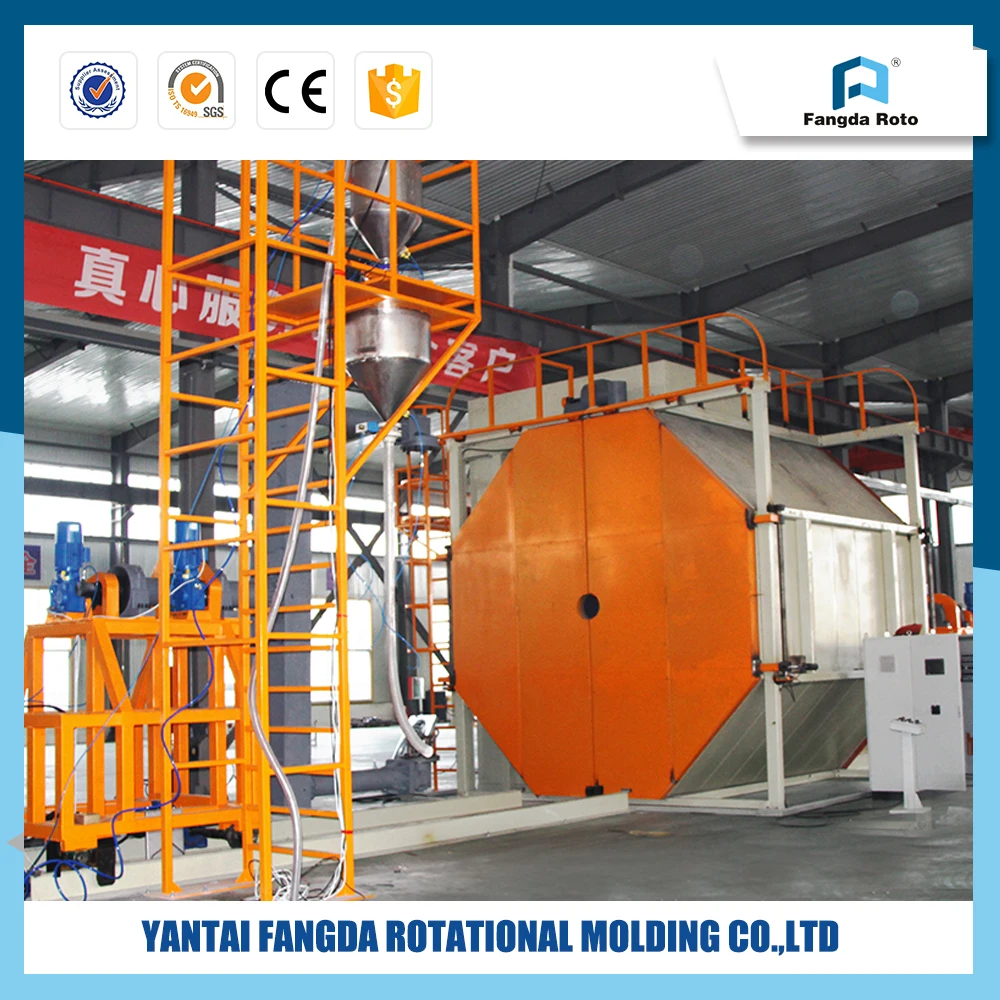

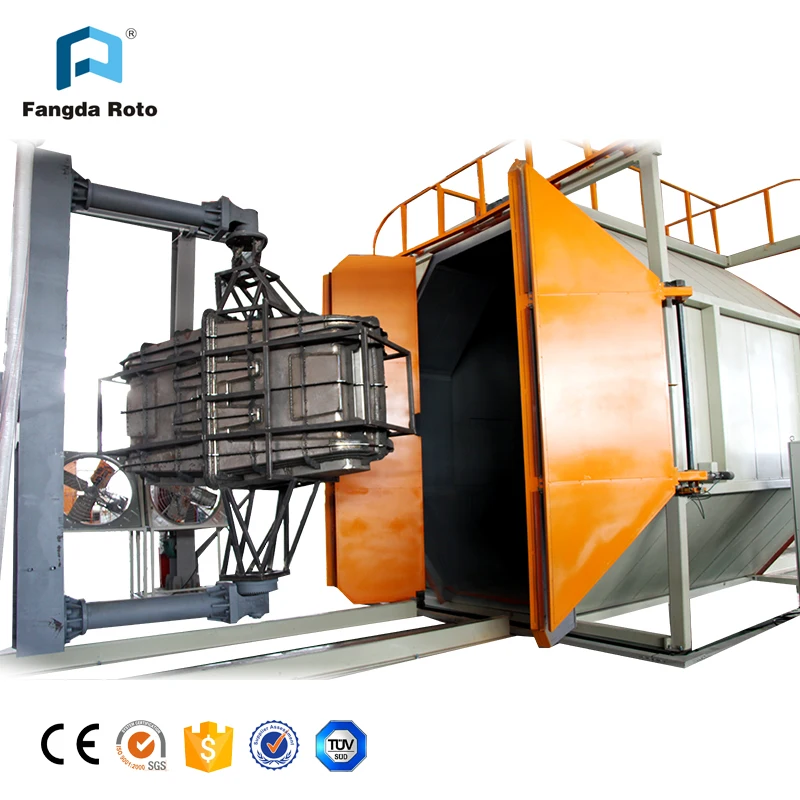

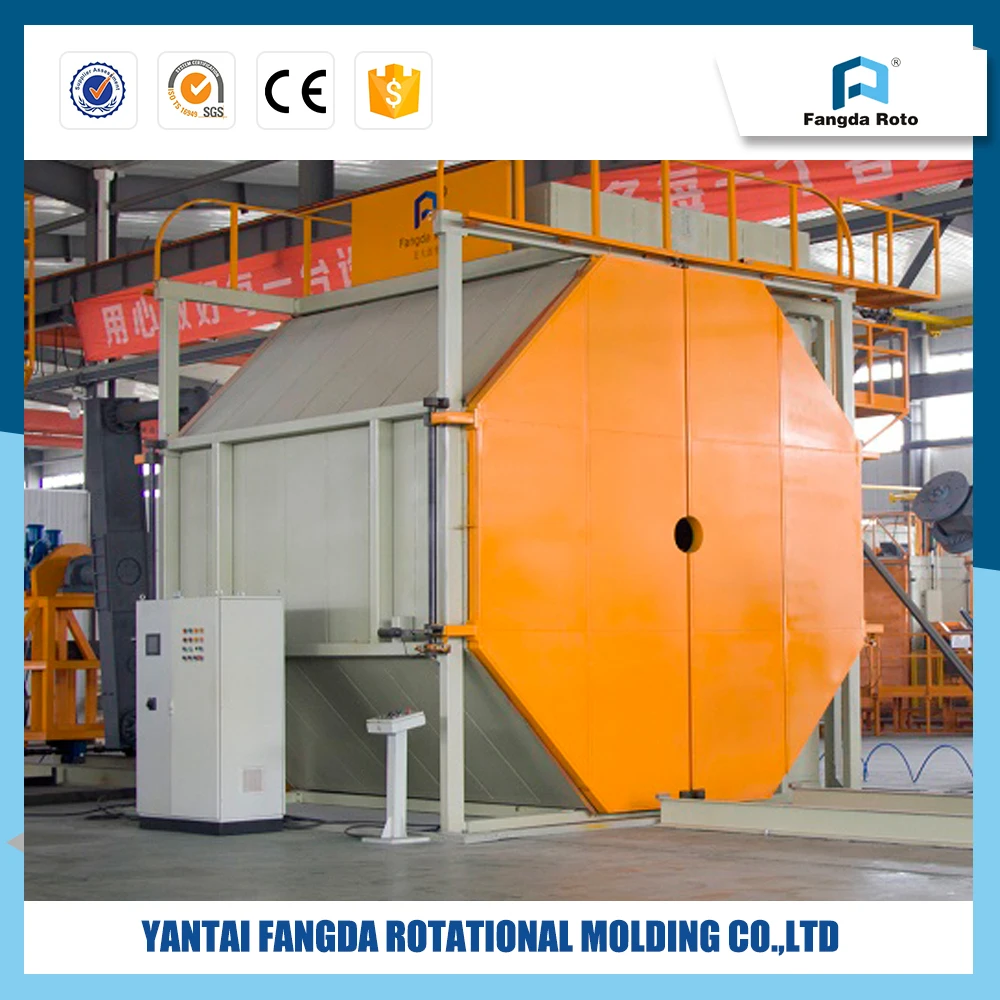

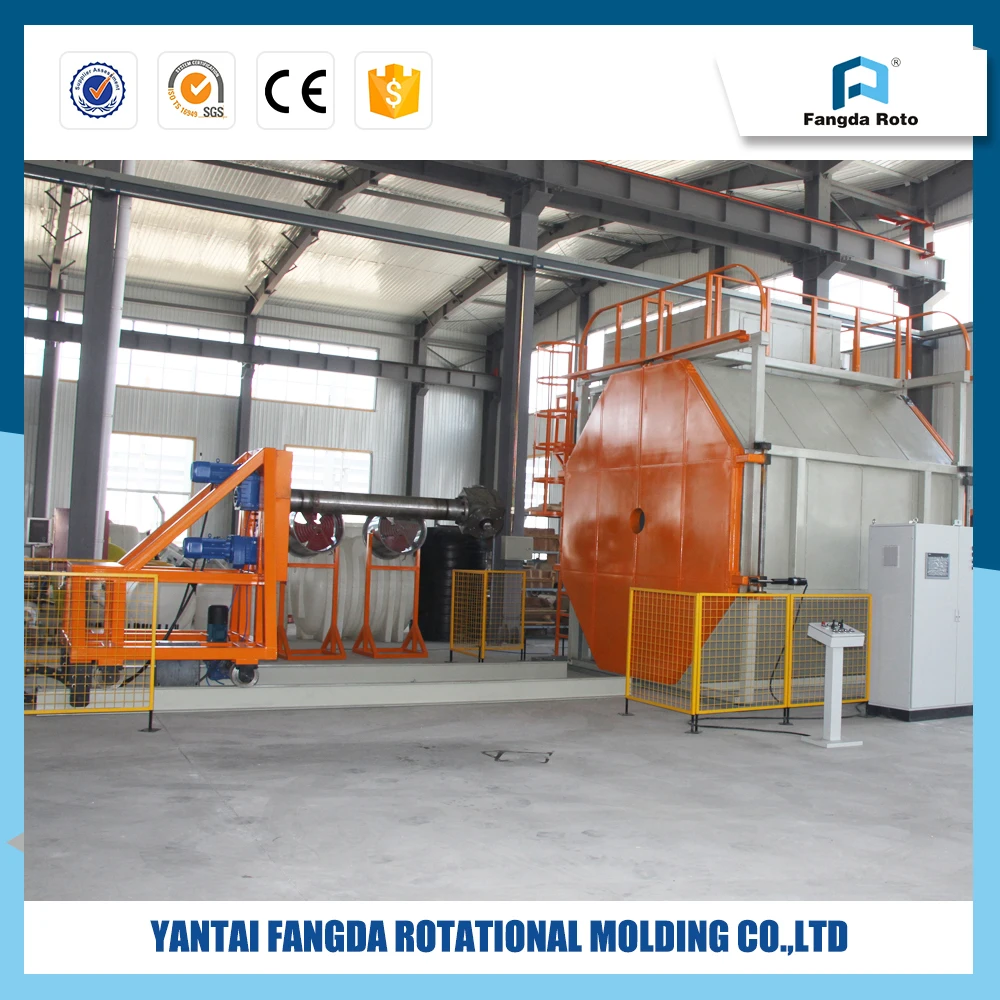

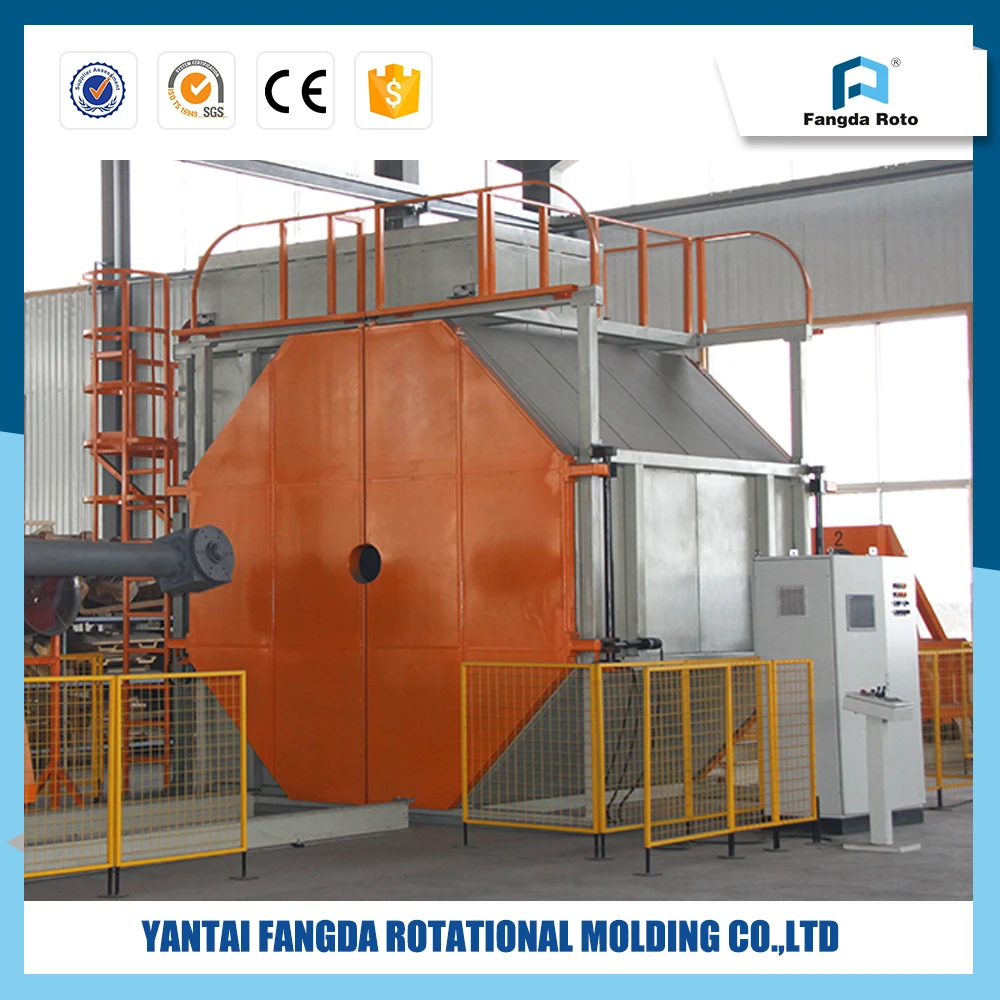

New Small Rotational Molding Kayak Rotomolding Machines
- Category: Rotational Molding Machine >>>
- Supplier: Yantai Fangda Rotational Molding Co. Ltd. [Shandong Province China]Yantai
Share on (60718508825):
Product Overview
Description

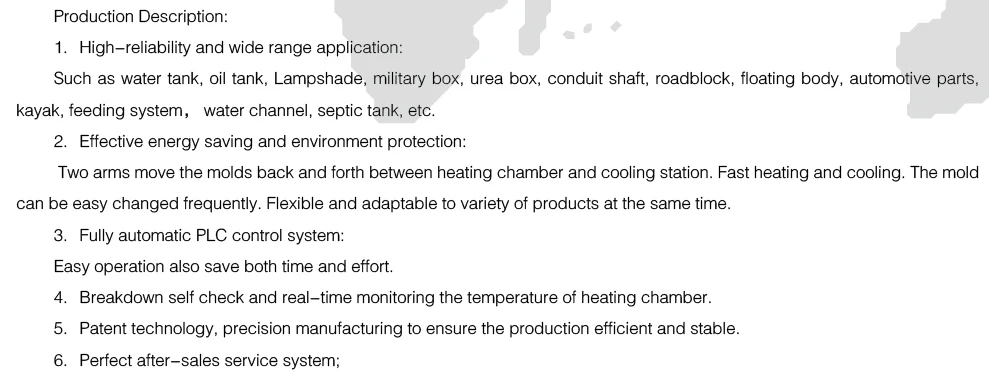

Product Description
Click the pics to get price and details
| Model No. | Machine Dimension (m) | Oven Inner Dimension (m) | Working arm Parameter | |||
| L (m) | W (m) | W1 | H (m) | |||
| FD2-1600 | 8.5 | / | 3.9 | 2.8 | 1.6*1.6 | The arm parameters of Straight Arm, L offset Arm and C Arm please check the following pictures |
| FD2-2100 | 11.0 | / | 4.9 | 3.5 | 2.1*2.1 | |
| FD2-2600 | 13.0 | 8.1 | 5.6 | 4.0 | 2.6*2.6 | |
| FD2-3100 | 14.7 | 9.3 | 6.1 | 4.5 | 3.1*3.1 | |
| FD2-3600 | 16.3 | 10.0 | 6.8 | 5.0 | 3.6*3.6 | |
| FD2-4100 | 18.0 | 11.0 | 7.5 | 5.5 | 4.1*4.1 | |
| FD2-4600 | 20.0 | 11.5 | 8.0 | 6.0 | 4.6*4.6 | |
| FD2-5100 | 22.0 | 12.0 | 8.7 | 6.5 | 5.1*5.1 | |
| FD2-5600 | 24.0 | 12.5 | 9.2 | 7.0 | 5.6*5.6 | |
| FD2-6100 | 26.0 | 13.0 | 10.0 | 7.5 | 6.1*6.1 | |
| FD2-6500 | 28.0 | 14.0 | 11.0 | 8.0 | 6.5*6.5 | |
| Model No | A | B | C | D | E | Straight Arm | L Offset Arm | C Offset Arm |
| FD2-2600 | R1200 | 350 | 1900 | 1800 | 600 | 900 | 700 | / |
| FD2-3100 | R1400 | 360 | 2300 | 2100 | 800 | 1300 | 900 | / |
| FD2-3600 | R1700 | 360 | 2800 | 2600 | 910 | 1500 | 1000 | / |
| FD2-4100 | R1900 | 400 | 3160 | 3000 | 1100 | 2000 | 1200 | / |
| FD2-4600 | R2150 | 420 | 3500 | 3200 | 1300 | 2500 | / | 1600 |
| FD2-5100 | R2400 | 420 | 3900 | 3500 | 1530 | 3000 | / | 2000 |
Control System
Shuttle Rotomolding Machine Machine Dimension Drawing
| 1、The system can be dual controlled by automatic and manual operation. When a station or multi-station to take manual control, the other stations continue to run automatically. | |||
| 2、Arm movement and the oven door movement and the oven front wind shield movement system interlock to prevent the arm to hit the oven wall. | |||
| 3、Every driving machine program interlock to prevent collisions. | |||
| 4、The arm turn starting position after finished cooling, easy for loading and unloading the mould. |
Related Products
Rotomolding products
Products that can be manufactured using rotational molding include storage tanks, furniture, road signs and oollards, agricultural machine and car accessories, toys, bins and reluse containers, call-barn, military box, road cones, kayak, canoes, rowing boats and playground slides.
