ASW400/SW202 2Z D.C. Contactor winch relay solenoid
- Category: Contactors >>>
- Supplier: Zhejiang Aokai Electric Co. Ltd.
Share on (60718582787):
Product Overview
Description
Product Description
ASW400-2Z/SW202 Albright D.C. Contactor
winch relay solenoid forklift relay
Brand: AK/AOKAI
Name: DC Contactor
Model: ASW400-2Z/SW202
Rated Voltage: DC12V
Rated Current: 400A
Dimension: 51*114*160(mm)
Weight: About 2500g |  |
SPECIFICATION
| Coil Rated Voltage | DC12V |
| Main Circuit Rated Current (A) | 400A |
| Main Circuit Contact Voltage Drop Of (load:100A) | ≤80mV |
| Under (20±5℃), Cooling Pull-in Voltage | ≥70% |
| Under (20±5℃), Cooling Release Voltage | ≥5%, ≤40% |
| Acceptable Fluctuation Range of Coil Voltage | ±20% |
| drop-out time | ≤30ms |
| pull-in time | ≤20ms |
| The Max Disconnecting Time of Contacts | ≤5ms |
| Insulation Resistance | ≥50MΩ |
| Dielectric Strength | 50Hz/60Hz 1000VAC/1min |
| Overload Current | ≤7le, ≤1s |
| Coil Consumption (W) | ≤24.0W |
| Electrical Life | 20000 times |
| Mechenical Life | 300 Thousand times |
| Working Mode | Continuous |
| Contacts Type | 2 NO and 2 NC |
| Contact Material | AgCdO / AgCuO |
| Auxiliary Contact Rated Load (Optional Parts) | 2A/48VDC, 5A/24VDC |
| Technical Standard | GB14048.4-2010 |
USAGE ENVIRONMENT
| Altitude | ≤2Km | Amblent temperature | -25~+55℃ |
| International protection | IP50 | Installation type | III |
| Way to install | Any | Vibration | 2.5g(5~50)Hz |
| Impact | 50g,11ms(Half-sine wave) |
SCHEMATIC DIAGRAM

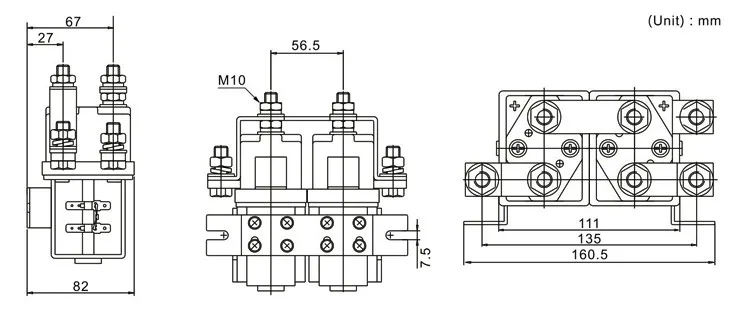

INSTALLATION DIAGRAM

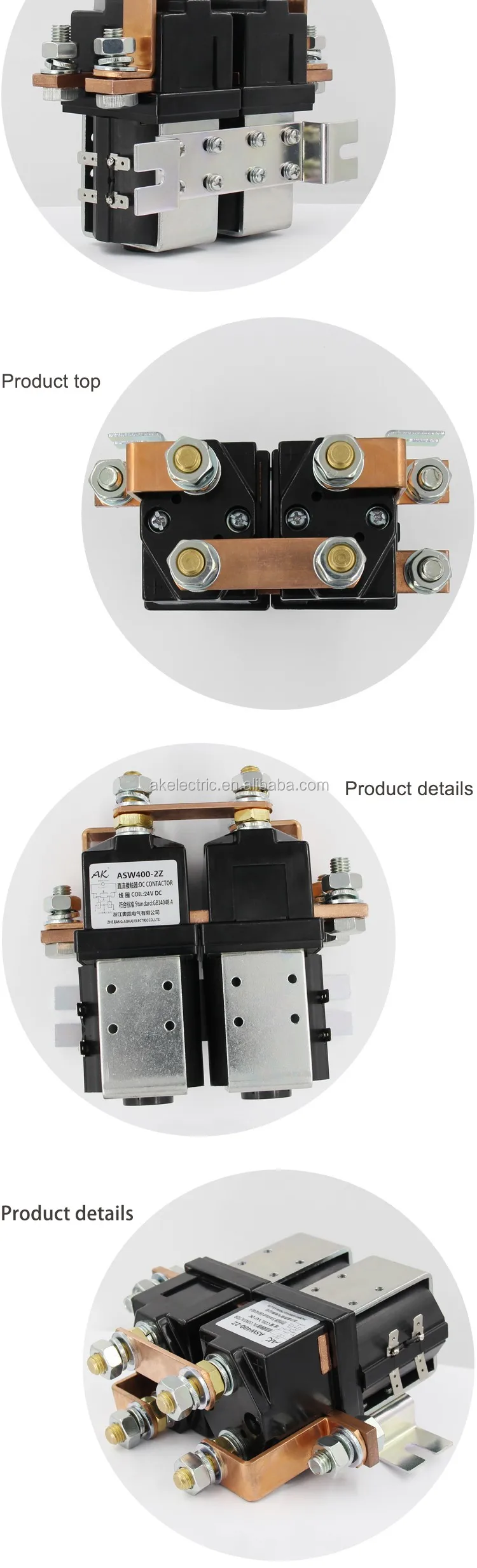

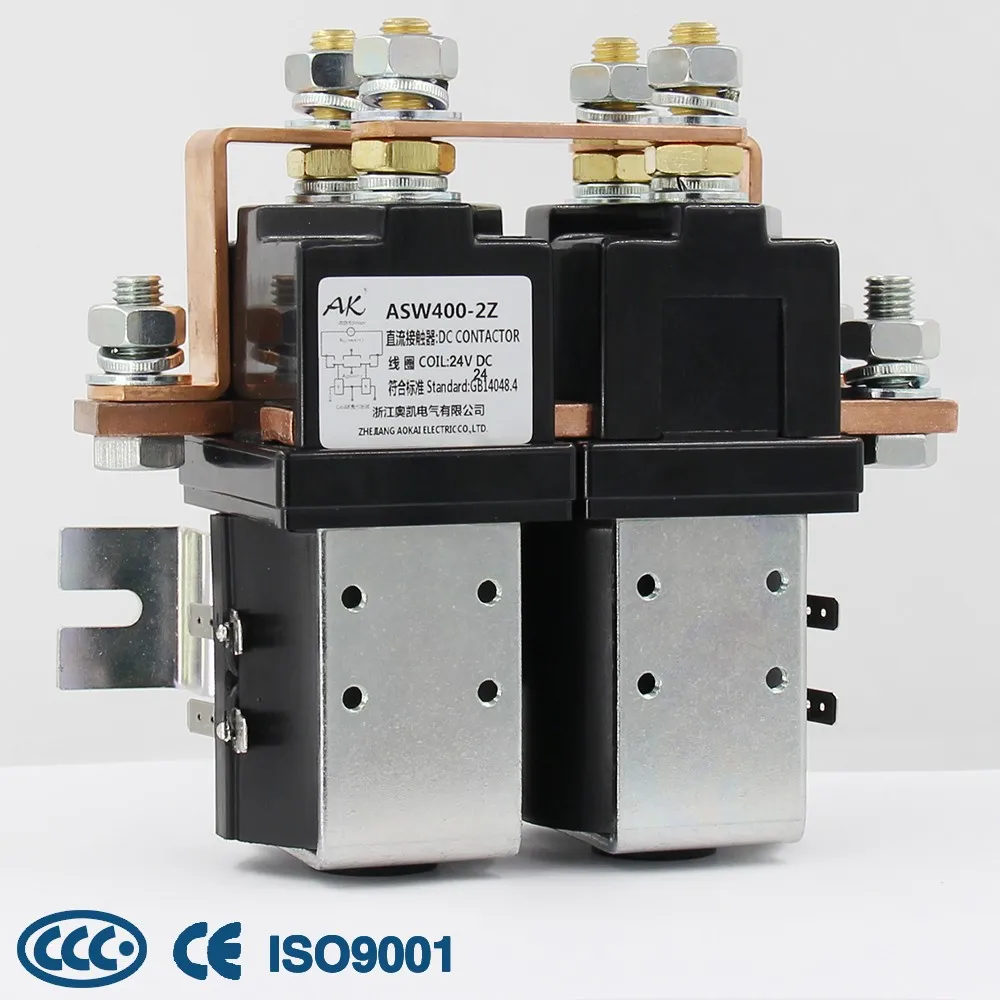

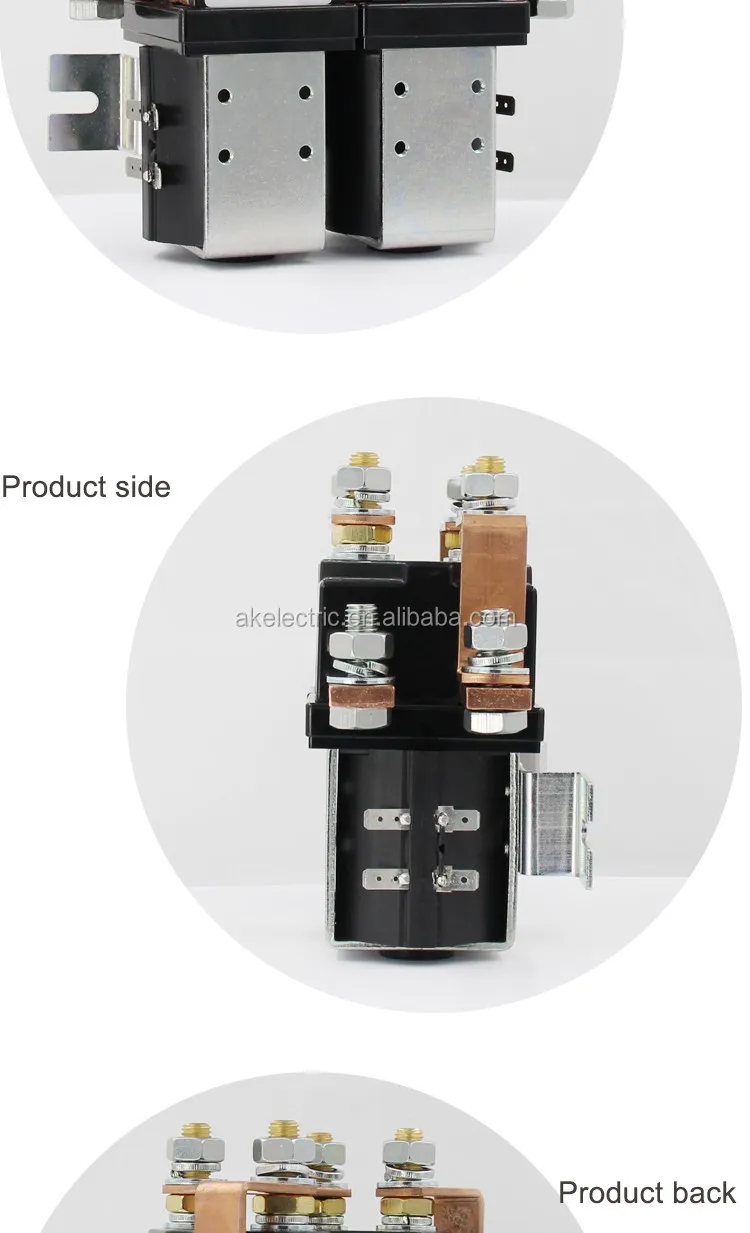

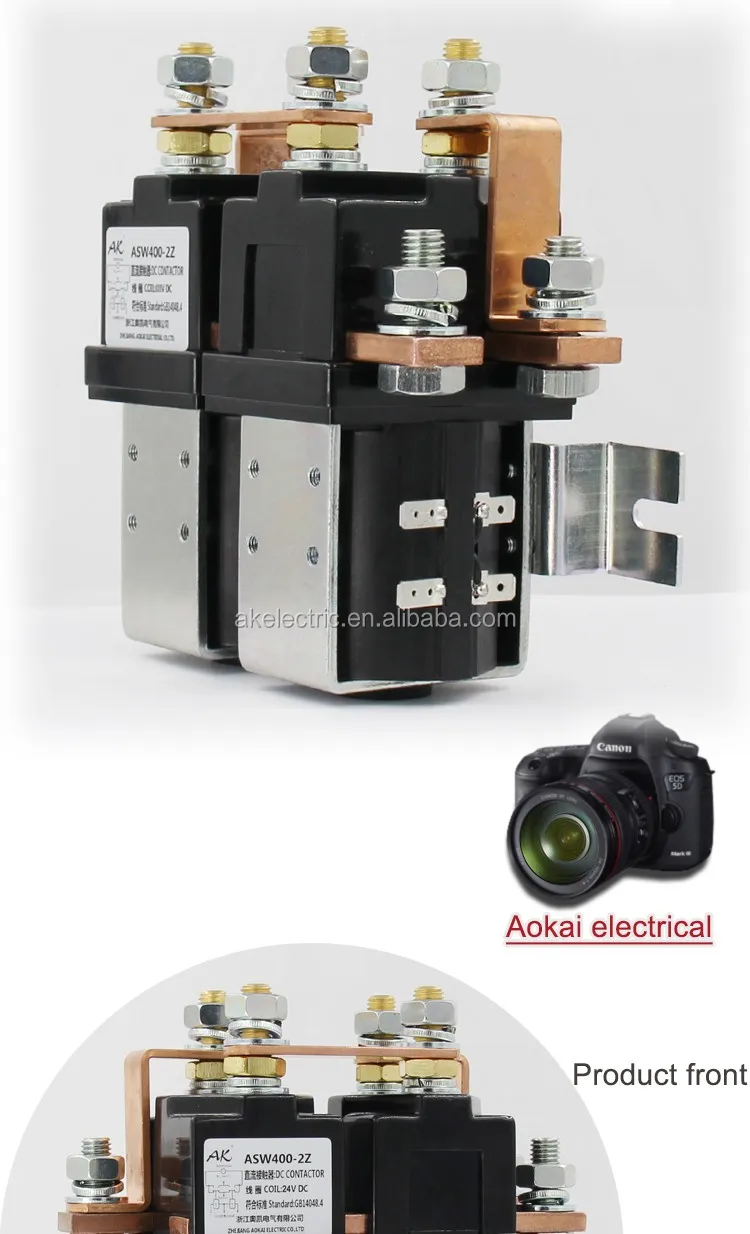

Product Photo Show
