Aluminum scrap melting furnace for aluminum ingot aluminium melting furnace

Product Overview

Description

Aluminium scrap melting furnace for aluminum ingot

Aluminum Melting Furnace

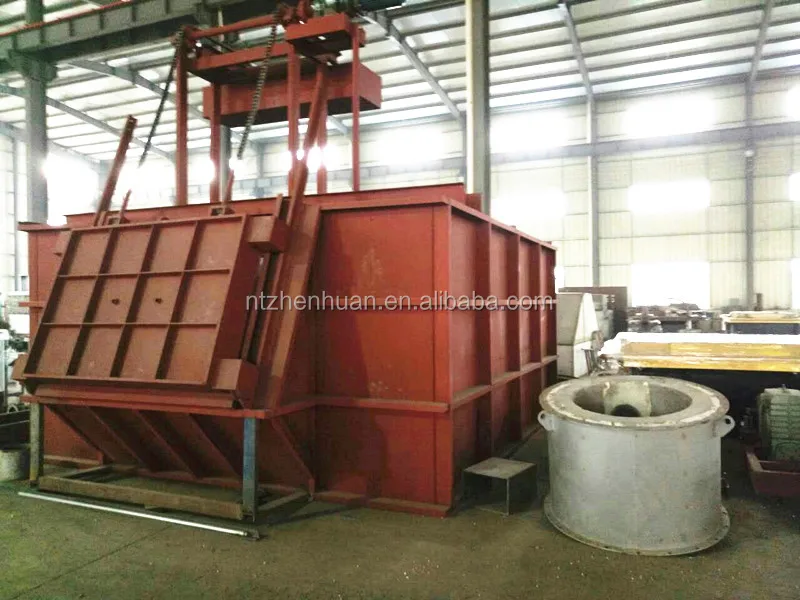

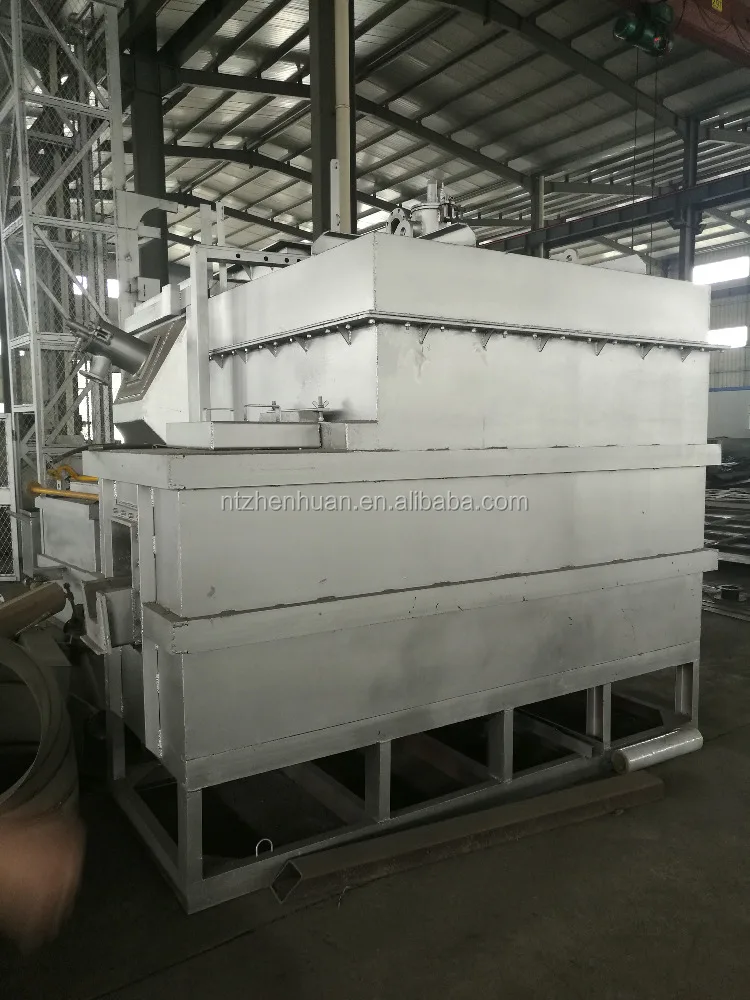

I    5 TONS rectangULAR aluminum melting furnace



1.     Usage

This machine is used for melting nonferrous metals (aluminum).

2.     Feature

1-      The capacity is 5 tons, the door is lifted by electric.

2-      The shell of furnace is 5mm steel plate, furnace wall is 12# channel steel.

3-      The thickness of fireproofing of furnace wall is 500mm. The thermal insulation material is silicate insulation board and high strength light-weight insulating brick.

4-      Supply range: the drawing of civil foundation, layout chart, furnace body, furnace door, and lifting device. And foundation, oven , oven materials and draught fan are outside of offer

3. Main technical parameters

Name	Data
Furnace type	Rectangular stationary type
Capacity	More than 5 tons
Number of furnace door	1
Door operation	Electric driven
Max. temperature	860℃
Normal operation temperature	720-800℃
Al water discharge type	Manual
Discharge hole diameter	About 60mm

4 Fireproofing

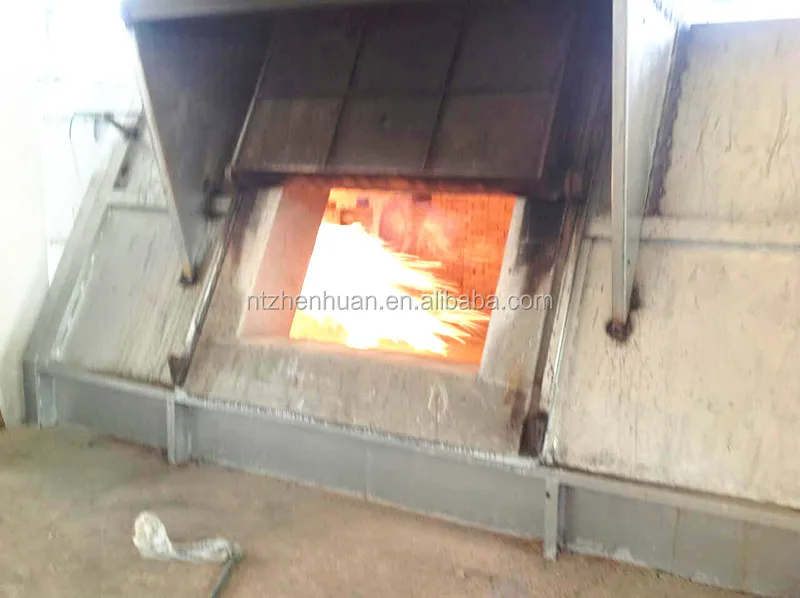

Natural Gas Burner System

1 Description

This device is used for melting furnace with natural gas burning.

2 Technical data

Name	Data
Model	ZT-160
Fuel type	Natural gas (8500kcal/m³)
Burning capacity	320m³/h
calorific value	1.6 million kilocalorie/hour
Length of flame	800-1200mm
Diameter of flame	400mm
Flame temperature	1100-1250℃
Natural gas pressure	15Kpa
Power supply	380V, 3phase, 50Hz.

3 Configuration list

Name	Brand
Air burner	Equipment factory
Servo motor damper adjustment device	Honeywell
PLC	Mitsubishi, Japanese
Ignition device	SANYO, Japanese
Flame detector	Honeywell
Gas control pipe line	Equipment factory
Manual regulating valve	Zhejiang
Electric rapid closing stop valve	Beijing
Pressure gauge element	Japan
Leakage detecting device	Japan
Total junction box	Equipment factory
Air blower	Nantong
Air duct pipes	Nantong

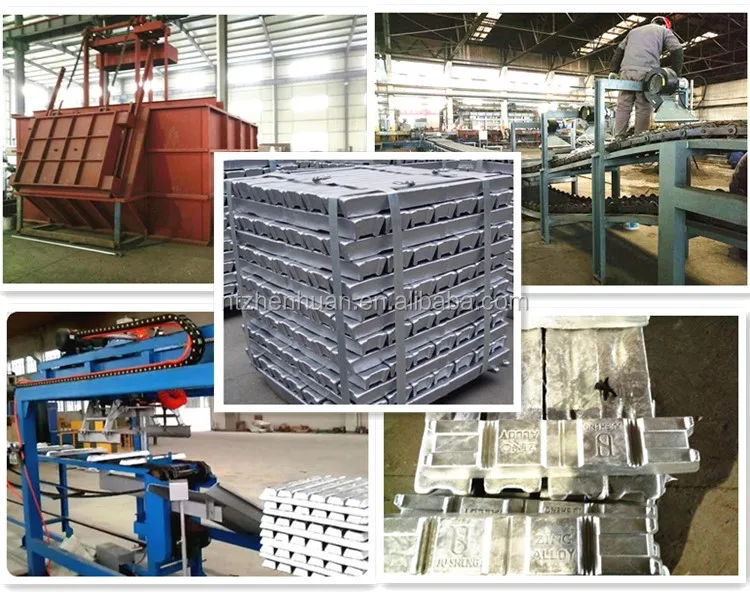

We can provide whole production line for aluminium alloy ingot



Ms. Cherie Mao

Cellphone: +86-13485105931(Whatsapp)

Skype: yuexuanmao

Wechat or QQ:  329177765

Email: cherie@zhenhuan-machine.com

www.zhenhuan-machine.com









FAQ

1. What is the usual aluminum sheet thickness coming from Aluminum Casting Machine ?

    It ranges 5-10 mm in the thickness

2. What kind of raw material can be fed into Aluminum Casting Machine ?

    The raw material can be aluminum ingot with high pure percentage, and all kinds of aluminum scrap

3. What are the finished products purpose ?

    The products can be used in cooking-ware production line, aluminum composite panel, aluminum solid sheet, roofing and other applications.

4. What is the finished product rate ?

    It is usual 85%,but it maybe vary based on different raw material and the purity of it .
