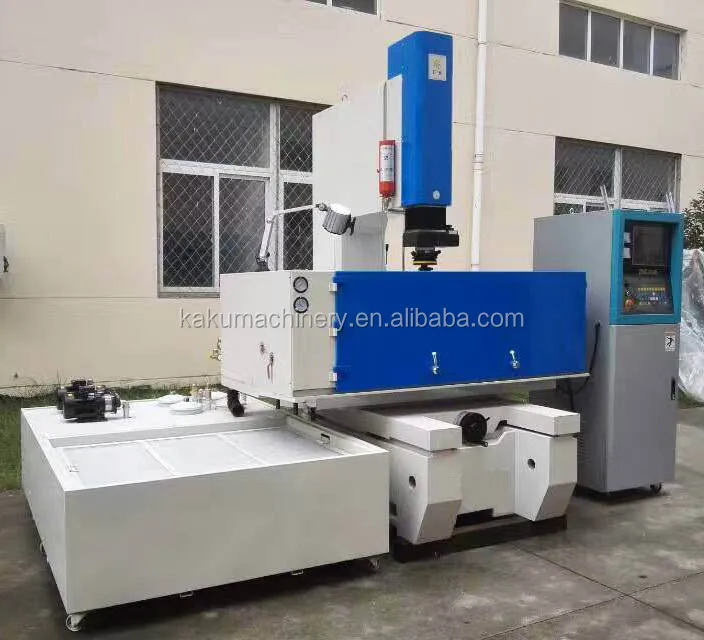

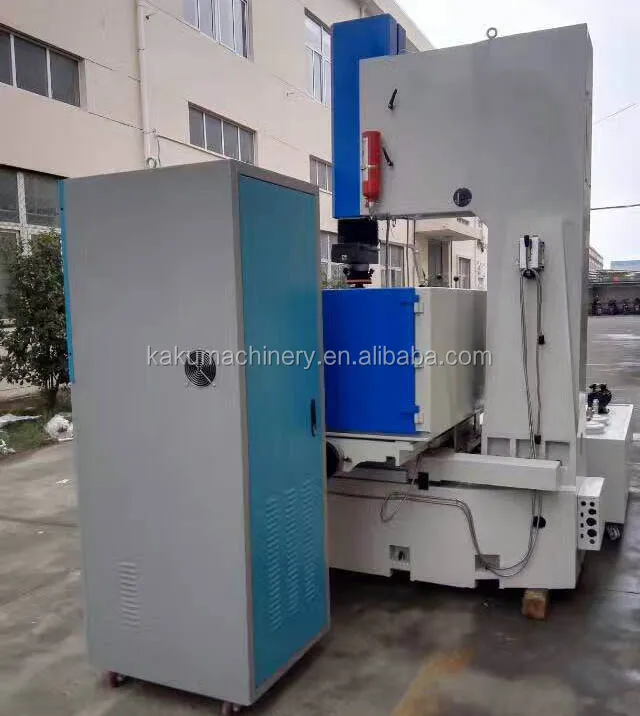

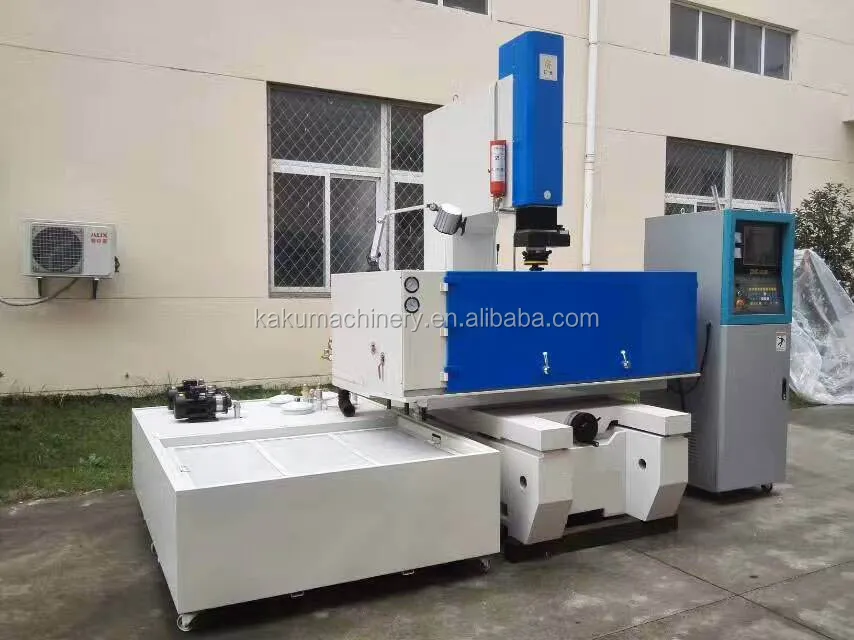

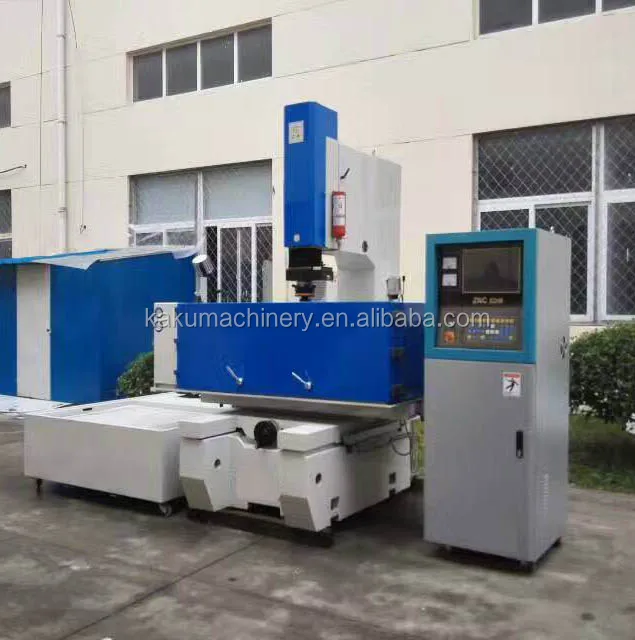

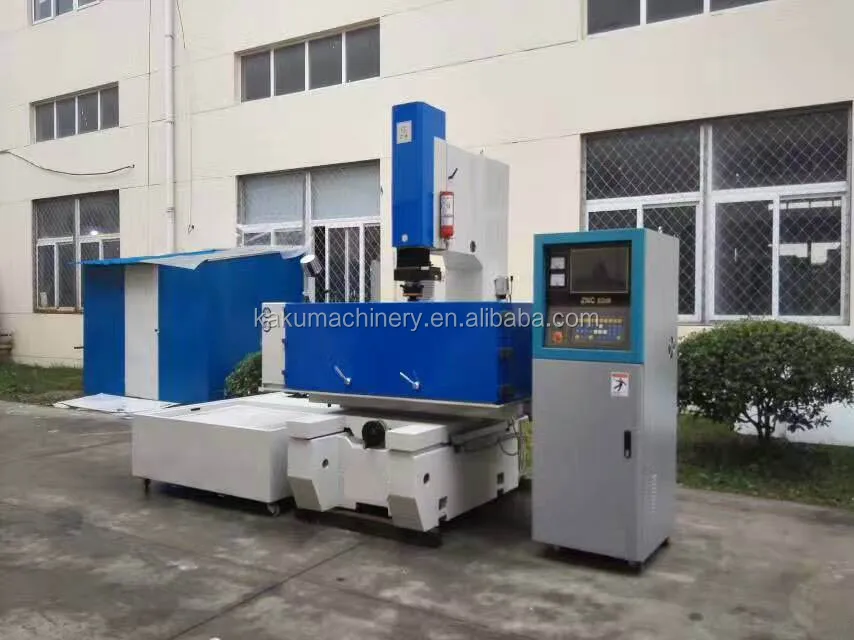

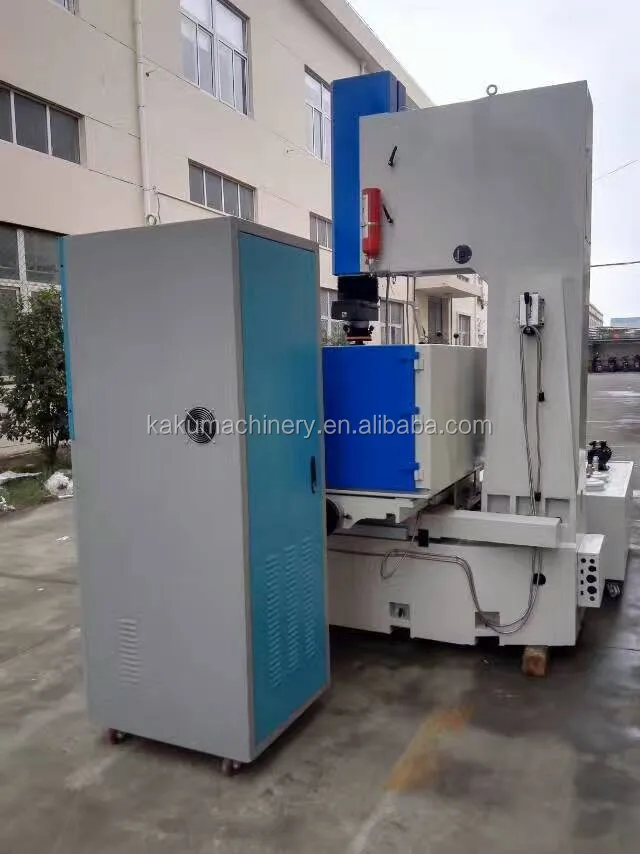

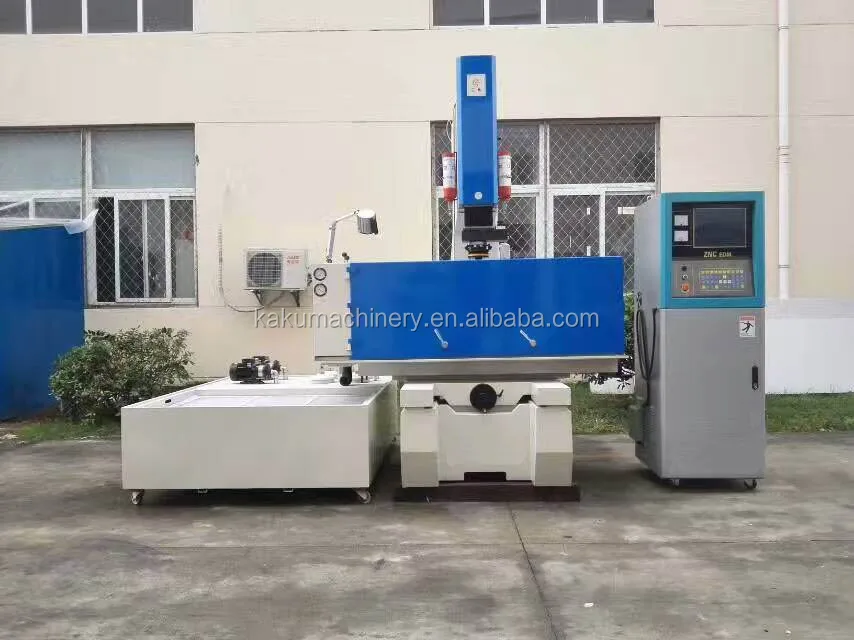

EDM300 EDM350 EDM450 EDM550 EDM760 Die Sinking EDM Machines


1. Our EDM die sinking machines  integrated design, small footprint, can be placed in a relatively small workplace, such as home, workshop, laboratory. Design dexterous, suitable for small plastic, plastic and other molds of precision machining, the largest processing die 750x480mm.

2. Intelligent, with expert system real-time correction parameters.

3. Segmented processing, rough, medium and fine programming.

4. Operation display interface scientific arrangement is simple and clear.

5. Perfect digital display system, so that the displacement of the coordinates to achieve clear, set the number of fixed, public and other functions of the conversion.

6. Adaptive control, and other energy processing, waveform automatic detective, AFC circuit, self-control anti-carbon, slagging function, effectively improve the large area of finishing and deep hole processing stability, low consumption processing.

7. The computer carefully monitors each processing step, machining instructions, and machining status.

8. Equipped with liquid level control, infrared flame detection, automatic fire extinguisher.

9. Spindle commissioning processing using two speed, to avoid the phenomenon of suction so that the workpiece displacement.

10. PWM servo drive, high quality DC servo motor.

\t
Models
\t
Unit
\t
EDM300
\t
EDM350
\t
EDM450
\t
EDM550
\t
EDM760
\t
Table size
\t
mm
\t
500*250
\t
650*340
\t
700*400
\t
800*520
\t
1000*600
\t
Working groove
\t
mm
\t
760*500*320
\t
1000*580*400
\t
1370*670*450
\t
1560*790*500
\t
1900*1000*600
\t
X axis travel
\t
mm
\t
300
\t
350
\t
450
\t
550
\t
700
\t
Y axis travel
\t
mm
\t
200
\t
250
\t
350
\t
450
\t
600
\t
Z travel Spindle Travel
\t
mm
\t
200
\t
200
\t
250
\t
300
\t
250
\t
Z travel Auxiliary Travel
\t
mm
\t
0
\t
200
\t
200
\t
350
\t
300
\t
Electrode plate to the table distance
\t
mm
\t
330
\t
410
\t
520
\t
700
\t
920
\t
Max. workpiece weight
\t
kg
\t
500
\t
800
\t
1000
\t
1300
\t
2800
\t
Max. Spindle Hold (Electrode weight)
\t
kg
\t
30
\t
120
\t
150
\t
170
\t
250
\t

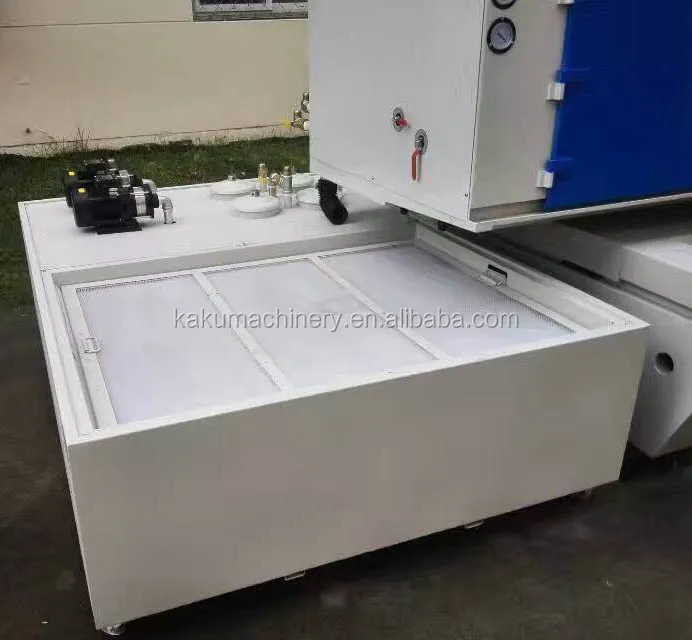

Oil tank max. oil level
\t
mm
\t
200
\t
280
\t
370
\t
400
\t
500
\t

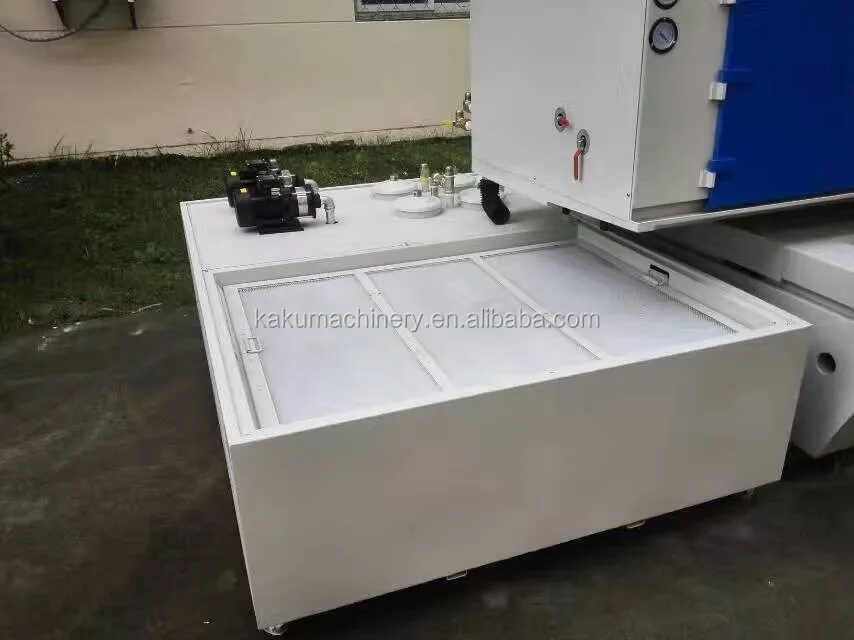

Oil Tank Dimension
\t
mm
\t
1100*950*250
\t
1270*1050*440
\t
1255*820*540
\t
1400*900*500
\t
1900*1250*515
\t
Machine weight
\t
kg
\t
1300
\t
1500
\t
2000
\t
2400
\t
3200
Products Show
Detailed Images

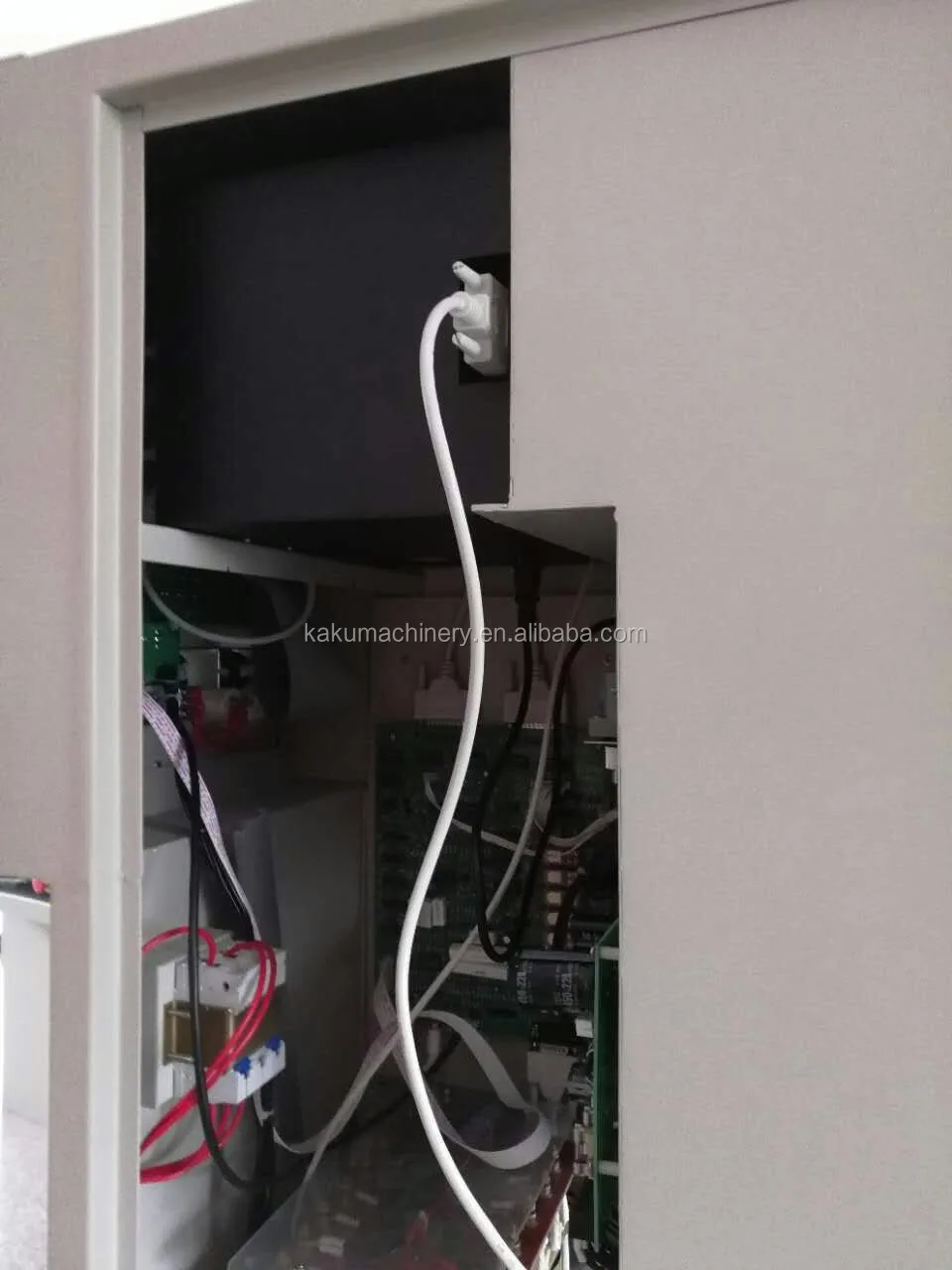

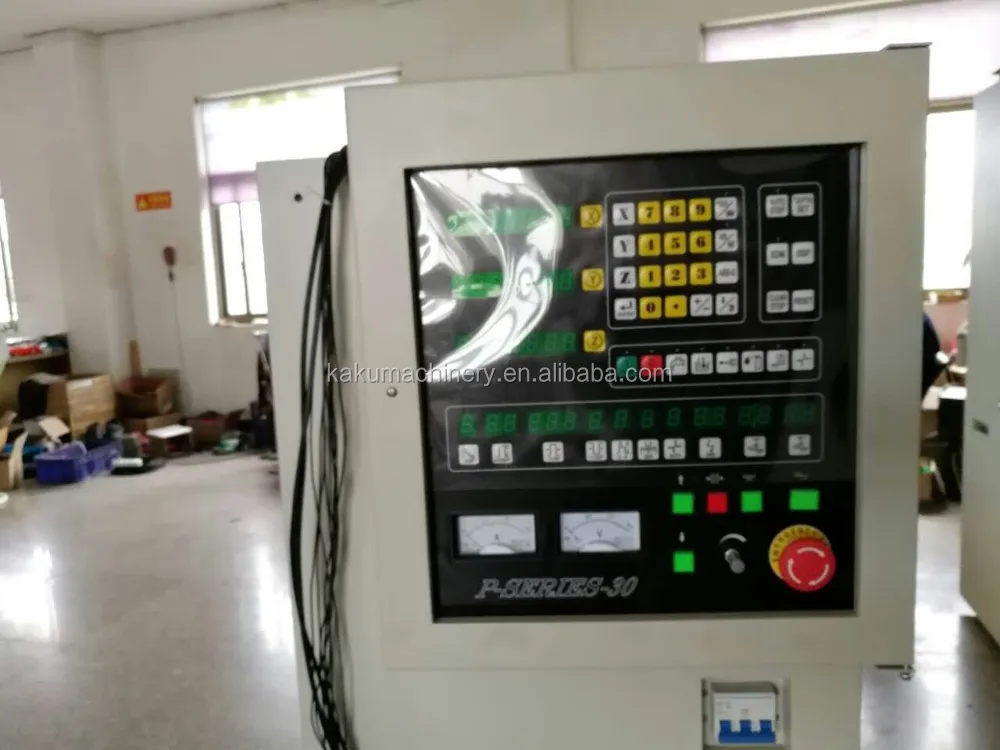

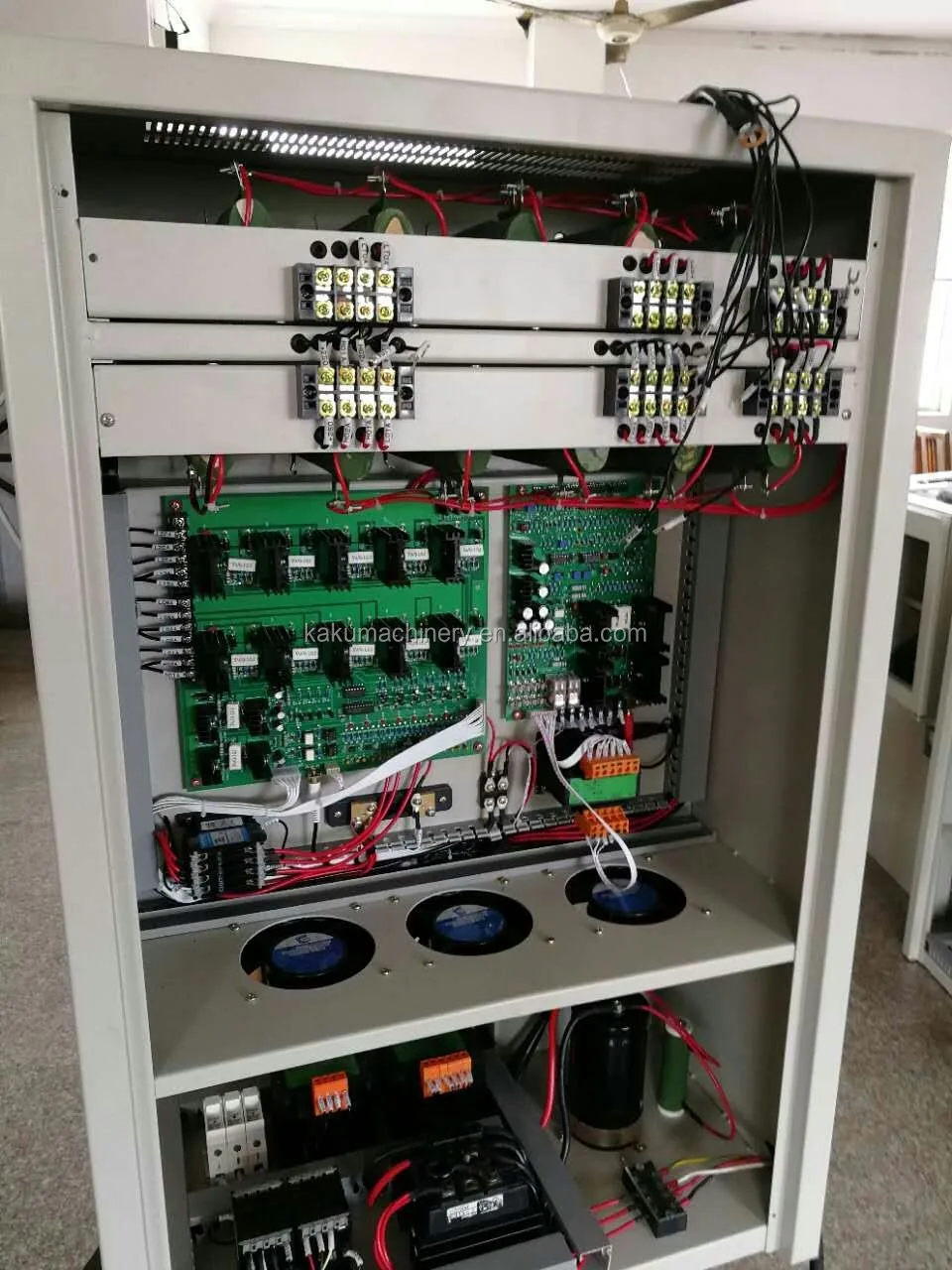

Name: Electrical cabinet for EDM300

Electrical cabinet uses the advanced industrial specialized industrial control mainboard with the strong function, good stability and easy operation. It can take out the matched processing data and the rough processing to fine processing can be achieved once automatically by only inputting the Z axis depth and other less parameters. And the machine equips the electrical cabinet with 30A or 60A processing current.

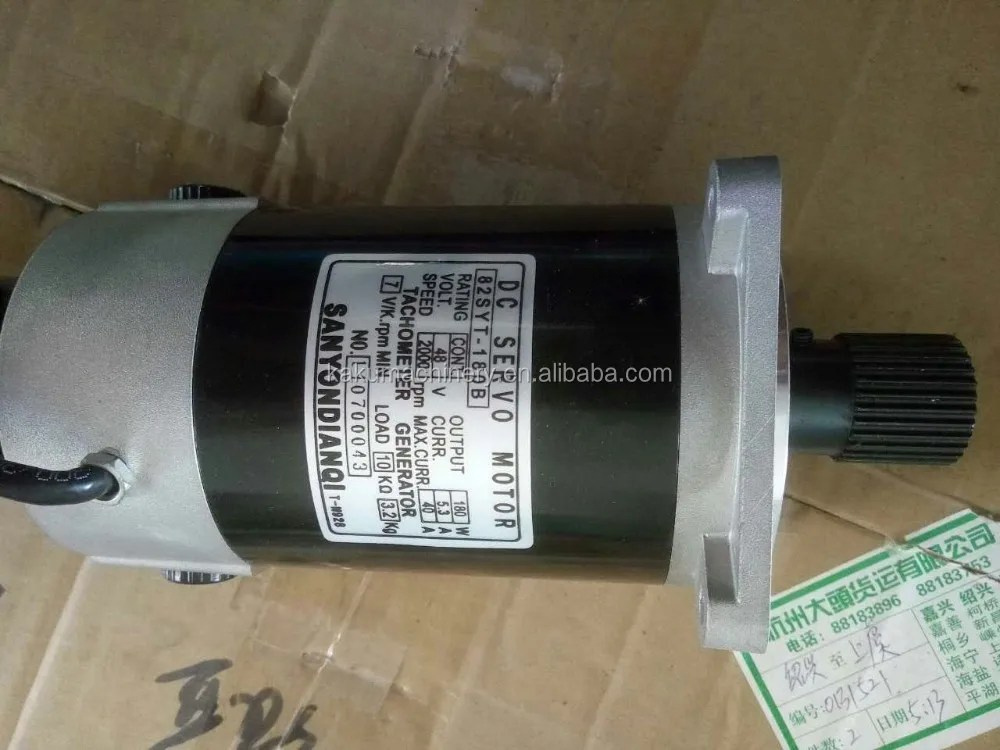

Name: DC servo motor


PWM servo drive,

high quality DC servo motor.





Name: Worktable

Carriage and worktable are used to support the workpiece, and through transmission, to adjust the relative positions of workpieces.

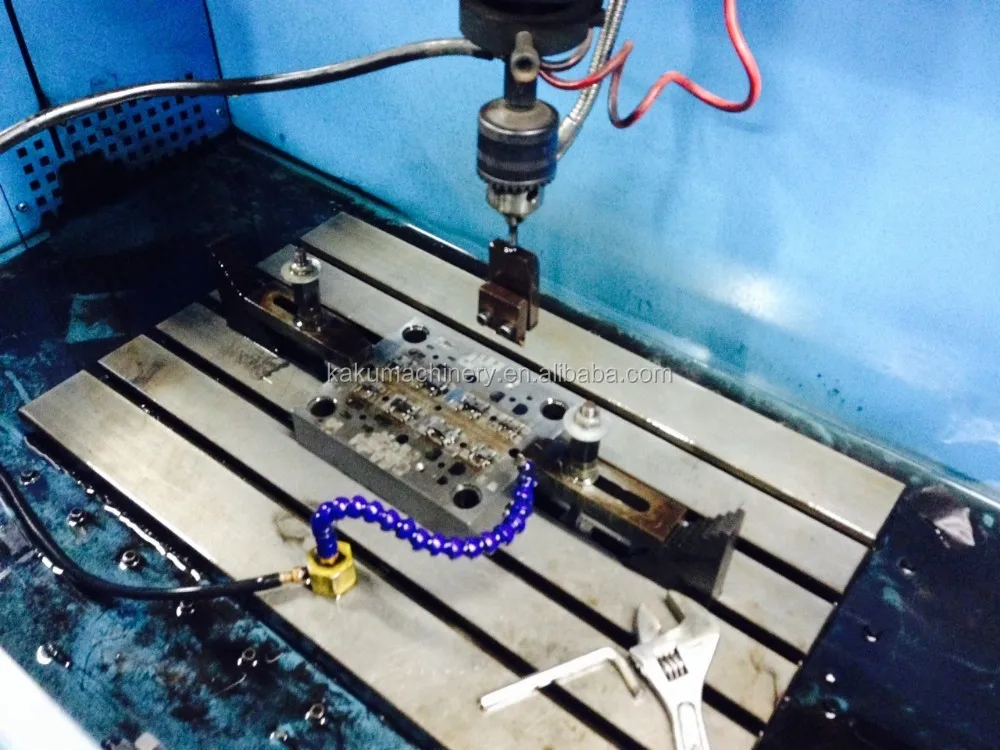

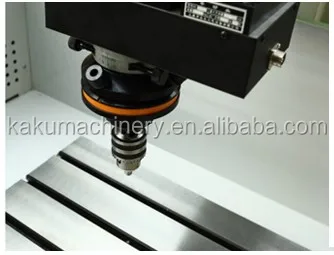

Name: Electrode tip

Clamping system is used to clamp electrode. It is fixed on the spindle head. Spindle head is the key part for EDM forming processing. Its structure consists of servo feeding device, guiding and anti-twisting device and auxiliary device. It controls discharging gap between workpieces and electrode.

Packing List
\t
Standardd accessories
\t
Serial number
\t
Name
\t
Quantity
\t
1
\t
Machine horn
\t
1 set
\t
2
\t
Magnetic seat
\t
3 pcs
\t
3
\t
Quartz working lights
\t
1 piece
\t
4
\t
Filter paper core
\t
2
\t
5
\t
Standard tools box
\t
1 set
\t
6
\t
Instruction book
\t
1 piece
\t
7
\t
Upside down fire extinguishing device
\t
1
\t
8
\t
Patented electrode head
\t
1 set
\t
9
\t
Oil injector
\t
1 piece
\t
10
\t
Triaxial optical electronic scale
\t
1 set
\t
Optional accessories
\t
1
\t
Flat movable head
\t

\t
2
\t
Electromagnetic sucker
\t

Packing & Delivery

Packing Details  : Standard exported packaging or package according to customers' requirements.

Delivery Details : 10-25 days after order of EDM die sinking machine.

One machine one packaging
Complete the packaging
Put into the container and send to port
FAQ

Q: Do you have EDM die sinking machine in stock ?

A: We usually have several in stock for emergency.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is the warranty time?

A: One year. For quality problem we will provide the parts for free.

Q: What is your terms of payment ?

A: Payment≤10000USD, 100% in advance. Payment>10000USD, 30% T/T in advance ,70% balance before shippment.
