gate valve with 380V electric actuator

Product Overview

Description



wholesale electric motorized cast steel  gate valve



Product Overview

Multi turn valve actuator is a micro valve actuator that elaborately designed and manufactured by the most advanced technology, it mainly assemble with gate valve.  This gate valve disc is wrapped in rubber that could cause deformation and compensation action to attain good seal effect, avoid leaking, rusting. It is widely us in water supply, building, petroleum, chemistry, food, pharmaceuticals, light textile, electrical, shipping industry, metallurgy, energy systems.



Product  Features

(1)easy operation

(2)good sealing performance

(3)long service life.

(4)simple installation.

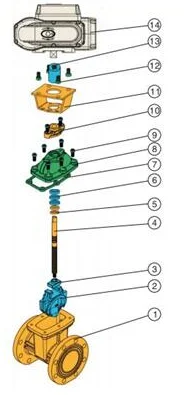

Parts and materials

NO Parts names  Material  1 Valve body Ductile cast iron  2 Disc Ductile cast iron and EPDM 3 Valve disc cover  1Cr189Ti 4 Bonnet 1Cr189Ti 5 O sealing Rubber, fluorous rubber  6 Valve packing PTFE, Expanded graphite 7 Sealing ring  PDFE, Nylon, PPL, hard alloy 8 Bonnet Ductile cast iron  9 Bolt  WCB,  1Cr189Ti 10 Bonnet  WCB,  1Cr189Ti 11 Yoke WCB,  1Cr189Ti 12 Hex screw  1Cr189Ti 13 Coupling 1Cr189Ti 14 Actuator  FOSD



Technical Parameters:



Test Pressure	Normal Pressure (PN-Mpa)
	1.0	1.6	2.5
Body strength test	1.5	2.4	3.75
Sealing Test(liquid)	1.1	1.76	2.75
sealing Test(gas)	0.5-0.8 Mpa
Application Medium	water,steam,coal gas,dust,oils,Nitric acid,Acetic acid,alkali and so on
Applicable temperature	≤120℃

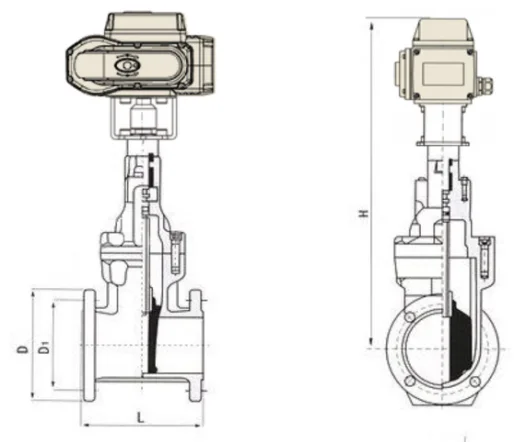

 DIMENSION OF OUTLINE AND CONNECTION

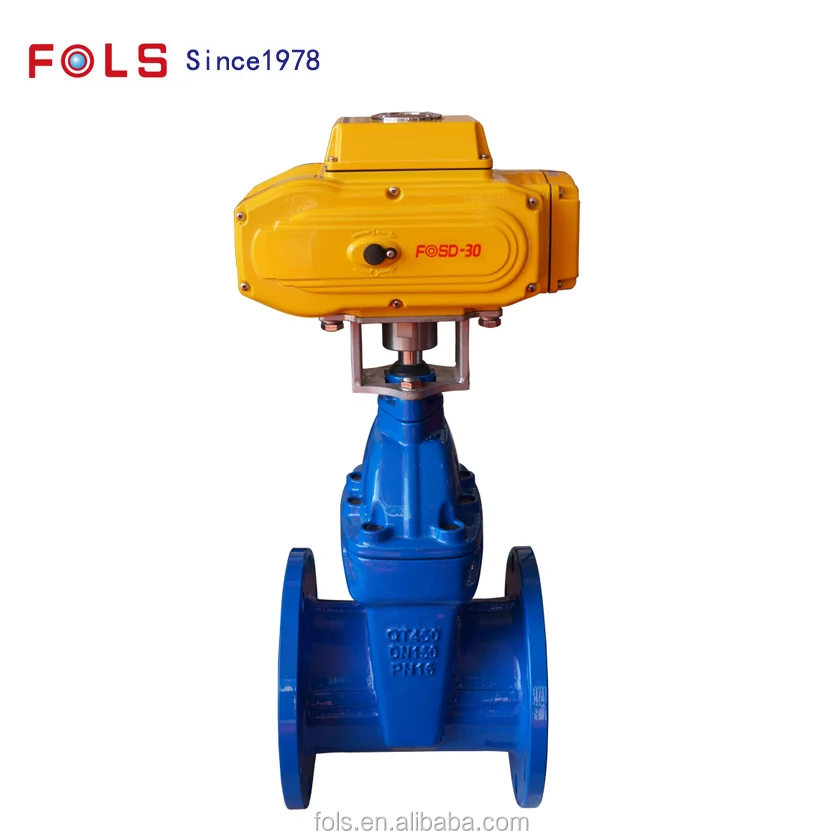

Pictures of electric motorized valve





Specification of Electric Actuator

Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit option	A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style









Company Information



Guangzhou Fols Valve Technology Co., ltd is a manufacturer which has been specializing in electric,

pneumatic valve actuator, and in the research, development, production, sale and service of automatic

control system



Our main products the FOLS series of electric actuator are elaborately designed and manufactured by the

most advanced technology according to the practical situation.The FOLS series of electric actuator are

characterized by driving device and transmission gear in one, small volume, light weight,good-looking

appearance, and remarkable performance. They have been widely used in various fields, such as paper

making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply

and industrial automation and so on.







Certifications





Trade Terms
1. Trade term: EXW, FOB, CIF etc.

2. Delivery way: By express, By Sea, By air.

3. Payment term: TT, Western Union, L/C etc.

4. Payment condition:
Payment: T/T

Sample cost: 100% payment.
Order payment: T/T , 35% deposits before production, 65% balance to be paid before delivery.



5. Delivery time:
Sample days: 5 working days
Order days: 15 days

6. Shipping freight are quoted under your requests

7. Shipping port: Guangzhou, Shenzhen

8. Discounts are offered based on order quantity

9. MOQ:1pc sample





Packing detail: we use standard export wooden paking





Application
