Электрический Телескопический привод 12 В постоянного тока/24 В постоянного тока, линейный драйвер для умного дома

Product Overview

Description

 Linear Actuator Description

YNT-05 tubular actuator, with compact and flexible installation advantage, load from 500-1500N, load speed from 5-50mm/s,  besides, also with low noise operation. Therefore, it is widely used in small automatic industry, side window,open door etc.

YNT-05 tubular linear actuator Technical Parameters:
1. 12V/24V / 36V/48 VDC permanent magnet DC brush motor;
2. Motor power: 45W
3. Maximum thrust up to 1500 N;
4. No load speed Example: 50mm/s(100N),30 mm / s (250N), 10 mm / s (1200N) ,5 mm / s (1500N)

5.Diameter:45mm
6. High-strength metal shell protection motor and powder metallurgy gear;
7. Design beautiful and compact, small installation size;
8. Standard protection class: IP65
9. Built-in planetary motor gears
10. Color: silver
11. Standard 1.m straight cable, 20AWG
12. Standard stroke: 100mm,150mm,200mm,250mm,300mm,350mm,400 mm (Stroke can be customized)
13. Standard minimum installation size: stroke + 250mm
14. Built-in stroke switch (not adjustable);
15. Strong wear-resistant nuts;
16. Maximum self-locking force 3000N
17. Maximum life: 50,000 times
18. Ambient temperature: -40 ° C to + 60 ° C
19. Noise level 55 dB (A), according to DS / EN ISO 3746, the drive is not loaded;
20. Certification: CE ROHS
21. Winding insulation class F (155 degrees).

22:.Certificate:CE,ROHS



Specification of different load force and speed by using different gear ratio



Load Capacity(N)	1500	1000	500
Static Load(N)	1500	1000	500
Speed at Full Load(mm/s)	5	10	27
Input(VDC)	12/24/36/48VDC

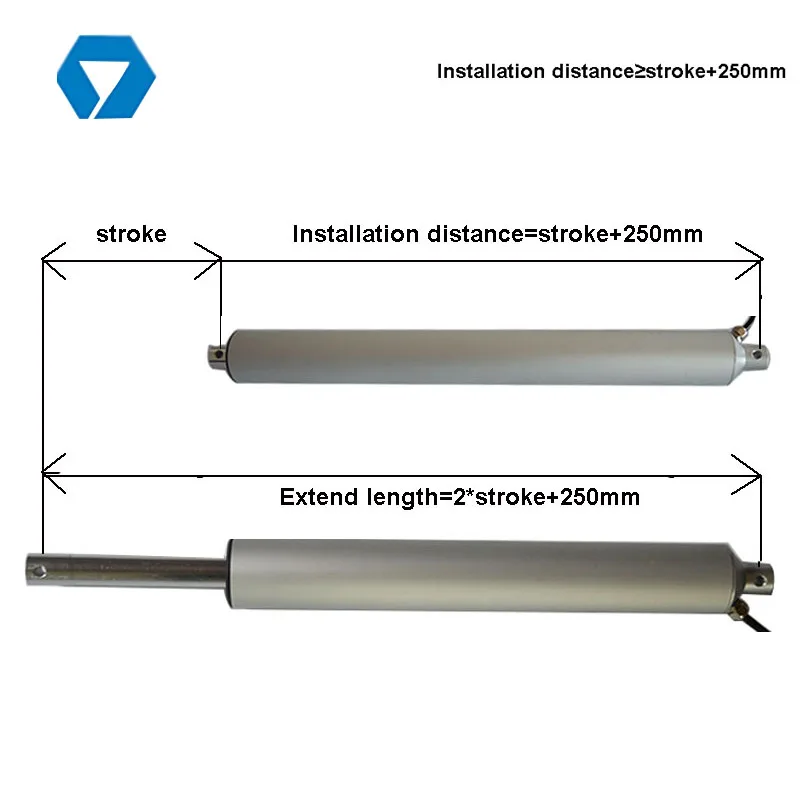

 Linear Actuator Drawing and Dimension

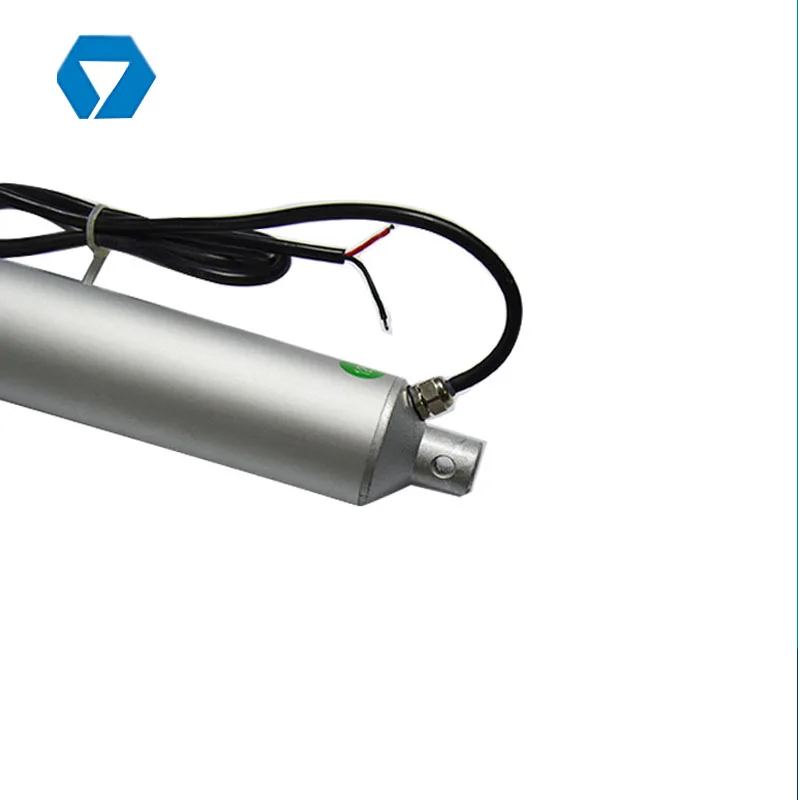

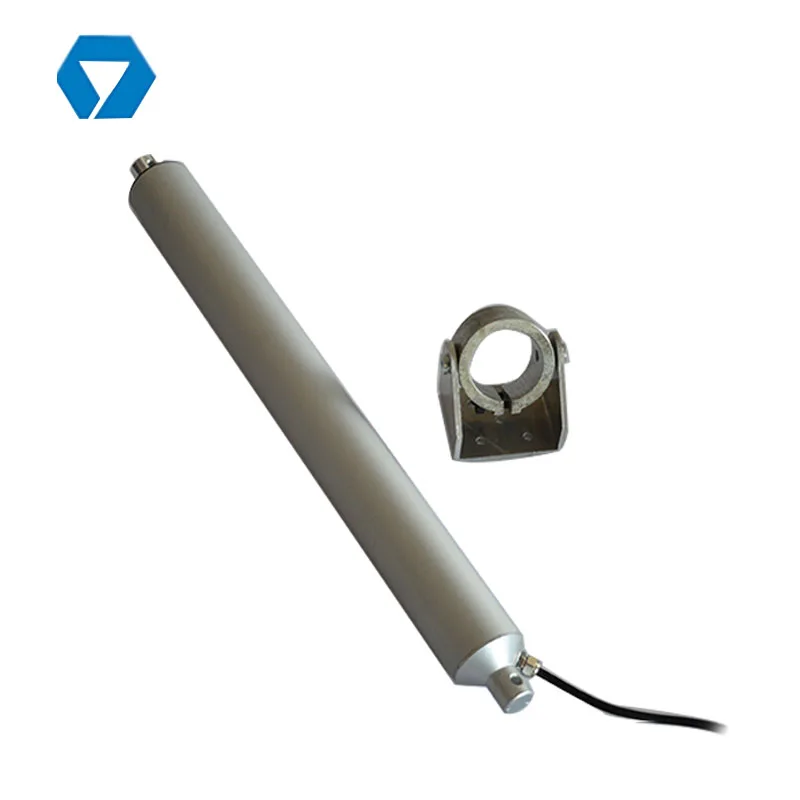

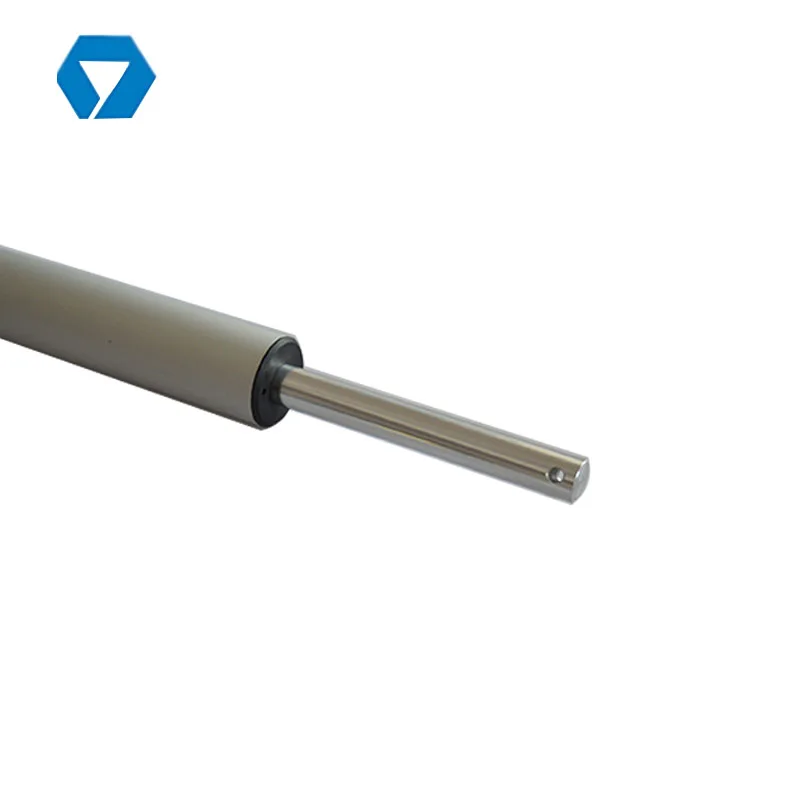

 Product photo

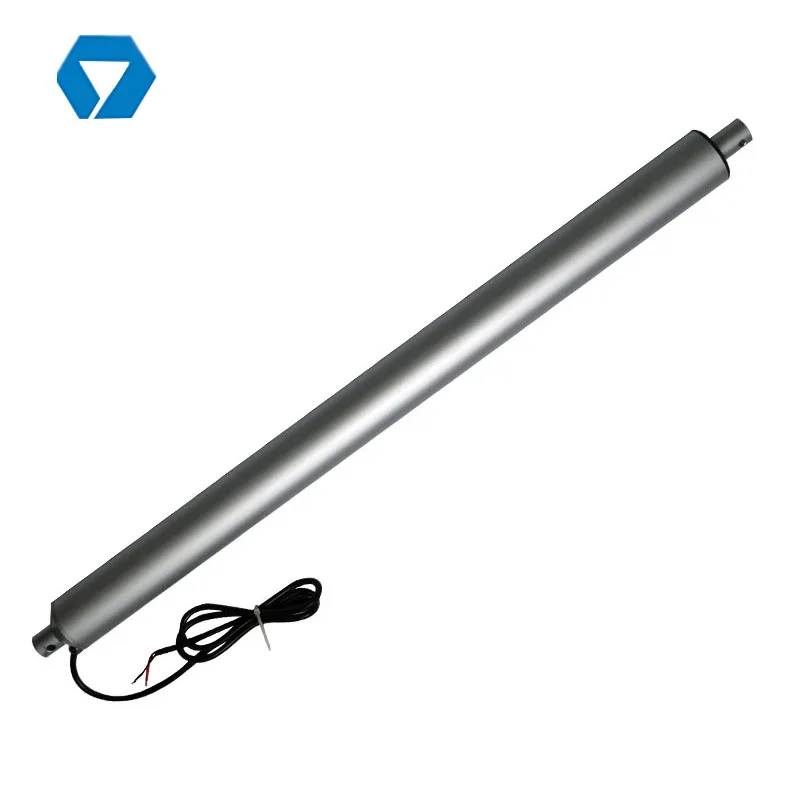

12 V DC Aluminum Tiny Tubular Linear Actuator with 45mm Diameter



Control box and power supply

 and remote control

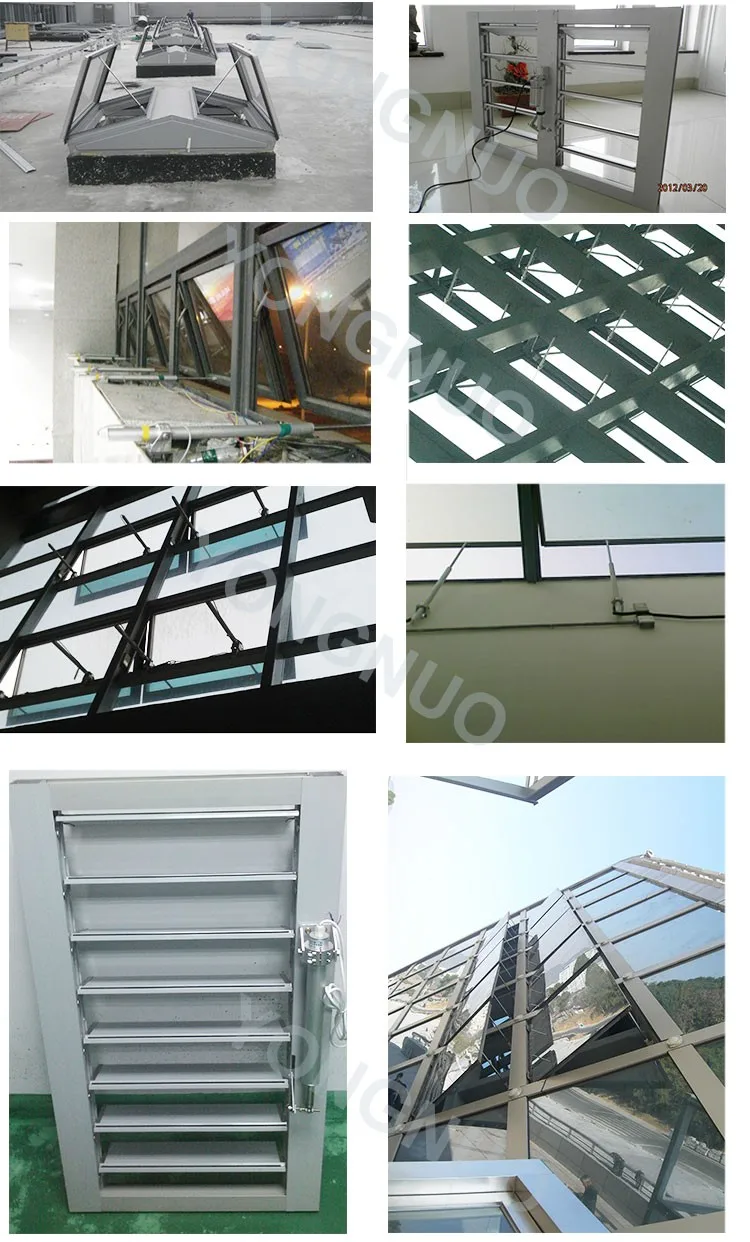

Product&Applications



  YNT-05 linear actuator— Quality Certification:ROHS and CE
