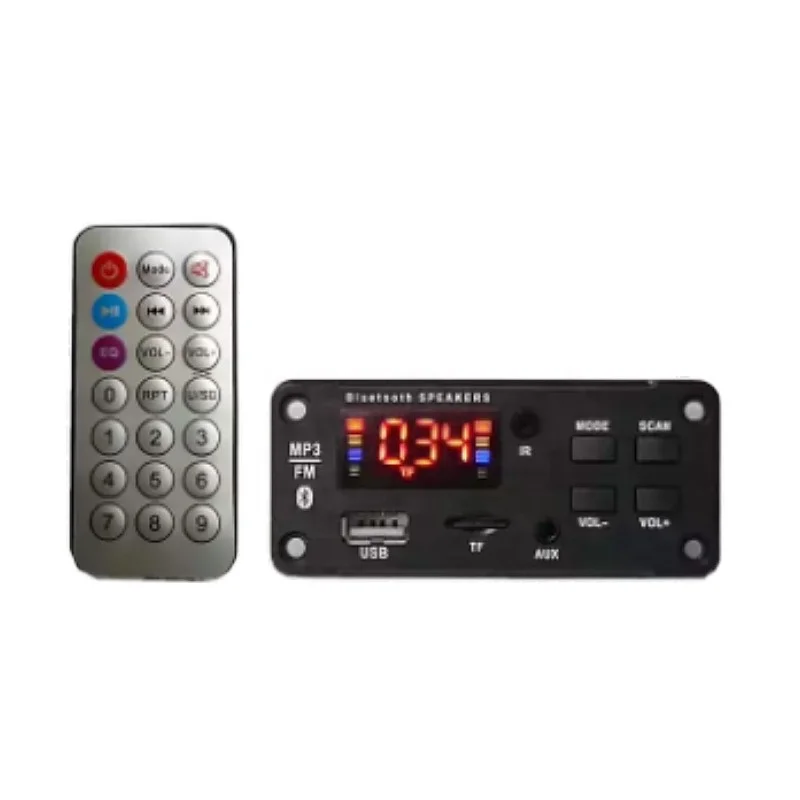

JLH 1010BT Factory directly supply Bt 12V MP3 Decoder Board Audio Module SD card USB FM Radio For Car
- Category: >>>
- Supplier: Shenzhen Jinlonghui Technology Co. Ltd.
Share on (60718721083):
Product Overview
Description
Product Description
Instructions.
Integrated MCU solution: CW6621E/CW6611E
Bt Core:5.0 version type
Support function introduction: MP3/USB/SD card/LED four 8 digital tube display/Bt/ remote control/silver or black platic of interface/DC power supply 5V or 12V
Key definition: pre a song/volume decreases, play/pause and the next song/volume increase, MODE conversion switch (USB/SD/AUX/Bt)

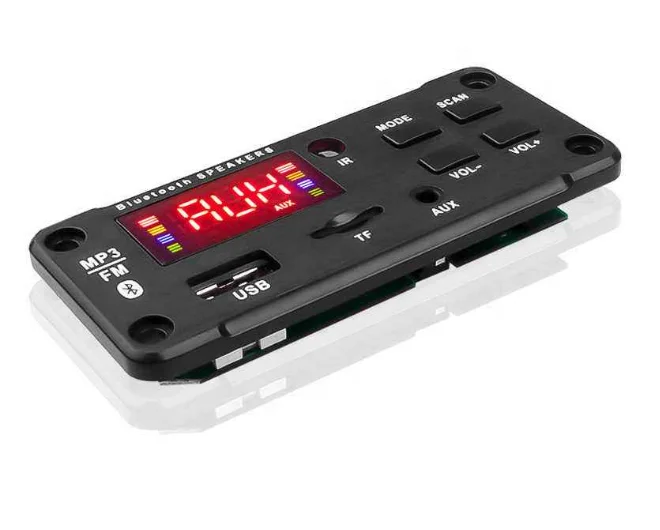

About structure: the plastic size: 84* 29mm, panel two head positioning hole, black surface shell with PVC;

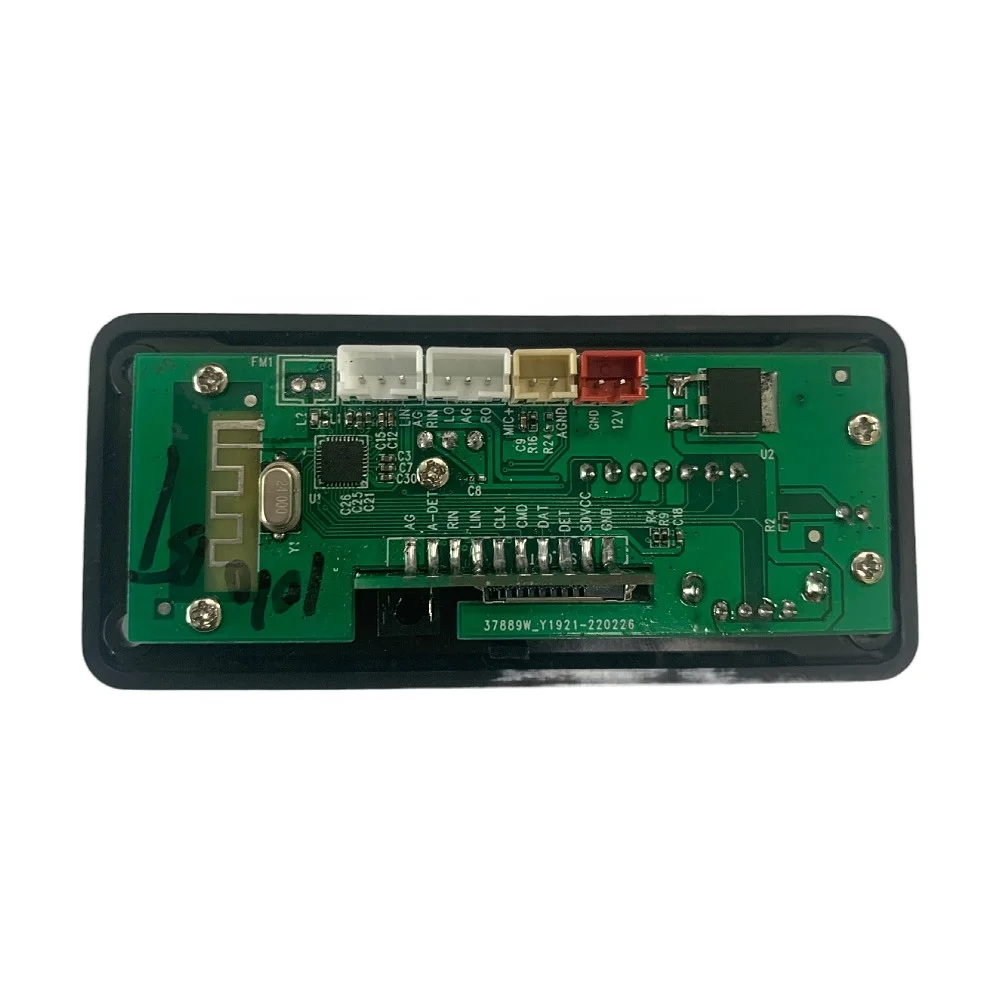

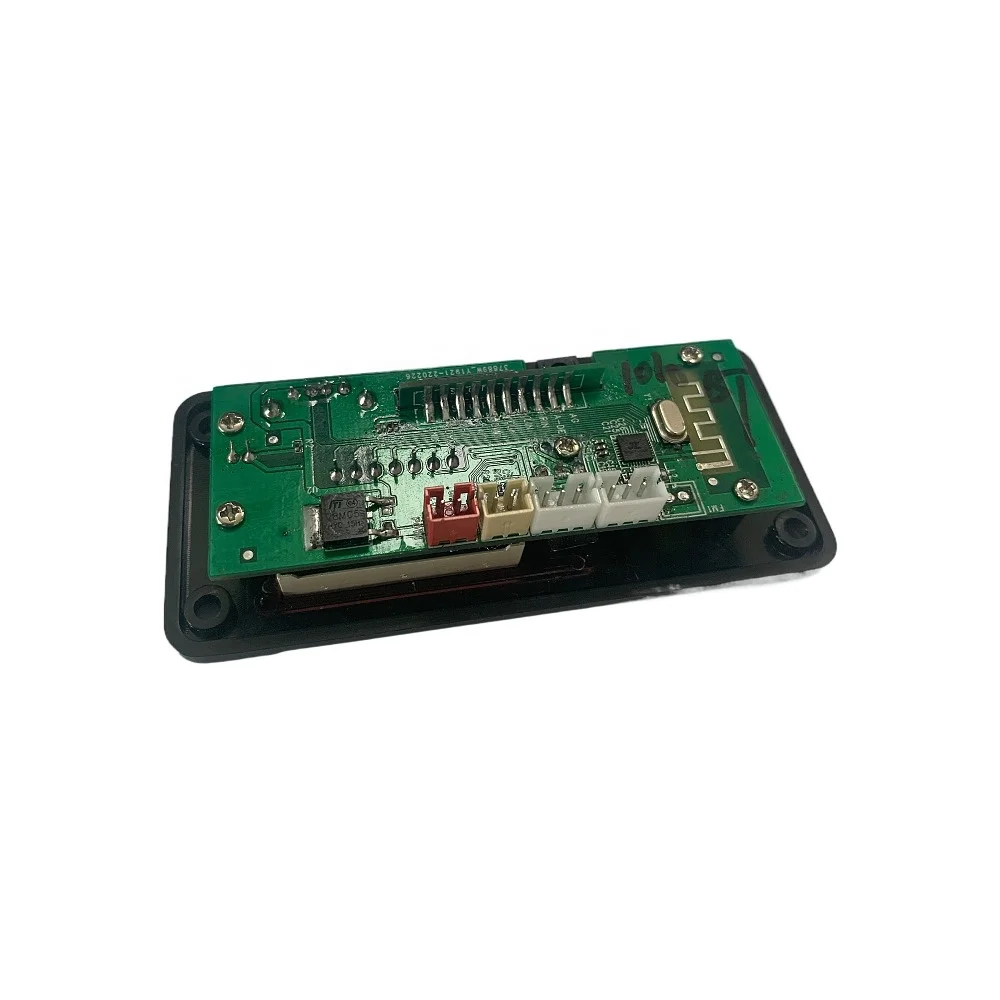

Line connection tip:
ANT: radio line welding, connecting rod antenna.
5V or 12V + : power supply level
GND：negative electrode
LOUT：Left sound channel audio output
AGND：Audio output ground
ROUT：Right sound channel audio output
L-IN:Audio input the left channel
AGND:Audio input ground
R-IN：Audio input right channel
Detailed Images
Packing & Delivery
Packing for a carton:
Volume/carton :41*41*31cm
Weight/carton :11.6KG
Quantities/carton :400pcs

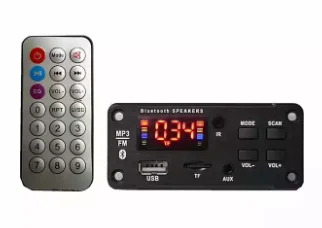

With remote control.
Delivery:
We will make the products the time is 15days-18days after receiving your money.(including weekdays)
Our Company
Certifications
Our Service
We wish you are fully satisfied with each item that you purchase from JLH One year Warranty
1、One year Manufactruer’s Warranty for defective items(excluding items damaged or misused after receipt)
2、Defective items must be reported and returned to us within the warranty period(and in the original packaging, if possible).You must tell us what the defcet is and prove,we do not rpaite or replace items
3、With an expired warranty. However,the expenses in the process of repair shall be paid by the buyers.
For all youe inquiries,please contact us immediately,we will reply you as soon as possible
FAQ
• Is your parts new and original ?
Answer : Yes !Our parts could accept any kinds of testing , if there is any quality problems we will take responsible .
• Quality problems
Answer : If there is any quality problems or questions , we could offer technical support or return service .
• What is your lead time ?
Answer :There are no lead times for in-stock products. Most of the parts could be shipped out within 3 days after payment have been confirmed.
• May I have a sample for testing ?
Answer :Yes ! Only to pay shipping cost ,free samples could be sent for testing .
•open the power supply decoding board shows that”HI”
Answer:Connect the power cord will connect the audio line at the same time,did not answer the audio line will show”HI”in decoding board
•use some customers connected to their audio power amplifier will have noise
1):using the multimeter,check whether the ground of the power amplifier on a board under the connected(audio ground wire and ground wire of power supply),then com pare the decoding ground wire is connected on the board(audio ground wire and power supply ground wire)must be broken,if the ground wire of power amplifier board is broken,so the decoding board(audio ground wire and power supply ground wire)must be connected.
2):the connection between offensive and defensive board and decoding board line if it is too long can also cause murmur voice,use a shorter wire connecting the two board is ok.
