5000L/h centrifugal pump fruit juice beverage syrup pump
- Category: >>>
- Supplier: Wenzhou Ranking Imp.& Exp. Co. Ltd.
Share on (60718854820):
Product Overview
Description
Product Description

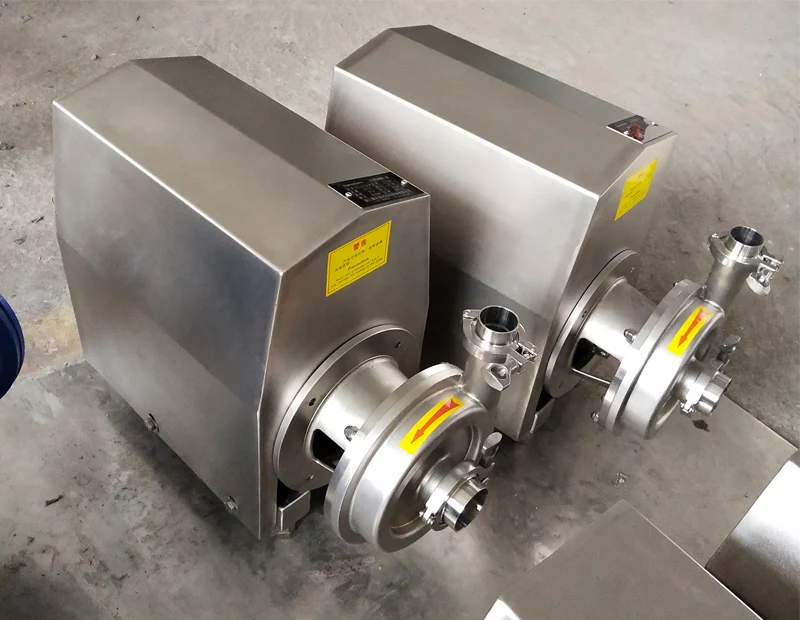

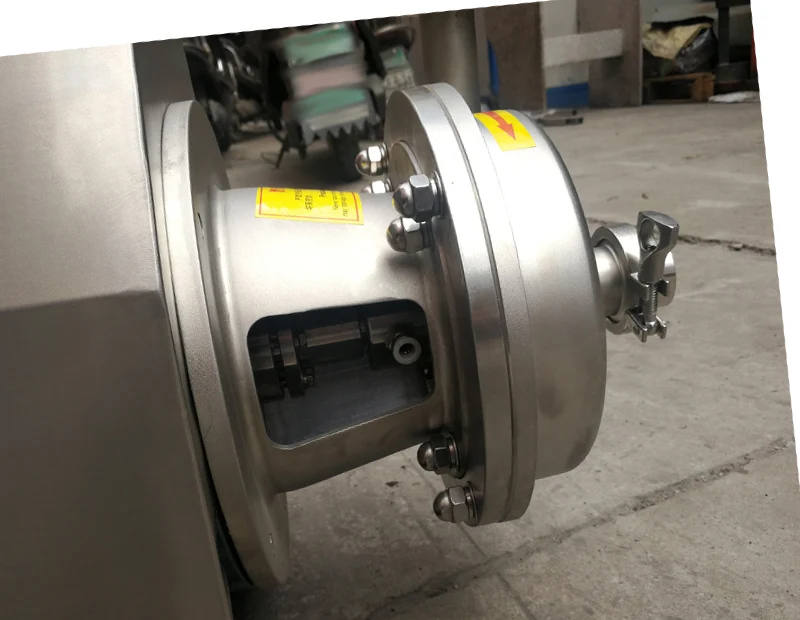

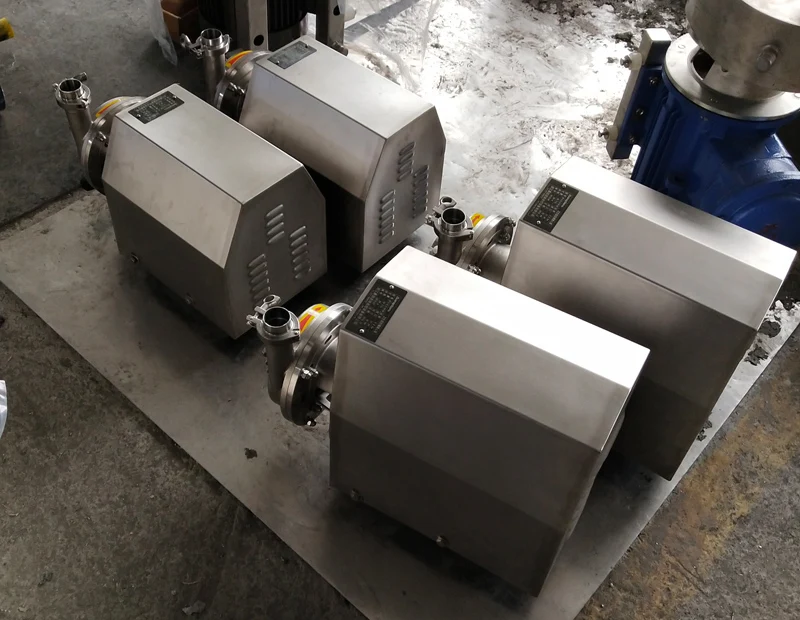

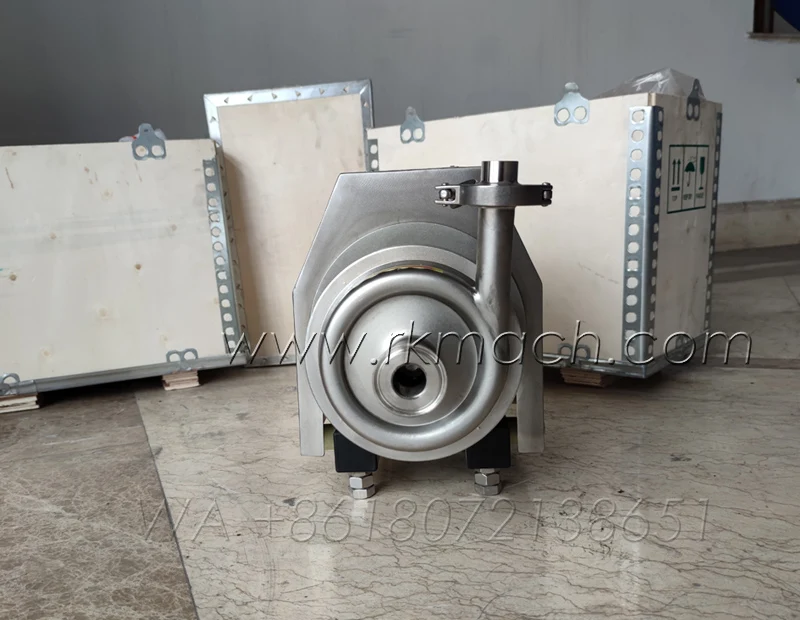

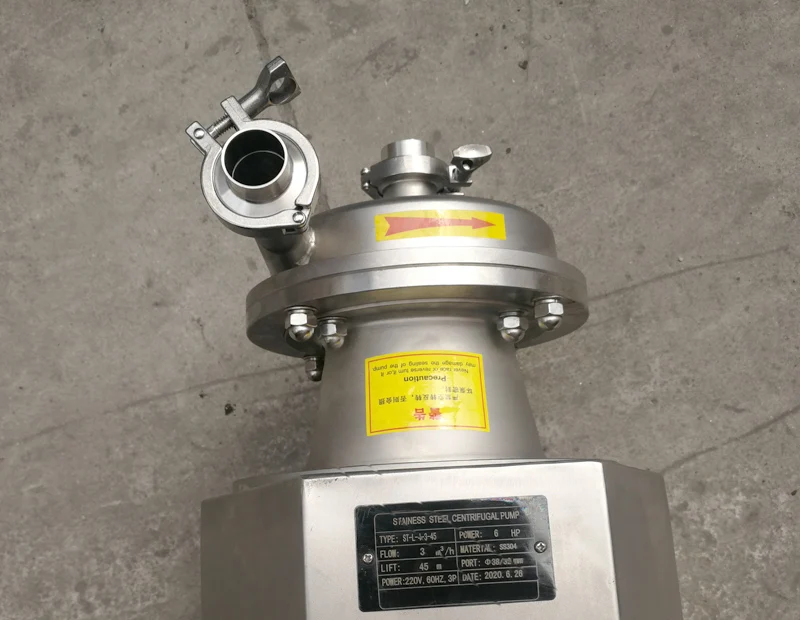

0.75KW Single-stage liquid pump China high flow rate fruit juice beverage syrup pump
Model | Flow(m3/h) | Lift(M) | Power(Kw) | Inlet/outlet specification |
CP-2-14-0.55 | 2 | 14 | 0.55 | 38/32 |
CP-3-16-0.75 | 3 | 16 | 0.75 | 38/32 |
CP-3-24-1.5 | 3 | 24 | 1.5 | 38/38 |
CP-3-30-2.2 | 3 | 30 | 2.2 | 51/38 |
CP-4-18-1.1 | 4 | 18 | 1.1 | 38/38 |
CP-5-24-1.5 | 5 | 24 | 1.5 | 38/38 |
CP-5-36-3.0 | 5 | 36 | 3.0 | 51/38 |
CP-10-24-2.2 | 10 | 24 | 2.2 | 51/38 |
CP-10-36-3.0 | 10 | 36 | 3.0 | 51/51 |
CP-10-50-5.5 | 10 | 50 | 5.5 | 51/51 |
CP-10-60-7.5 | 10 | 60 | 7.5 | 51/51 |
CP-15-24-3.0 | 15 | 24 | 3.0 | 51/51 |
CP-20-24-4.0 | 20 | 24 | 4.0 | 51/51 |
CP-20-36-5.5 | 20 | 36 | 5.5 | 51/51 |
CP-20-55-11 | 20 | 55 | 11 | 63/51 |
Related parts and description
1 | Pump body | 7 | Impeller seat | 13 | Support |
2 | Shaft cap | 8 | Static ring seat | 14 | Pump shaft |
3 | Impeller | 9 | Spring | 15 | Straining ring |
4 | Mechanical seal dynamic ring | 10 | Retainer ring | 16 | Straining sleeve |
5 | Pump body O ring | 11 | Snap spring | 17 | Motor |
6 | Mechanical seal static ring | 12 | Nameplate | 18 | Pump foot |
|
|
|
| 19 | Housing |
Packing
Sanitary centrifugal pump Price
The price for the sanitary centrifugal pump in this site may not be accurate.
Please contact our online service team to get the exact price.
