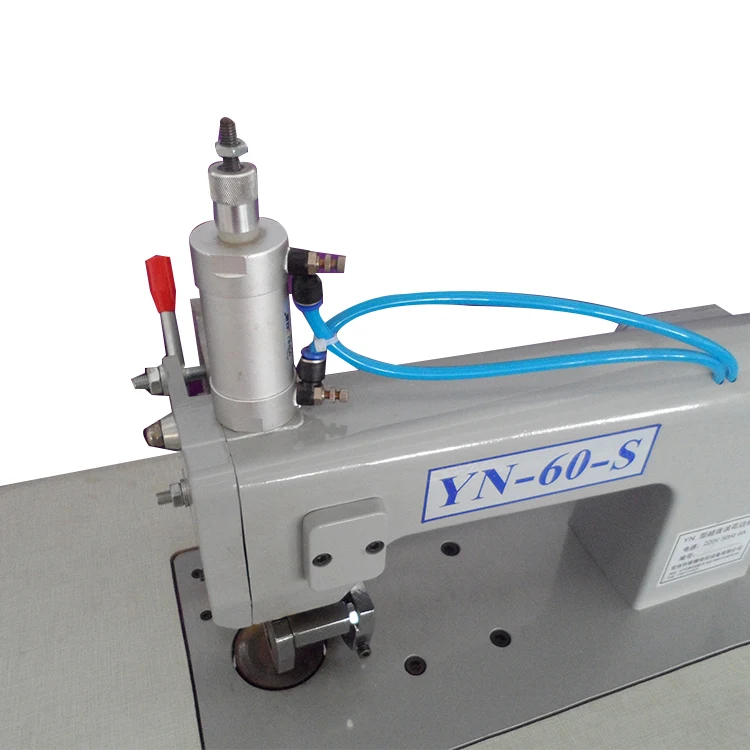

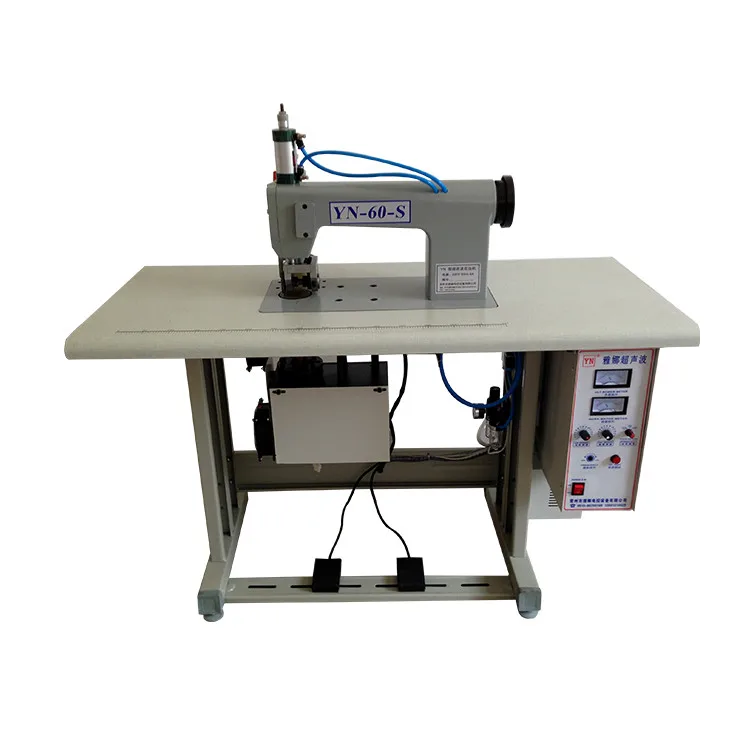

Лидер продаж, ультразвуковая швейная машина для нетканых материалов, сделано в Китае

Product Overview

Description

Hot selling ultrasonic sewing machine for nonwovens made in China

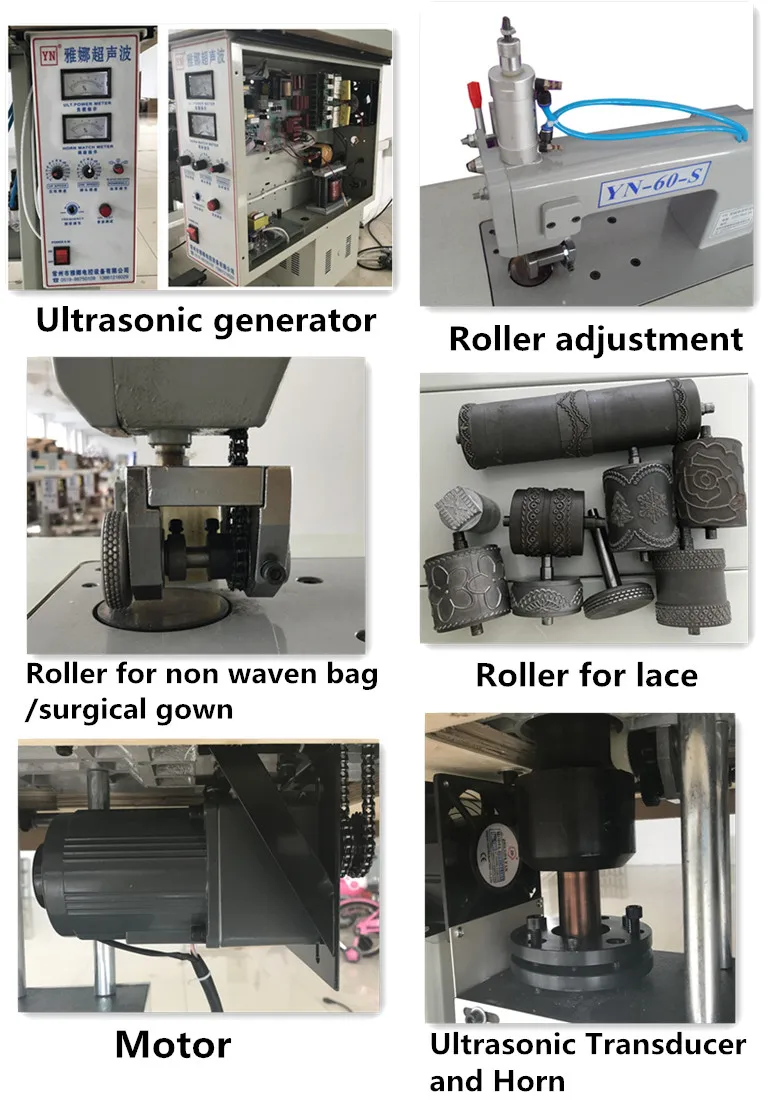

Basic components

1. New type PC intellectual ultrasonic generator;

2.20KHZ ultrasonic transducer unit;

3-Bottom mould fixed suspension structure;

4 .Single motor speed adjustment system;

5. Manual ( or pneumatic ) roller lifting system;

6. Double-barreled framework and heavy support board.

Characteristics

1.Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;

2.Strong ultrasonic power with three adjustable gears (maximum, medium and minimum),meets the welding requirements of different materials and thicknesses;

3.The performance of the machine reaches international level with autom­atic frequency tracking system and ultrasonic soft-starting technology;

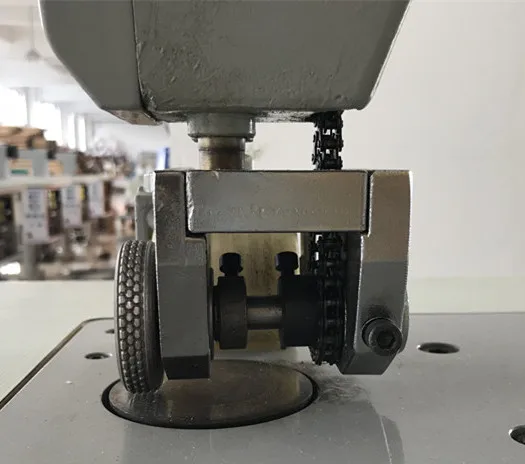

4.Variety of roller patterns,other roller designs available according to cust­omer requirements;

5.Four times faster then sewing machines.minimal operator training required.

Functions

1.Trimming:Straight or curvilinear edge cutting and edge treatment for me­lting,so smooth.no rough edges;

2.Sealing:Two or more layers of fabric stitched together without thread re­placing the sewin needles.good welding strength;

3.Hole making:Cut out the various patterns of holes,and treatment of side melting;

4.Slitting:Single or more cutting of the material at the same time.and treat­ment of side melting without burr;

5. Forming:Simultaneous cutting,sealing and embossing to make production in one time.

Suitable materials

All kinds of artificial leather and fabric, non woven fabric,spun-bonded cotton, thermoplastic film, chemical plastic piece.etc.

Applications

Lace clothing,ribbon .decoration products,handkerchief,tablecloth,curtain,bedspresd,pillowcase,quilt cover,tent,raincoat,disposable operating coat and hat,disposable mask.non-woven fabric cloth and so on.

Technical parameter

Source power	220V +/- 5V 50/60HZ 6A
Input power	1500-2500(Can adjustable)
Output frequency	20KHZ
Working speed	0-20m/min
Roller size	Width:0-100mm Diameter:φ50-φ60mm
Dimension (L*W*H)	1200*600*1200mm
Net weight	120KG
Working temperature	≤ 25℃





ultrasonic sealing machine

Q1. Are you trading company or manufacturer ?

A: Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.



Q2. How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q3. What about your warranty?

A: Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).



Q4. What is your terms of payment ?

A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
