OTS Lab Equipment Salt Spray Cyclic Corrosion Test Chamber for Metal/Salt Fog Corrosion Testing Machine/salt Spray Ageing Chambe
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (60718889096):
Product Overview
Description
Product Description
Salt Spray Cyclic Corrosion Test Chamber
Product Description
OTS Lab Equipment Salt Spray Cyclic Corrosion Test Chamber for Metal is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specification
Model | XB-OTS-60 | XB-OTS-90 | XB-OTS-120 | XB-OTS-160 | XB-OTS-200 | ||||
Inner size (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x100x60 | ||||
External size(cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x130x140 | 270x150x150 | ||||
Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C | ||||||||
Brine temp | 35°C±1°C 50°C±1°C | ||||||||
Test chamber volume | 108L | 270L | 600L | 800L | 1200L | ||||
Brine chamber volume | 15L | 25L | 40L | 40L | 40L | ||||
Compressed air pressure | 1.00±0.01kgf/cm2 | ||||||||
Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||||||
Test room relative humidity | 85%RH or more | ||||||||
PH | 6.5~7.2 3.0~3.2 | ||||||||
Spray method | Programmable spray (including the continuous spray interrupted spray) | ||||||||
Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A | ||||
Features:

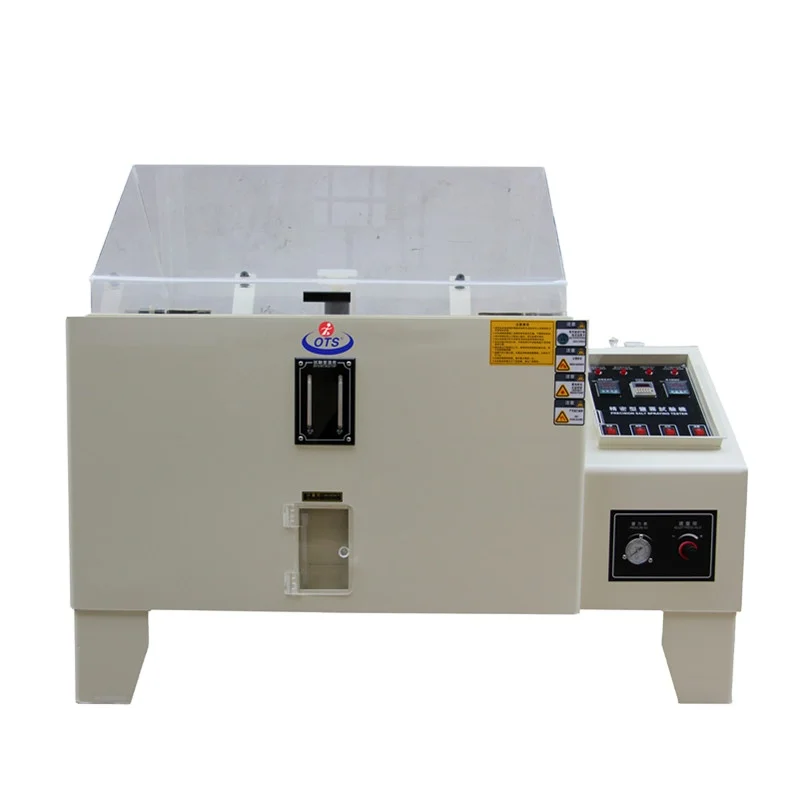

1.The Salt Spray Test Machine is made of transparent materials so that the operator can see the tested sample in it and the
spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.

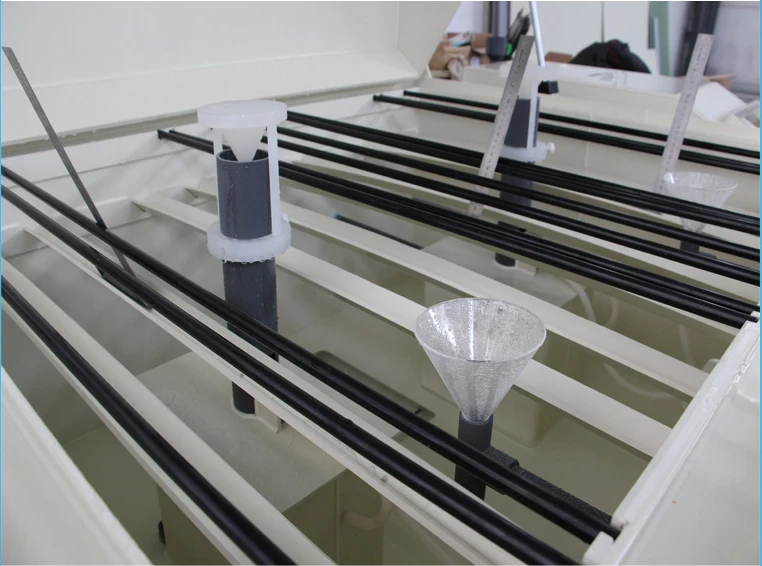

3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even
salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even
salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
Standard Reference:
GB/T 2423.17-1993 | GB/T 2423.18-2000 | ||||||
GB/T 10125-1997 | ASTM.B117-97 | ||||||
JIS H8502 | IEC68-2-11 | ||||||
IEC68-2-52 1996 | GB.10587-89 | ||||||
CNS.4158 | CNS.4159 CASS | ||||||
GB/T 2423.17-1993 | GB/T 2423.18-2000 | ||||||
GB/T 10125-1997 | ASTM.B117-97 | ||||||
JIS H8502 | IEC68-2-11 | ||||||
IEC68-2-52 1996 | GB.10587-89 | ||||||
CNS.4158 | CNS.4159 CASS | ||||||

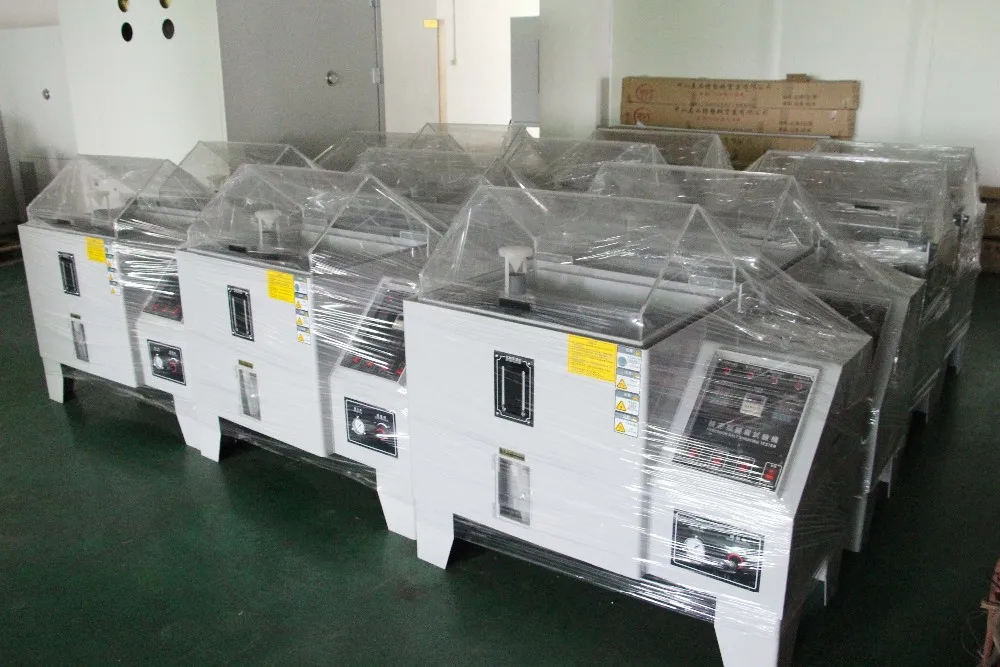

Packing & Delivery
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Company Profile
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(60.00%),North America(20.00%),Eastern Europe(5.00%),Northern Europe(4.00%),Western Europe(3.00%),South America(3.00%),Southern Europe(2.00%),Mid East(2.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Test Chamber,Test Machine
4. why should you buy from us not from other suppliers?
1.With owner well known brand of OTS ( Overall Testing Systems)
2.With long history since 1978
3. Three factory from Taiwan ,Dongguan City and Suzhou City
4.Fast Delivery &Service ,high quality ,OEM & Customized requirements are acceptable
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Guangdong, China, start from 2009,sell to Domestic Market(60.00%),North America(20.00%),Eastern Europe(5.00%),Northern Europe(4.00%),Western Europe(3.00%),South America(3.00%),Southern Europe(2.00%),Mid East(2.00%),Southeast Asia(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Test Chamber,Test Machine
4. why should you buy from us not from other suppliers?
1.With owner well known brand of OTS ( Overall Testing Systems)
2.With long history since 1978
3. Three factory from Taiwan ,Dongguan City and Suzhou City
4.Fast Delivery &Service ,high quality ,OEM & Customized requirements are acceptable
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
