WAG гибкий пластиковый кабель/полипропиленовая куурчатая трубка/PA гофрированная трубка

Product Overview

Description

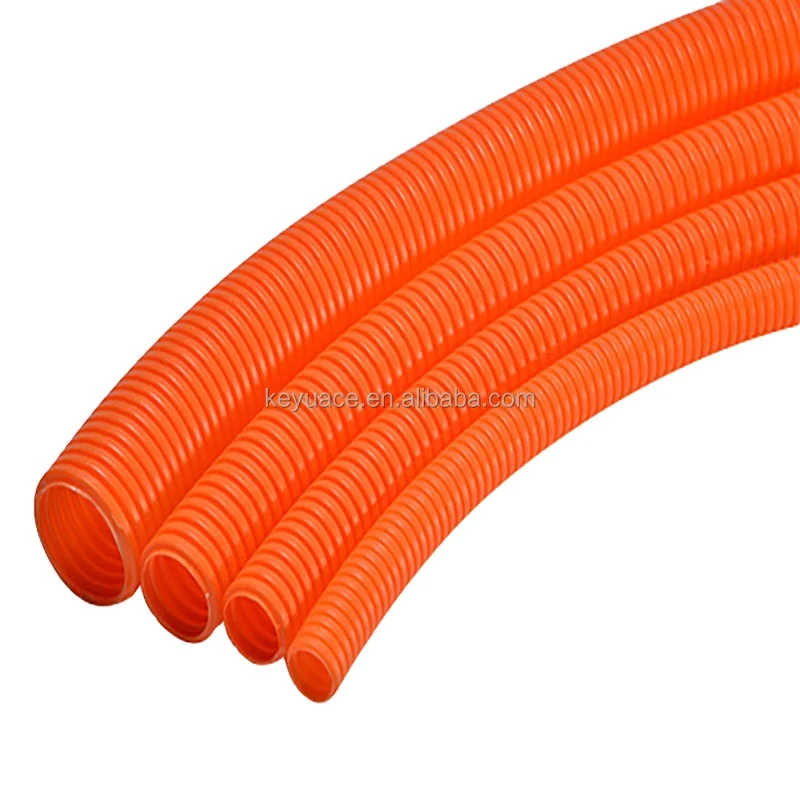

           WAG- Split Flexible Plastic Cable Conduit / PA NYLON CORRUGATED TUBE /

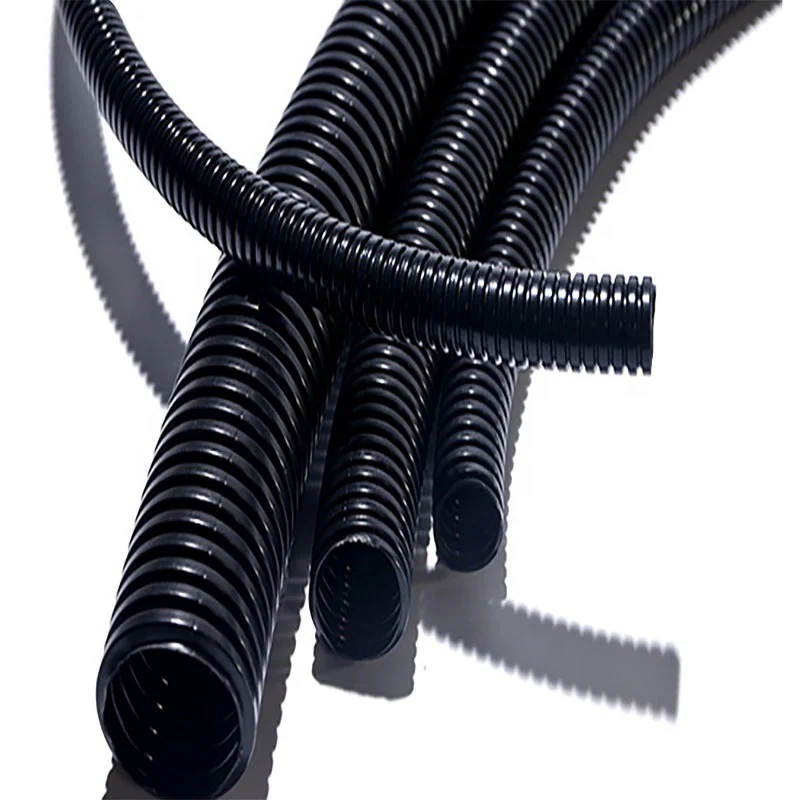

PP Corrugated tubing / Nergy vehicles Corrugated tube





Product Discription:



WAG- Split Flexible Plastic Cable Conduit  have PE, PA, PP extrusion molding, three kinds of material used to protect cable, wire cut, split, mechanical damage, good product flexibility, bending resistance and friction, acid resistance and other properties, good protective for wire, cable, wire.

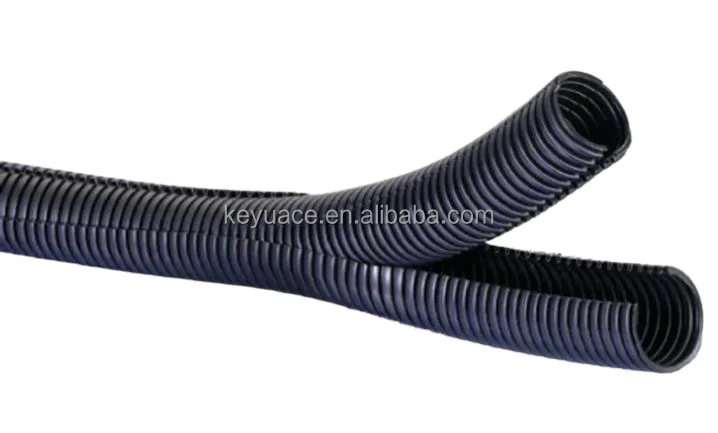

KEYUACE Can customized flame retardant, Split Corrugated tube ( open style wave tube ).



Product application:

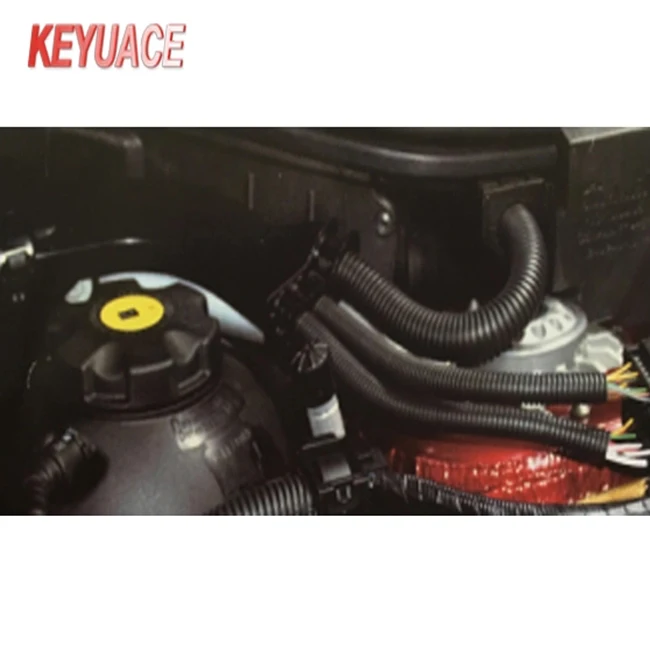

NYLONY Corrugated hose  is suitable for the machinery and equipment, automation equipment, automation control, bus, train, electrical switchgear,Lighting industry etc.







Product size chart:





Technical parameters :



Material quality:   PE,   PA6,   PP

Working temperature :



PE:   - 40 ℃, + 90 ℃
PA:   - 40 ℃, + 125 ℃ ,   +150 ℃
PP:   - 30 ℃ - + 120 ℃

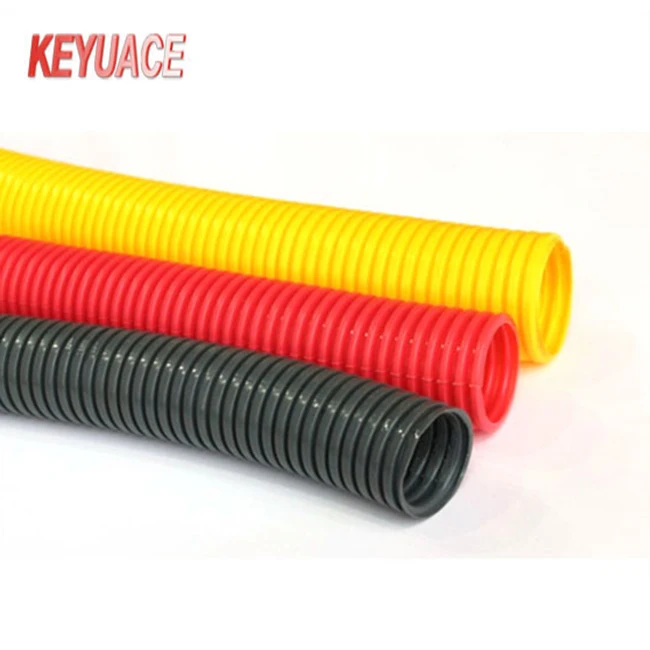

Standard color: black, other color can be customized .
Certification: ROHS 2.0
Cutting tools, scissors
Other features: high wear resistance, acid resistance, resistance to solvents and gasoline





Product specifications:





PE  Material	PA  Material	PP  Material	ID* OD (MM)	FLODING RADIUS	PACKING(L)
WAG-PE-7	WAG-PA-7	WAG-PP-7	4.5*7.0	5	200M/ROLL
WAG-PE-8.5	WAG-PA-8.5	WAG-PP-8.5	5.5*8.5	8	100M/ROLL
WAG-PE-10	WAG-PA-10	WAG-PP-10	7.0*10.0	10	100M/ROLL
WAG-PE-12	WAG-PA-12	WAG-PP-12	8.5*11.5	15	100M/ROLL
WAG-PE-13	WAG-PA-13	WAG-PP-13	10.0*13.0	20	100M/ROLL
WAG-PE-15.8	WAG-PA-15.8	WAG-PP-15.8	12.0*15.8	30	100M/ROLL
WAG-PE-18.5	WAG-PA-18.5	WAG-PP-18.5	14.3*18.5	40	100M/ROLL
WAG-PE-21.2	WAG-PA-21.2	WAG-PP-21.2	17.0*21.2	45	100M/ROLL
WAG-PE-25	WAG-PA-25	WAG-PP-25	21.0*25.0	50	100M/ROLL
WAG-PE-28.5	WAG-PA-28.5	WAG-PP-28.5	23.0*28.5	55	50M/ROLL
WAG-PE-34.5	WAG-PA-34.5	WAG-PP-34.5	29.0*34.5	60	50M/ROLL
WAG-PE-42.5	WAG-PA-42.5	WAG-PP-42.5	36.0*42.5	70	25M/ROLL
WAG-PE-54.5	WAG-PA-54.5	WAG-PP-54.5	48.0*54.5	80	25M/ROLL
