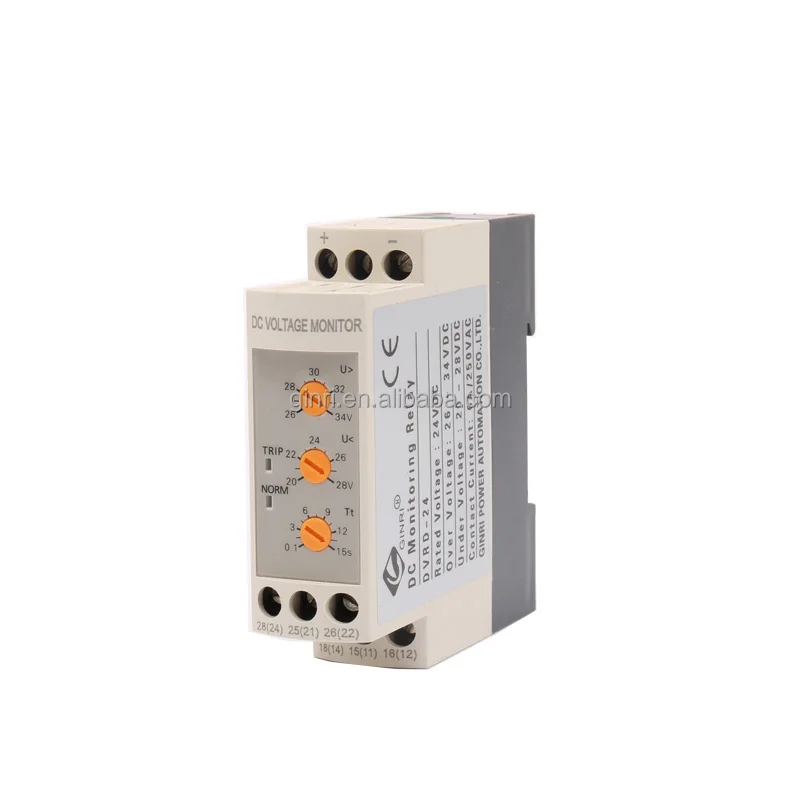

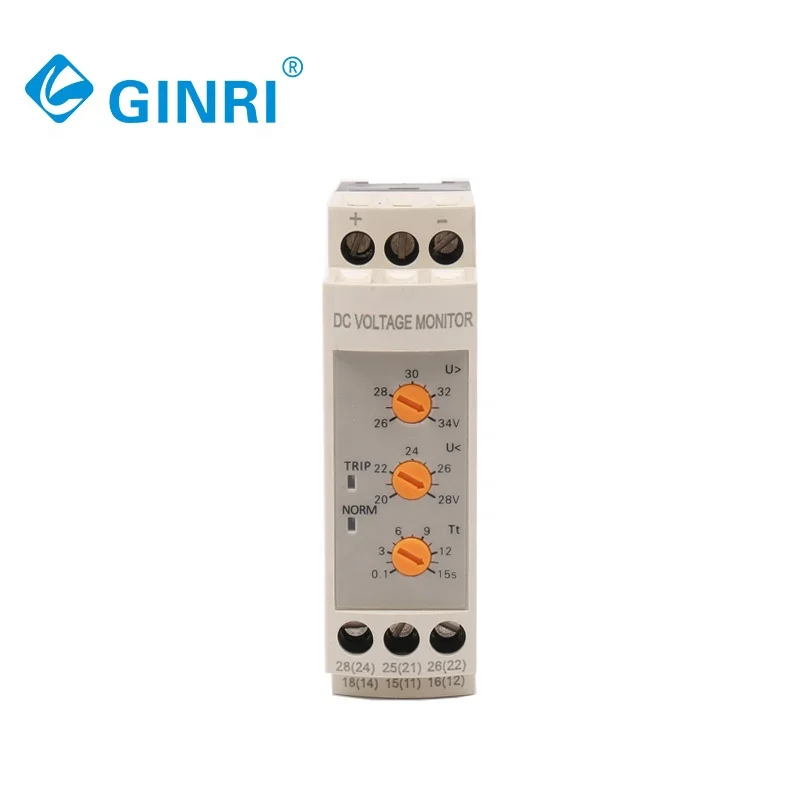

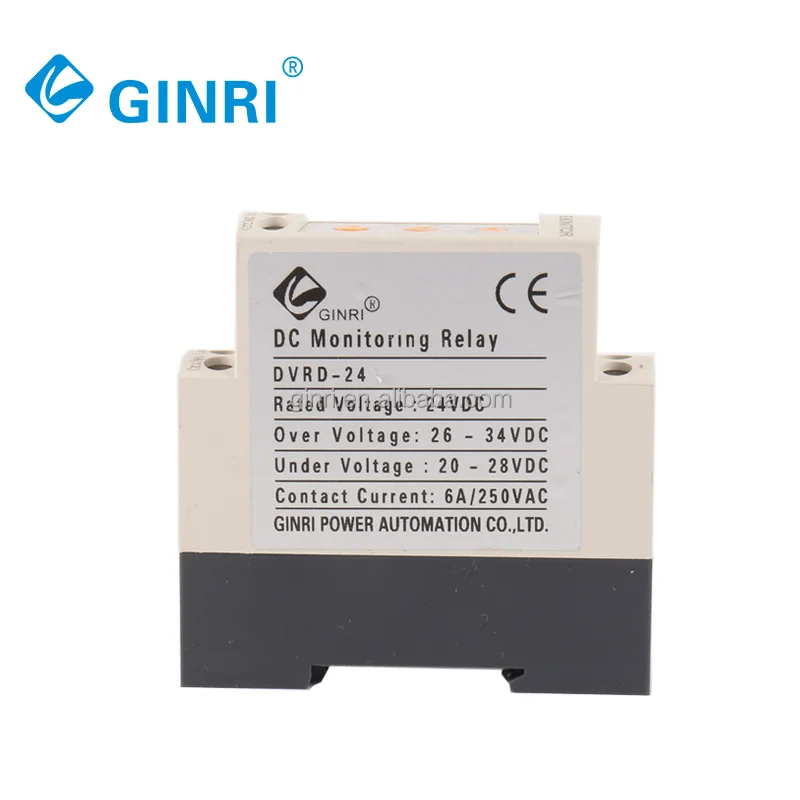

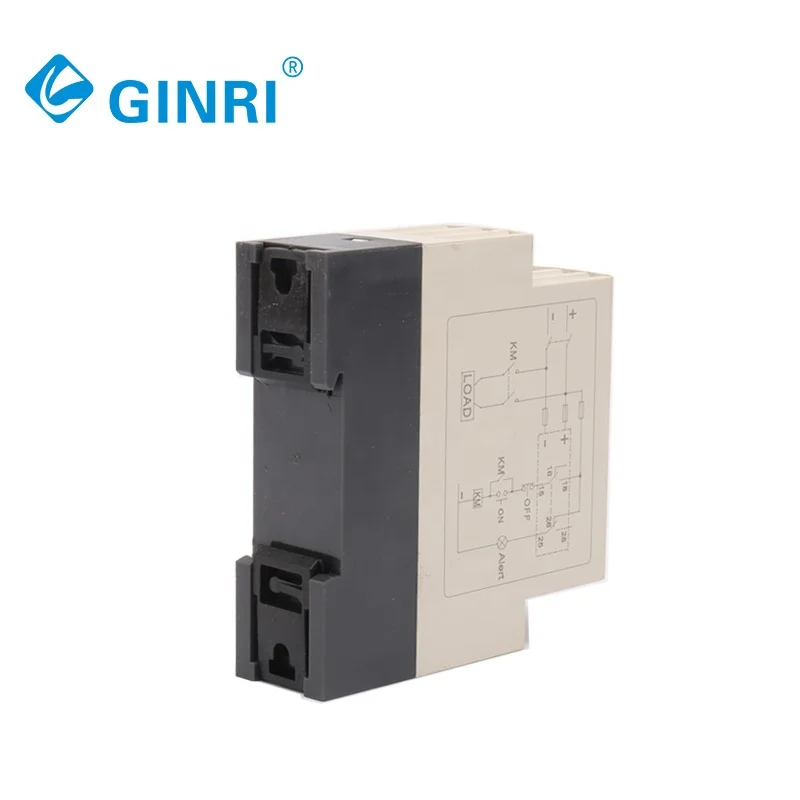

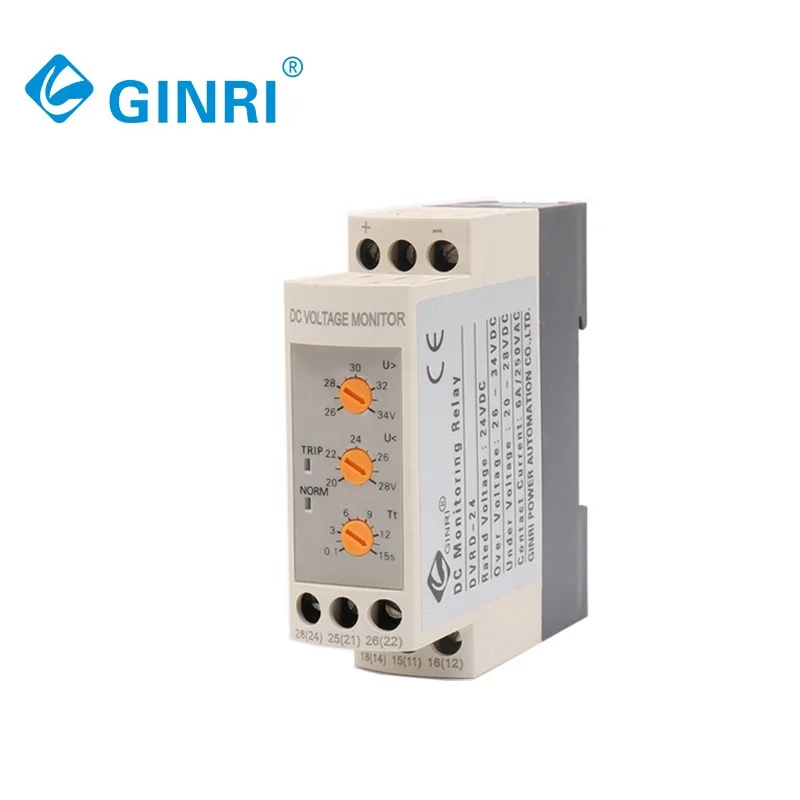

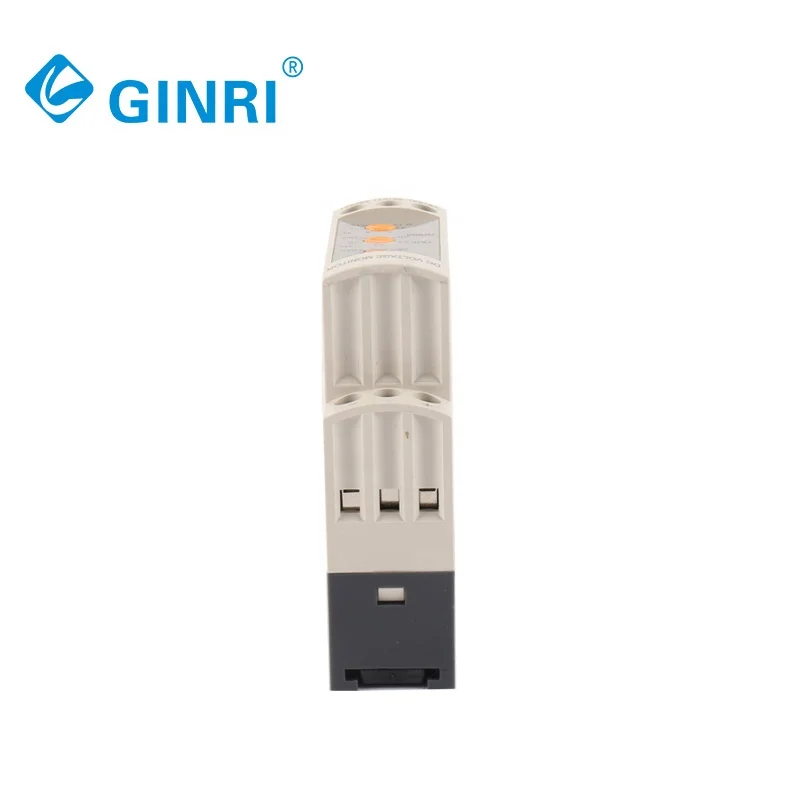

Реле GINRI DVRD 24 DC24V для контроля напряжения постоянного тока, регулируемое время задержки для реле перенапряжения и пониженного напряжения

Product Overview

Description

GINRI DC Adjustable delay time for overvoltage and undervoltage relay

DVRD



♦ Features

  -- Compact modular size

  -- DC circuit monitoring of over- and undervoltage

  -- Adjustable over- and undervoltage threshold

  -- Adjustable trip delay time

  -- Powered by the measuring circuit

  -- 2 C/O contacts

  -- 2 LEDs for status indication



♦ Protective Functions

  -- Overvoltage

  -- Undervoltage



♦ Typical Applications

   • DC cabinet      • Battery

   • Electric control system









♦ Technical data

Type	DVRD
Measuring circuit	DC circuit
Rated voltage	DC12V,DC24V,DC36V,DC48V
Monitoring functions	overvoltage, undervoltage
Voltage setting range	Rated voltage Undervoltage Overvoltage DC12V 10-14V 13-17V DC24V 20-28V 26-34V DC36V 30-42V 39-51V DC48V 40-56V 52-68V
Trip delay  time	0.1-15s adjustable
Indicators	Normai, Trip
Output contacts	2 C/O
Contact capacity	6A ,250VAC
Dimensions (H x W x D)	79×23×79mm
Mounting	DIN rail

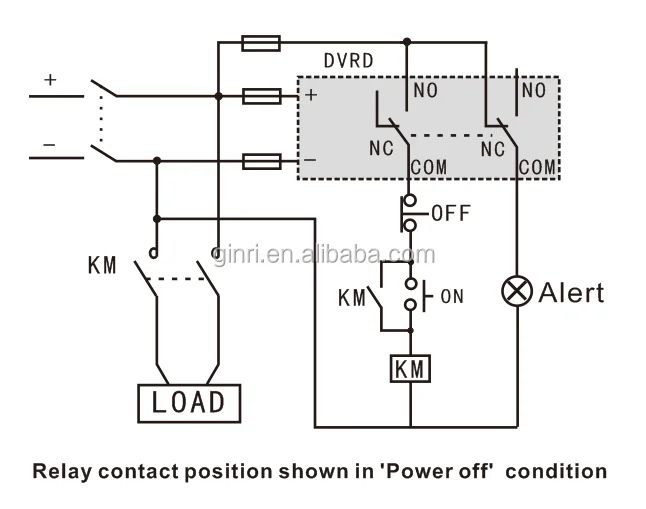

♦ Wiring Diagram





* Please contact us for further information.

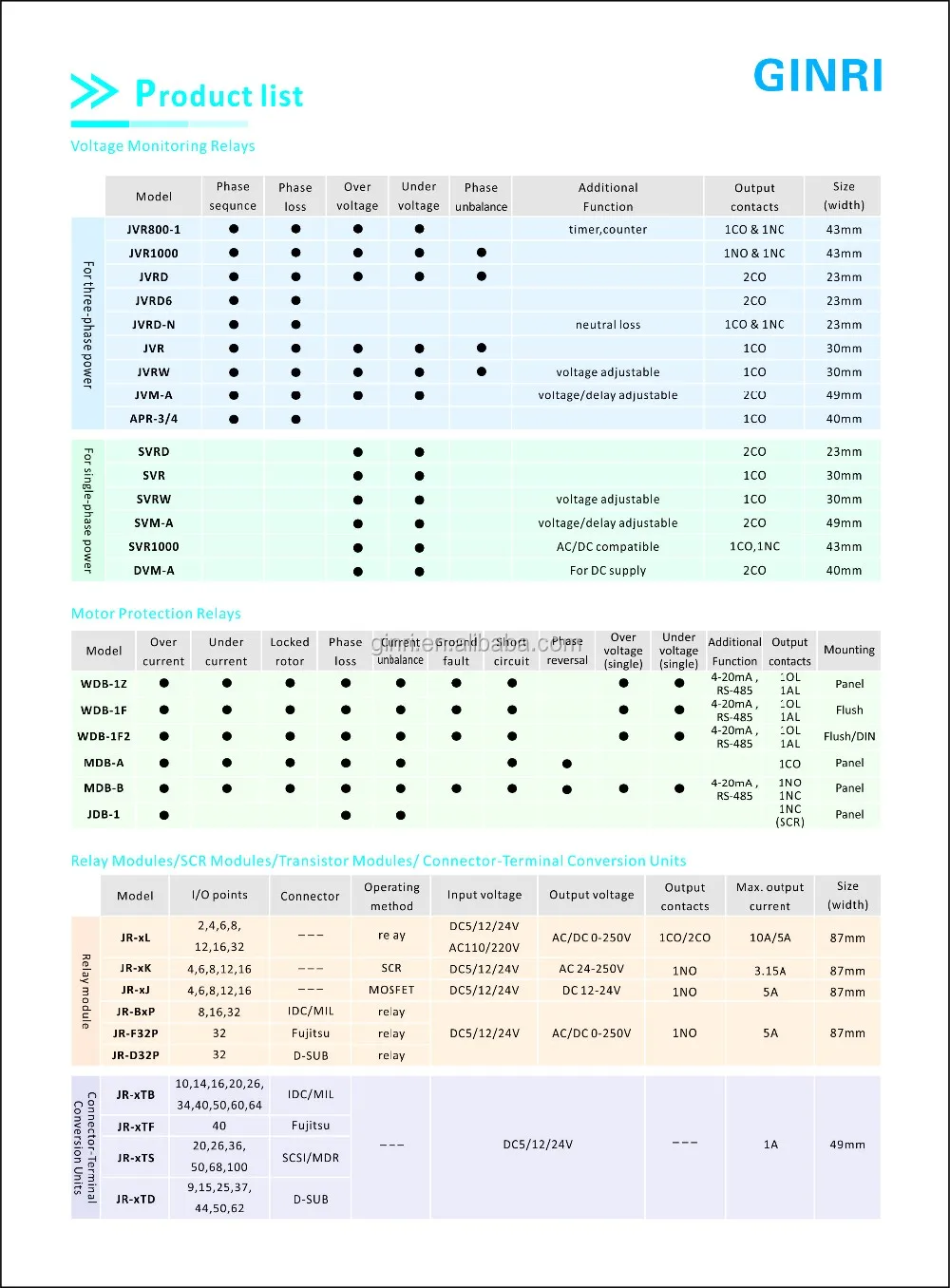

♦ GINRI Selection Guide





♦ GINRI Packing







♦ GINRI Relay Family Photo
