Product Overview

Description

Product Description

This series of lathe has been widely used, mainly for the outer circle, all rotary parts inside the hole and grooving and metric thread, thread pitch screw thread, modulus of turning, in addition to the drilling, reaming, reaming, nesting, knurling, pull tank and other processing.


Feature:

1, The bed width is wide than the general lathe, the guide rail is wide 400mm, with high stiffness, the guide surface is quenched by medium frequency and long wear-resistant.


2, The stiffness and drive stiffness of the machine tool are all higher than that of the ordinary lathe. The power utilization rate is high, and it is suitable for the powerful and high speed cutting.


 3, The diameter of the spindle is large, and the accessories are complete.

Parameters
Model
CA6240
Max .Swing over bed
400mm
Max .Swing over carriage
210mm
Max .Swing in gap
630mm
Effective gap length
210mm
Max .length of work piece
750/1000/1500/2000/2200/3000/4000mm
Width of bed
400mm
Section of turning tool
25*25mm
Spindle speed
11-1400rpm/16-1400rpm(24steps)
Spindle bore
52mm,(80mm),[105mm]
Spindle taper
MT6, (90 1:20), (113:20）
Range of feed
64 kinds, (for each)
Range of metric threads
(1-192mm), (44 kinds)
Range of inch threads
(1-24tpi),(21kinds)
Range of module threads
0.25-48,(module 39 kinds)
Range of diametral pitc threads
1-96DP, (37 kinds)
Max. tailstock spindle travel
150mm
tailstock spindle diameter
75mm
taper of  tailstock spindle center hole
MT5
Main motor
7.5KW(10HP)
Dimensions (mm)
Overall dimensions for 750mm
2440*1140*1750mm
Overall dimensions for 1000mm
2650*1140*1750mm
Overall dimensions for 1500mm
3150*1140*1750mm
Overall dimensions for 2000mm
3650*1140*1750mm
Overall dimensions for 2200mm
4030*1140*1750mm
Overall dimensions for 3000mm
4800*1140*1750mm
Overall dimensions for 4000mm
5680*1140*1700mm
Weight (kg)
Overall dimensions for 750mm
1990kg
Overall dimensions for 1000mm
2070kg
Overall dimensions for 1500mm
2220kg
Overall dimensions for 2000mm
2570kg
Overall dimensions for 2200mm
2600kg
Overall dimensions for 3000mm
3200kg
Overall dimensions for 4000mm
3400kg

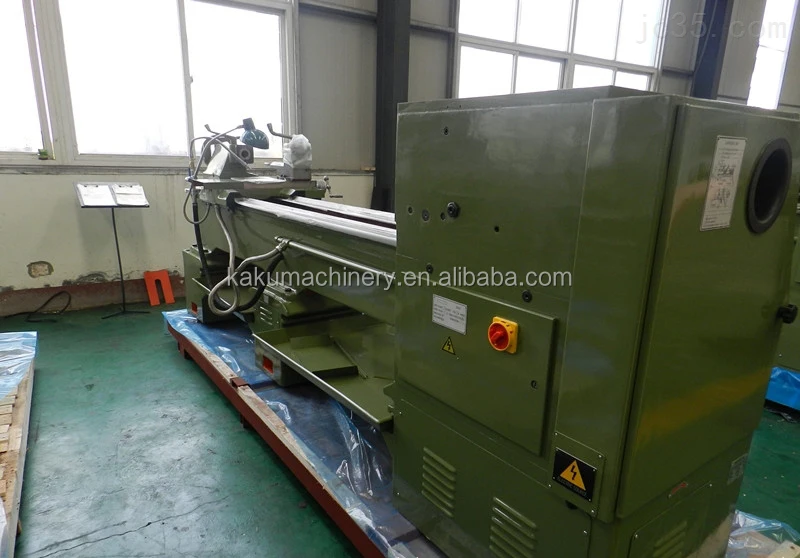

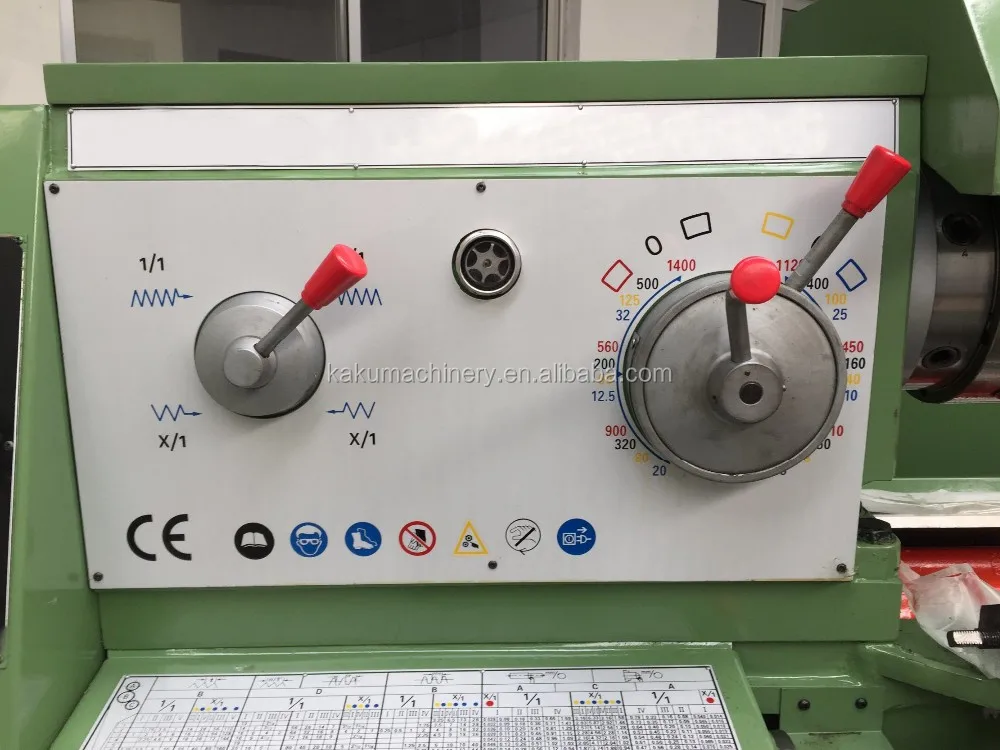

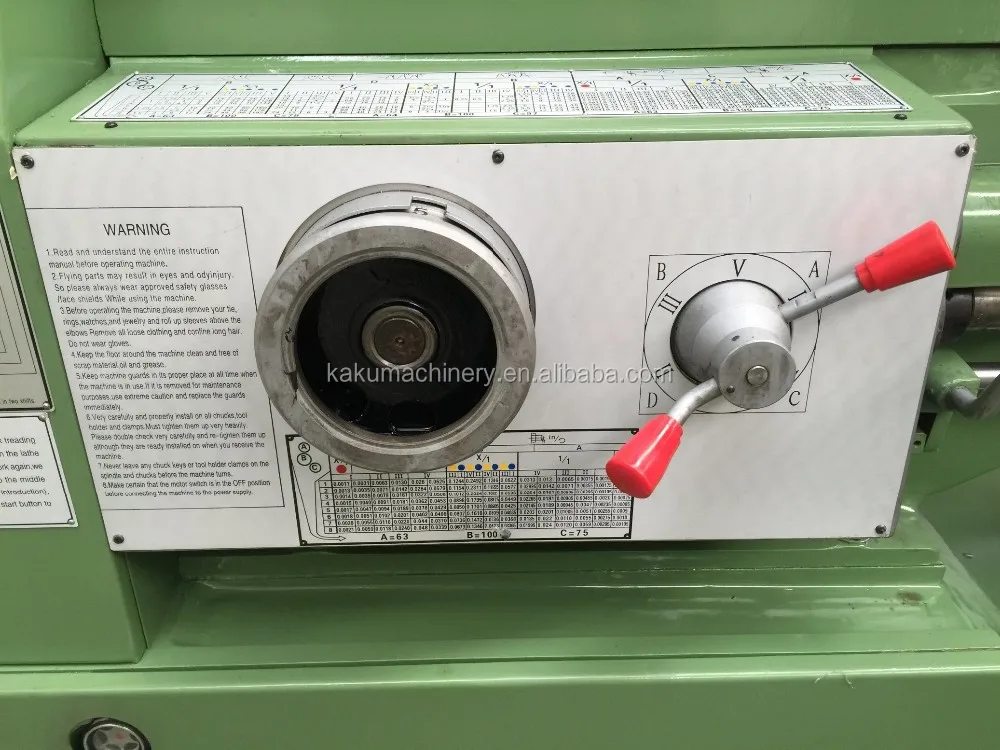

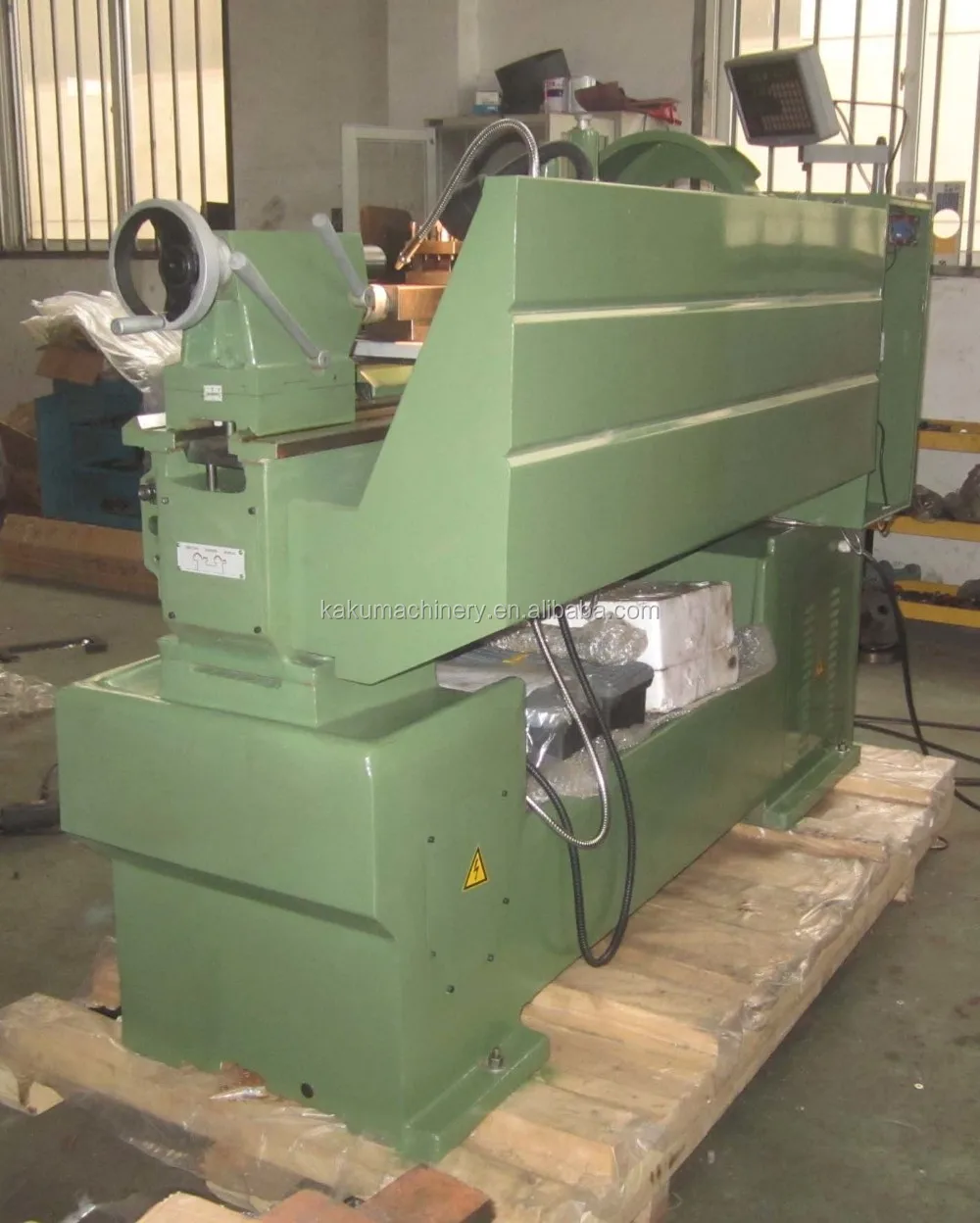

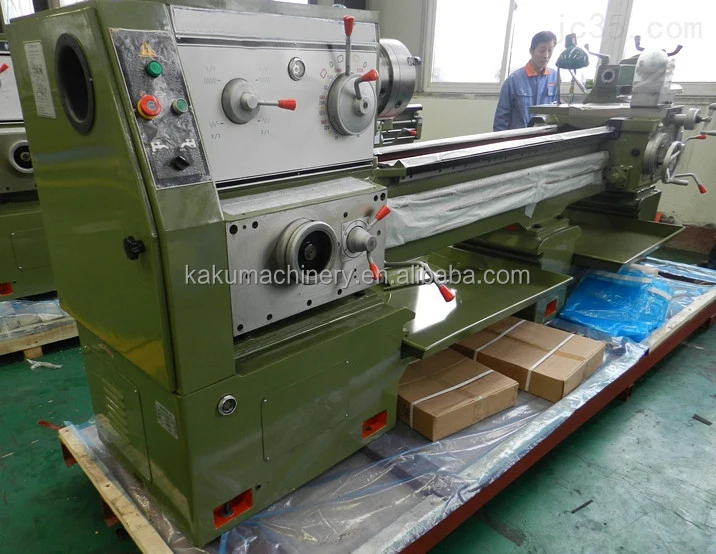

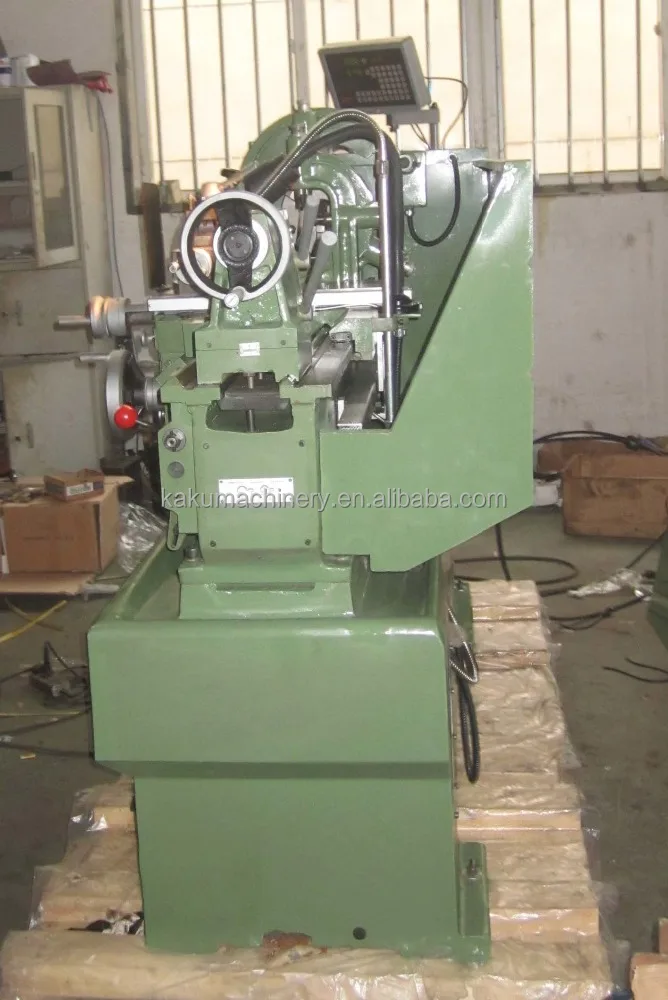

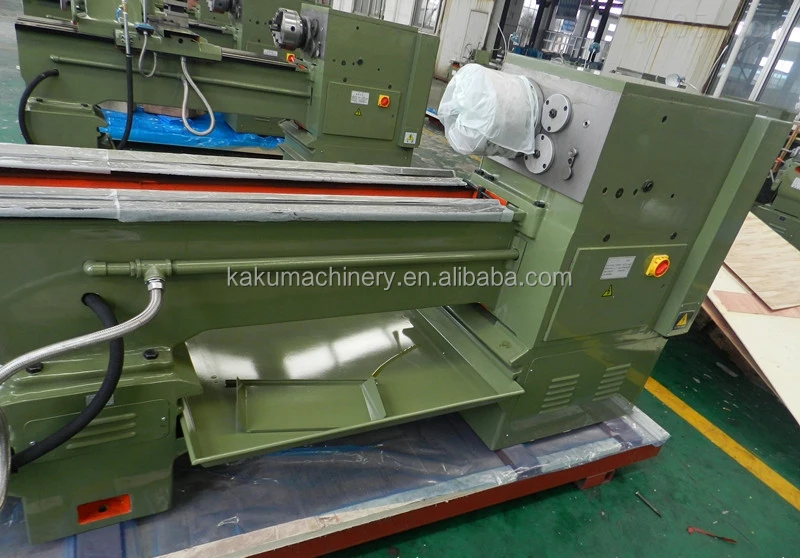

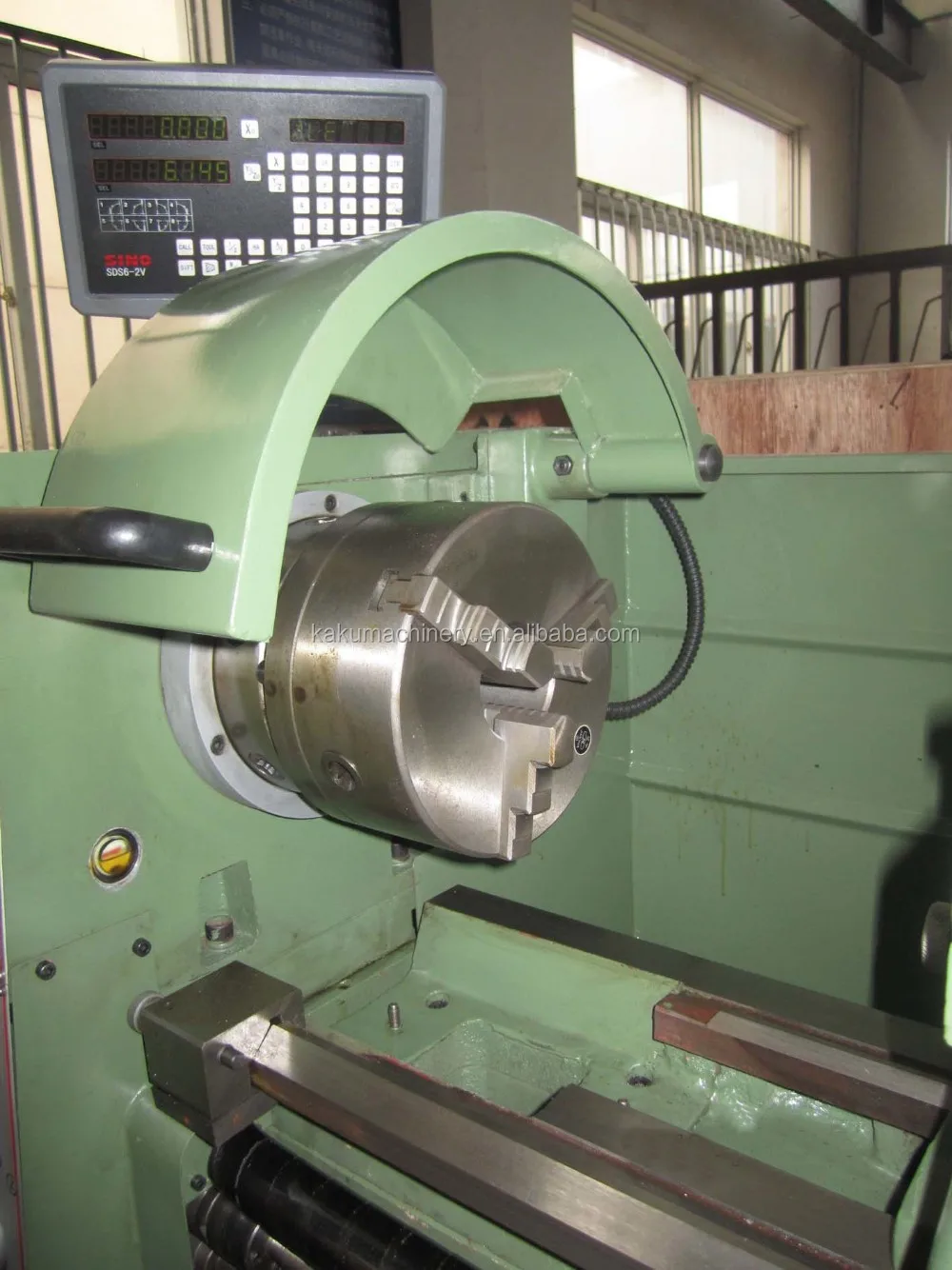

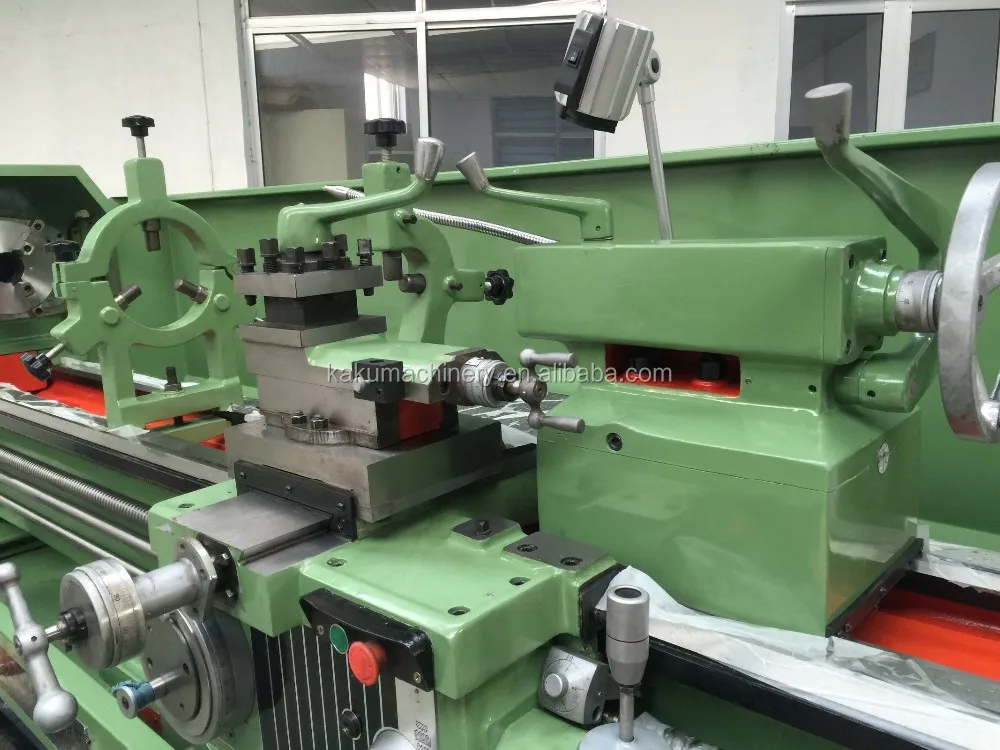

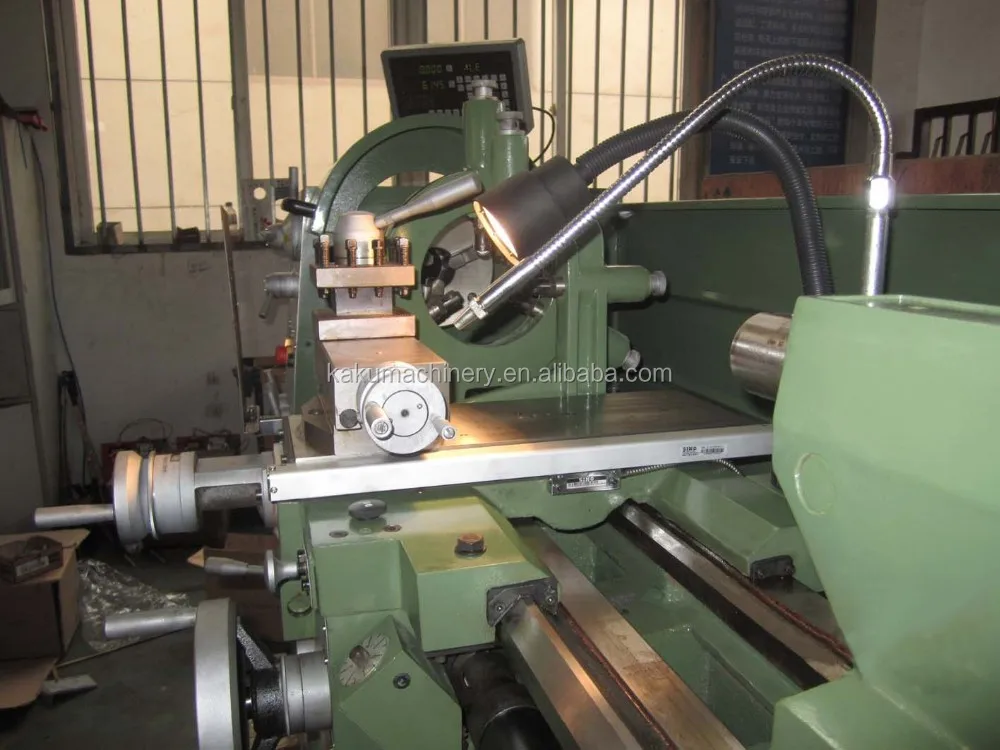

Detailed Images

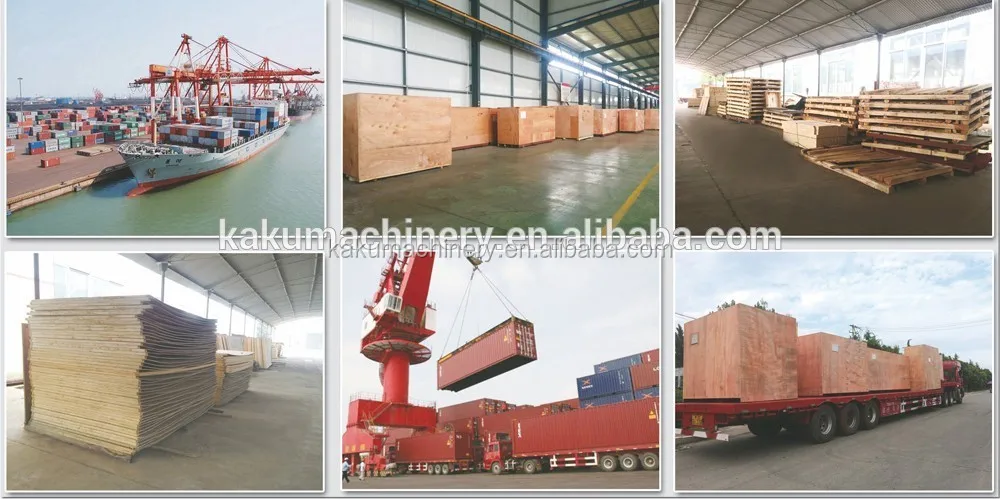

Packing & Delivery
Our Company

Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product testing process.

Our Service

● Machine preparation


All Machines go through a pre-delivery inspection carefully (inspect every spare parts, painting, package, and performance trial, and so on even tiny flaw won’t tolerate) by our experienced qualified service engineers. Installation & commissioning packages can be also offered (additional cost should be paid by client)

● Spare Parts

Spare parts is quite important for machine tools. KAKU machinery supply each machine is supplied with a full instruction manual and parts list.

● Warranty

All of our machines are made from cast iron and are quality checked both at the factory and before dispatch.


Guarantee Period: 1-year warranty period.


a, Within one year, we will offer free spare parts to change when the machine can not work in case of the natural use, not man-made destroy. But you need to pay for the shipping cost.

b,  After one year, we always have spare parts for you, not free.

● Service & support

If something wrong happened with your machine, our many experienced engineers are always here to help you.

Our company spirit: Integrity, Professional, Efficient and High Quality!

We insist on doing everything seriously, and continuously improve and enhance our team's capabilities and services.


If you are interested in our company's product, welcome to contact us and place an order. Thank you!
