ZHANGJIAGANG Plastic Mixing and Coloring Machine

Product Overview

Description

OUR HUAMING MACHINERY COMPANY WEBSITE:WWW.HUAMING.CN

Machine receiving customization

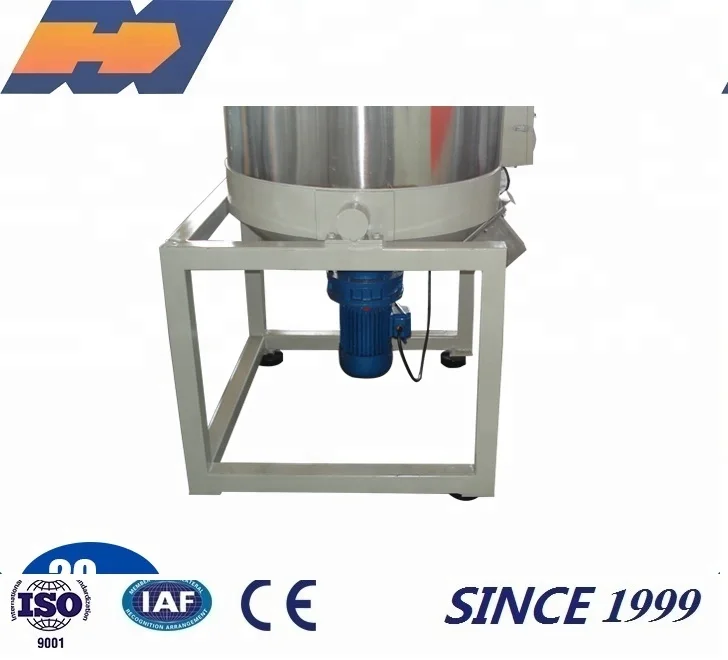

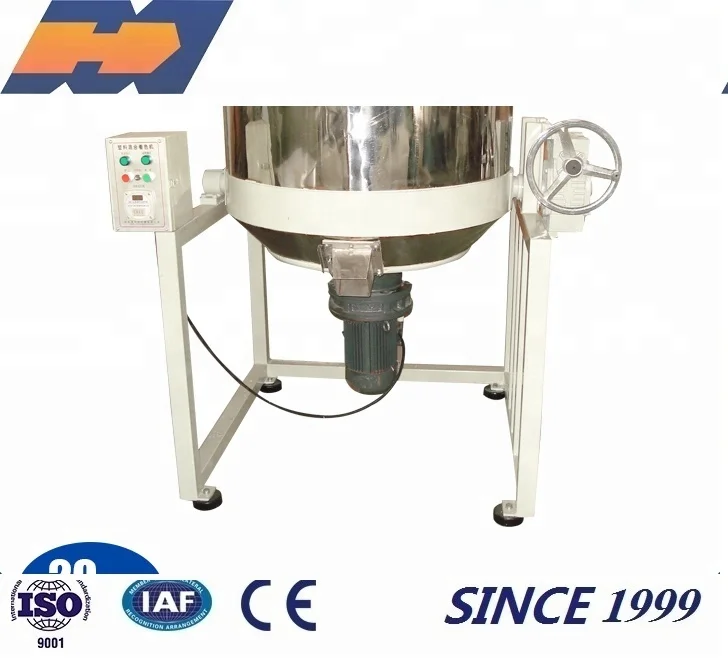

Plastic Mixing and Coloring Machine

Product Description



1.Both blades and barrel are made of stainless steel.

 2.Easy to install, disassemble and clean the paddles.

 3.Mixing in sealed barrel is safe and reliable.

 4.Completely mixing can be done in a short time.

 5.The mixing time is adjustable by electric timer.

1. Purpose and Scope of Application:

SH model plastic mixer, equipped with mixing vane, is used to mix plastic raw material with high speed. It is mainly suitable for mixing all kinds of granulated plastics and is one of essential equipments for plastic injector and extruder. It is simple in structure, easy yo operate, even in mixing.

2. Features:

Both mixing vane and pail are made of stainless steel. Easy to install disassemble and clean the mixing vane. Mixing in sealed condition is safe and reliable. Complete mixing can be done in a short time. Equipped with a time, the mixing time can be adjusted at option.

3. Main Technical Standards:







Model SH140×85 SH280×85 SH500×85 Mixing Volume(kg) 50 100 200 Charging Bashet Volume(L) 140 280 500 Roatating Speed of Main Bearung(r/min) 33 Timer(min) 3-20 Motor Power(kw) 1.1 2.2 3 Power Source AC380V3Φ Weight(kg) 250 350 450 Appearance Size(mm) 850×650×1200 1050×820×1350 1250×950×1450
