55 inch transparent lcd flexible advertising display with multi touch screen
- Category: >>>
- Supplier: Shenzhen Etk Technology Co. Limited
Share on (60719054196):
Product Overview
Description

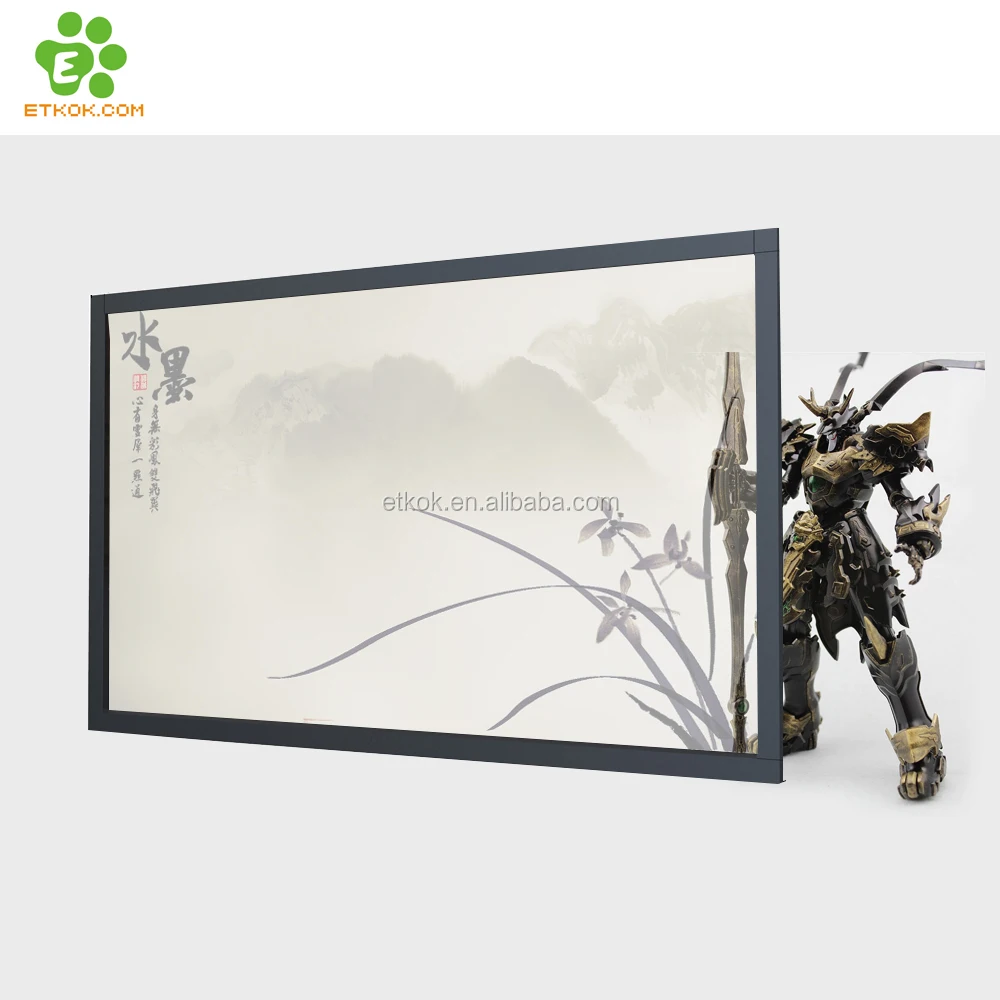

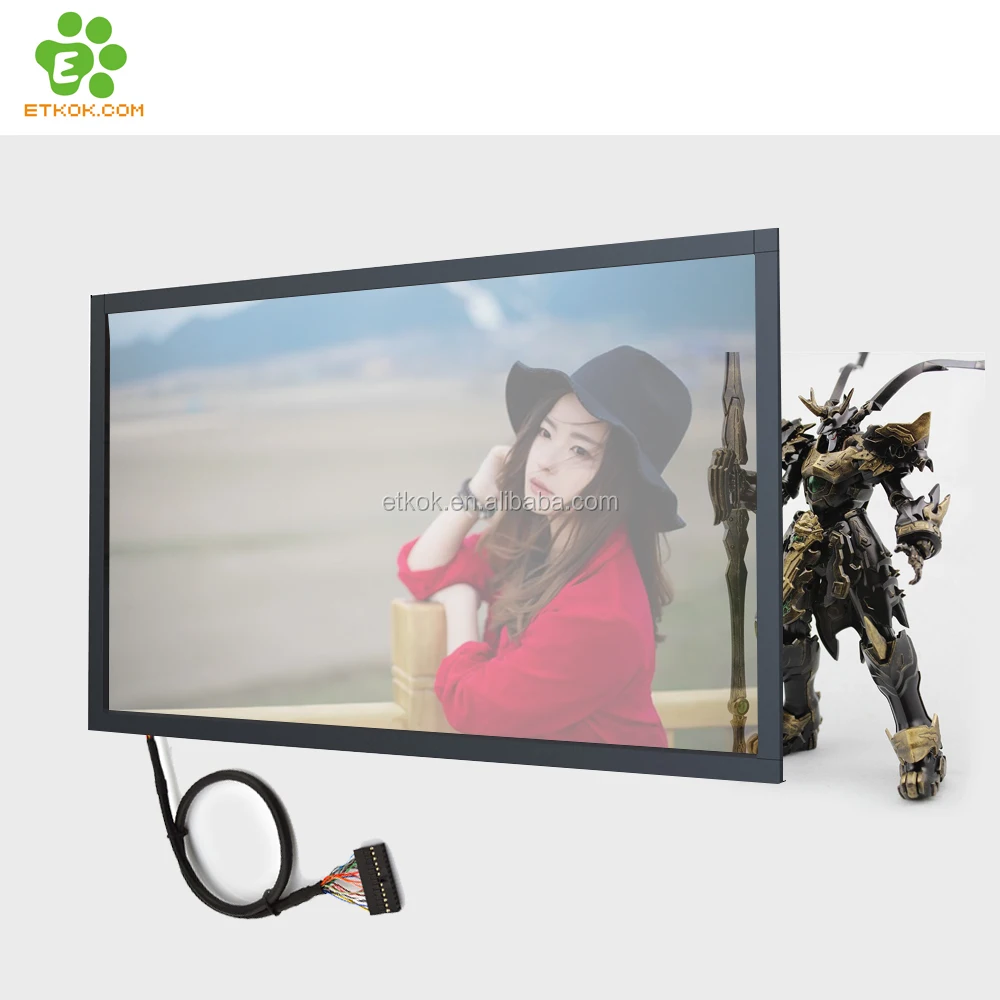

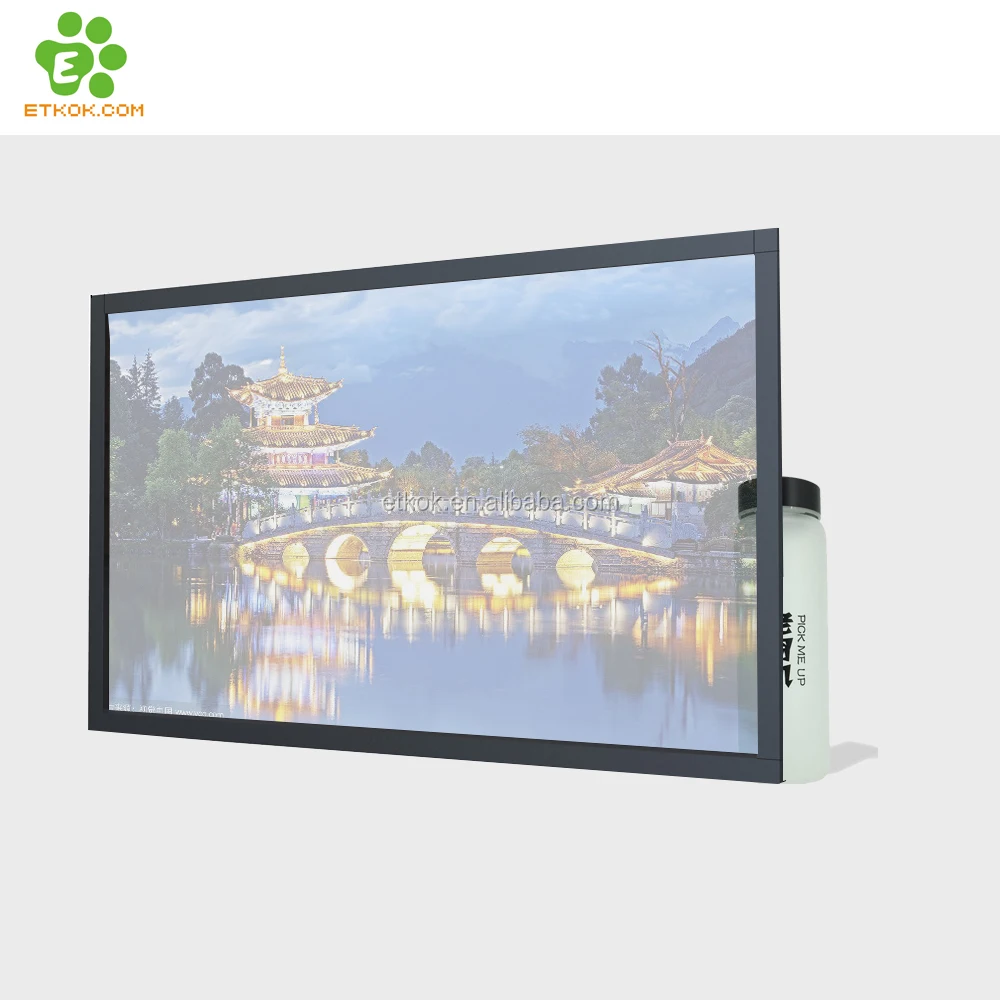

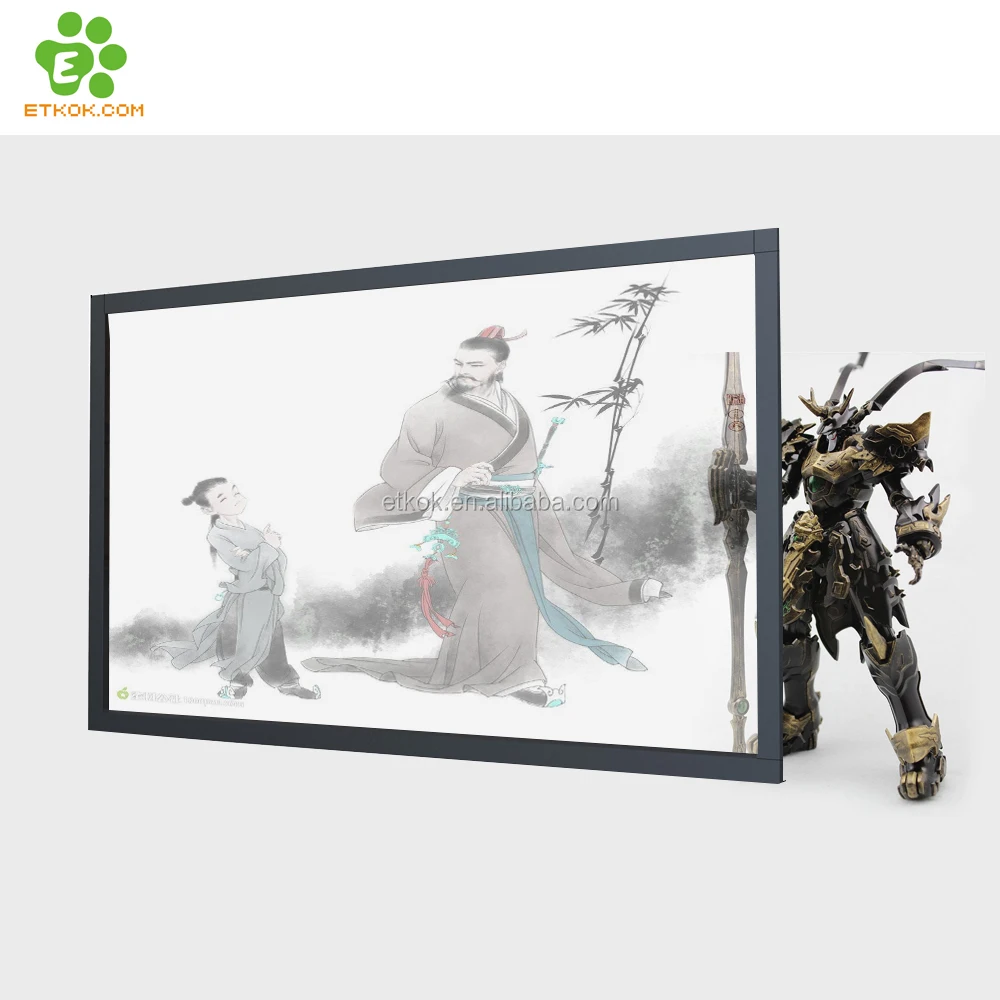

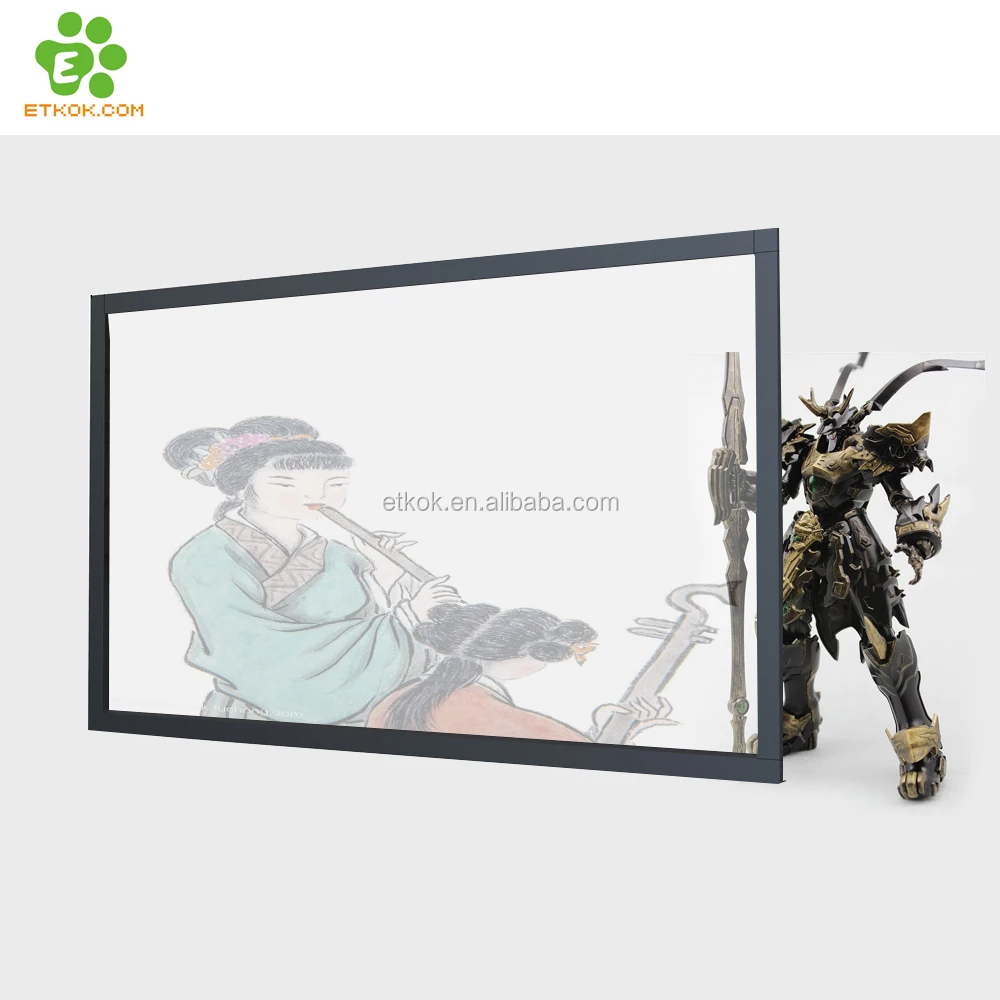

55 inch transparent lcd flexible advertising display with multi touch screen
Product Description
Transparent LCD Displays are the latest innovation in LCD technology, opening up a wide range of new opportunities in retail and marketing.
The technology allows you to display information / promotions on the digital display, whilst allowing you to see through it.
Shenzhen ETK have our own range of transparent displays manufactured for us, and as we control the manufacturing, we can not only offer more sizes than anyone else in the world, but also guarantee stable supply and long term availability. We can even add touch interaction with multitouch sensors available for all our transparent displays.
Specification
Panel Specification | Android Motherboard Specification |
55'' TFT LCD Panel: 1211.6×682.4 mm (H×V) | CPU: 1.5GHz, Quad Core Operating system: Android 5.1 |
Touch screen type: 10 Points IR touch | RAM/ROM: 2G / 8G (Optional) External Memory: SATA (SSD) / USB / SD card / TF card |
Max. Resolution: 1920×1080 | Storage type: Built-in, USB, SD |
Viewing angle: 178° / 178° | Auto-power on & off: Can be set up |
Display color: 16.7M | Power-off memory function: Can be set up |
Brightness: 500nits (optional) | USB2.0 port: 2* USB slots, external mouse and keyboard |
Contrast: 1400:1 | Optional input & output: VGA input / HDMI input |
Response time: 5ms | System upgrade: USB / network upgrade supported |
Pixel Pitch: 0.4902×0.4902 (H×V) | Video Format / Picture Format: MP3, MP4, JPG, MPEG1, MPEG2, MPEG4, VOB, RM, RMVB etc. / JPG, BMP, PNG etc. |
Max power consumption: 60W | Split screen: Pic / Video / Video+Pic / Video+Subtitle / Video+Subtitle+Pic. Scrolling marquee available |
Standby power consumption: lower than 1W | |
Working humidity: 10%~90% (Without dew) | Power supply: AC100-240V; 50-60HZ |
Working temperature: 0℃~40℃ | |
Storage temperature: -30℃~+60℃ | Accessories: Remote-control*1, Instruction manual*1, Anti-theft lock, Key*2, Power supply cable |
Main Feature
1. 55 inch transparent lcd display with IR multi touch for optional.
2. 55 inch transparent LCD screen, Support 1920*1080 resolution
3. Support the Windows7/8, Android,Linux system, with Wifi/3G or USB/SD card
4.it is only transparent LCD display panel, not transparent display box.
5.55 inch transparency LCD display panel, it is ideal choice for showing cabinet, Kiosk,advertising box etc.
6.Just simply display pictures or video via the VGA/HDMI/USB interface.
7. Equipped with transparent lcd showcase/bookcase/ refrigerator/ or Only Screen
8. For New products presentation, Commercial Advertisement, high technology
Size Optional
| LCD Size(Diagonal ) | Part number | Resolution | Aspect ratio | Contrast | Optional touchscren? |
| 10.4" | ETK-TLCD104 | 800*600 | 4:3 | 700:1 | Yes |
| 12.1" | ETK-TLCD121 | 800*600 | 4:3 | 800:1 | Yes |
| 15" | ETK-TLCD150 | 1024*768 | 4:3 | 1000:1 | Yes |
| 17" | ETK-TLCD170 | 1280*1024 | 4:3 | 1000:1 | Yes |
| 19" | ETK-TLCD190 | 1280*1024 | 16:10 | 1000:1 | Yes |
| 21.5" | ETK-TLCD215 | 1920*1080 | 16:9 | 1000:1 | Yes |
| 22" | ETK-TLCD220 | 1680*1050 | 16:10 | 1000:1 | Yes |
| 23.6" | ETK-TLCD236 | 1366*768 | 16:9 | 1000:1 | Yes |
| 26" | ETK-TLCD260 | 1366*768 or 1920*1080 | 16:9 | 1400:1 | Yes |
| 32" | ETK-TLCD320 | 1920*1080 | 16:9 | 3000:1 | Yes |
| 42" | ETK-TLCD420 | 1920*1080 | 16:9 | 3000:1 | Yes |
| 46" | ETK-TLCD460 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 50" | ETK-TLCD500 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 55" | ETK-TLCD550 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 65" | ETK-TLCD650 | 1920*1080 | 16:9 | 4000:1 | Yes |
Buying Guides
Each transparent LCD is sold as a kit, and includes the transparent lcd display, media board, USB,HDMI or VGA cables for optional and power supply.
We have three kinds of media board for you,Difference media board with difference function,Please choose one media board according to your request and application.

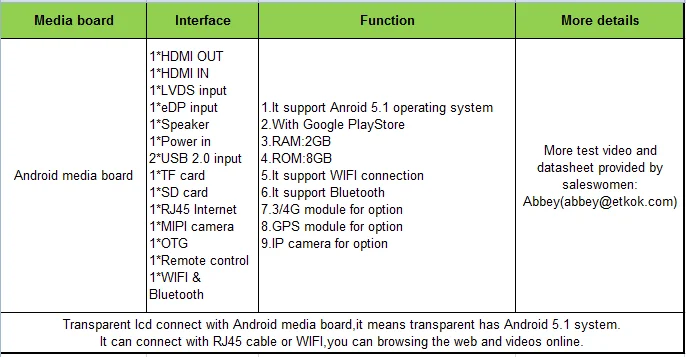

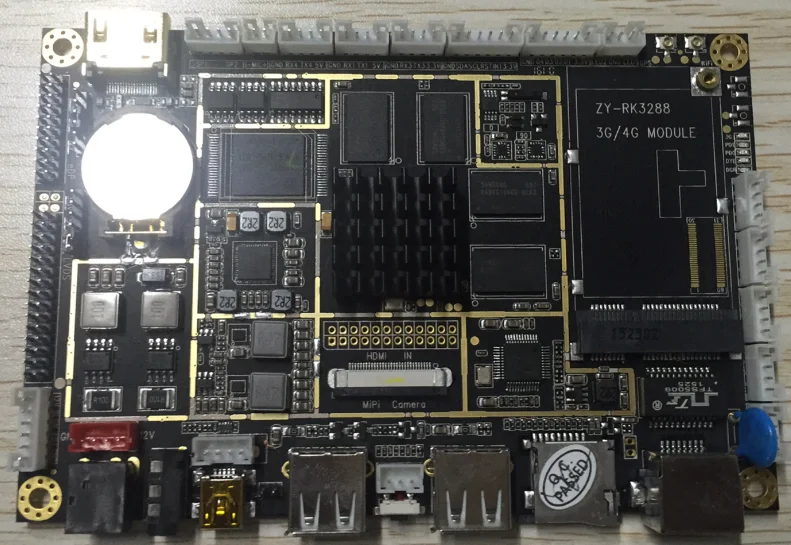

Picture for Android media board:
Working Condition
These transparent displays are designed for integration within your own housing / chassis.

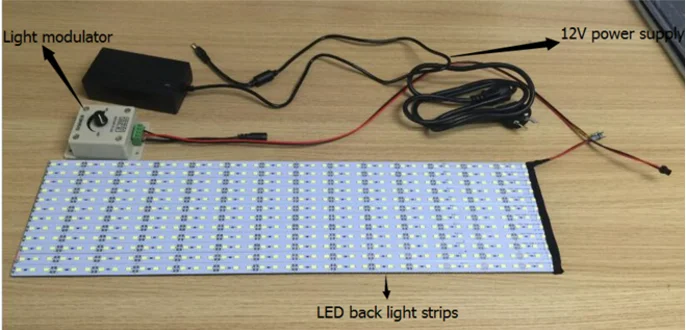

Please note as the displays do not have a backlight you will need to integrate a light source behind the display to gain the transparency.
Application

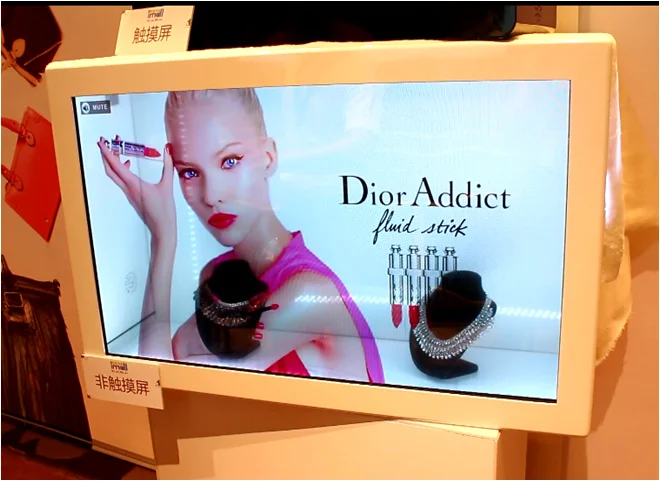

Customer order transparent lcd panel from our company and make a metal housing for it,make transparent lcd box for exhibition:

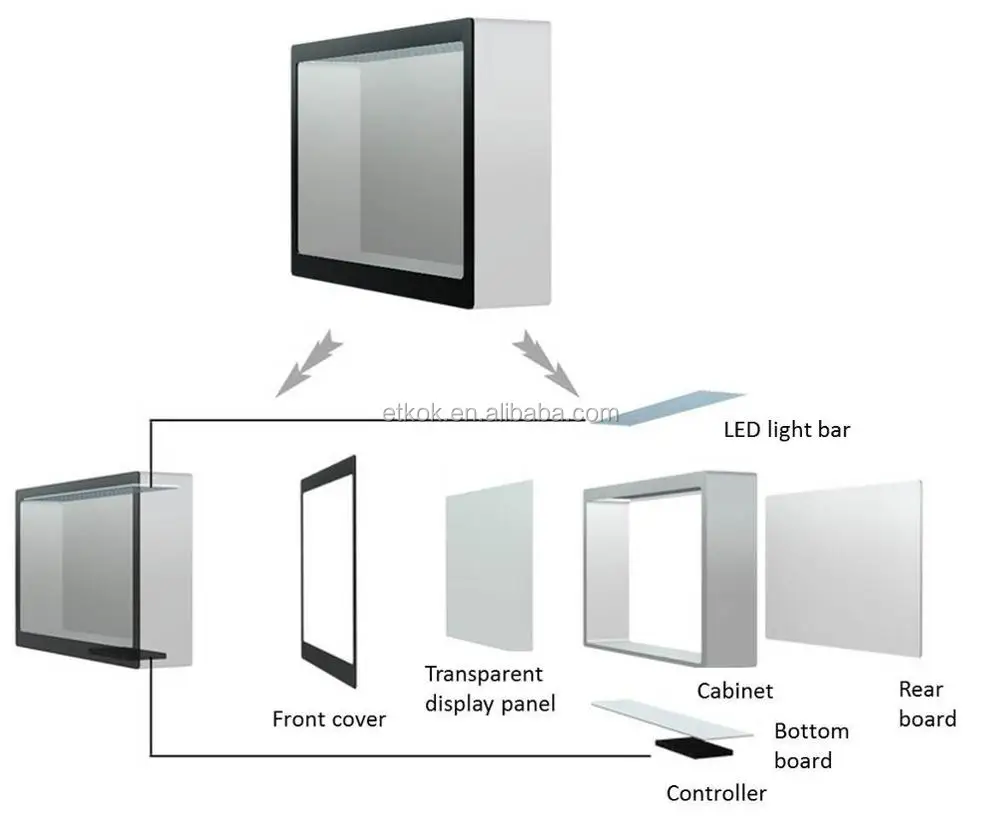

How we make transparent lcd box?

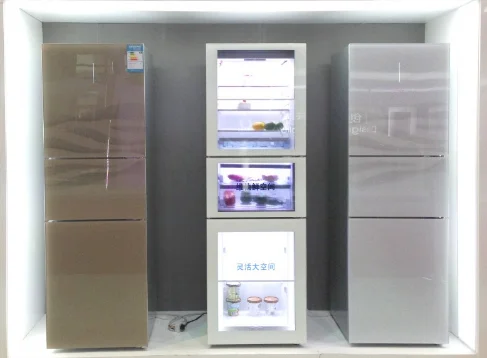

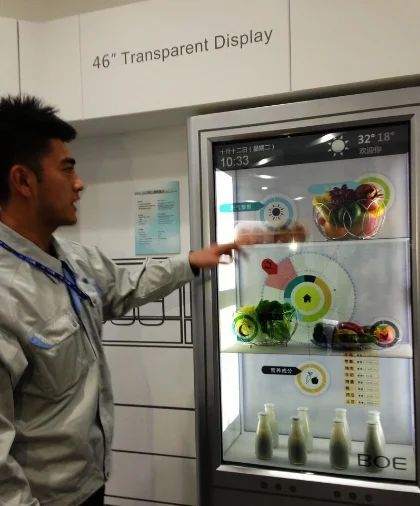

Have you seen transparent lcd refrigerator on supermarkt?Do you know it is made by transparent lcd panel and refrigerator?

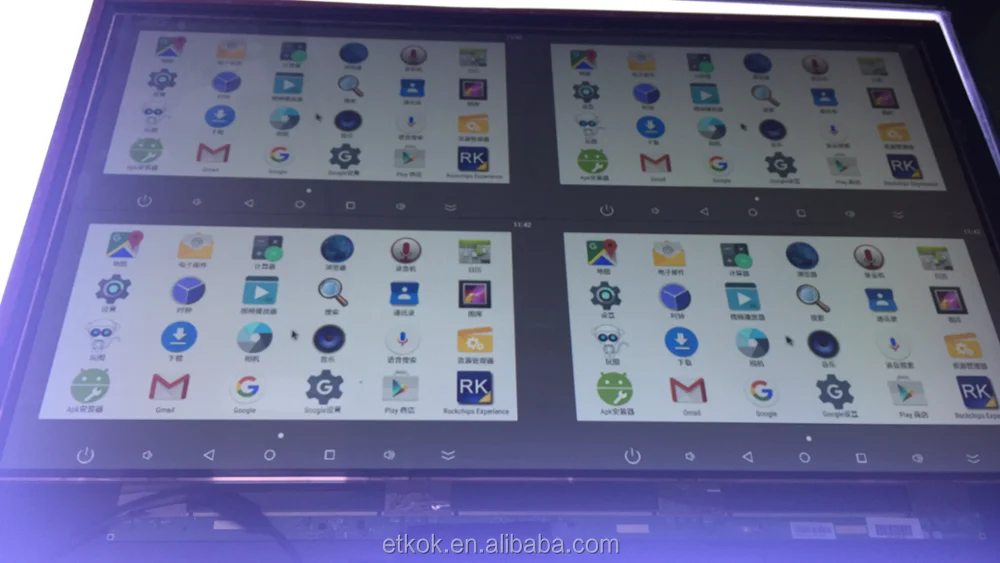

More picture for 32 inch transparent lcd panel:
Hot Sale Recommend
You can buy transparent lcd panel from us,or Transparent LCD box.
Transparent Touch Foil for Window Display
Magic product,It turns any glass into touch screen.
Do you need desktop touch screen monitor?
Waterproof IR multi touch screen
IR touch screen can turns your desktop computer with touch function
If you are interested in infrared touch screen panel,please contact me in below ways,answer you in 10 minutes:
Contact person:Andy
Telephone:+0086 18118731787
Skype:Abbey_301
Whatsapp:+0086 18118731787
Wechat:abbey1992316
QQ:3277720486
