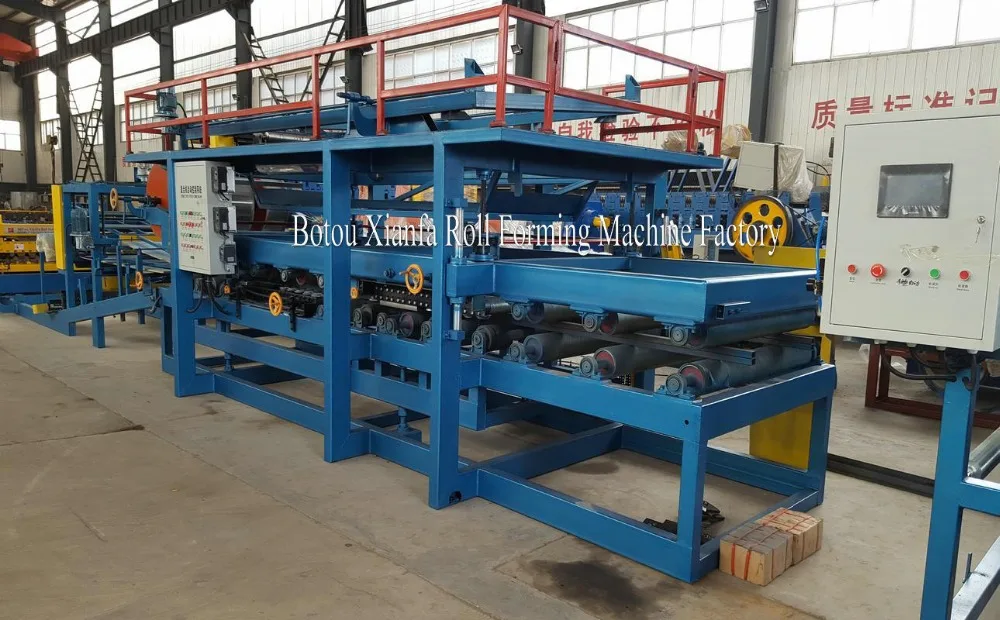

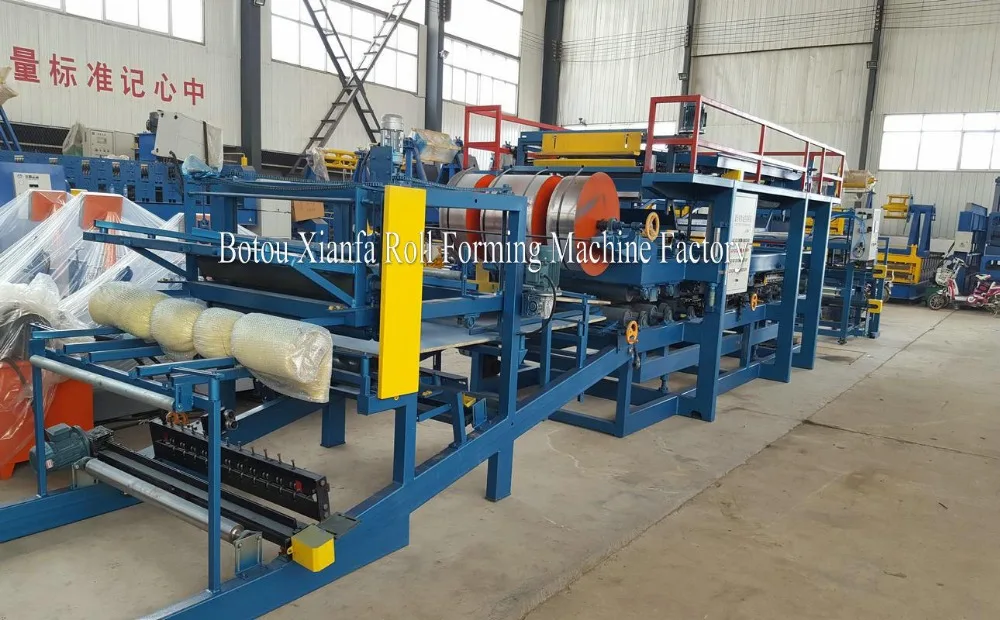

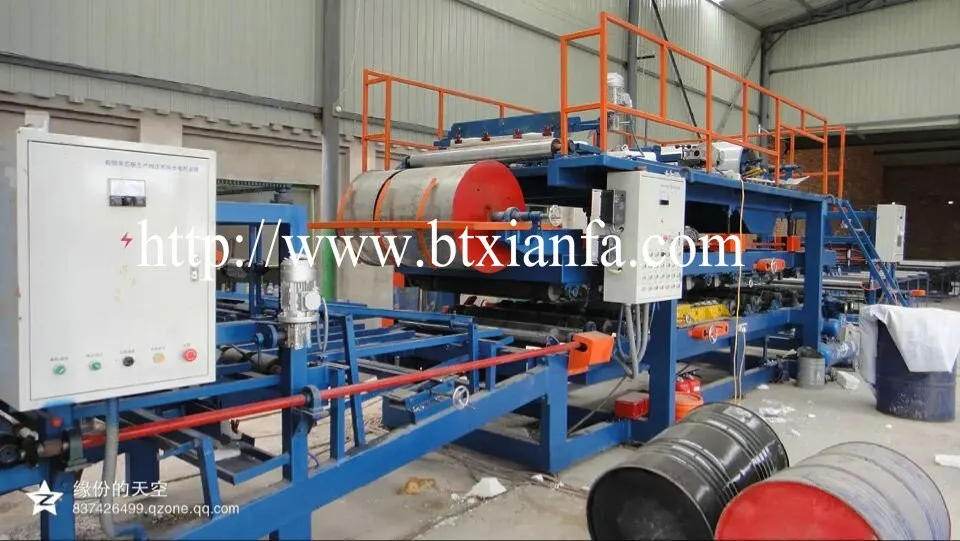

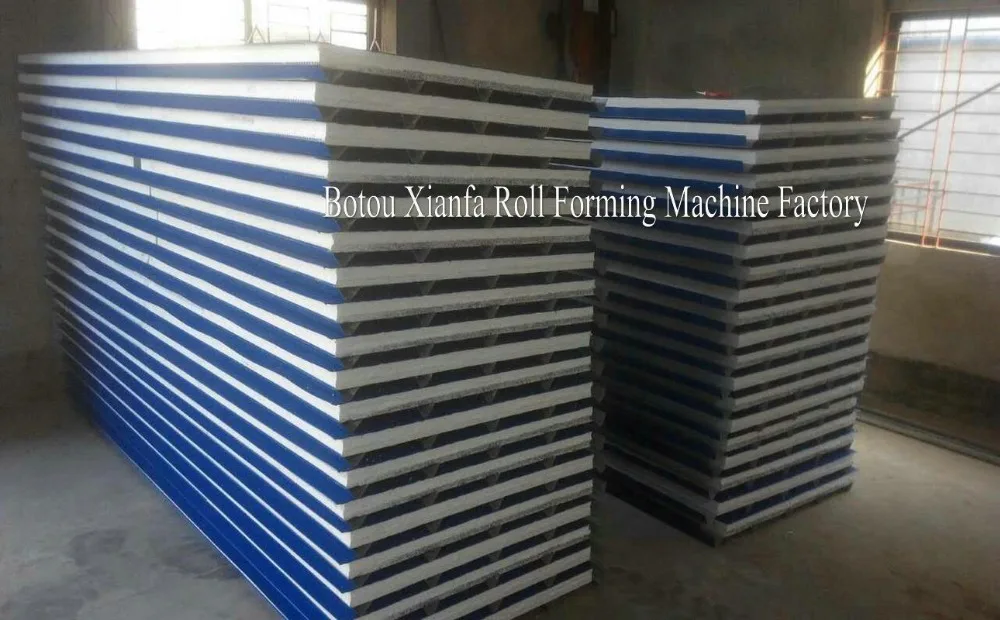

rockwool and foam sandwich panel roll forming machine manufacturing equipment

No

 eps sandwich panel machine; sandwich panel machine, sandwich panel forming machine, sandwich panel roll forming machine; sandwich bottom machine sandwich panel machine price

1

Suitable Material

Colored Steel plate, Galvanized board

2

Width of the raw material

1000/1200mm

3

Total Power

28KW

4

Thickness of raw material

0.3-0.7mm

5

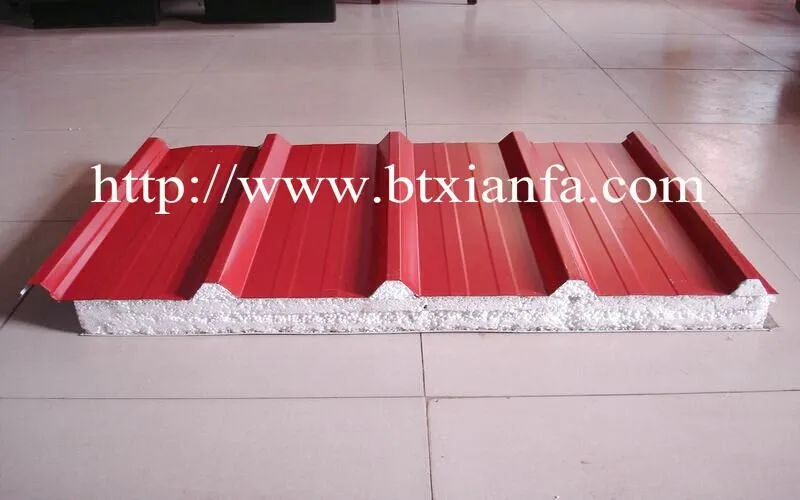

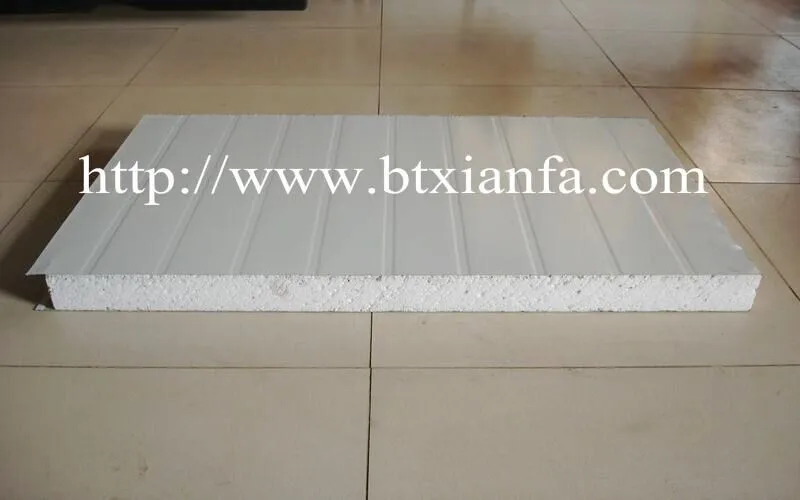

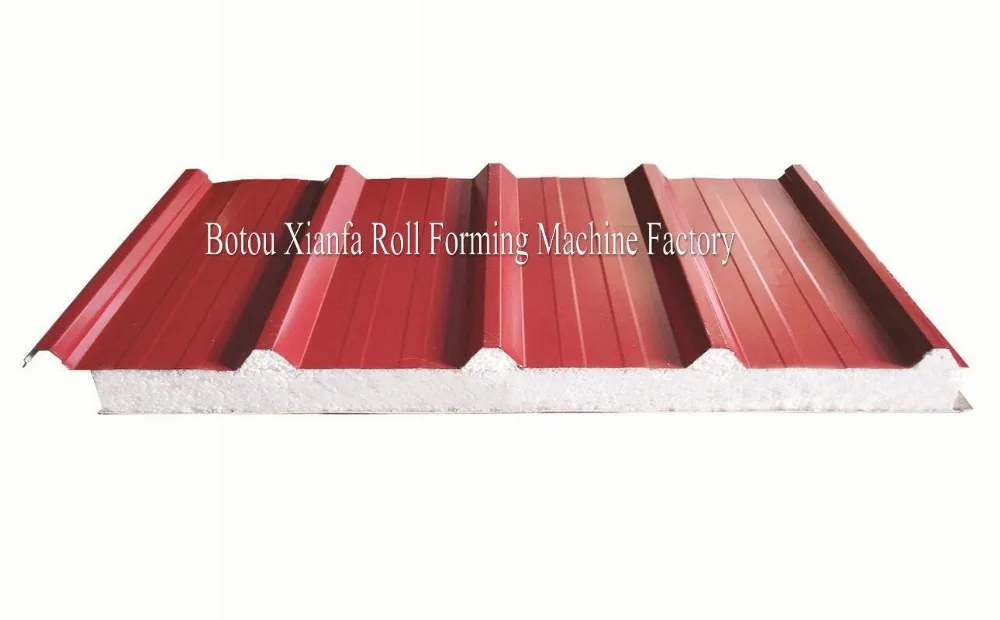

Thickness of Panel

50-200mm

6

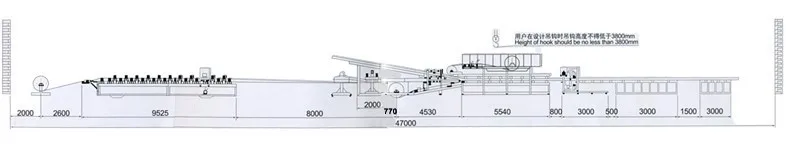

Machine Length

About 33 meters

7

Speed

0-4m/min

8

Voltage

380V  50Hz 3phases

Decoiler

1 It adopts coil holder with break device.

2 Loading capacity: Less than 6T

3 Width: 1200mm

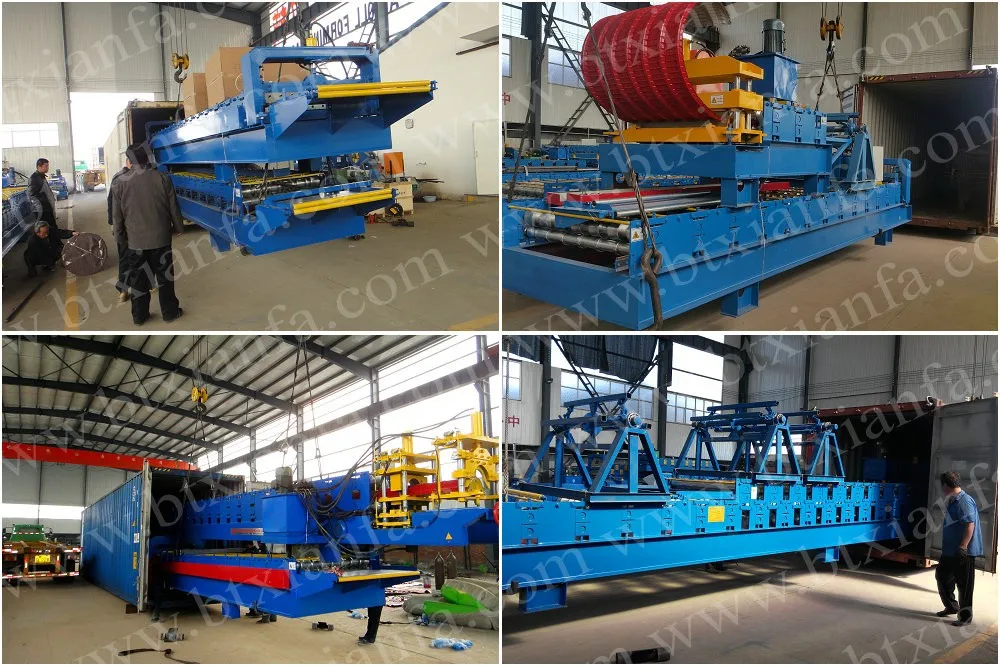

Roll Forming Machine

1 Main Frame: 300 H steel welding

2 Main Board:14mm

3 Shaft diameter:70mm

4 Roller Station:15row(Roller material 45# steel,roller surfaces polishing, hard plating)

5 transmission way: chain draive

6 Power:3KW

7 Feeding Device has pre-cutter

8 Size::6800X1500X1300

9 Weight:About 3 T

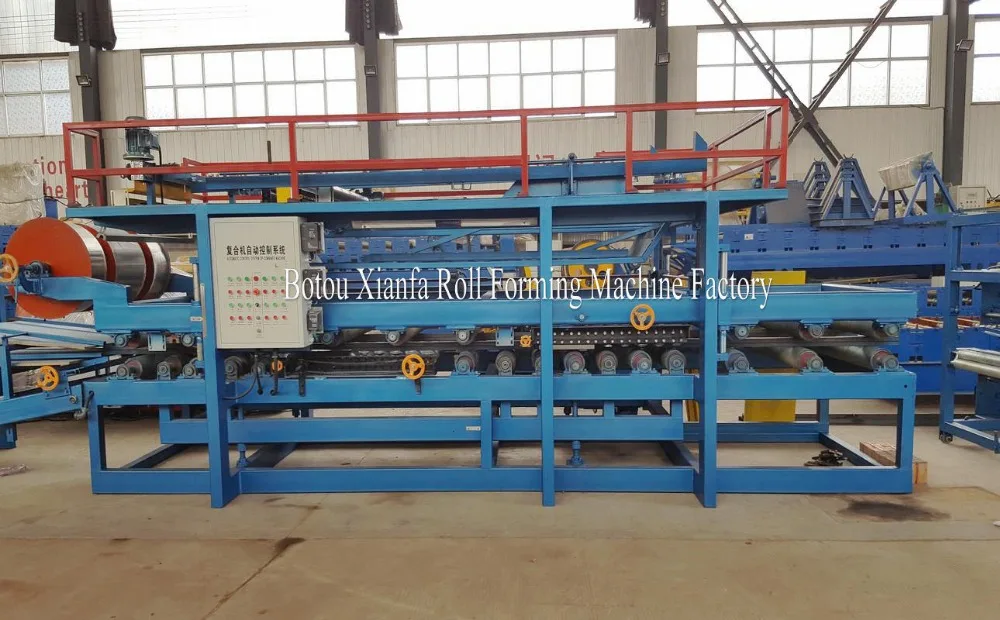

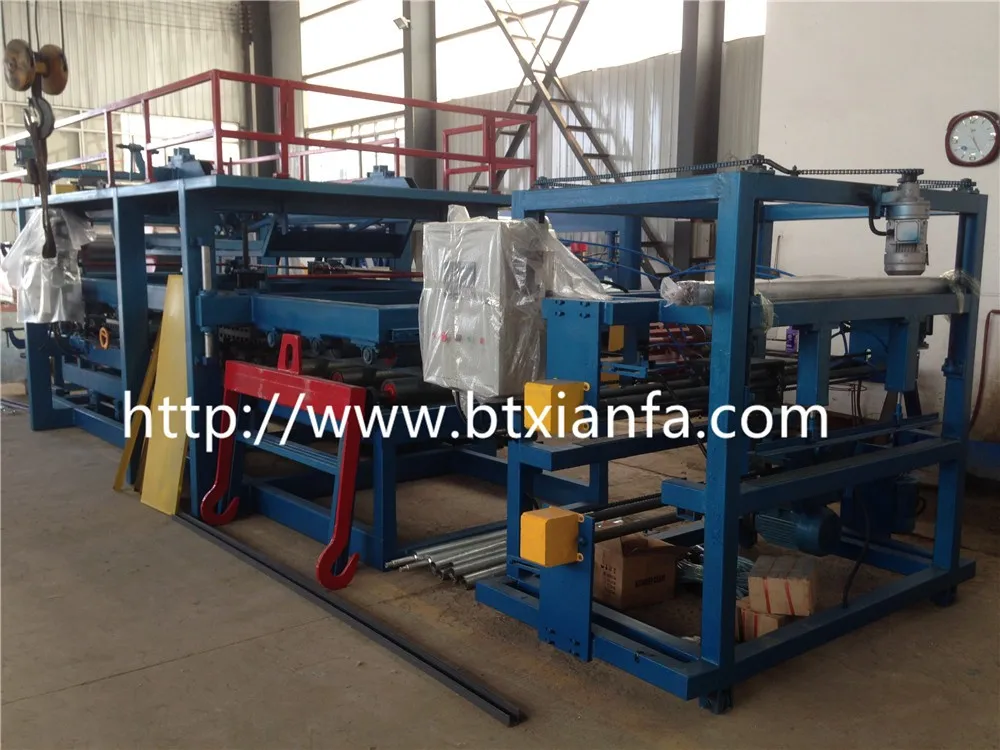

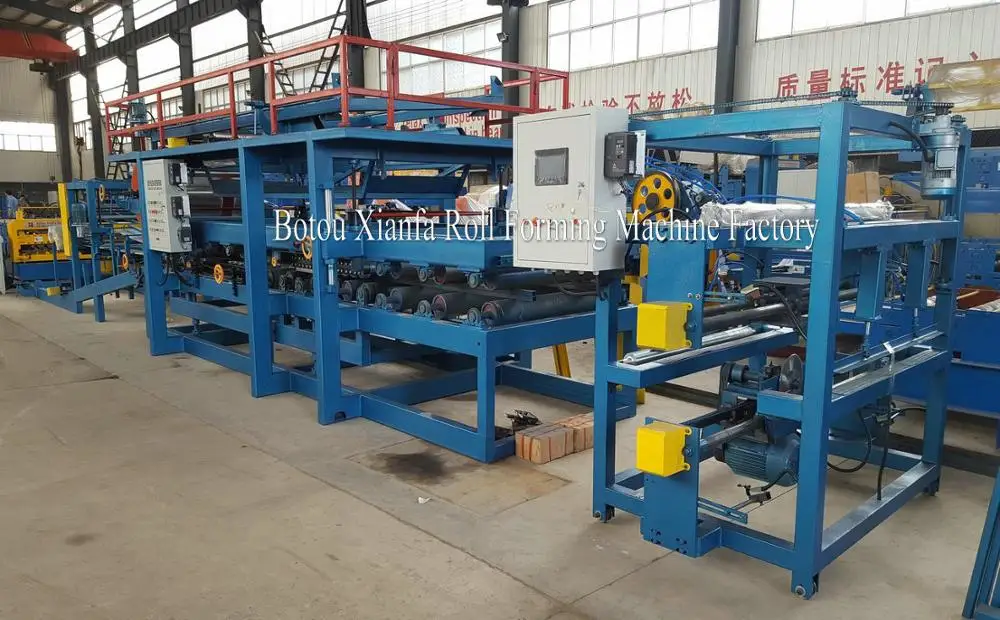

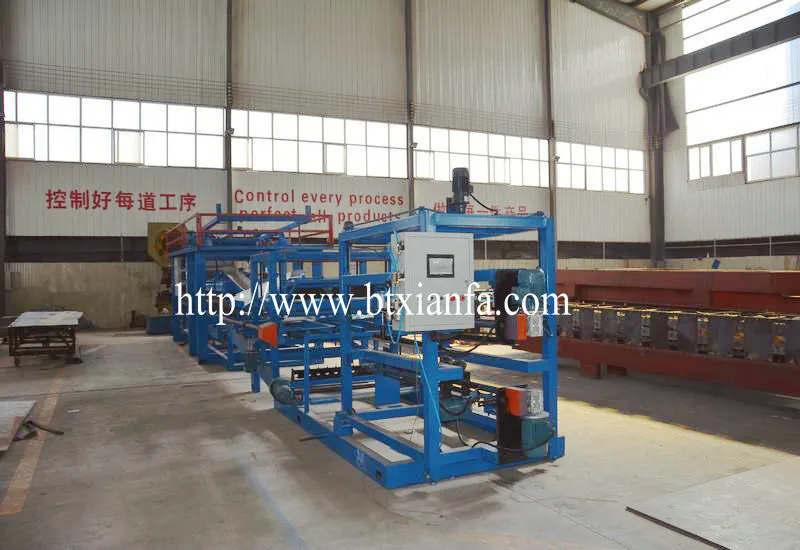

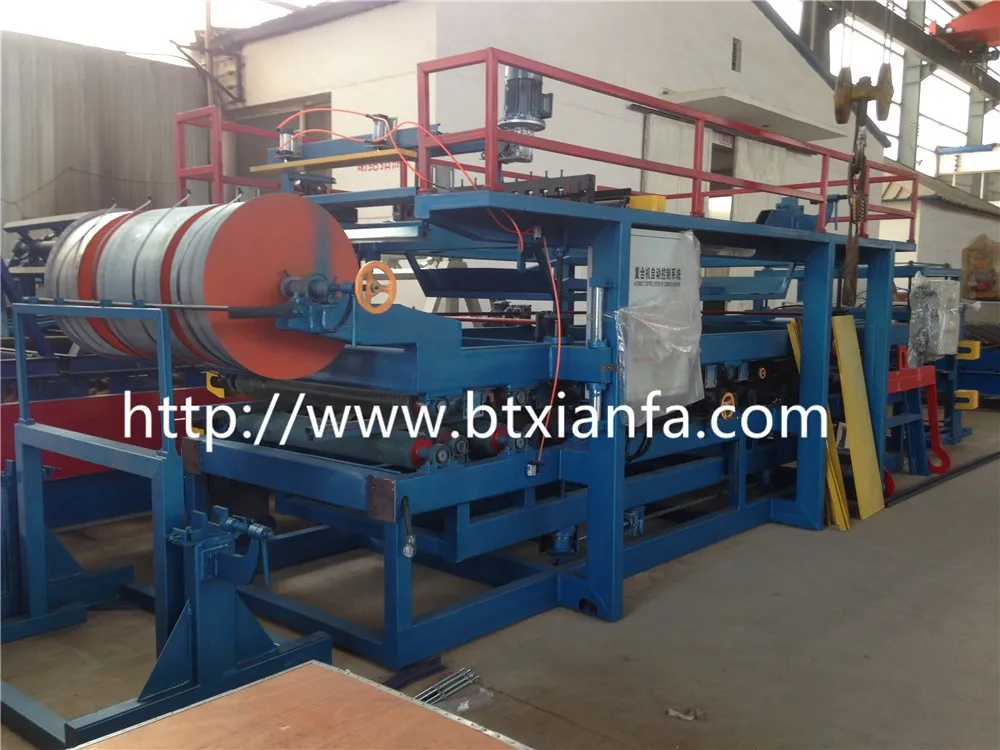

Composite Part

1 This part including: Press rib, glue, heating, combine, slotting, ending and pneumatic move up and down.

2 Main machine adopts frequency conversion

3 Thickness adjustable by electric

4 Shaft of combine shaft:150mm, material is steel with rubber cover,to avoid any wear

5 Foam machine has 18 roller shaft, Rib rollers 6 rows

6 Transmission Way:Transmission and chain drive

7 :Reduction box power: Foam machine 3KW,with reduction box.

8 Main frame adopts square tube welding ,to make sure machine is stable and work smoothly

   Size:11.5X2.3X2.5m

Electric system

1 Control: DELIXI low-voltage apparatus

2 Specification :programmable PLC and Delta PLC,  double calculator, to insure the length

3 7inch touch screen ,failure warning

Cutting Part

1 Non stop cutting , Pre-cutter can cut the length automatically

2  Pneumatic pressing device, control the cutter. And back to revious after cutting.

3 Cutting method: saw and cutter

4 Power:4KW

5 Size:3X2X1.5m

6 Weight:1 T.

Feeding material of composite and roll forming part:1200mm

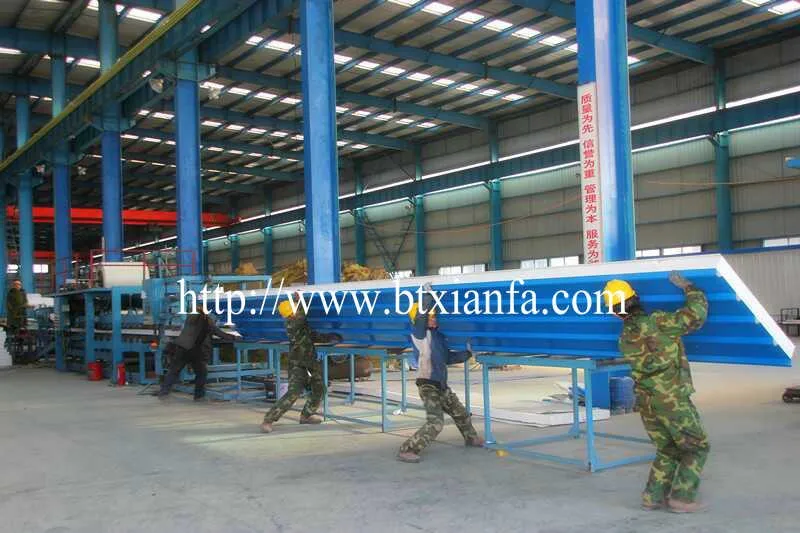

Stacking Part

1 It adopts angle iron and square tube

2 Every stacker has 4 roller

3 Size; 3X1.3X0.8m

4 holding hook 1 piece, uncoiler core: 4 pieces, uncoiler holding part: 1 piece.

No.

set

Name

No.

Set

Name

1

1

Uncoiler

15

2

remain glue reciver

2

1

Main composite machine

16

4

Uncoiler core

3

2

Cutting machine

17

1

φ250milling cutter

4

2

Transport table

18

18

Adjusting block

5

1

Roll forming machine

19

25m

Plastic foam

6

1

foam holder

20

20m

Bubble wrap

7

4

Holder pipe

21

1

Pipe tip

8

1

coil uncoiler

22

1

seal gum

9

1

 ladder fence

23

2

chuck

10

1

coil hook

24

2

filter screen

11

6

 dropper

25

2m

sponge

12

3

Branking vane

26

1

Fluorescent tube

13

6

 hopper

27

6

Infrared ray heating tube

14

4

Glue brush
