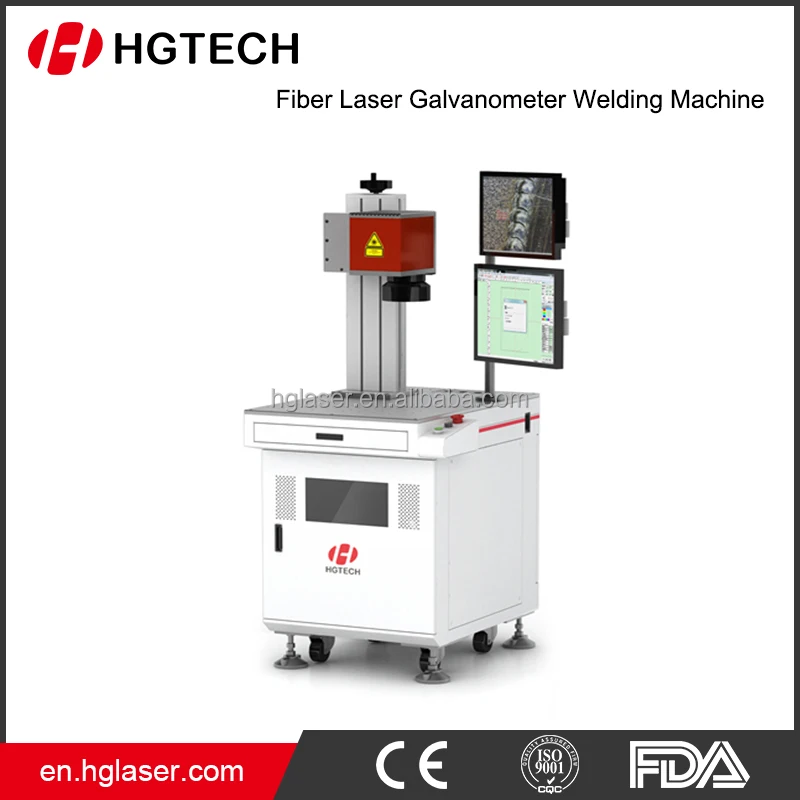

LWF150QC Fiber Laser Galvanometer Welding Machine

Product Overview

Description

LWY60 spot laser welding machine price

 Welding Machine  is using 1.064μm wavelength pulse laser focus and eradiate on the surface of work piece which can be melted by laser energy and produce special melt pool. The laser energy,  peak power, pulse width and frequency can be controlled by precise numerical controller.  HGL-LWY60/100 Spot Laser Welder is suitable for spot welding, seam welding and repairing welding for many kinds of metal materials.



Highlights:

• Precise Welding
• Microscope system ensure the precise welding
• The protective gas controlled by program ensure the quality of the welding
• Ceramic Laser Cavity Adopted
• The optimum welding spot has symmetrical energy distribution.
• The optic-electric transferring efficiency is higher than the kind of products.
• No need unpacking and washing.
• 3~4 times long life time of Xenon Lamp
• Fast welding speed , deeper melt pool, less distortion.
• Tight welding spot, easy to operate, no need filling material.

Smaples:



Application:

 It is widely used in welding of golden, silver, platinum, stainless steel, titanium and alloy material and widely used in the fields of aviation, airspace, weapon, naval vessel, GEM products, jewelry, precise mould, dental mold, hardware and so on.

Technical Parameter:

Model	LWY60/100
Laser medium	Nd3+:YAG
Wavelength	1064nm
Max single pulse energy	25J/50J
Average output power	60W/100W
Focused spot diameter	0.20-1.5mm (Adjustable)
Pulse width	o.1-10ms (Adjustable)
Pulse frequency	1-20Hz (Adjustable)
Protective gas	One Route
Power supply	220V,50Hz,4.5KW
Dimension	830×560×1045mm
