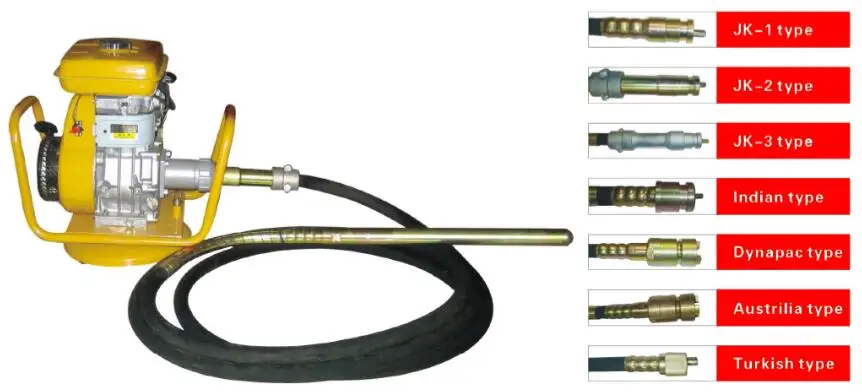

Description Internal concrete vibrators use the pendulum principle. 3,000rpm of the drive unit translates via the flexible shaft into 12, 000 vibrations per minute in the poker head. The low output speed ensures high reliability and extended service life. It can be used between two types of drive units (interchangeable): electrical motor and petrol or diesel engine drive units series, with 7 standard poker diameters. The vibrator poker is top of the range poker head suitable for professional application. JK serials vibrator poker 4~12m length, Bar diameter 28mm, 32mm, 38mm, 45mm, 50mm, 60mm, 70mm Features 1. stable operation 2. good mechanical performance 3. band pressing design, easy to mend the poker 4. good anti-wear performance JK-SERIES Inserting Pendulum Vibrator Poker
Model
Vibrating Head Size
Vibration (V.P.M)
Vibration Amplitude (mm)
Flexible Shaft Diameter
Rubber Hose Diameter and Length
JK-28
28mmx47cm
10,000~15,000
0.9
8mm
JK-32
32mmx47cm
1.1
10mm
30mmx4m~6m
JK-38
38mmx47cm
1.6
10mm
30mmx4m~6m
JK-45
45mmx47cm
2.0
10mm
30mmx4m~6m
JK-50
50mmx47cm
2.2
13mm
32mmx4m~6m
JK-60
60mmx47cm
9,000~12,000
2.4
13mm
32mmx4m~6m
JK-70
70mmx47cm
2.6
13mm
36mmx4m~6m
Concrete Vibrator Driven unit- electrical vibrator motor Additional Specification
Model
Motor type
Voltage
Power
Frequency
Speed
Weight
Dimension
ZN-B
Brushless Motor
110v/220v/380v
1.5hp/2hp/3hp
50/60hz
2850rpm
16kgs
37x29x32cm
ZN-C
110v/220v/380v
1.5hp/2hp/3hp
50/60hz
2850rpm
18kgs
35x28x30cm
JY160
Brush motor
110v/220v
1.6kw
50/60hz
4000rpm,
7kgs
41x22x22cm

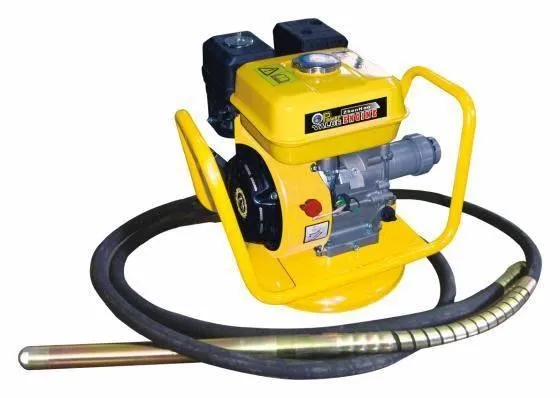

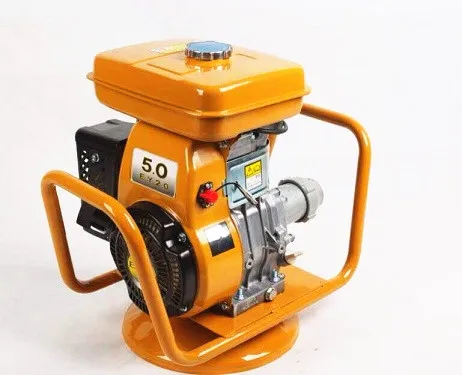

Concrete Vibrator Driven Unit -gasoline engine/diesel engine

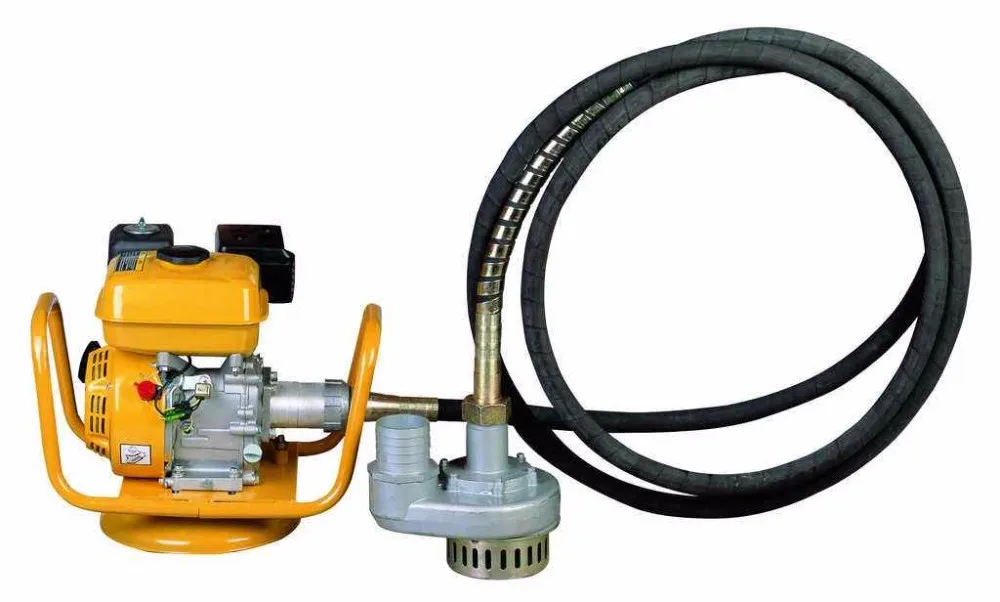

Shandong Yanggu Dongrun Construction Machinery is one of the leading company ,which specializes in manufacturing all kinds of rubber hoses ,steel wire braided flexible shafts ,concrete vibrators and flexible shafts submersible pumps etc.
