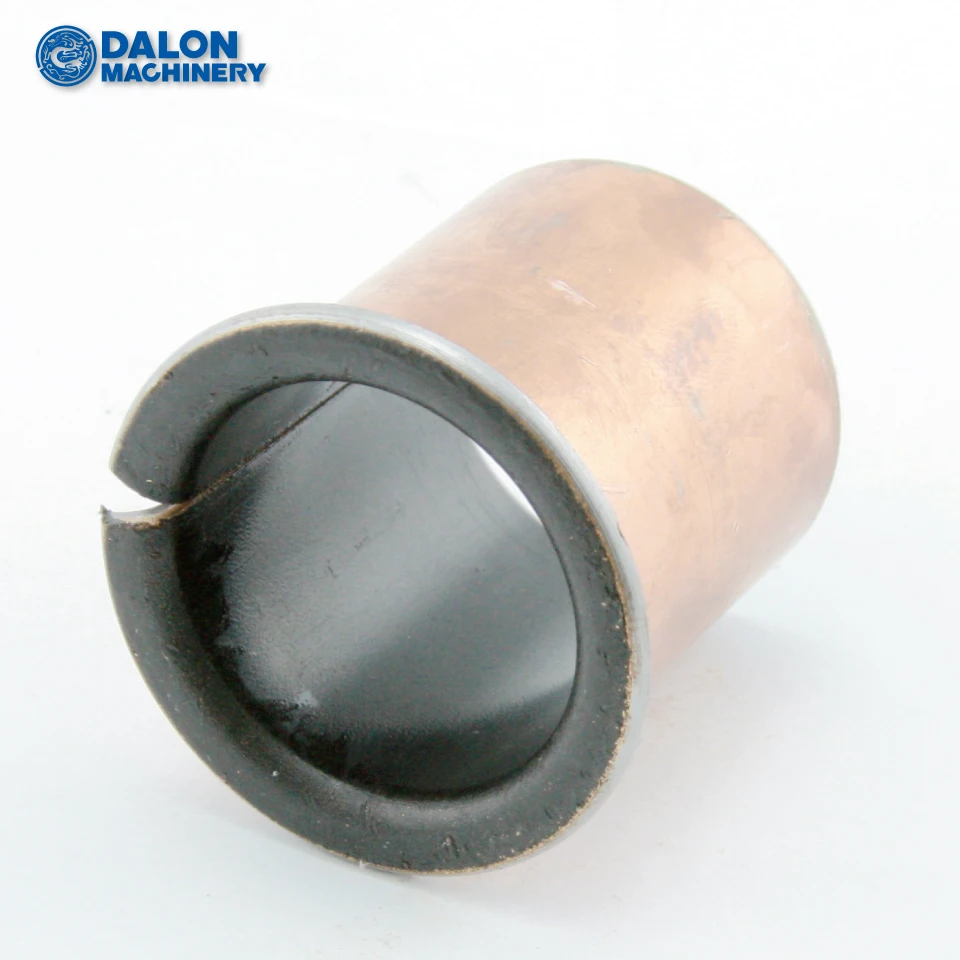

1010 oilless du self lubricating PTFE sleeve bushing bearing with copper tin plating
- Category: >>>
- Supplier: Dalon Machinery Co. Ltd.
Share on (60719196391):
Product Overview
Description
| Oilless Sliding Self Lubricating Products | |||
| Material Backing Base: | Steel Backing / Low Carbon Steel / Stainless Steel / Brass | ||
| Material Porous Layer: | SAE841;ASTM B438-70 GR1 SintA50 ; CuSn6-6-3;CuSn8/3 | ||
| Material Sliding Layer: | PTFE+Pb ; PTFE / non lead ; POM ; Resin with Graphite | ||
| Working Temperature: | -195ºC ~ +280ºC | Static Max Load: | 250N/mm2 |
| Dynamic Max Load: | 140N/mm2 | Certification | ISO9001:2015 |
| Oscillating Max.Load: | 60N/mm2 | Warranty | 12 Months |
| PV Limit ( *Dry): | 3.6N/mm2. m/s | PV Limit (*Oil): | 50N/mm2. m/s |
| Friction Coeff. | 0.03~0.20 | Speeds Limit (*Dry) | 2.0 m/s |
| Speeds Limit ( *Oil): | 5.0 m/s | Tolerance Range: | DIN1494 ; Go/No Go |
| Coeff.of linear expansion | 27x10-6perºC | Basic Shape: | Cyclinder ; Flange ;Washer |
DALON ALSO COULD OFFER SERIES OF POWDER METALLURGY PRODUCTS AS ABOVE
- INSERTING TYPE MUFFLER PNEUMATIC AIR SILENCER
- SINTERED POWDER METALLURGY FILTER BY MATERIAL BRONZE / STAINLESS STEEL /PE
- OILLESS SLIDING BEARING WITH SINTERED BRONZE LAYER / PTFE
- SINTERED PARTS / GEARS / ROTORS / SPEICAL DESIGNED COMPONENTS
| Bearing Type | Plain |
| Plain Bearing Type | Split Sleeve |
| ID | 10mm |
| ID Tolerance | F7 |
| OD | 12mm |
| OD Tolerance | r7 |
| Length | 10mm |
| Length Tolerance | js13 |
| Middle Layer Material | Tin Bronze |
| Liner Material | PTFE |
| Shell Material | Steel |
| Dynamic Load Capacity | 1,000 lbs. @ 35 rpm |
| For Load Direction | Radial |
| Shaft Mount Type | Press Fit |
| Lubrication | Not Required |
| Temperature Range | -195° to 280° C |
| RoHS | Not Compliant |

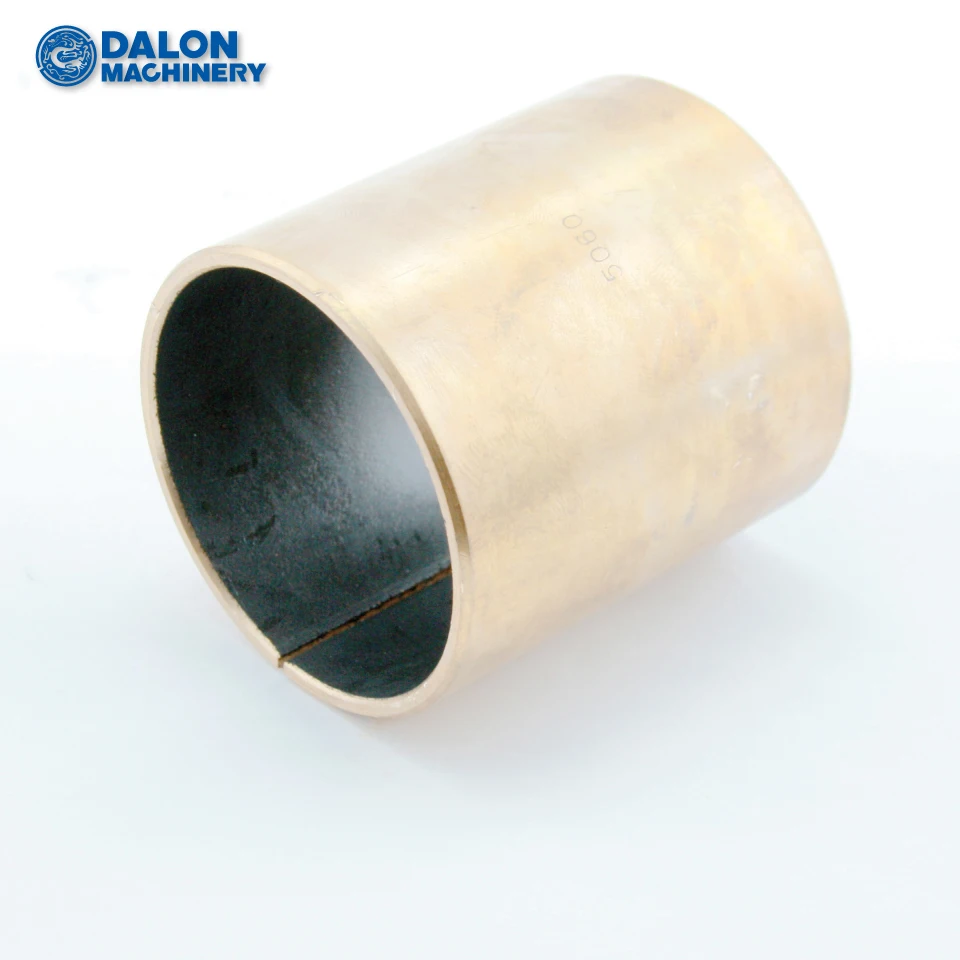

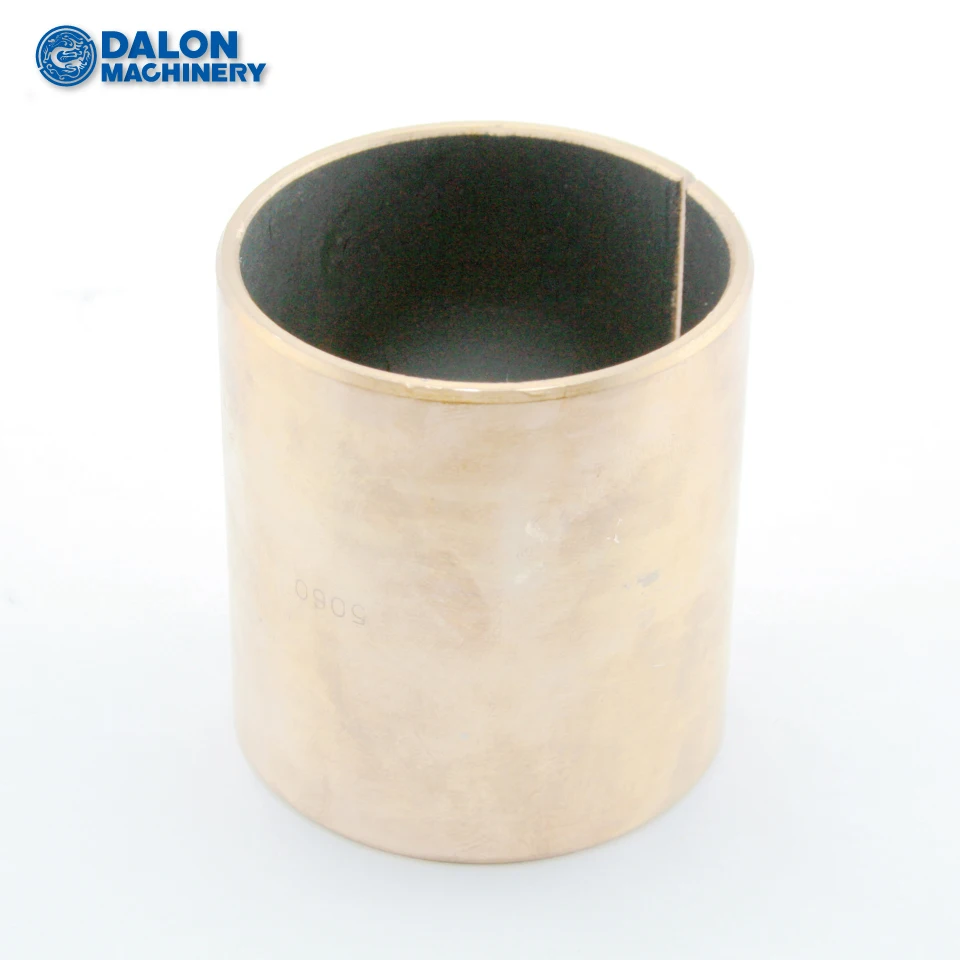

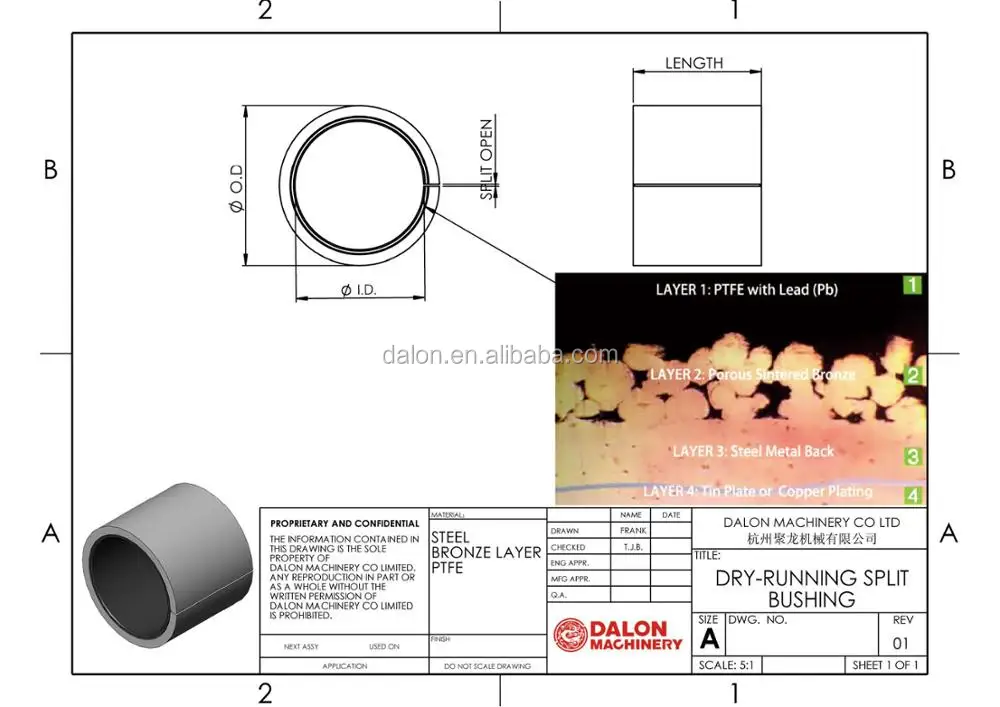

Dry-Running Sleeve Bearing with Steel Shell made by:
PTFE-Lined TIN Bronze, for Shaft Diameter Diameter from 1.5mm to 300mm .A metal shell adds strength to these bearings.

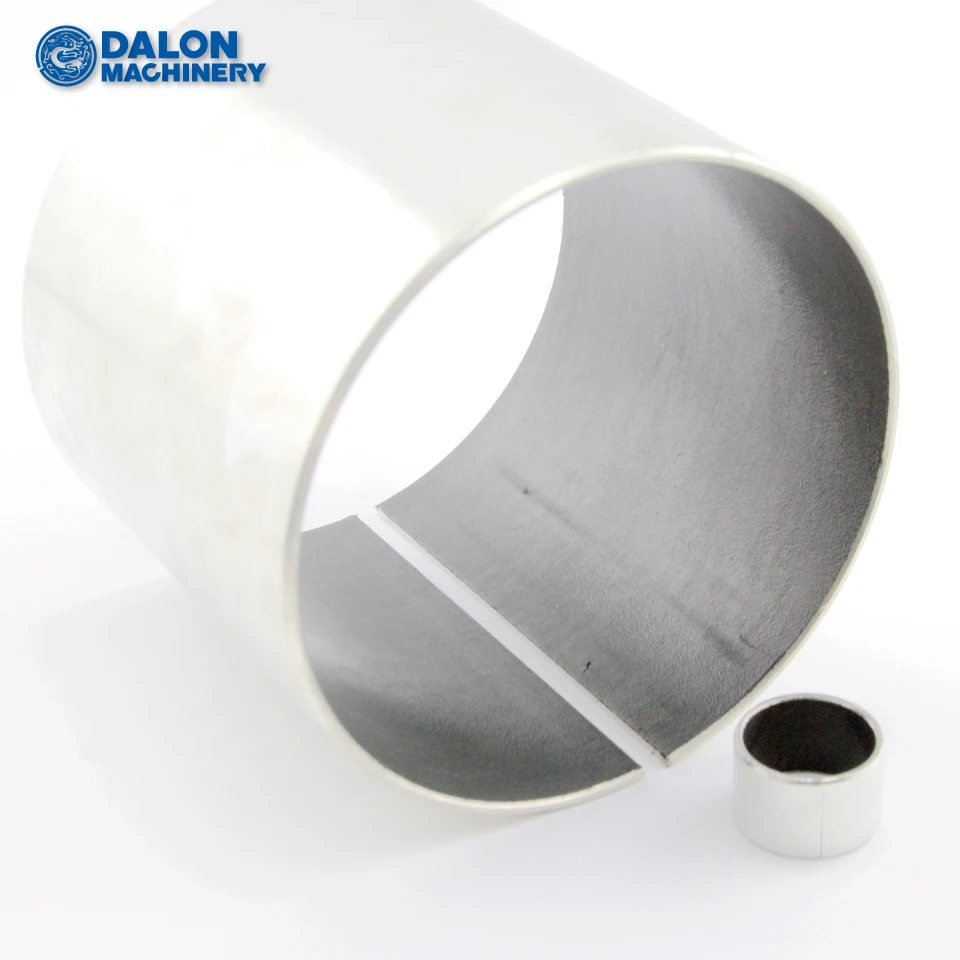

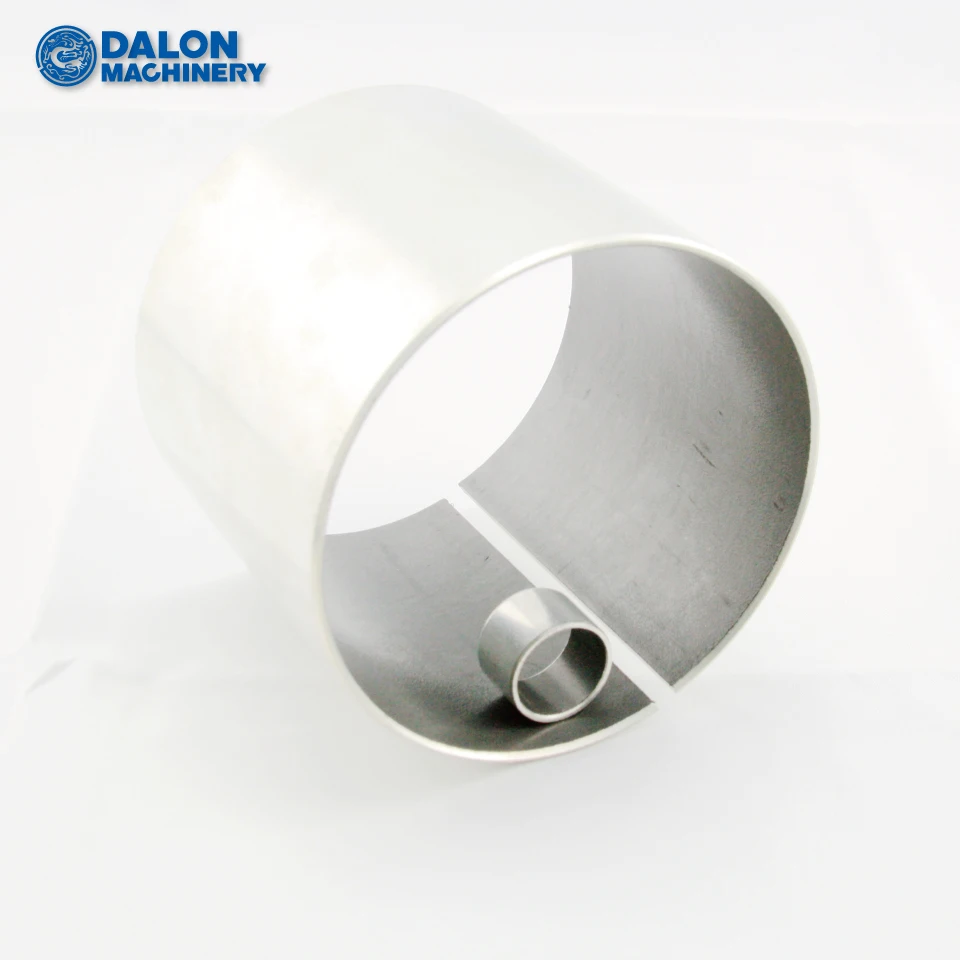

PTFE-lined bronze bearings with steel shell have a slit running along the length of the bearing that allows you to slip fit them onto a shaft.
Note: Dynamic load capacity is the maximum load a bearing can withstand at a given shaft speed. Please contact DALON for more details
The manufacturing process of sintered components is certified as ecological, because the material waste is very low, the product is recyclable, and the energy efficiency is good because the material is not molten.
1.RAW MATERIAL / MIXING
Sinter powders can be of pure metal (iron, copper), or alloyed powders (bronze, steel, etc.)mixed with different alloying elements, depending on the composition of the final material (such as graphite, nickel, copper,…), with an organic solid lubricant.
2.TOOLING/COMPACTING
The powder mixture is compacted inside the tooling, which has the negative shape of the final part. The tool is an element of a very high precision, and high durability. The powder is filled into the tool cavity of a mixer by gravity, and pressure within 200 to 1500 MPa is applied onto it depending on the final density to be achieved.
3.SINTERING/INSPECTION
Sintering in continuous furnaces, under controlled speed and at an atmosphere with controlled chemical composition by temperatures between 750 and 1300°C depending on the material
The result of these basic operation is a metallic part with a certain micro-porosity, high dimensional precision, and perfectly functional.
DALON Self-lubricating bearings have some advantages compared to other types of bearings:
– Reliability. The constant oil presence eliminates the risk of seizure, and allows the bearing to work during thousands of hours without wear.
– Economy. Maintenance-free, no need for lubricants.
– Performance. Able to work under loads of up to 10 MPa, and speeds up to 2.5 m/s. The maximum working PV is is the range of 2.45 N/mm2•m/s, but can be surpassed in special cases. The dimensional precision is very high (up to IT 5 in diameter), and produces extremely low noise.
The main applications for DALON self-lubricating bearings are:
1. Automotive electrical or mechanical equipment, such as:
– Starters.
– Active driving elements: Brakes, steering, transmission, shock absorbers, …
– Cooling: Radiator, fans, cooling systems, ….
– EGR systems.
– Fuel pumps.
– Comfort and Security: Wipers, window regulation, mirrors, seats, sunroofs, …
2. Universal or customized electric motors and gearboxes of medium-low power.
3. Linear and rotary actuators, pneumatic, hydraulic and electromagnetic.
4. Household appliances: Washing machines, fans, extractor fans, shaving machines, depilators, juicers, rostisserie, air conditioning, handtools, coffee machines, wishking machines, vacuum cleaners, lawnmowers, boilers, etc.
5. Home appliances: Locks, garage doors, awnings, roller shutters, sliding windows, office swivel chairs, trolley rolling wheels, hinges, furnitures, gardening, etc.
6. Industrial: Bottling machinery, carpenter machinery, assembly machinery in general, automation, key duplicating machines, sewing machines, industrial vehicles, electrical switchgears, mobility, medical, catering, farm machinery, toys, etc.
