ZDW43J 8*1600 High quality cut to length shear machine
- Category: >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (60719204137):
Product Overview
Description
Product Description
Machine Overview
This Machine Used To Spread The Steel Coil, Leveling And Cut To The Request Size. After Manual Feed Into The Leveling Machine, As The Cutting Size, The Unit Will Finish The Leveling And Cutting Action.
Equipment Combination.
1).Decoiler---2).Side Guiding Unit---3).Leveling Machine---4).Cutting Machine---5).Stack Table---6).Electric System
This Machine Used To Spread The Steel Coil, Leveling And Cut To The Request Size. After Manual Feed Into The Leveling Machine, As The Cutting Size, The Unit Will Finish The Leveling And Cutting Action.
Equipment Combination.
1).Decoiler---2).Side Guiding Unit---3).Leveling Machine---4).Cutting Machine---5).Stack Table---6).Electric System
Equipment Structure And Function:
(1). Uncoiler: Used To Support The Coil , Bearing 30 Tons. By The Support Shaft, Frame And Other Components. Sent To Board The First Artificial Leveling Machine, Leveling Machine Driven By The Coil To Start.
(2). Side Guiding: Sheet To Prevent Run-Time Deviation, Both Sides Of The Sheet Width Direction With Vertical Guide Rollers, Guide Roller Frame Fixed To The Respective Sliding Seat, Through The Hand Wheel By The Screw-Nut Fushi Slide In The Lead Column Along The Width Direction, To Accommodate Different Width .
(3). 11 Rollers Leveler: Pinch Steel And Steel Plate For Correction. From The Base, Frame, Sliding Seat Rolls, Leveler Rolls 11 ( Under 5 On 6 ) , Motor And Other Components To Enhance The Pressure Adjusting Mechanism . By The Motor Drive Gear Reducer, So That The Next Row Of Rollers Are Turning. Adapt To The 2-8mm Thickness, 1800mm Width. Upper Straightening Rolls (5) Electric Lift, Pressure.
(4). Cutting: Down To Size After Shear. Mechanical Shears.
(5). Materials Sets: Carry On The Plates After Shearing
(1). Uncoiler: Used To Support The Coil , Bearing 30 Tons. By The Support Shaft, Frame And Other Components. Sent To Board The First Artificial Leveling Machine, Leveling Machine Driven By The Coil To Start.
(2). Side Guiding: Sheet To Prevent Run-Time Deviation, Both Sides Of The Sheet Width Direction With Vertical Guide Rollers, Guide Roller Frame Fixed To The Respective Sliding Seat, Through The Hand Wheel By The Screw-Nut Fushi Slide In The Lead Column Along The Width Direction, To Accommodate Different Width .
(3). 11 Rollers Leveler: Pinch Steel And Steel Plate For Correction. From The Base, Frame, Sliding Seat Rolls, Leveler Rolls 11 ( Under 5 On 6 ) , Motor And Other Components To Enhance The Pressure Adjusting Mechanism . By The Motor Drive Gear Reducer, So That The Next Row Of Rollers Are Turning. Adapt To The 2-8mm Thickness, 1800mm Width. Upper Straightening Rolls (5) Electric Lift, Pressure.
(4). Cutting: Down To Size After Shear. Mechanical Shears.
(5). Materials Sets: Carry On The Plates After Shearing
(6). Electric System: System Includes Console, Cabinet.
Unit Scope | ||||
1 | Coil Materials | Hot Rolled Plate Q235-A (Account As The Strength Of Materials) | ||
2 | Coil Thickness | 2-8MM | ||
3 | Coil Width | 800-1600MM | ||
4 | Coil Weight | ≤28T | ||
Unit Parameter | ||||
1 | Leveling Speed | ～8m/MIN | ||
2 | Leveling Accuracy | 2MM/M (Related With Original Shape) | ||
3 | Scale Length Tolerance | ±5MM | ||
4 | Main Motor Power | 30KW | ||
5 | Unit Area | (L×W)About 26M×5.5M | ||
6 | Unit Working Direction | (Face To Console) From Right To Left | ||

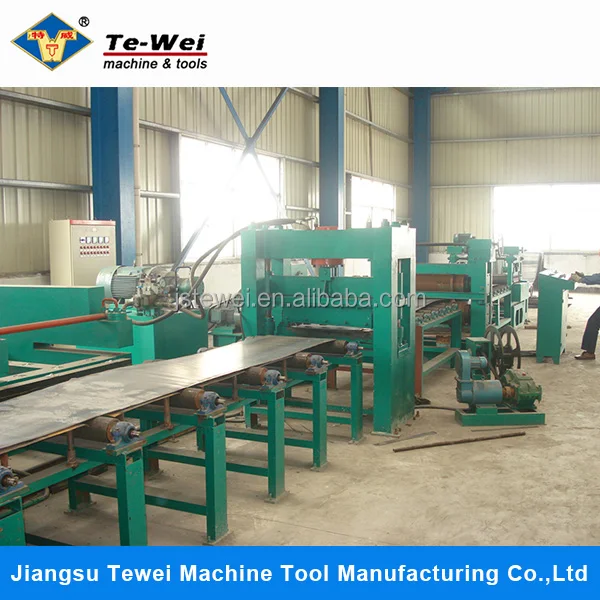

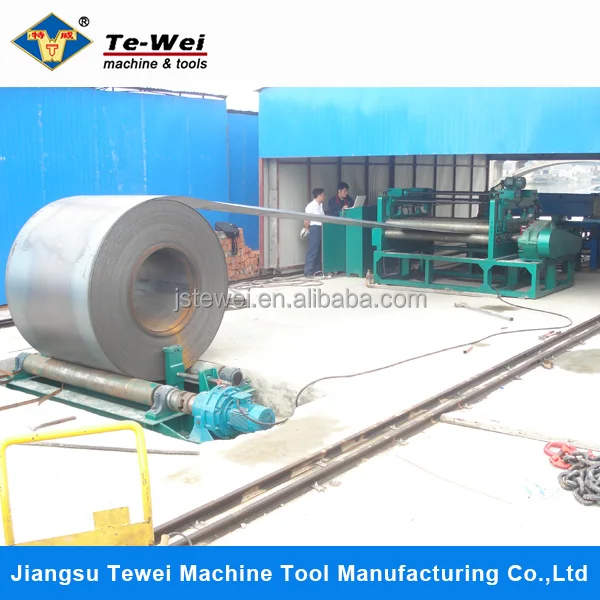

Detailed Images
Product Paramenters
SN | Name | Note | ||
1 | Coil Thickness | 2～8MM | ||
2 | Max Processed Width | 1600MM | ||
3 | Materials | Q235-A ΣB≤450MPA | ||
4 | Coil Weight | ≤28000KG | ||
5 | Coil Diameters | Ø800～Ø1600MM | ||
6 | Plate Open Speed | 125MM/S | ||
7 | Motor | Model | Y200l2-6 | |
Power | 30KW | |||
Rev. | 960R/MIN | |||
8 | Leveling Accuracy | ≥2MM/M² | ||
9 | Machine Weight | 13500KG | ||
Spare Parts Suppliers
SN | Name | Spec. | Qty | Supplier |
1 | Reducer | ZQ500 | 1set | TAIXING |
2 | Main Motor | 30 KW | 1set | SIEMENS BADE |
3 | Adjustable Motor | 3 KW | 1set | SIEMENS BADE |
4 | Coil Motor | 4 KW | 1set | SIEMENS BADE |
5 | Shear Motor | 5.5 KW | 1set | SIEMENS BADE |
6 | Shear Blade | 2032 MM | 1set | SHANGHAI |
7 | Bearing | Full Set | 1set | HAERBING |
8 | Electric Components | 1set | SCHNEIDER |
