China factory Pfsence Intel J1900 4 lan nic ethernet ports 4 rj45 LAN Gateway mini pc portable mini linux server
- Category: >>>
- Supplier: Shenzhen Zunsia Intelligent Technology Co. Ltd.
Share on (60719238564):
Product Overview
Description
nano itx mini pc fanless quad core firewall mini pc with 4 ethernet ports motherboard
Product Description
China factory Pfsence Intel J1900 4 lan nic ethernet ports 4 rj45 LAN Gateway mini pc portable mini linux server
Advantage:
1.All aluminium shell,good at heat dissipation
2.Compact embedded system design;Fanless,completely mute.
3.Sealed design,dust-proof;shock-proof,very steady.
4.Support Gigabit Ethernet and WIFI.
5.Front&Rear panel provide comprehensive I/O functions,suitable for the diversified embedded application.
Specification:
Case | Name | N-BOX |
Colour | Black | |
Size | 126*134mm | |
Material | 6063 | |
Motherboard | Chipset | Baytrail-I/D/M serial processor single chip |
CPU | Support Baytrail-I/D/M serial Processor (J1900 J1800) | |
Memory | Singel channel DDR3 1066/1333/1600MHz,Max support 8GB Ram | |
Graphics Card | Intel HD Graphics | |
Audio Card | Integrated Realtek ALC662 HD | |
Expansion Socket | 1*MINI-PCIE socket,can add wifi,3G module(only support USB Signal Equipment) | |
1*MINI-SATA socket,can add SSD | ||
Storage | HDD | 2.5inch Laptop HDD |
SSD | SSD | |
EMMC | 32/64/128G(Optional) | |
Function | Display Outputs | HDMI,VGA |
Network Outputs | 4*Intel I211 Lan card | |
USB | 1*USB2.0,1*USB3.0 | |

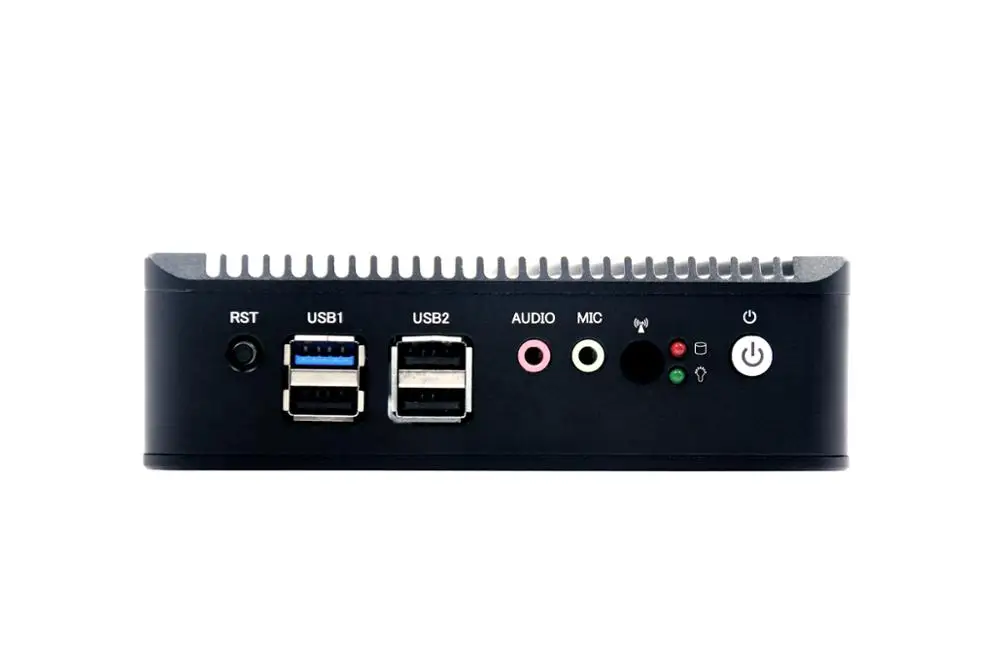

Front I/O ports | 1*Power Switch(with indicator light),1*Restart button,1*HDMI,1*VGA,2*USB | |

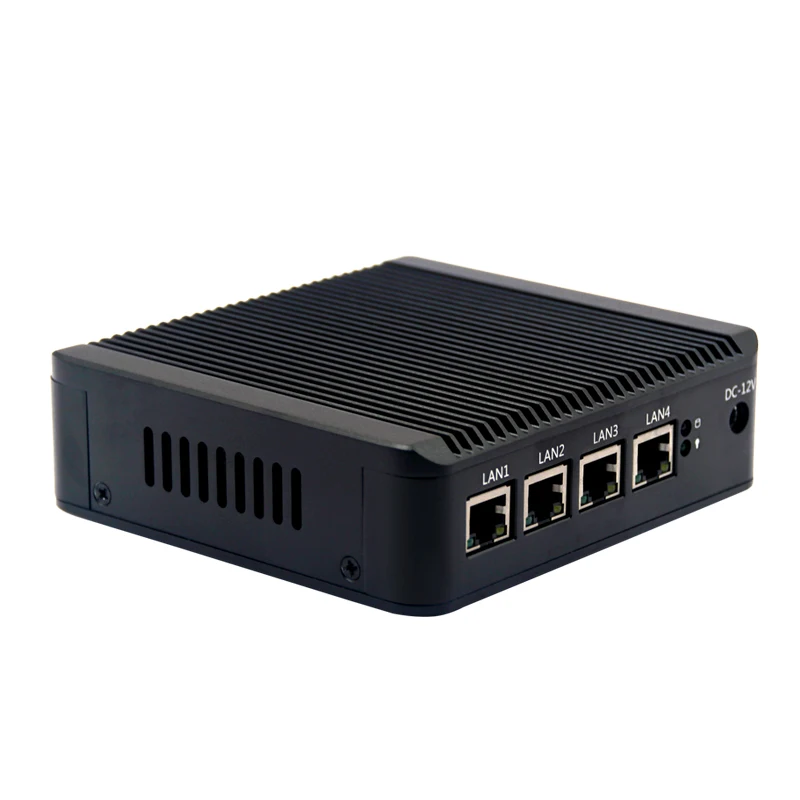

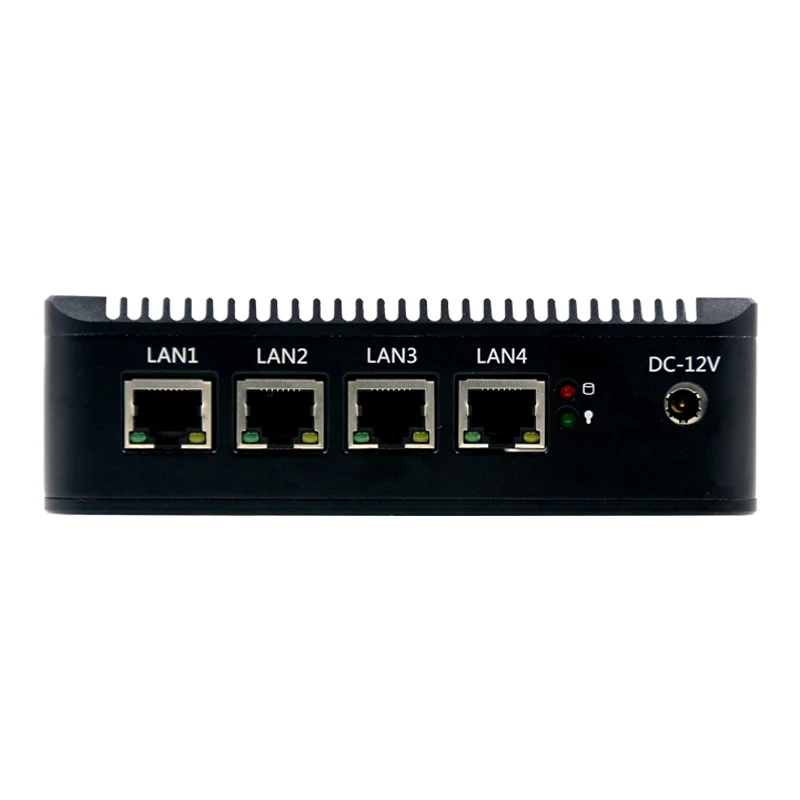

Rear I/O ports | 4*Intel I211high performance Gigabit Ethernet Port,1*Power indicator light,1*HDD indicator light,1*DC power supply | |
Working temperature | -10~60℃ | |
Operating System | Windows7,Windows 8,Windows8.1 Windows10,linux | |
Power Supply | DC12V |
