Новый дизайн дизельный двигатель мини машина для погружения свай набивная машина
- Category: Pile Driver >>>
- Supplier: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.
Share on (60719247099):
Product Overview
Description

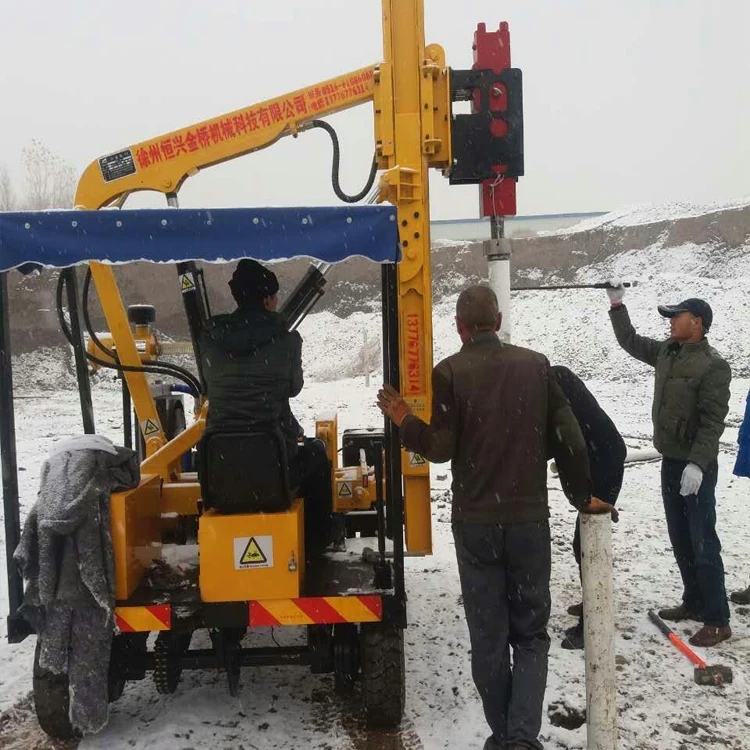

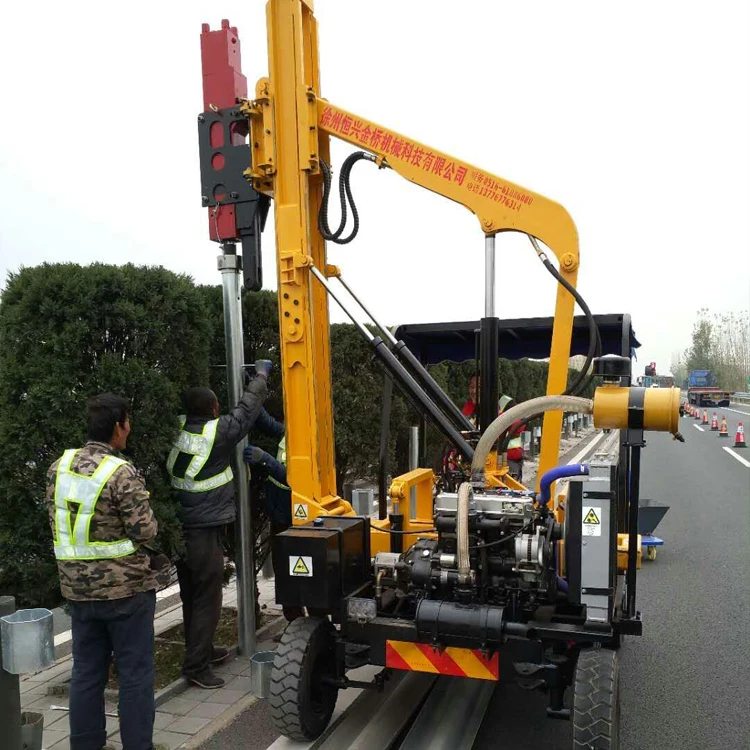

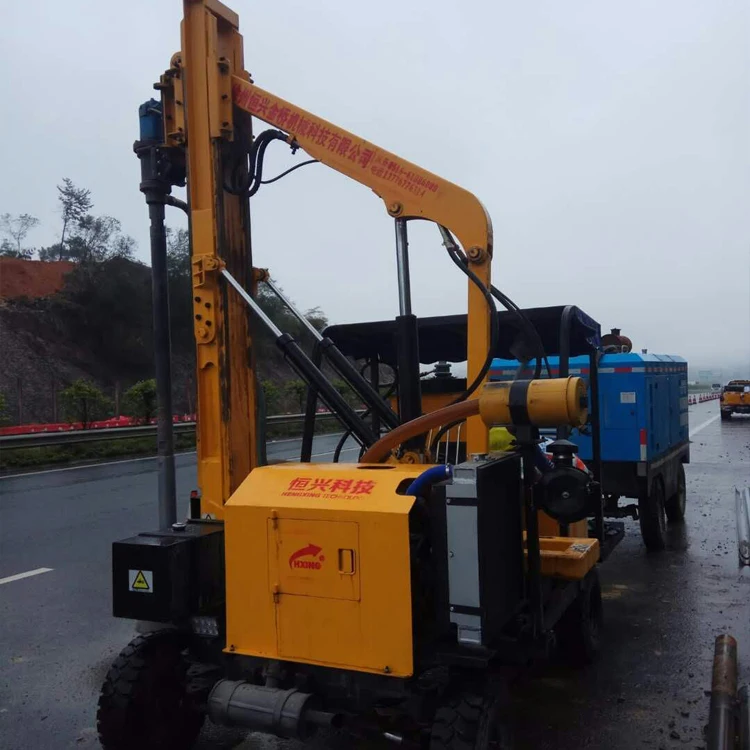

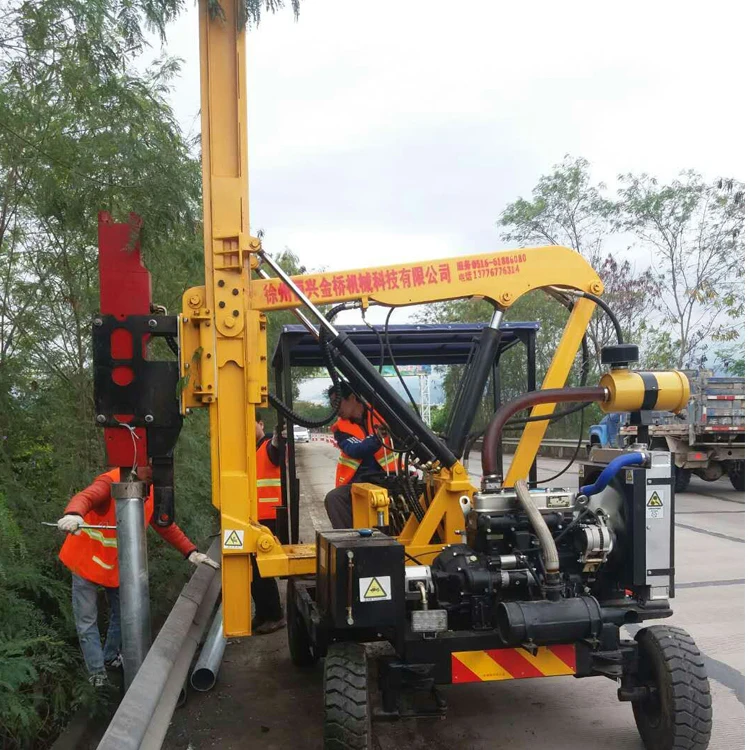

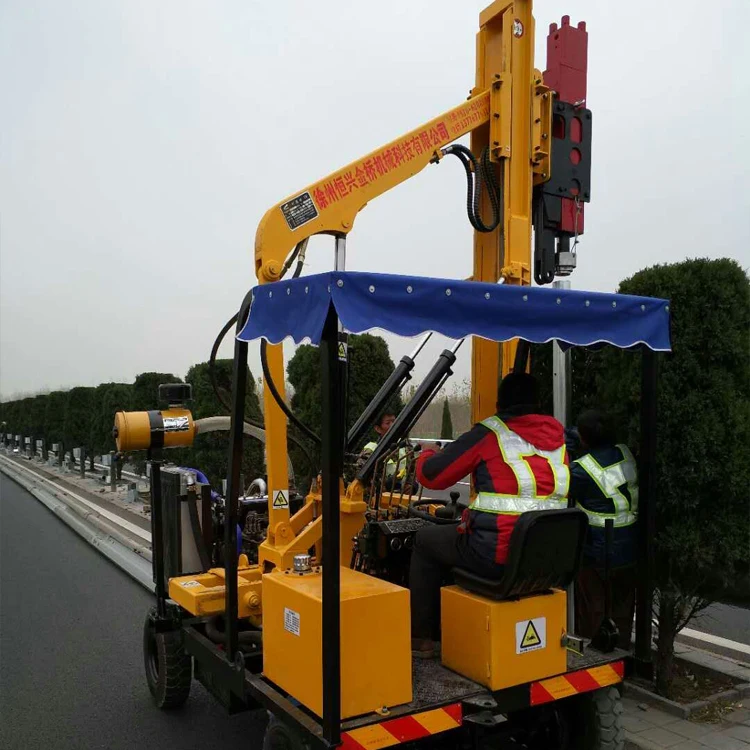

diesel engine mini pile driver machine
pile driver
pile driver machine
mini pile driver machine
Pile Driver 2017
| TECHNICAL PARAMETERS | |||
| NO | Item | Value | Unit |
| 1 | Dimension(L*W*H) | 2600*2250(Working2650)*2550(Folded 3900) | mm |
| 2 | Chassis width | 1600 | mm |
| 4 | Hdraulic hammer size | YC230/YC260/YC360 | |
| 5 | Hdraulic hammer working flow rate | 40-70/50-90/50-90 | l/min |
| 6 | Hdraulic hammer working pressure | 9-11/11-14/12-15 | Mpa |
| 7 | Impact frequency | 500-900/400-800/400-800 | bpm |
| 8 | Hdraulic hammer working route | 700-2700 | mm |
| 9 | Rod diameter | 68/75/85 | mm |
| 10 | Hdraulic hammer impact power | 4-7/6-8/7-14 | T |
| 11 | piling efficency | 1500/2000/2500 | mm/min |
| 12 | Engie power | 36.8 | KW |
| 13 | diesel engine speed (max) | 2500 | r/min |
| 14 | Weight of diesel engine | 270 | kg |
| 15 | Walking motor torque(max) | 1950 | Nm |
| 16 | Rotary motor torque(impact drill) | 800-1800 | Nm |
| 17 | Mast route | 2000 | mm |
| 18 | Drilling depth | 1700 | mm |
| 19 | Drilling diameter | 0-300 | mm |
| 20 | Angle of sliding rail rack | left30/right10 | ° |
| 21 | Angular adjustment of frame(forwards/backwards) | ±10 | ° |
| 22 | Hydraulic system pressure | 16-20 | Mpa |
| 23 | Hydraulic system flow | 63-80 | ml/r |
| 24 | Gear pump | 540-550 | ml/r |
| 25 | Traveling speed | 10000-15000 | m/h |
| 26 | sliding route(left/right) | 0—450 | mm |
| 27 | Grade ability | 30 | ° |
| 28 | Hydraulic tank(L*W*H) | 600*360*400 | mm |
| 29 | Model | HX26D-1,-2,-3,-4,-5 HX36D-1,-2,-3,-4,-5 | |
