China Factory Applications For A Tube End And English Wheel Forming Machine
- Category: English Wheel >>>
- Supplier: Jiangsu Hefeng Mechanical Making Co. Ltd.
Share on (60719249203):
Product Overview
Description
Product Detail

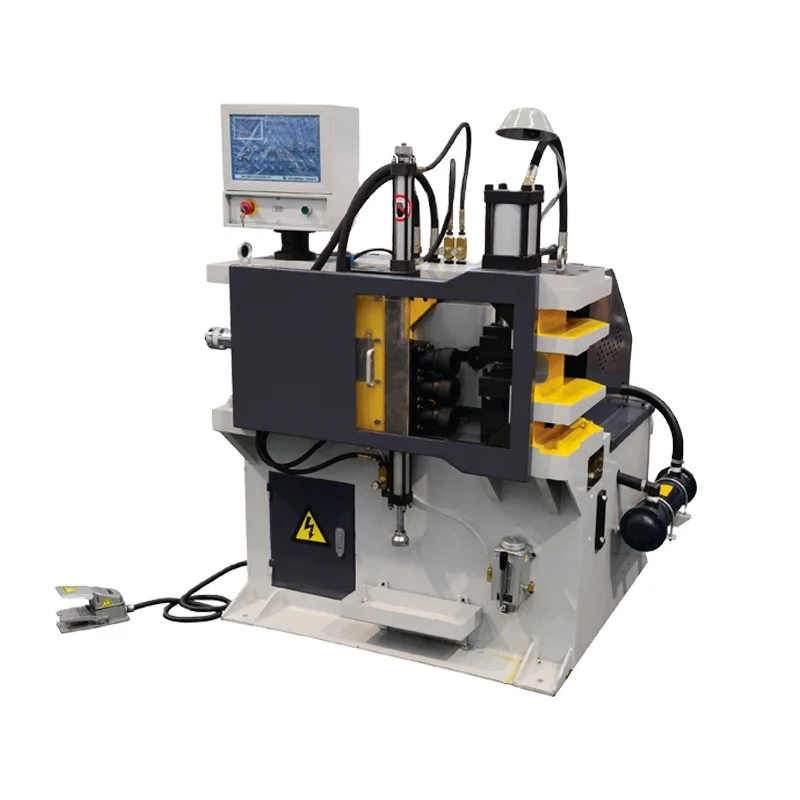

China factory applications for a tube end and english wheel forming machine
Suggestion&Sample
|
Machine Model |
Units |
SG40NC |
SG40NCⅡA |
SG40NCⅢA |
|
Max Pipe O.D. x W.T. |
mm |
40x1.5 |
40x1.5 |
40x1.5 |
|
Max processing length |
mm |
110 |
110 |
60 |
|
Oil pressure(Mpa) |
/ |
12 |
12 |
12 |
|
Pushing force |
T |
8.5 |
8.5 |
10.5 |
|
Processing speed |
Sec |
5-6 |
5-6 |
5-6 |
|
Size |
mm |
1270*930*1450 |
1270*930*1400 |
1350*1200*1600 |
|
Weight |
kg |
755 |
850 |
1225 |
|
Remark: The max processing length can be customized according to customers requirement. |
||||
Related Product
Company Profile
Certificate&Logistic
Contact Us
FAQ
|
Q: Are you a manufacturer or trading company? |
| A: We are a manufacturer. We focus on metal pipe/tube processing machinery for over 30 years. |
|
Q: How to choose the pipe/tube bending machines? |
|
A: You have to inform us following details:Max. outside diameter,Wall thickness,Bending radius (CLR), The pipe material,The drawings if possible |
|
Q: What is the biggest bending capacity you could offer? |
|
A: As of now the biggest bending capacity is 168mm outside diameter for cold bending. |
|
Q: Where is your factory located? How can I visit there? |
|
A: Our factory is located in Zhangjiagang city (beside to Shanghai). You can fly to Shanghai Hongqiao or Wuxi airport directly. All our clients, from home or abroad, are warmly welcome to visit us! |
|
Q: How does your factory do regarding quality control? |
|
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained SGS, CE certificate.
|
